My first full February-Full-of-3D-Prints (FFo3DP)…

IMG_7280

(Note: This post is being posted out of order.. the blog is still technically behind to 2013, but I’m jumping forward to February of 2014 for this post. Today is February 3rd 16th, 2015. Yeah…)

During February of 2014, I printed something on my 3D printer every single day.

Way back in 2010 I remember reading about people printing something every single day of February. The result of several Google searches yields the site thing-a-day (thing-a-day.com redirects there). I now more clearly remember that people were tagging things with thing-a-day on thingiverse, so this wasn’t just a tradition of printing things, but designing and uploading them.

Whatever – these days it’s tough enough for me to find time to PRINT things every single day for whole month, so that’s what I did. (Some days I even snuck in more than one print)

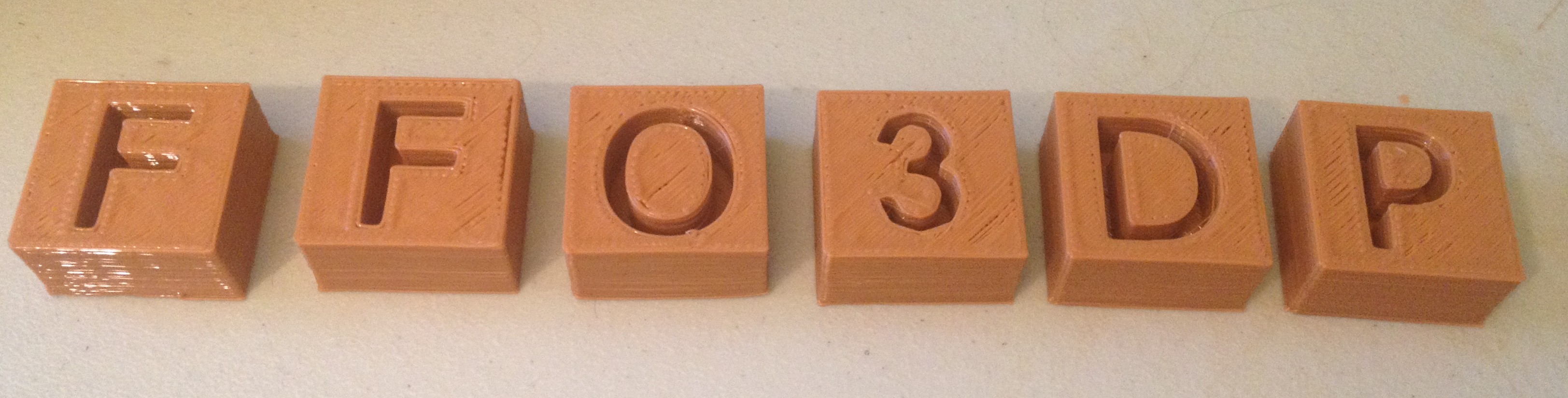

Here’s my diary of what I printed on each day of February 2014. I recommend trying at least this version of the (new) tradition if that’s all you can do, although maybe next year I’ll try designing something new every day (but I doubt I’ll have the time for that – I could barely do this!). I dub this print-instead-of-design tradition FFo3DP (February Full of 3D Prints). #FFo3DP

IMG_7280

(It’s a pity that you can’t tag ‘makes’ on thingiverse or I’d tag all of mine #FFo3DP when I eventually upload them).

(Note: this is a very, very long post, with an insane amount of pictures. You might want to just let it load all of the images first, then come back and read. 🙂 )

Minecraft Pickaxe, Mini Apple II, PL1Q Vampire Arm – February 1, 2014

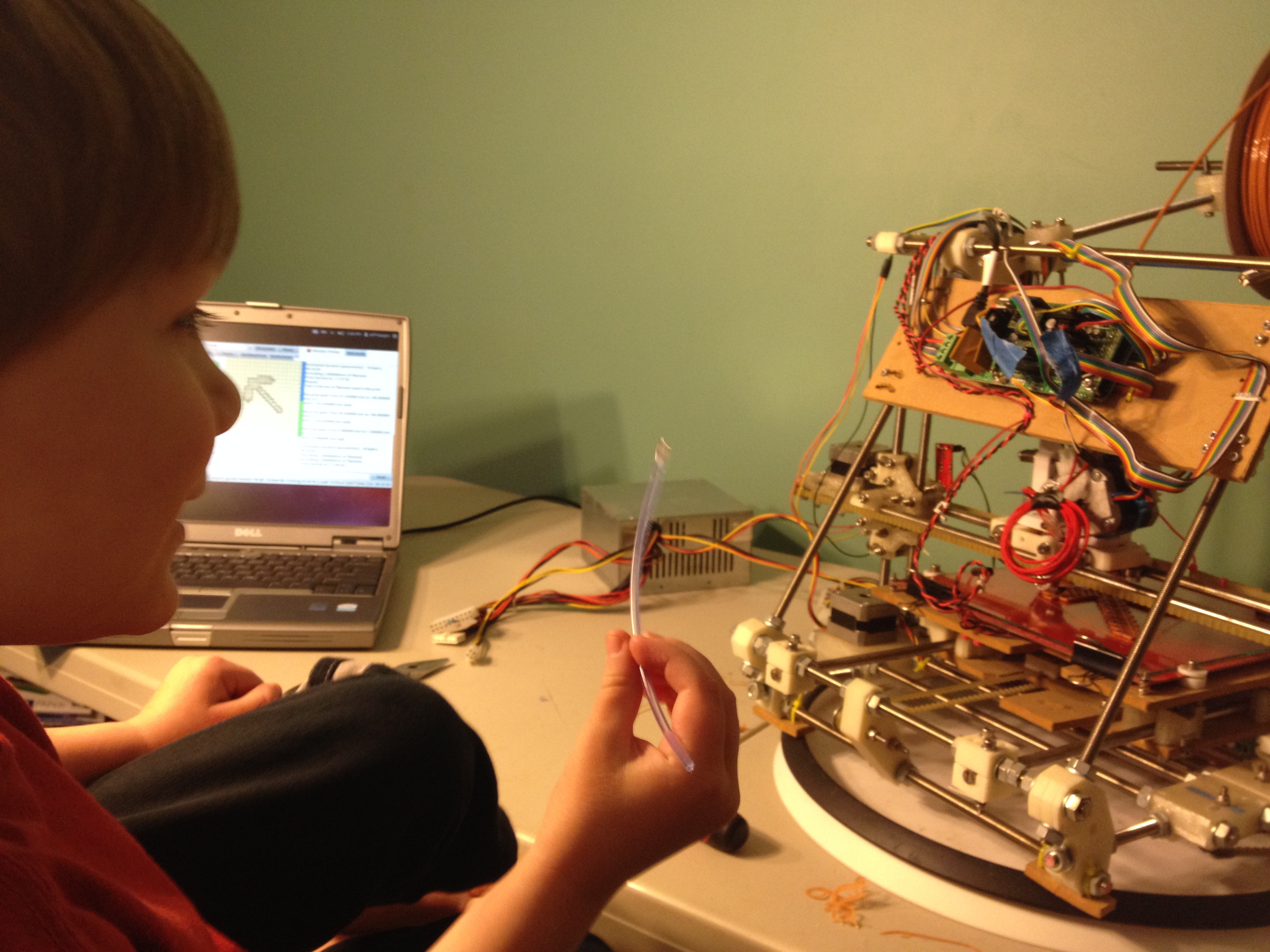

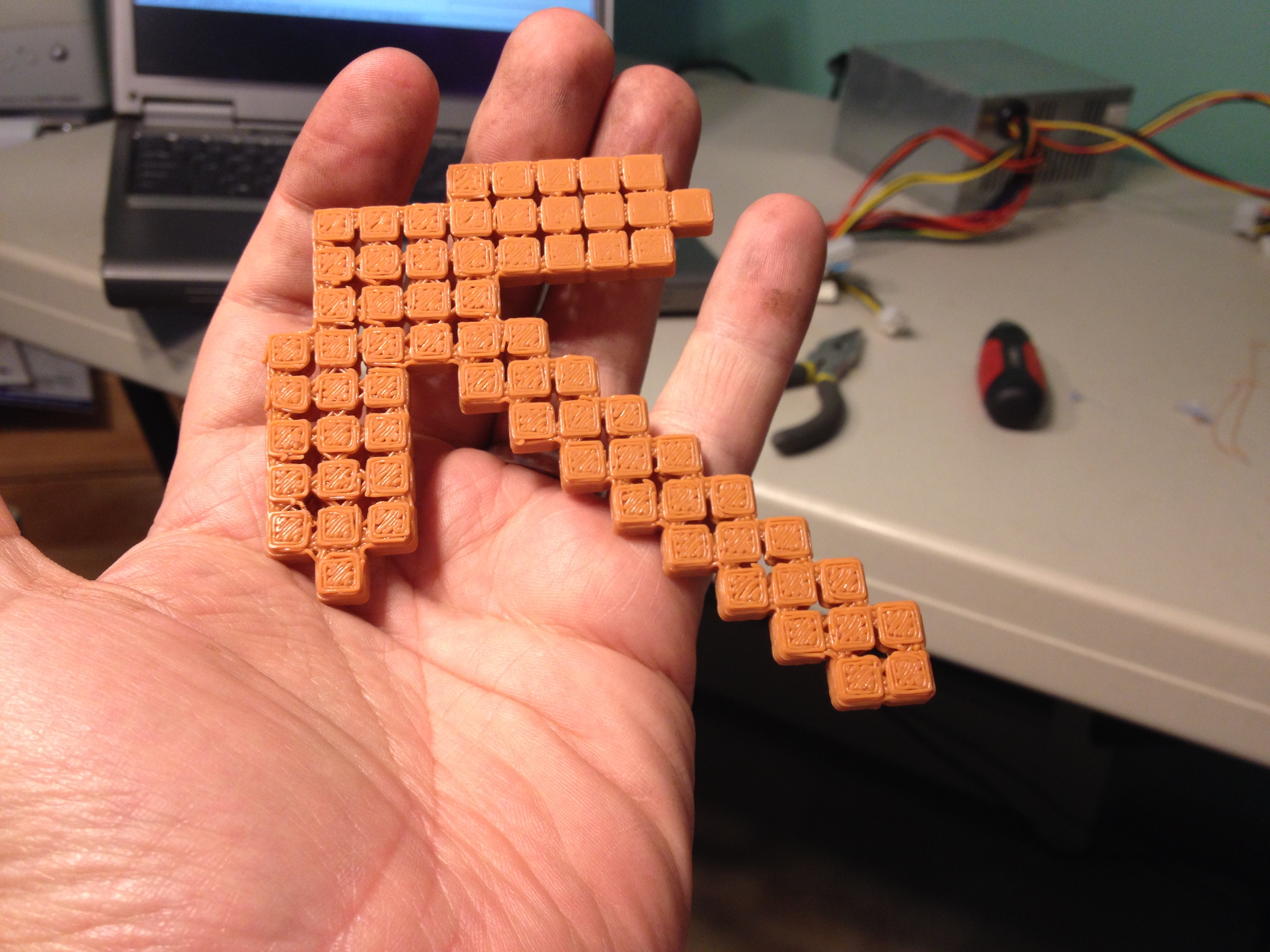

First I made another Minecraft Pickaxe (I’d made a poor quality one at home before, and an incredible one at Makerfaire NY 2013 which I gave to a sad kid, and another poor quality one at home, so I needed a good one).

IMG_6760

IMG_6761

IMG_6775

IMG_6777

Initially thinking I might have “extras” piled up for if I had days I couldn’t print, I printed more than one thing that day. I soon realized that would be cheating, and that I needed to force myself to print something each and every day (one day I even waited until after midnight so it was the next day before printing something). 🙂

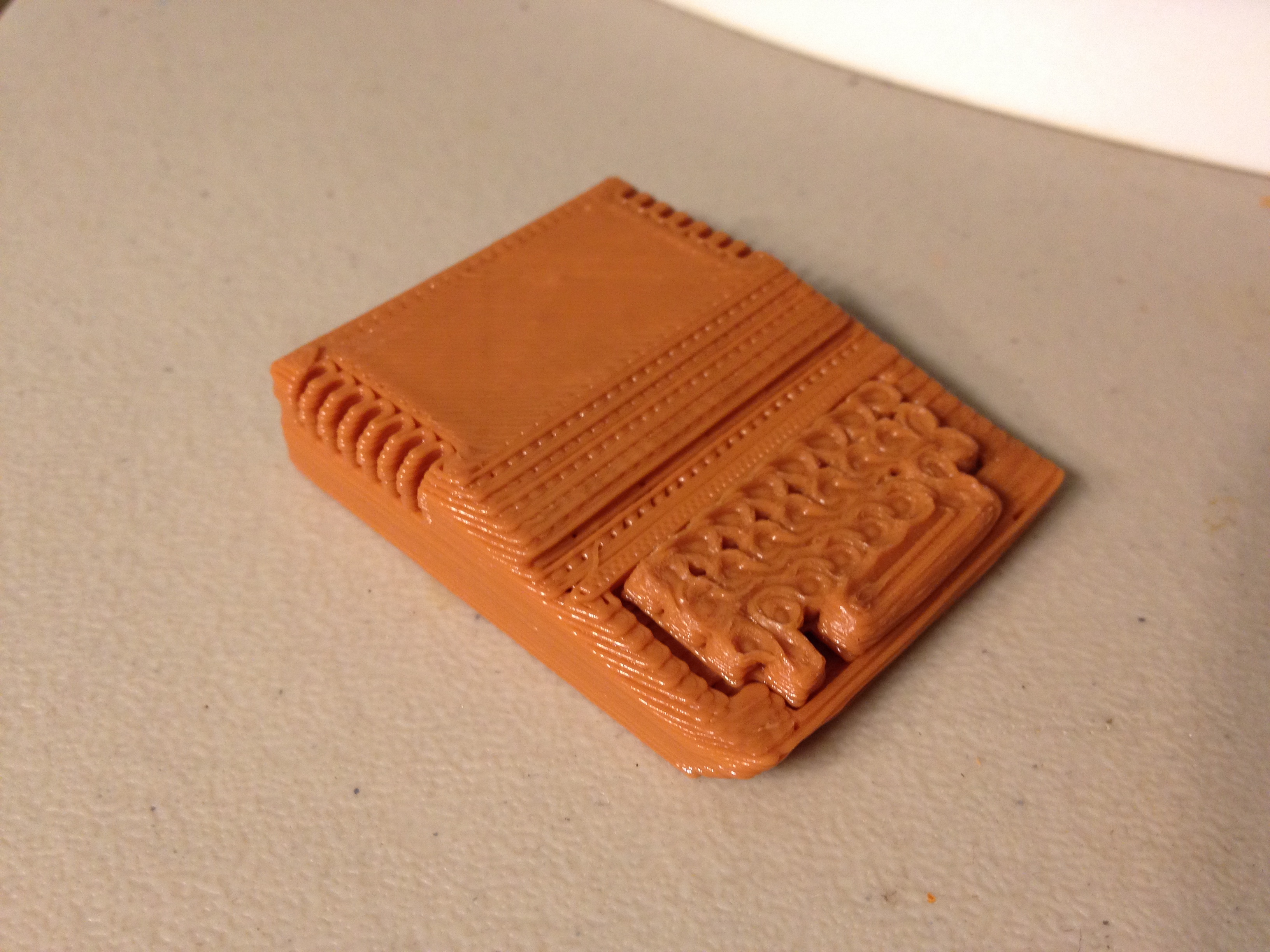

So I also printed this Mini Apple II model, which prints as two pieces (the case and the keyboard).. this was my 3rd computer ever:

IMG_6785

IMG_6798

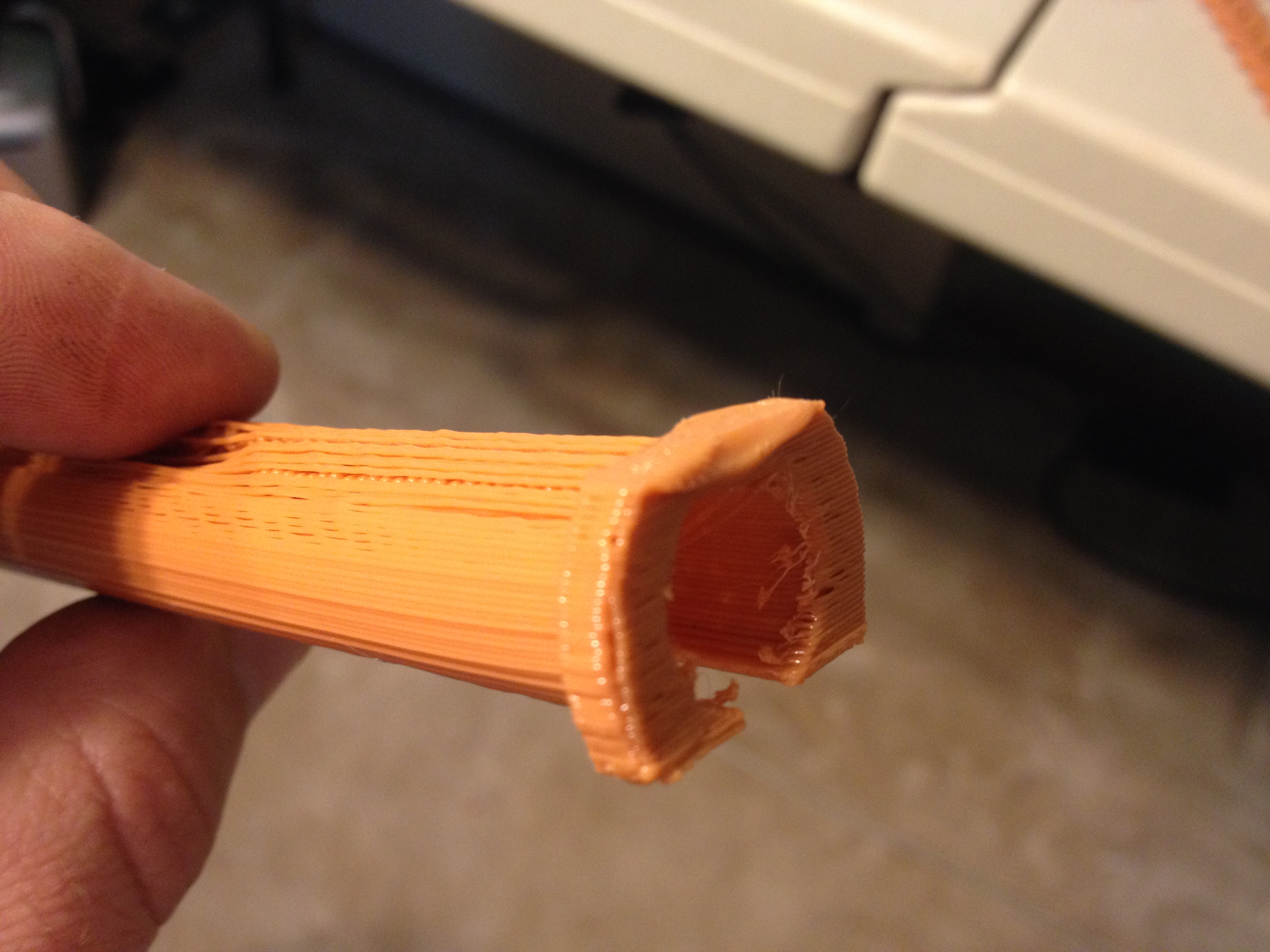

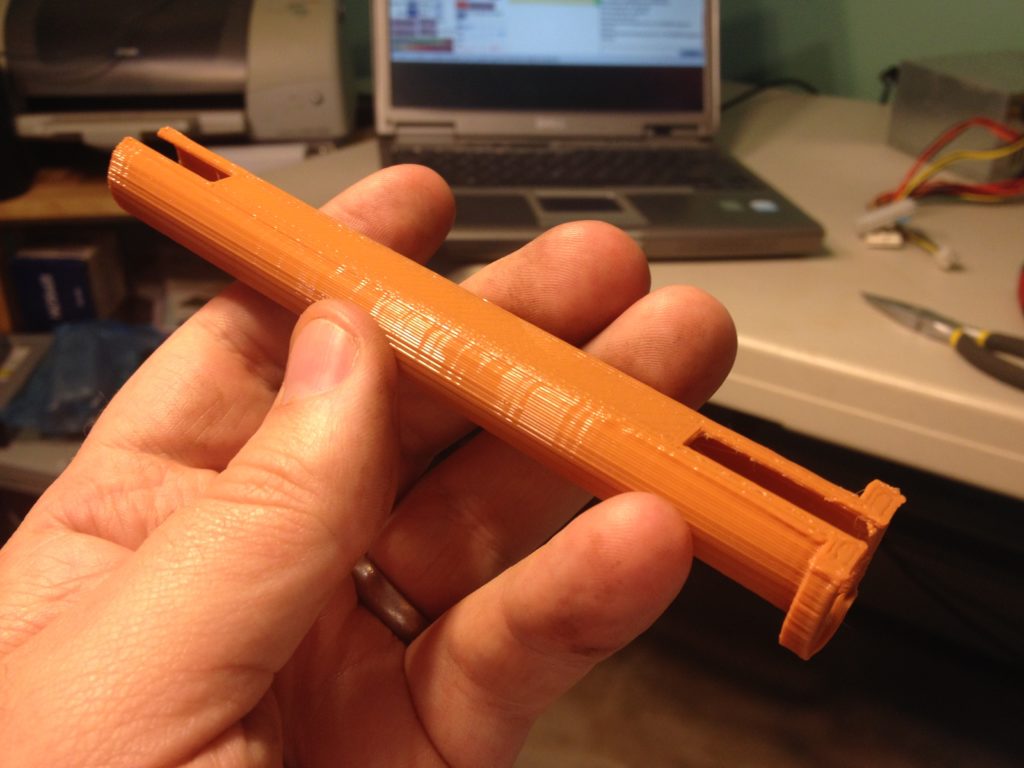

I also tried printing out an extra arm for my quadcopter in a different color (which I could use for the “front”), but it didn’t turn out well because of a gap on the top..

IMG_6781

IMG_6790

IMG_6791

Game Card Holder, Catan Piece Holder, Arduino Uno + Breadboard Mount – February 2, 2014

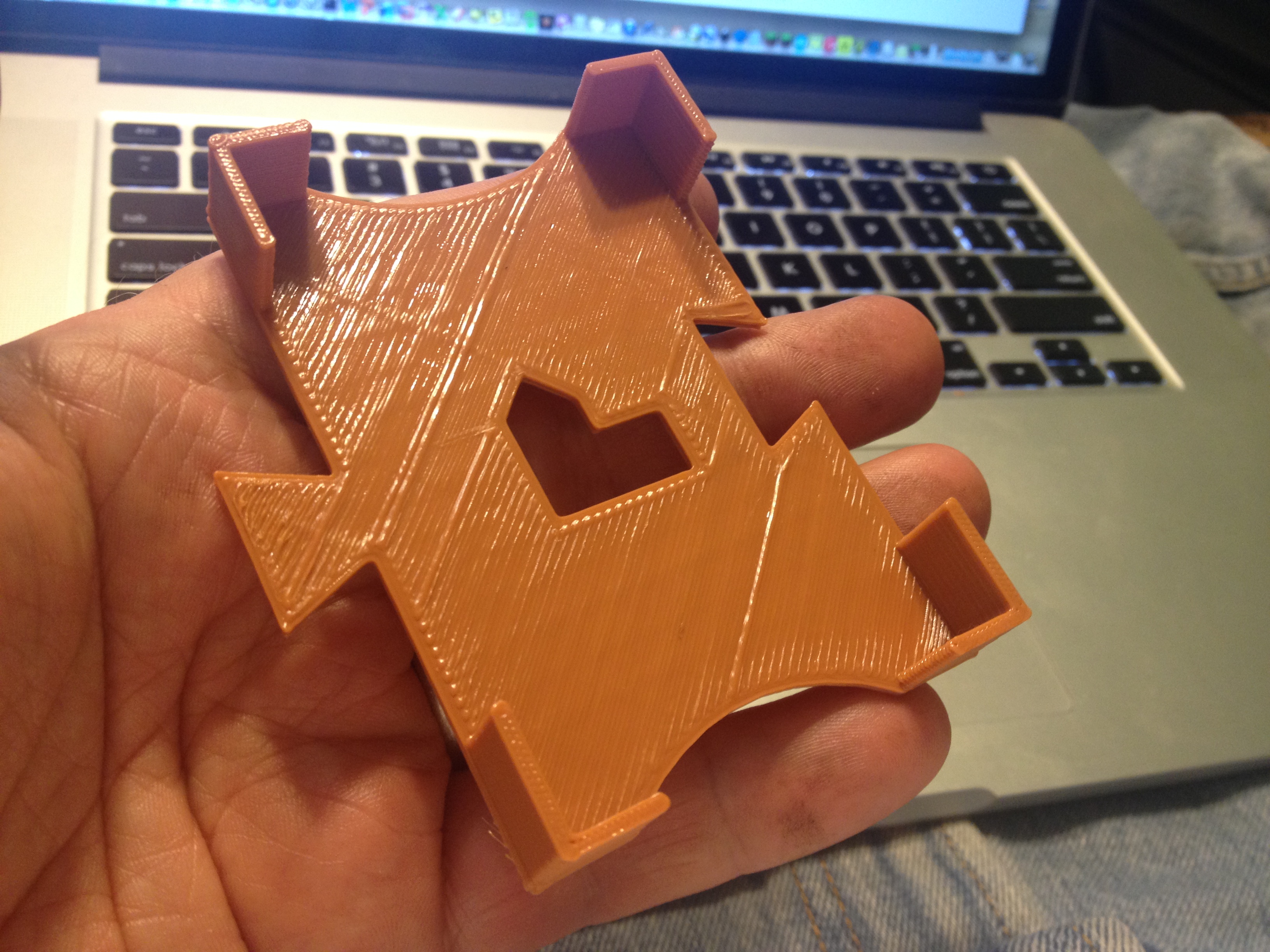

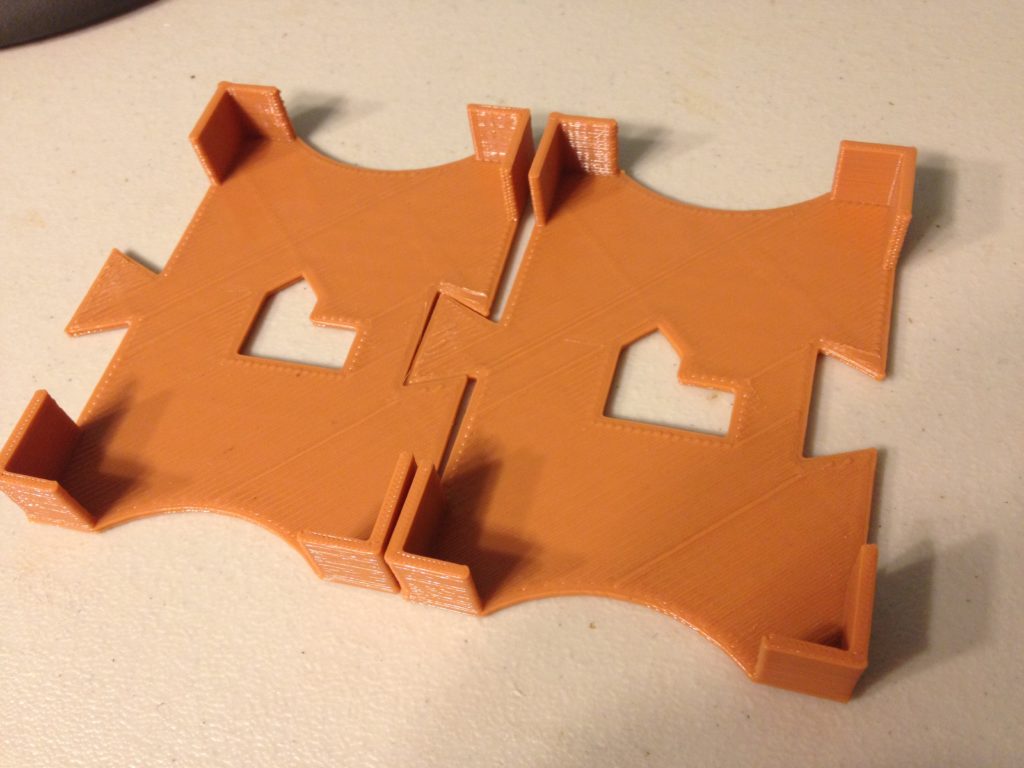

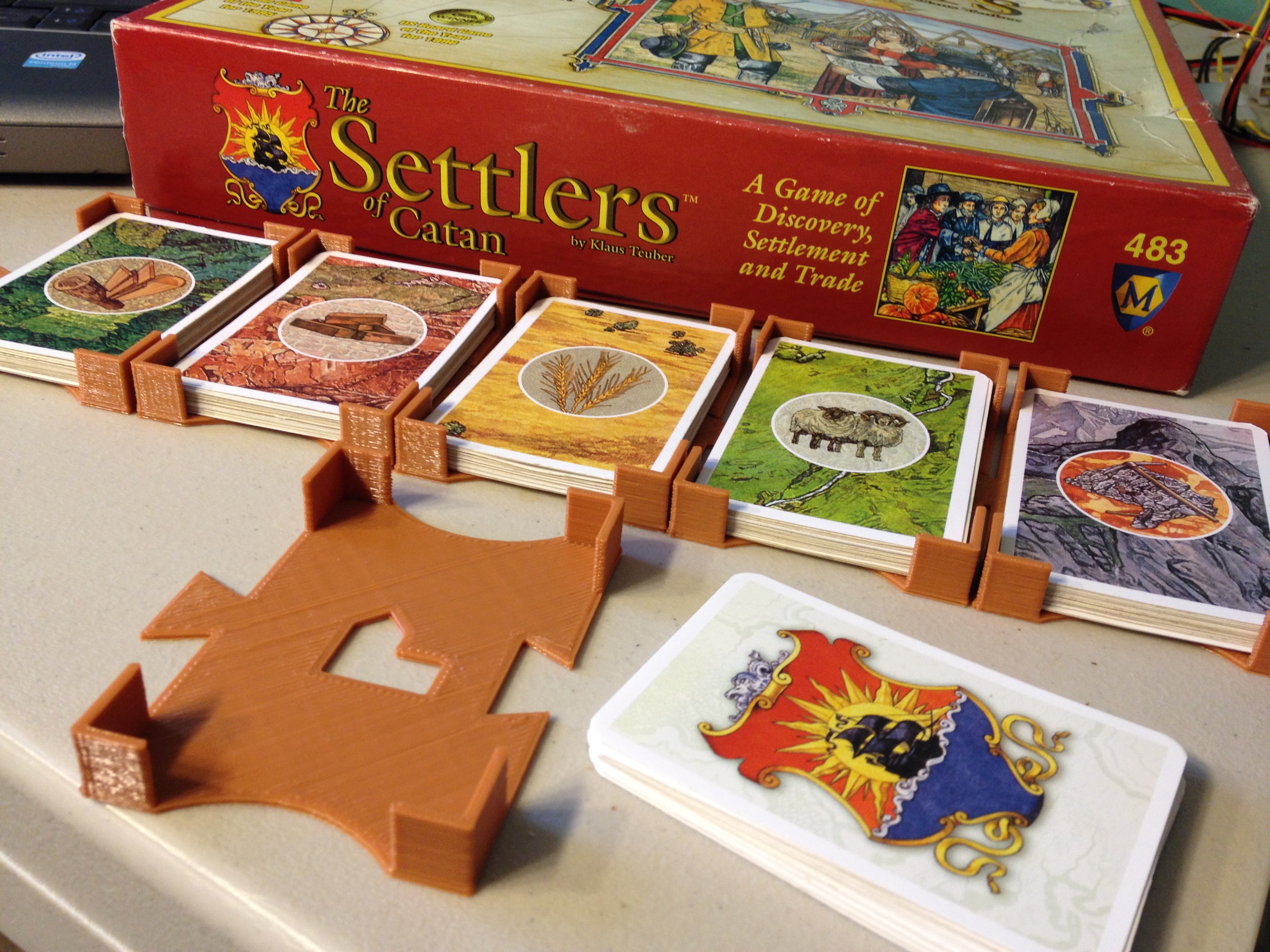

I printed six of the Catan Game Card Holders, to hold the cards used by the “banker”:

IMG_6793

IMG_6797

IMG_6809

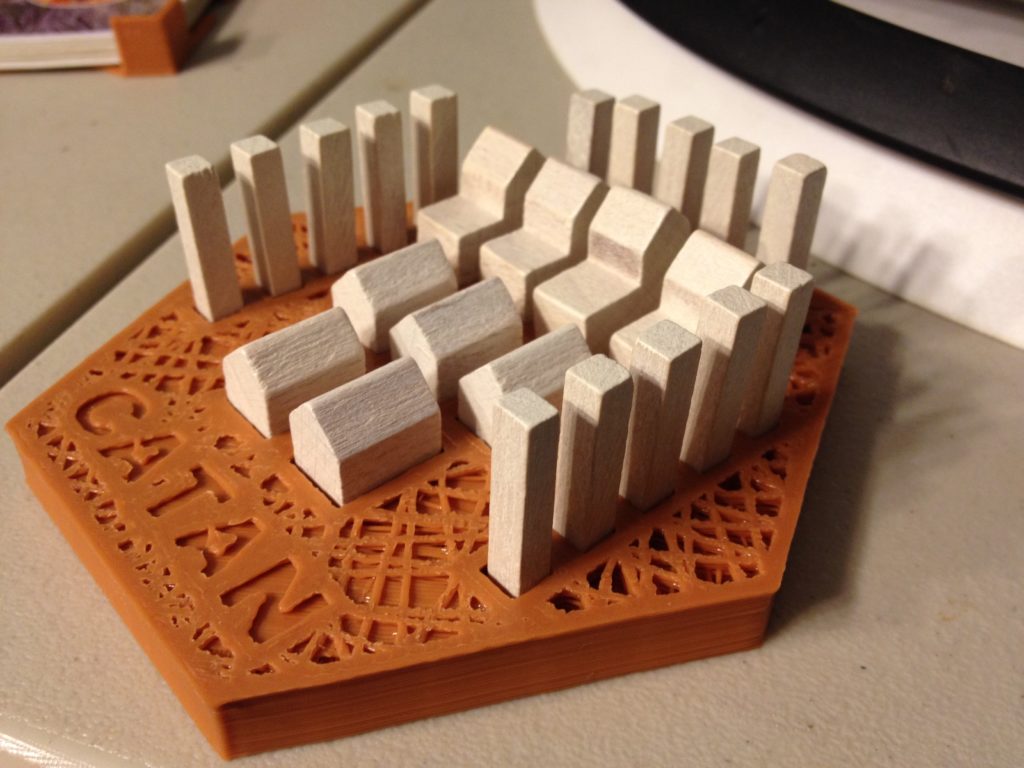

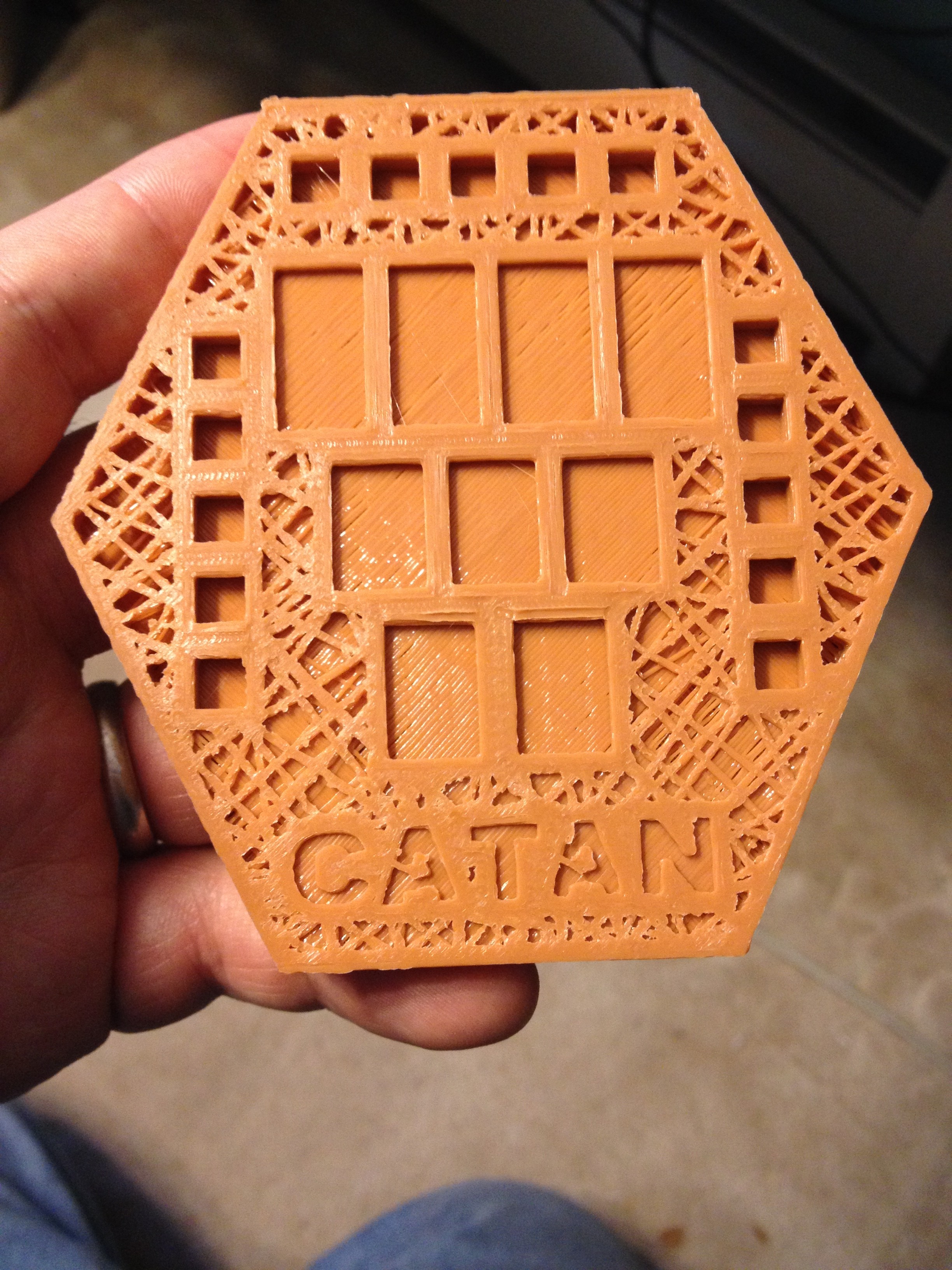

I also tried printing this Catan Piece Holder, which failed mid-way because of a jam but was still far enough along that it was technically usable:

IMG_6824

IMG_6828

After resetting the printer I tried one more print for the day, an Arduino Uno + Breadboard Mount to hold my kids’ Arduino Uno to their breadboard:

IMG_6830

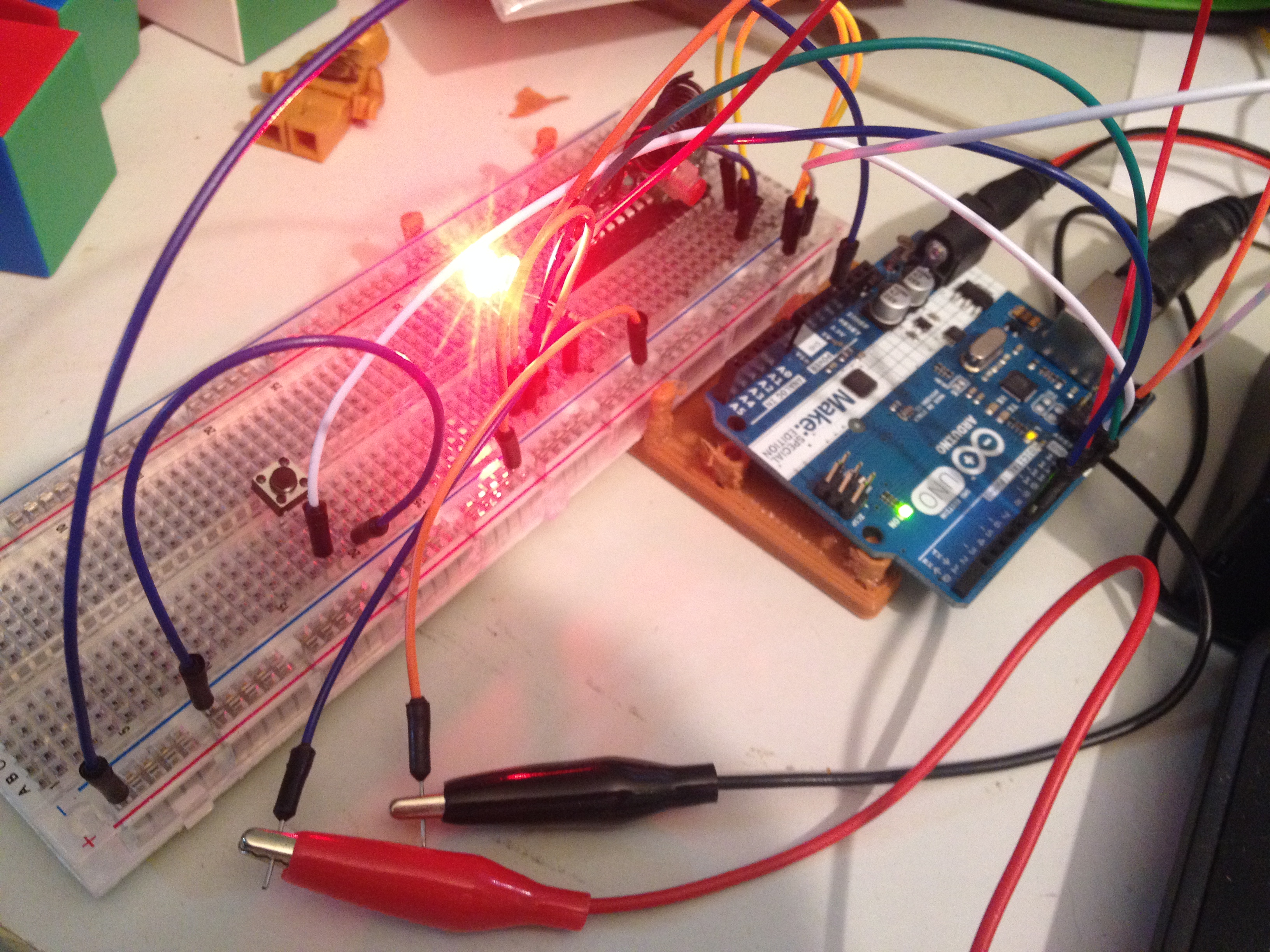

Here is the Arduino and breadboard mounted on it:

IMG_7177

Skyrim Logo (Flat) – February 3, 2014

I rushed home so that I could print something before midnight. This Skyrim Logo was flat and quick, so I managed to get it printed in time.

IMG_6839

Page Opener – February 4, 2014

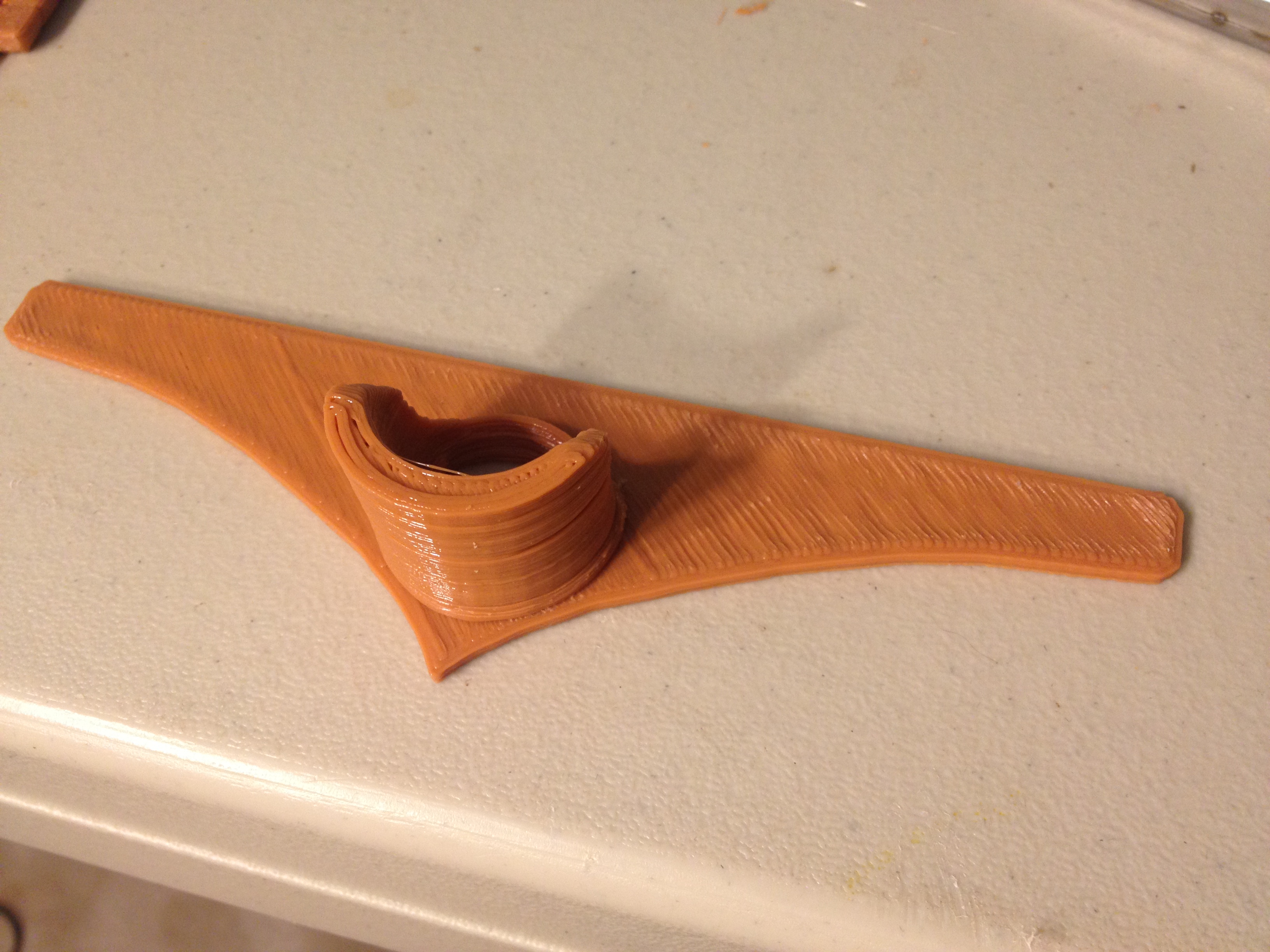

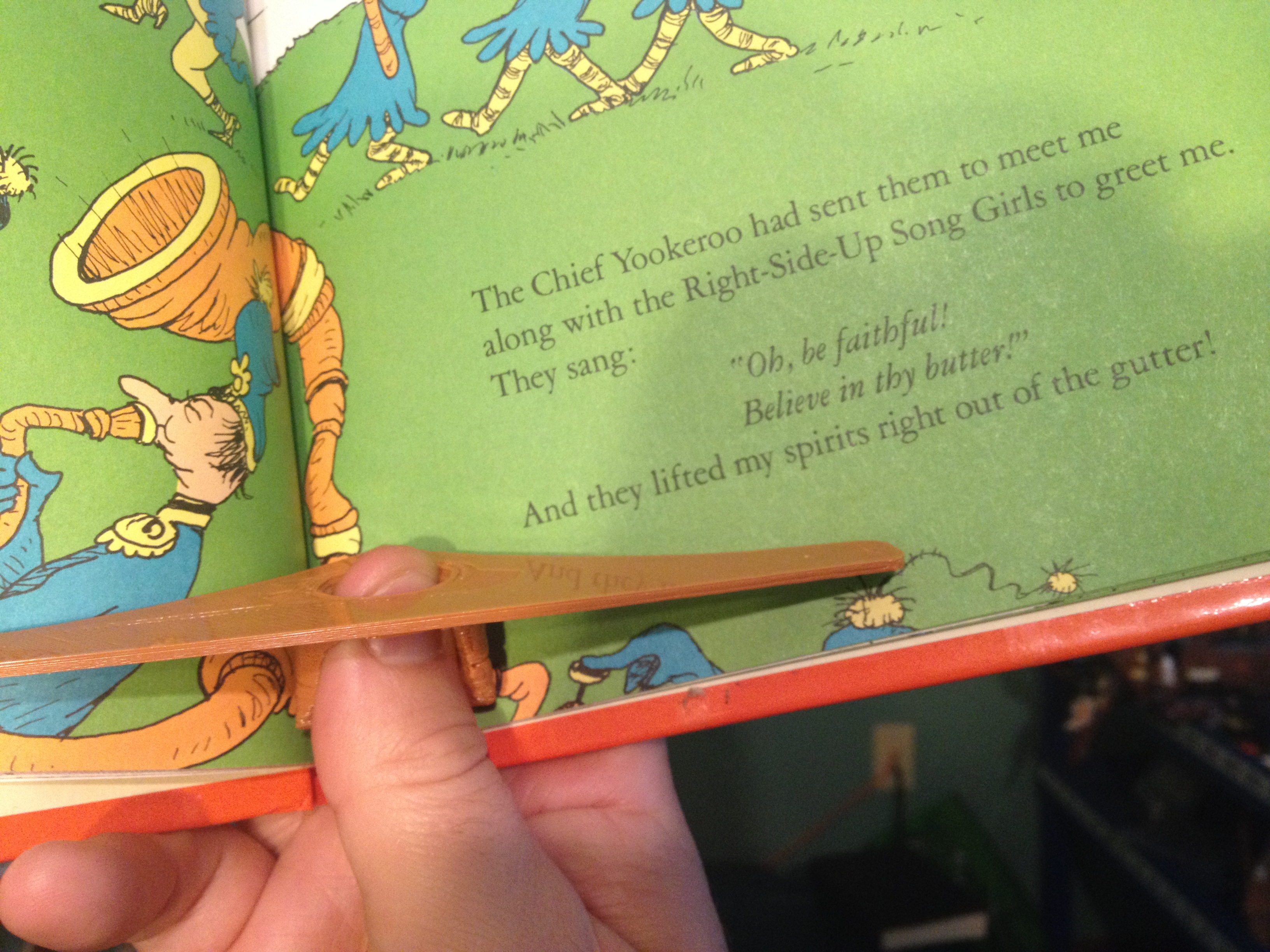

After seeing a post from Amy Buser about wanting Tony to print her this wooden book-holder-opener device that fits on your thumb, I posted that someone had already designed that for them (I’d just seen Book Ring, Advanced Page Holder Opener on thingiverse a few days earlier), and added that to my list. When I went to print it though (actually on February 3rd), the scale was wrong (I had to scale it up by 25.4 to get it to millimeters), and I was running out of time, so I went with the Skyrim logo above instead. Between then and today though, a memory was nagging at me and I searched and found that Vik had created a similar device over four years earlier, Page Opener, so I went with that instead.

IMG_6854

IMG_6862

IMG_6856

(I may try the other one, and a third one too, someday later).

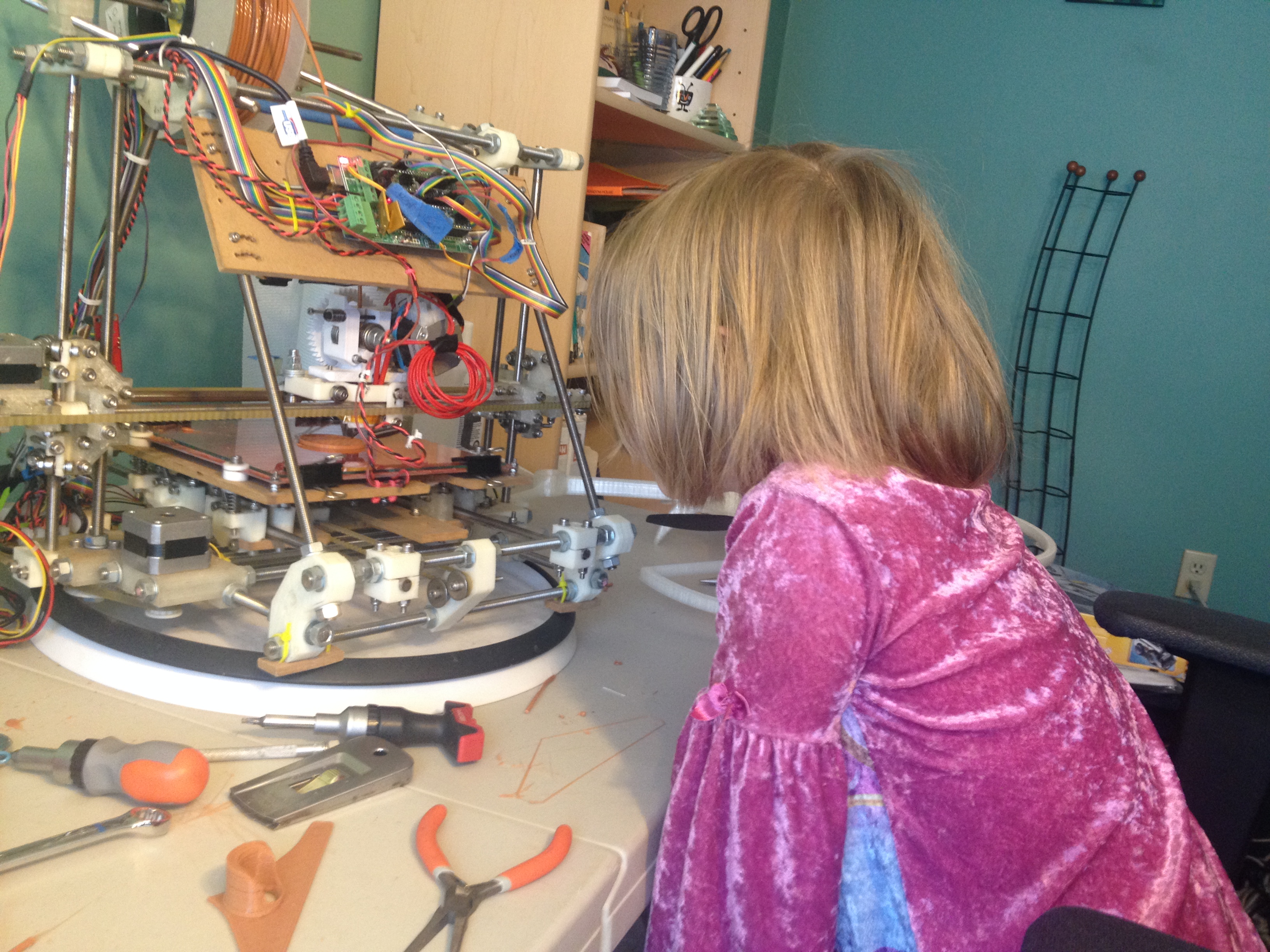

Cara’s Coin – February 5, 2014

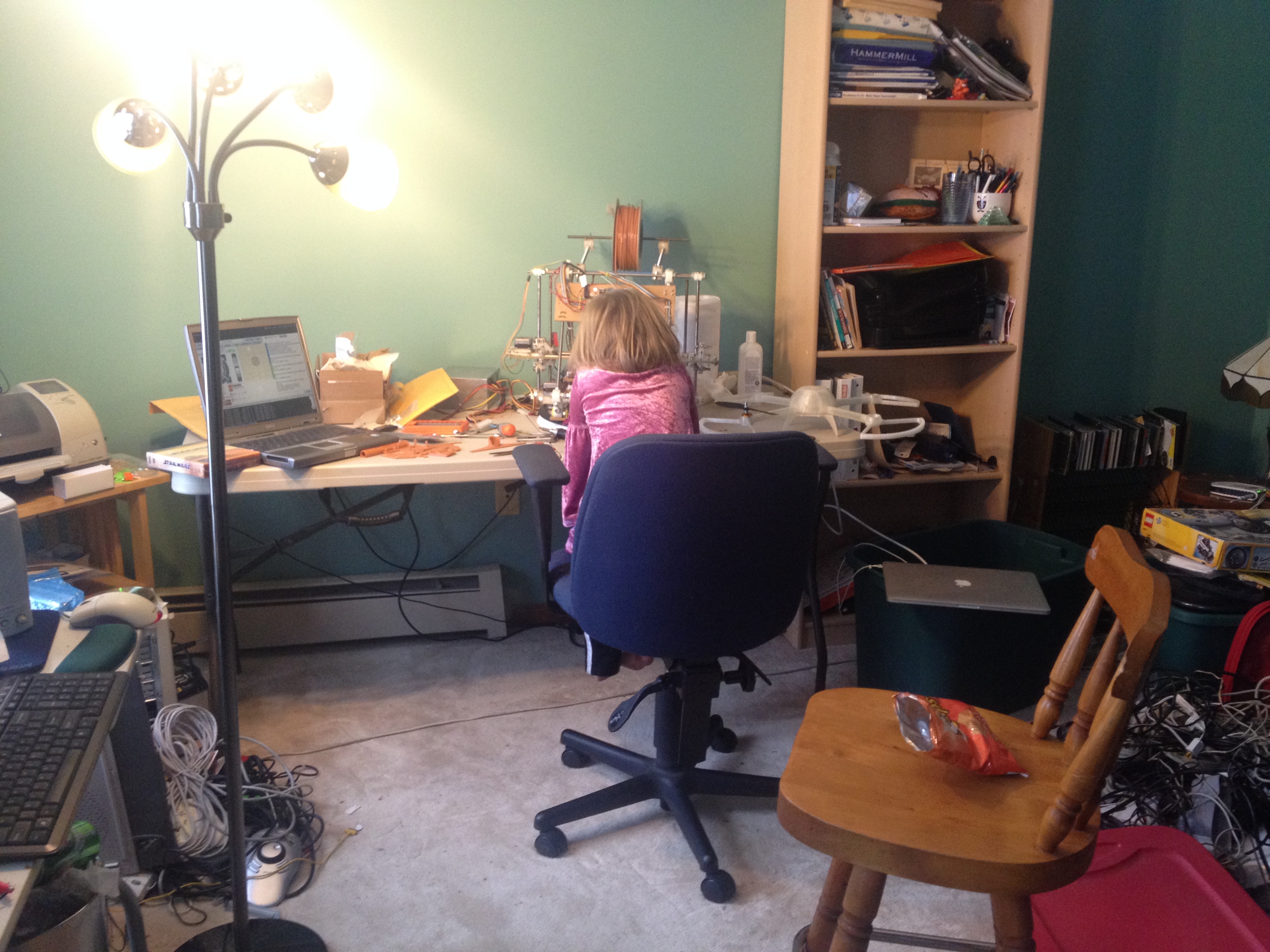

This day was a snow day (and since the lab is closed, I wasn’t allowed to work from home). As a result I spent the day with Cara, both watching Star Wars Episode IV and doing RepRap printing with her. We started the day with her deciding what she wanted to design. We looked at the demo code within Write.scad that draws text, and Cara realized she wanted to make a coin. We made this coin, which says Cara in the middle and is supposed to say “Cara is a wonderful girl” on the outside, but for some reason the W didn’t survive the print, so it says “Cara is a onderful girl”.

IMG_6866

IMG_6873

IMG_6879

IMG_6881

Since we designed this, this was close to being in the spirit of the original thing-a-day tradition (although I was unaware that I had misremembered the tradition of printing vs designing until Febrary 8th).

Barrel Puzzle – February 6, 2014

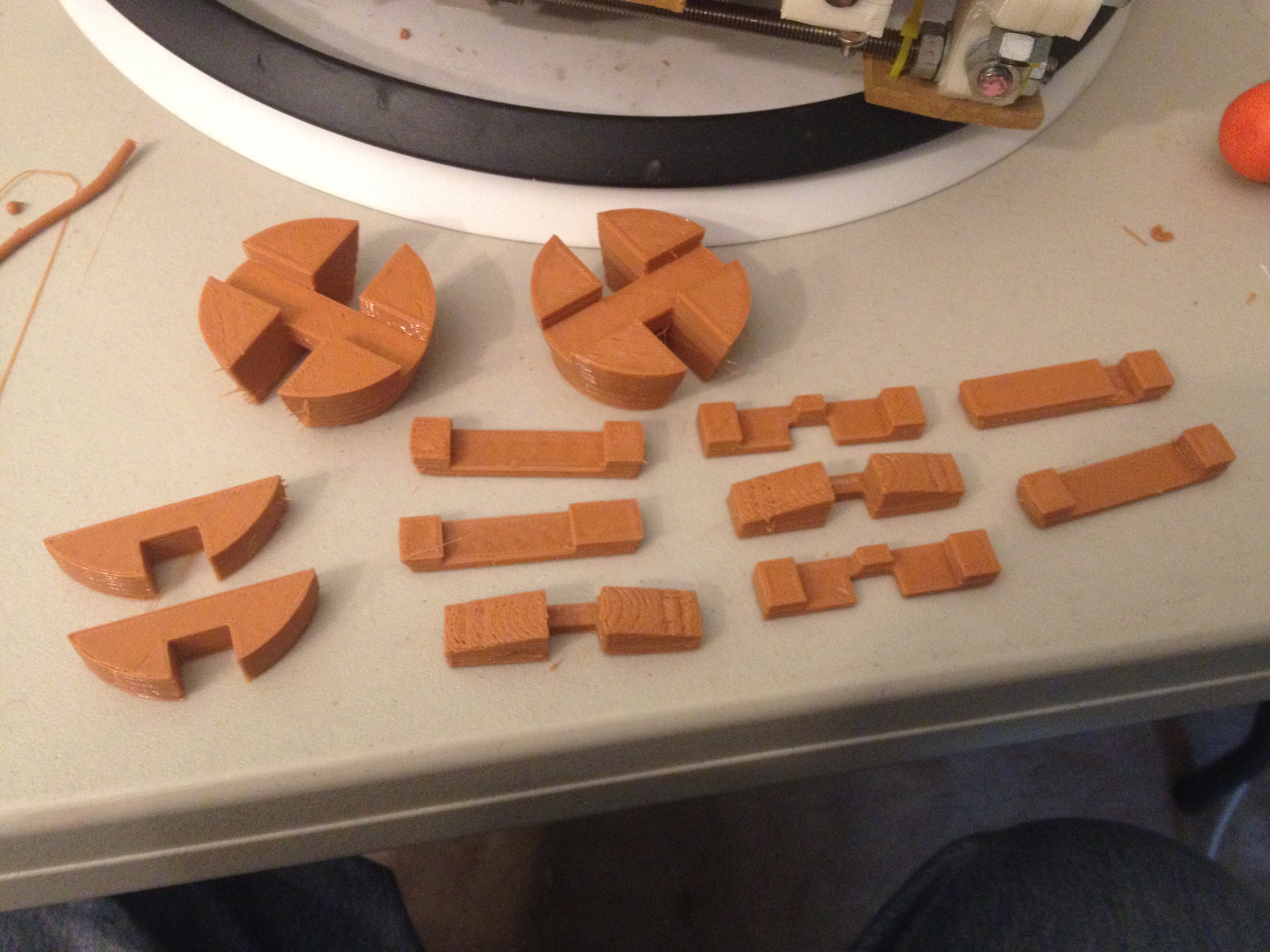

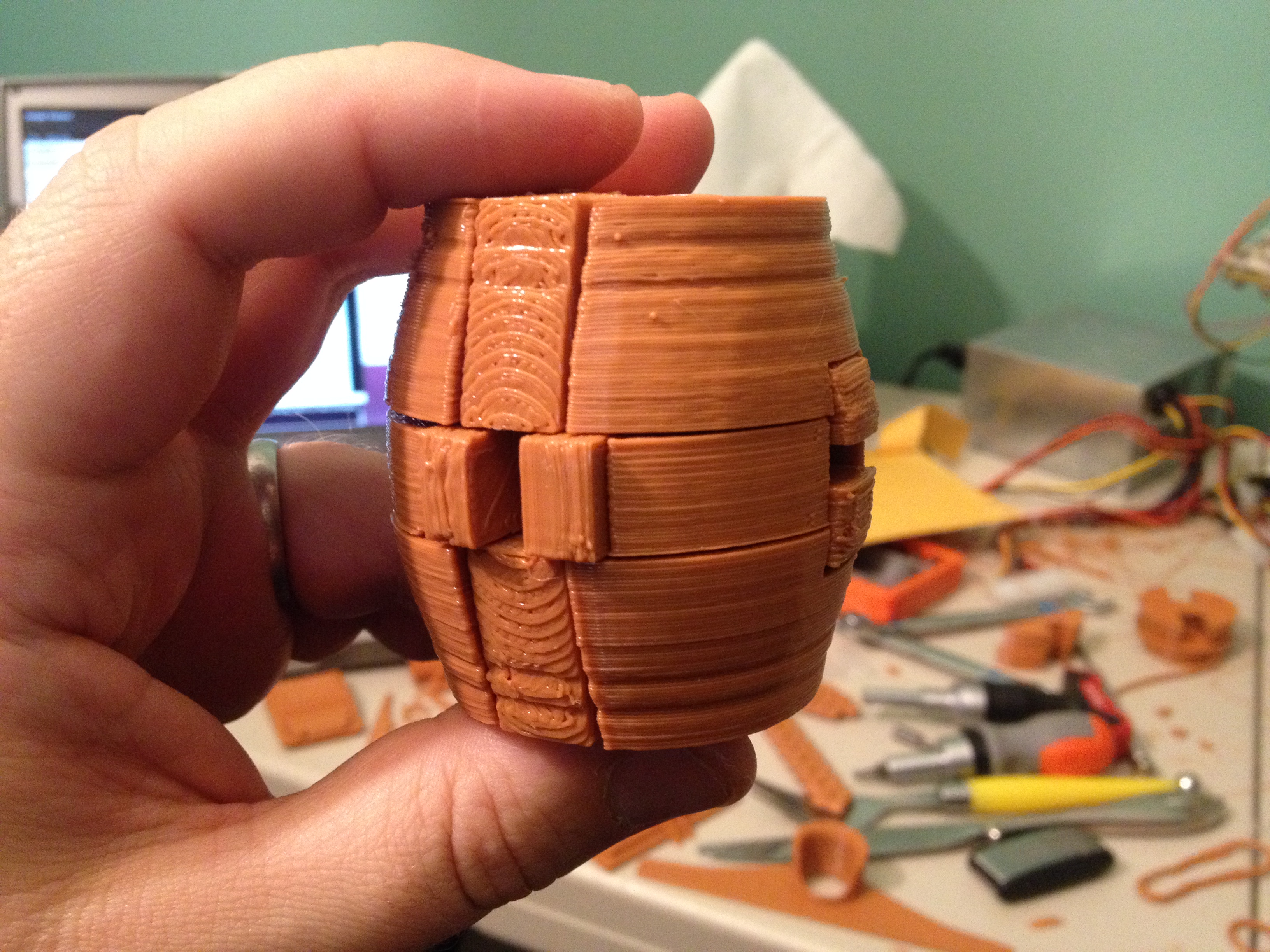

I created two plates for all of the parts of this Barrel Puzzle, and printed them all (two prints, mostly unattended):

The tough part is getting a picture of it assembled, because that requires solving the puzzle. 🙂 I probably need to file down some of the parts, and I’m afraid this was one of the first parts to really suffer from a weak-z-axis problem I’d probably been having all week, as parts weren’t always turning out as tall as they should be.

IMG_6896

IMG_6963

Horse, Horse Cookie Cutter – February 7, 2014

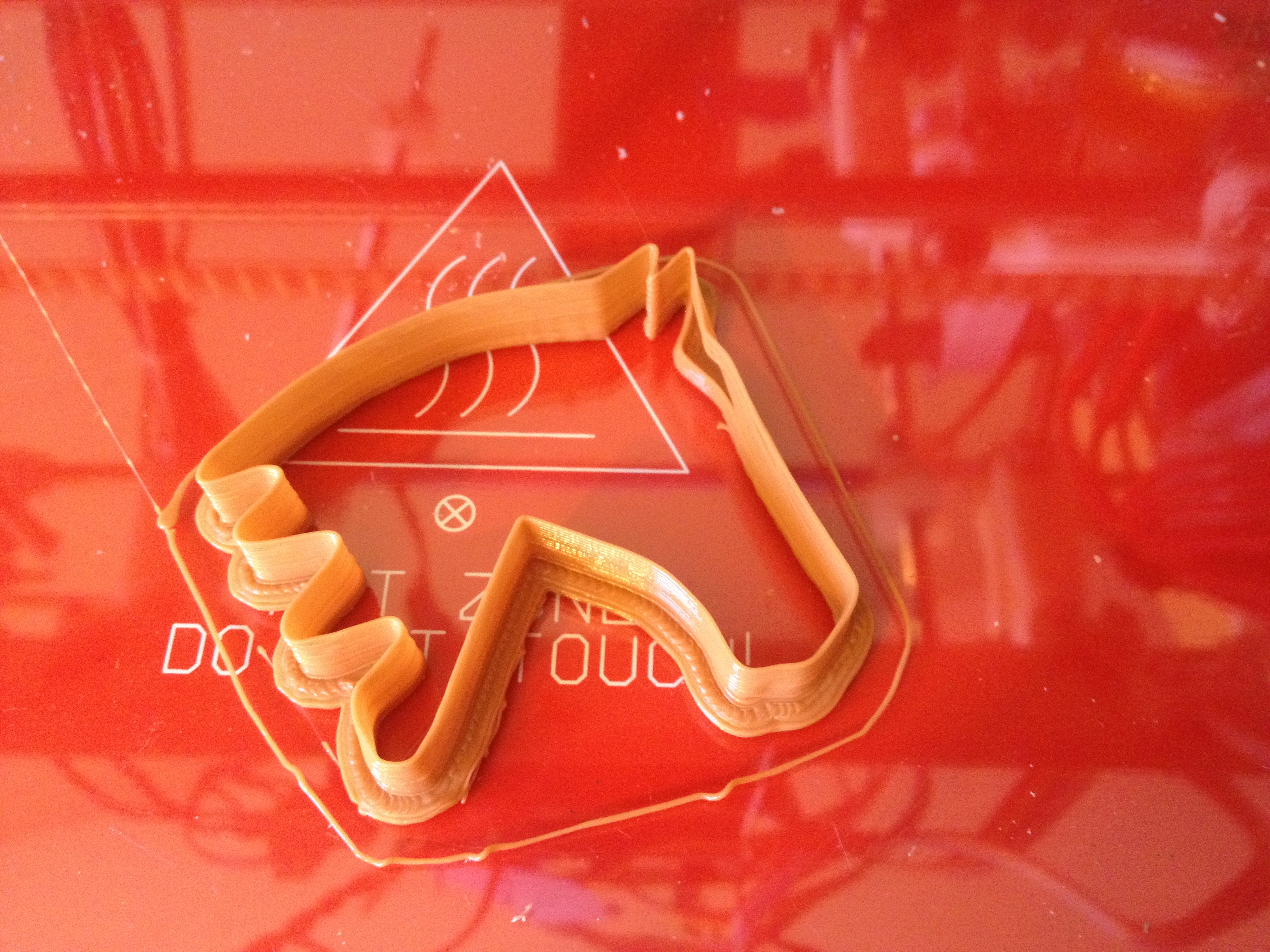

Friday I had a bit more time as I’d finished my hours for the week early in the day. Alicia’s birthday was the next day (Febrary 8th), so I wanted to try printing her something to do with a horse. The safety net print was a Horse Cookie Cutter, which we’d use to make sugar cookies on her birthday:

IMG_6899

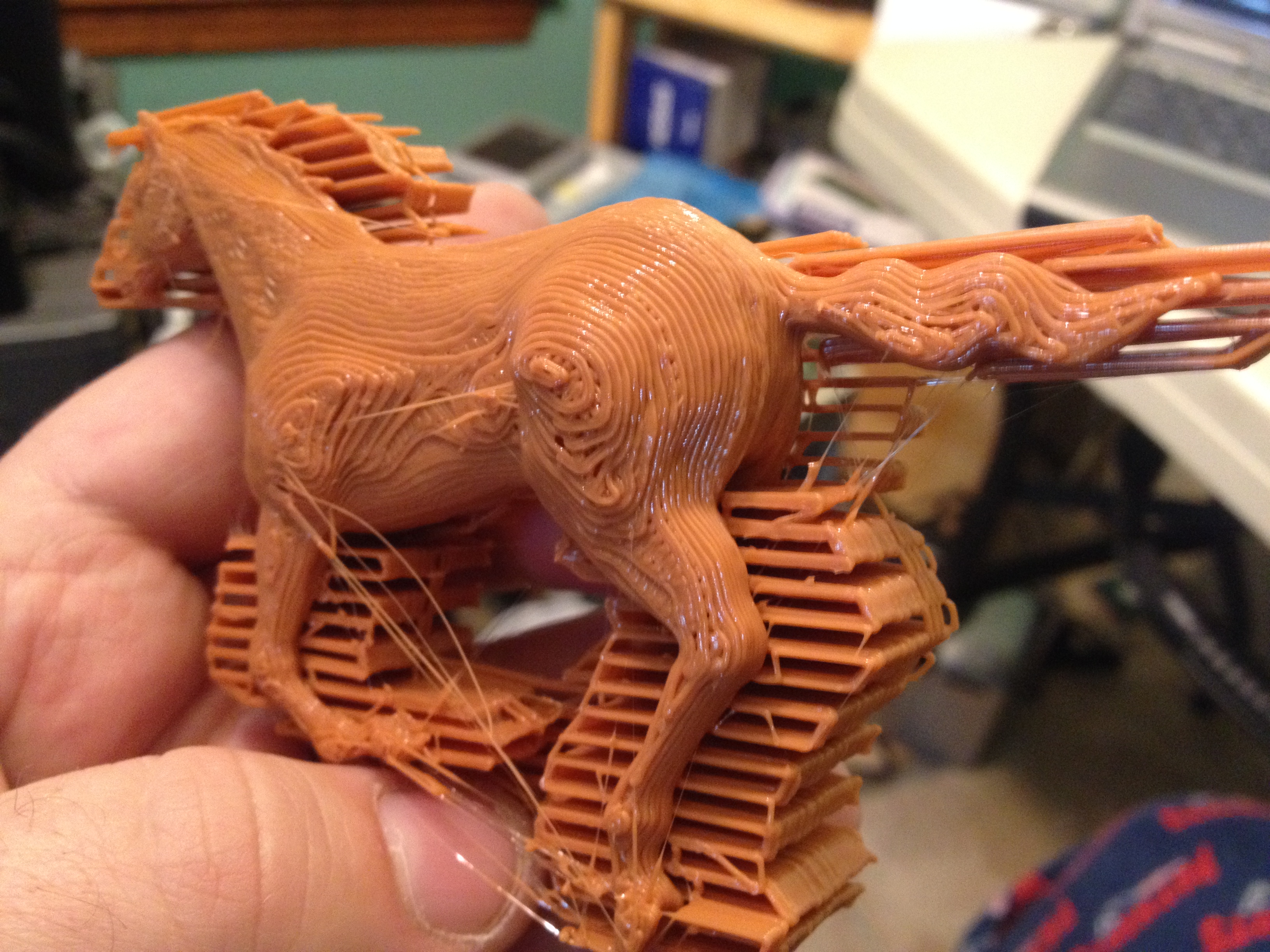

But the real thing I wanted to print was an actual horse model. I’d seen a few on thingiverse in the past, some of which involved printing two halves of a sliced horse and super-gluing the pieces together. I decided instead to try printing one with supports. I only have one extruder, so I had to print the supports out of the same plastic and break them off later with pliers.

The horse model I went with was horse by purita.

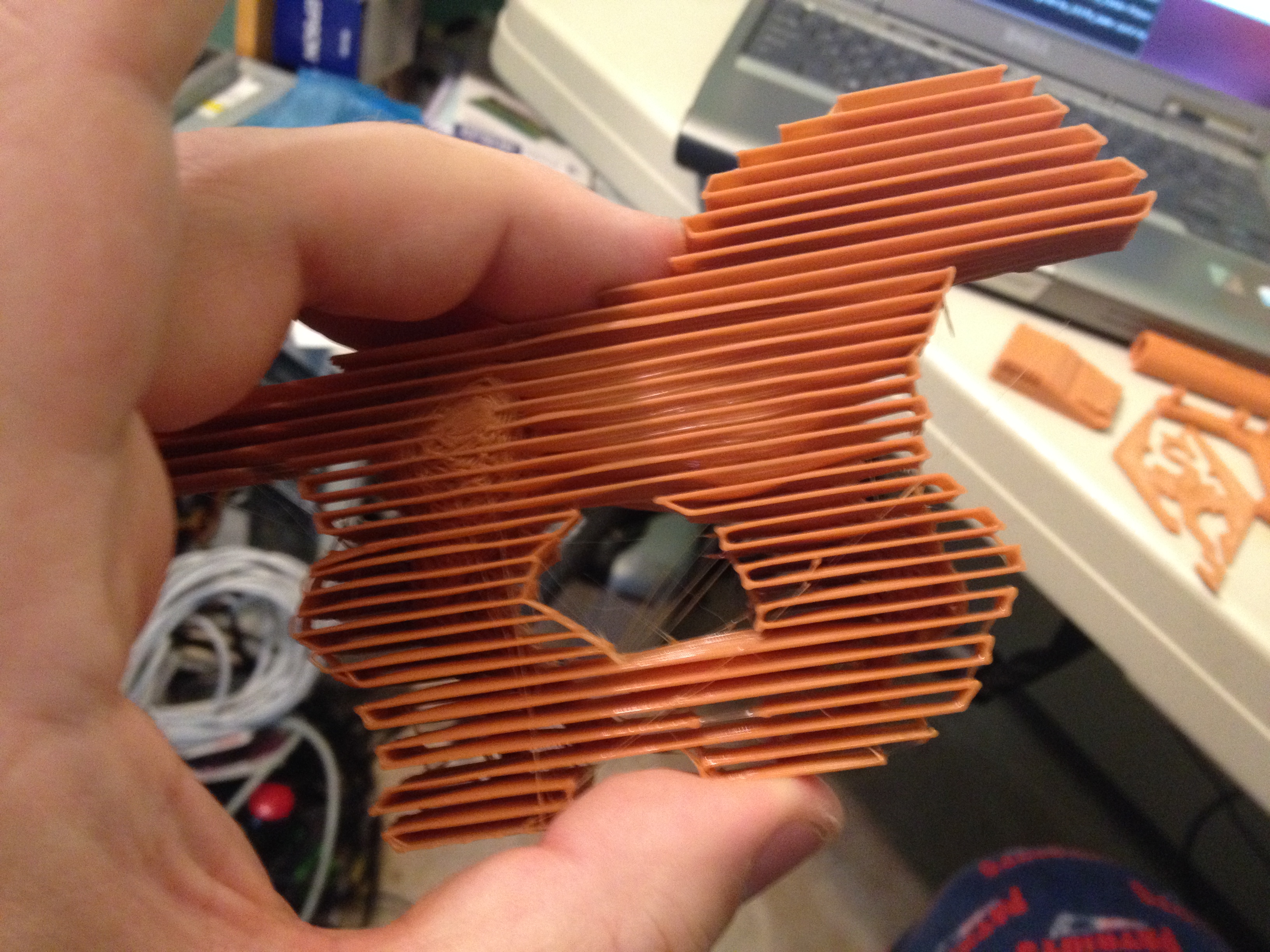

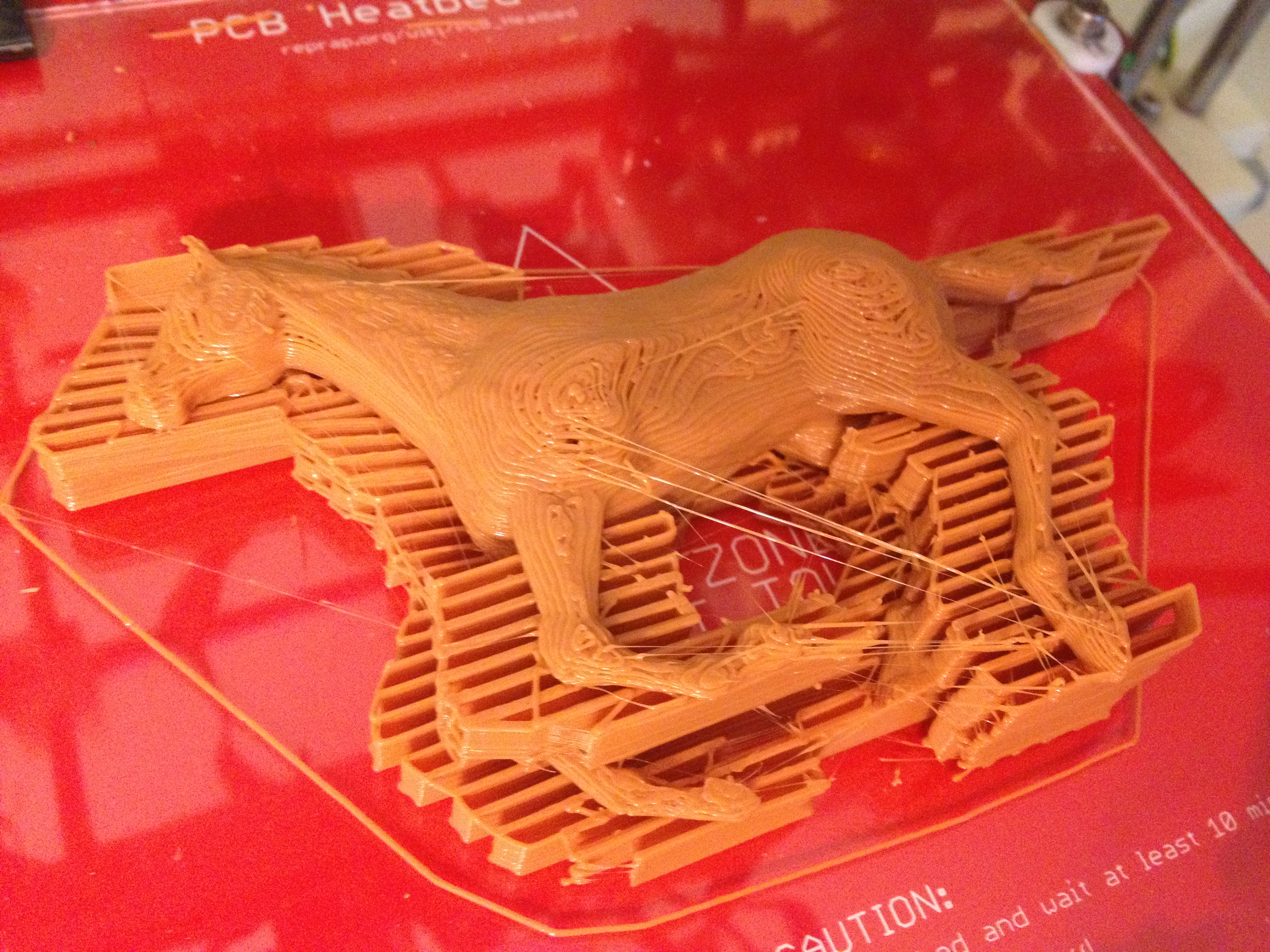

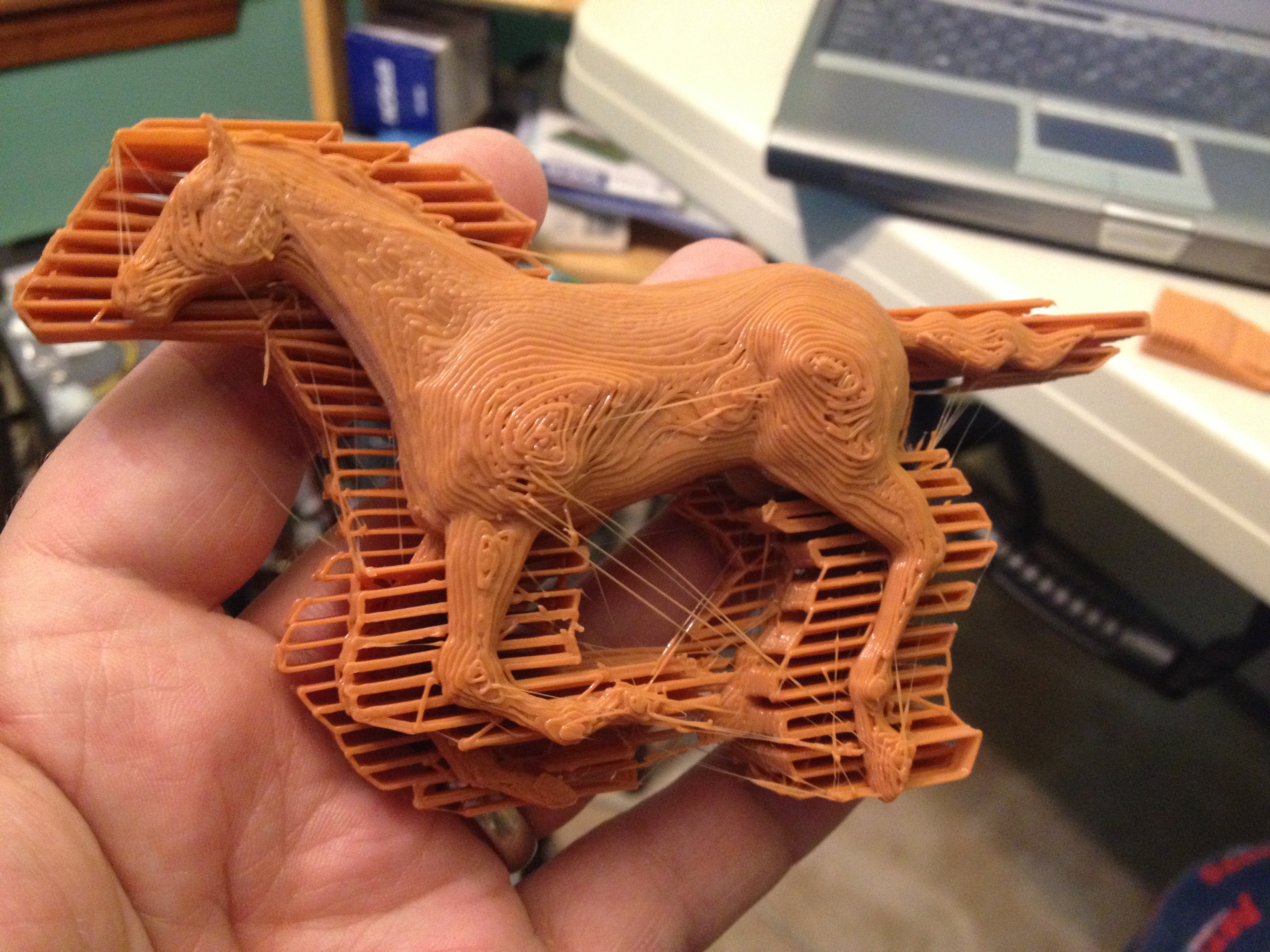

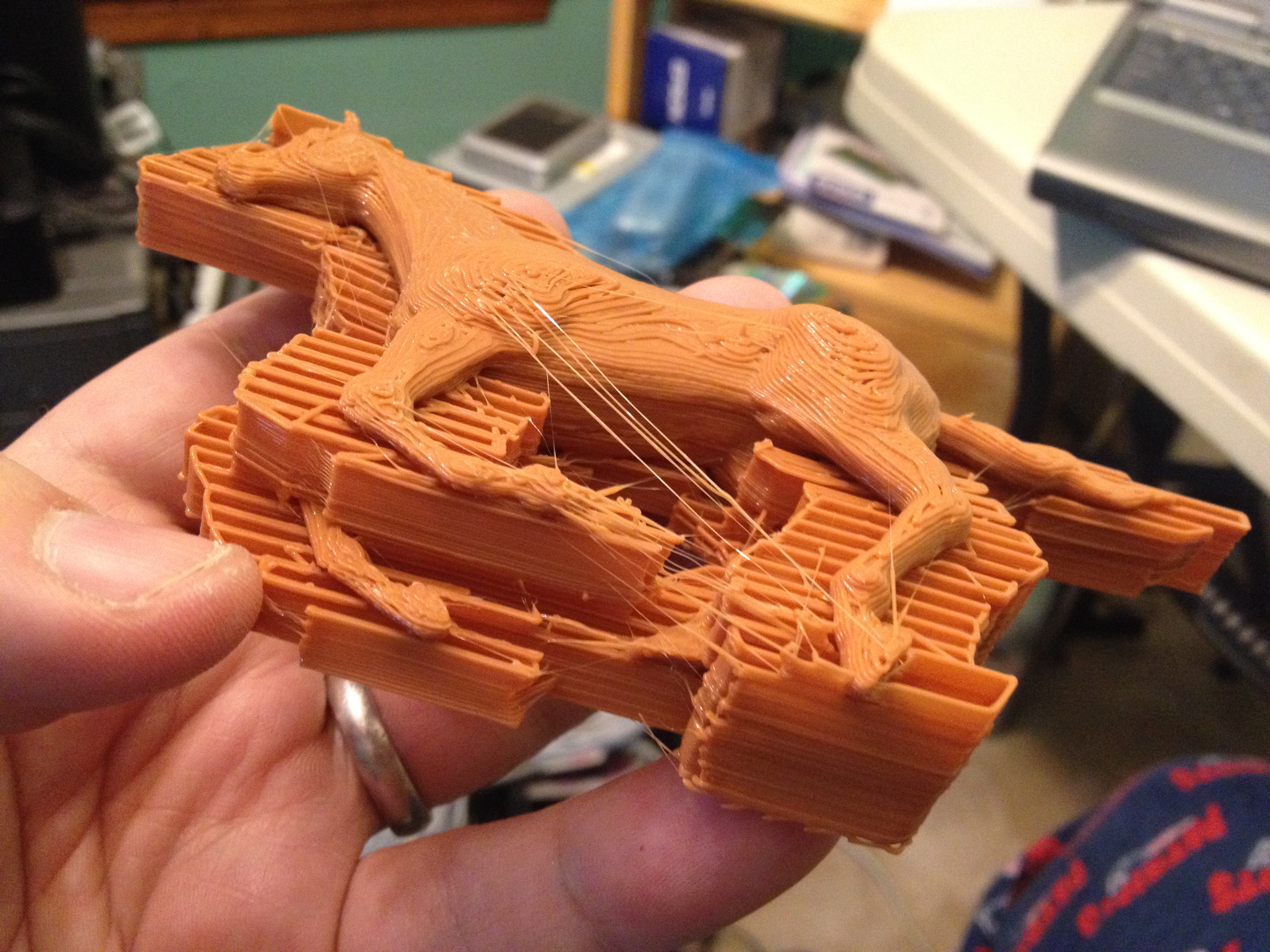

I rotated the model on its side with meshlab, moved it up above the xy plane with plater.py, and printed it with supports (in Skeinforge/SFACT’s Raft module, choosing “support everywhere”). As far as I can remember, this was the first part that I’d ever printed with support on my RepRap (I’d printed with support once before at work, printing the Enterprise from Star Trek: The Next Generation, upside down with support, but never on my RepRap or with Skeinforge/SFACT).

How cool does this look?

IMG_6917

IMG_6918

IMG_6919

IMG_6921

IMG_6922

IMG_6923

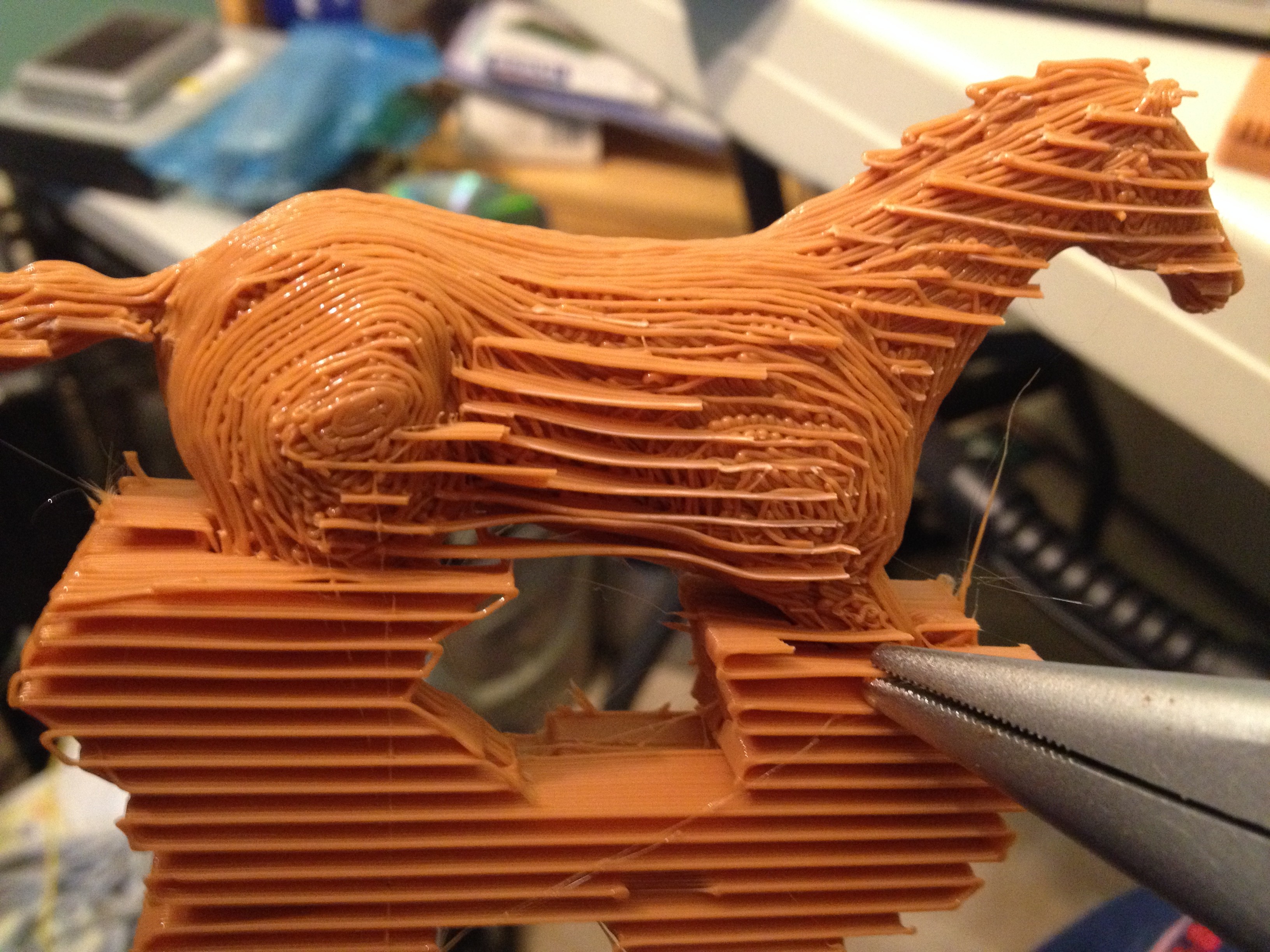

I pulled off the support material with pliers.

IMG_6928

IMG_6930

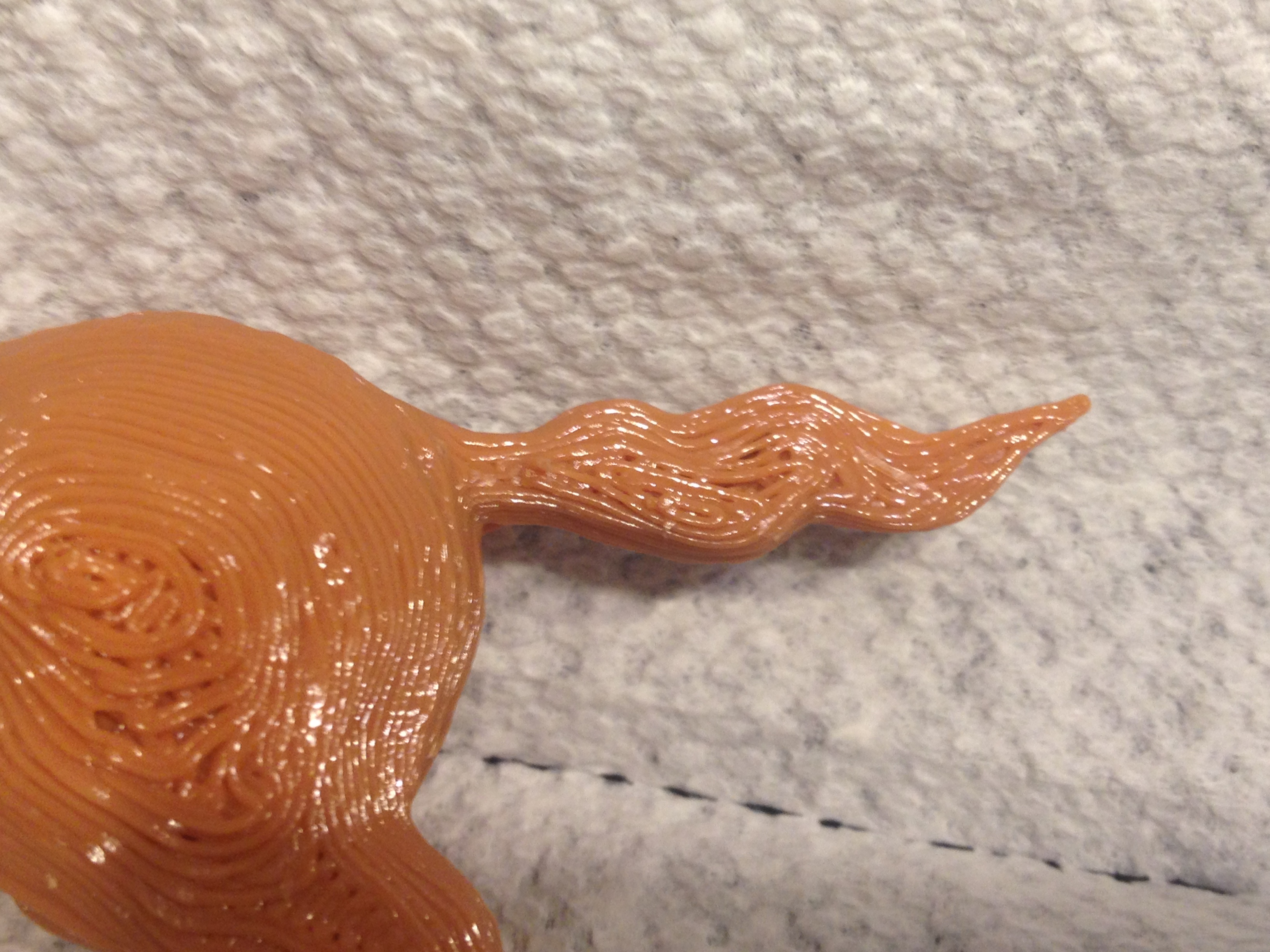

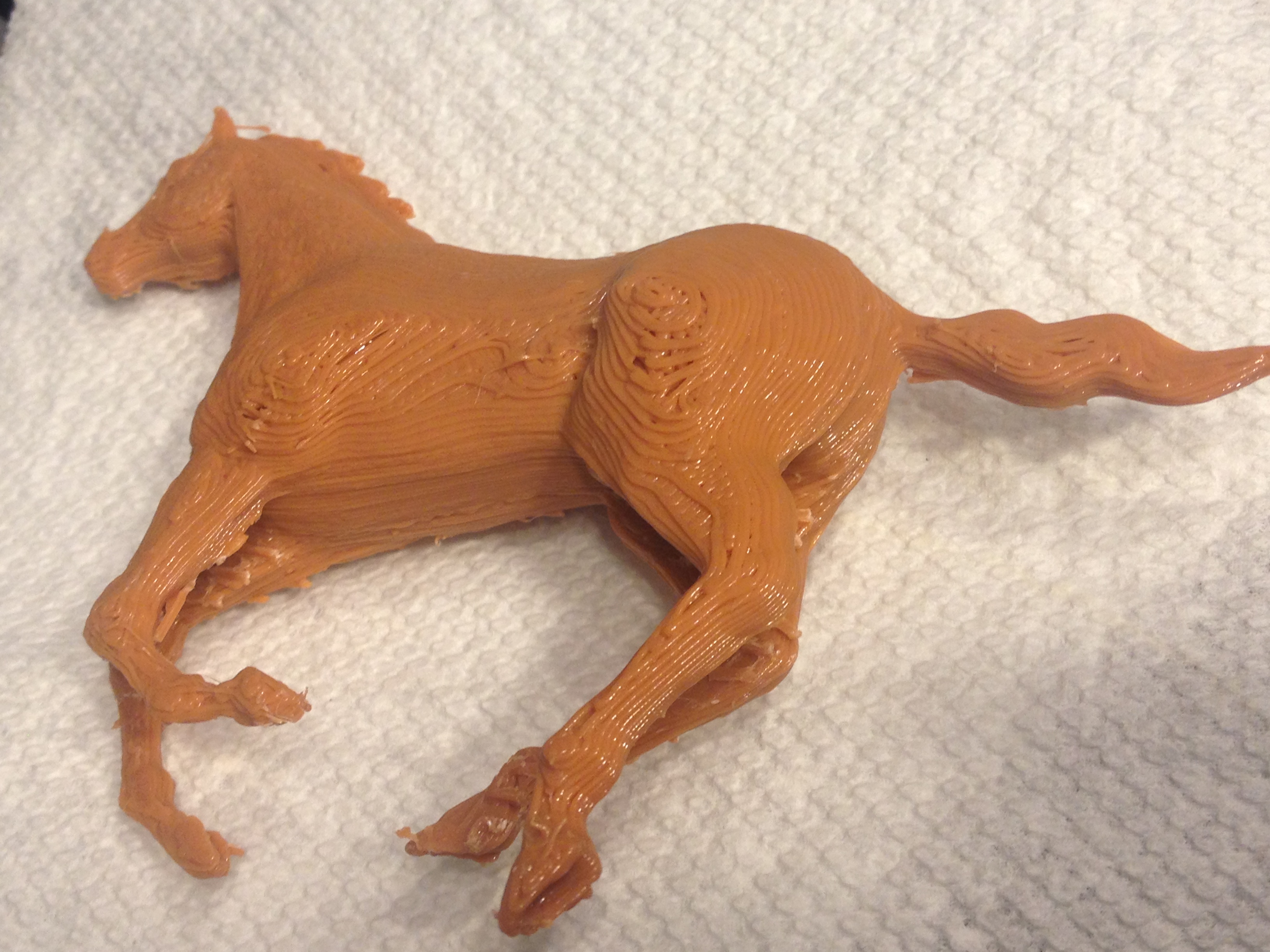

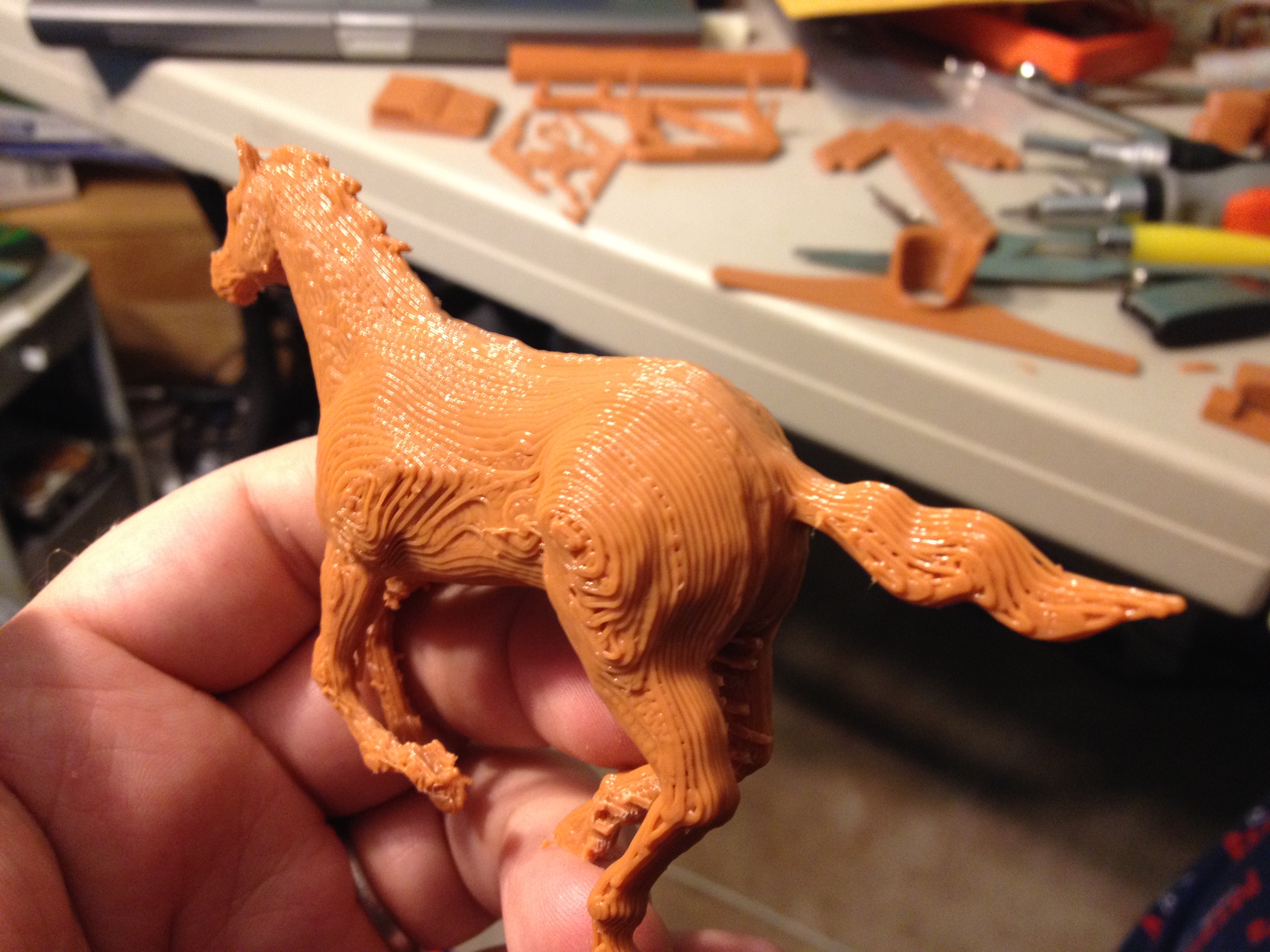

I think it came out incredibly well.

IMG_6938

IMG_6937

IMG_6941

IMG_6950

IMG_6947

Chichen Itza (from Matrix Buildings) – February 8, 2014

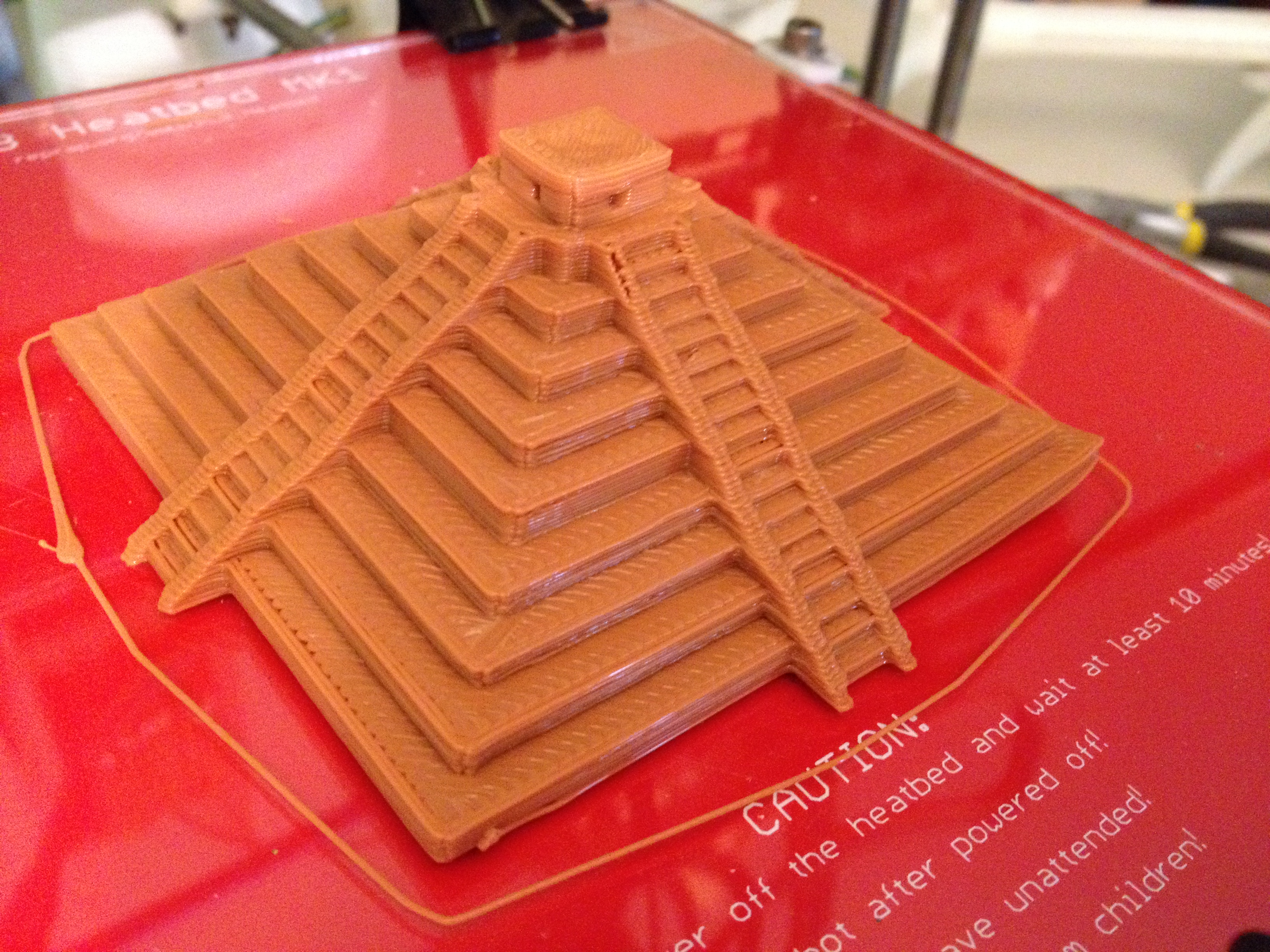

After midnight (so technically on February 8th) I started a print of Chichen Itza from the thing “Matrix Buildings“. This was one of the most pronounced failures of my now-weak Z axis, as it’s not nearly as steep as it’s supposed to be, and one of the steps is even taller than the others. Still, it looks pretty cool (even if one corner warped up a bit):

IMG_6954

IMG_6955

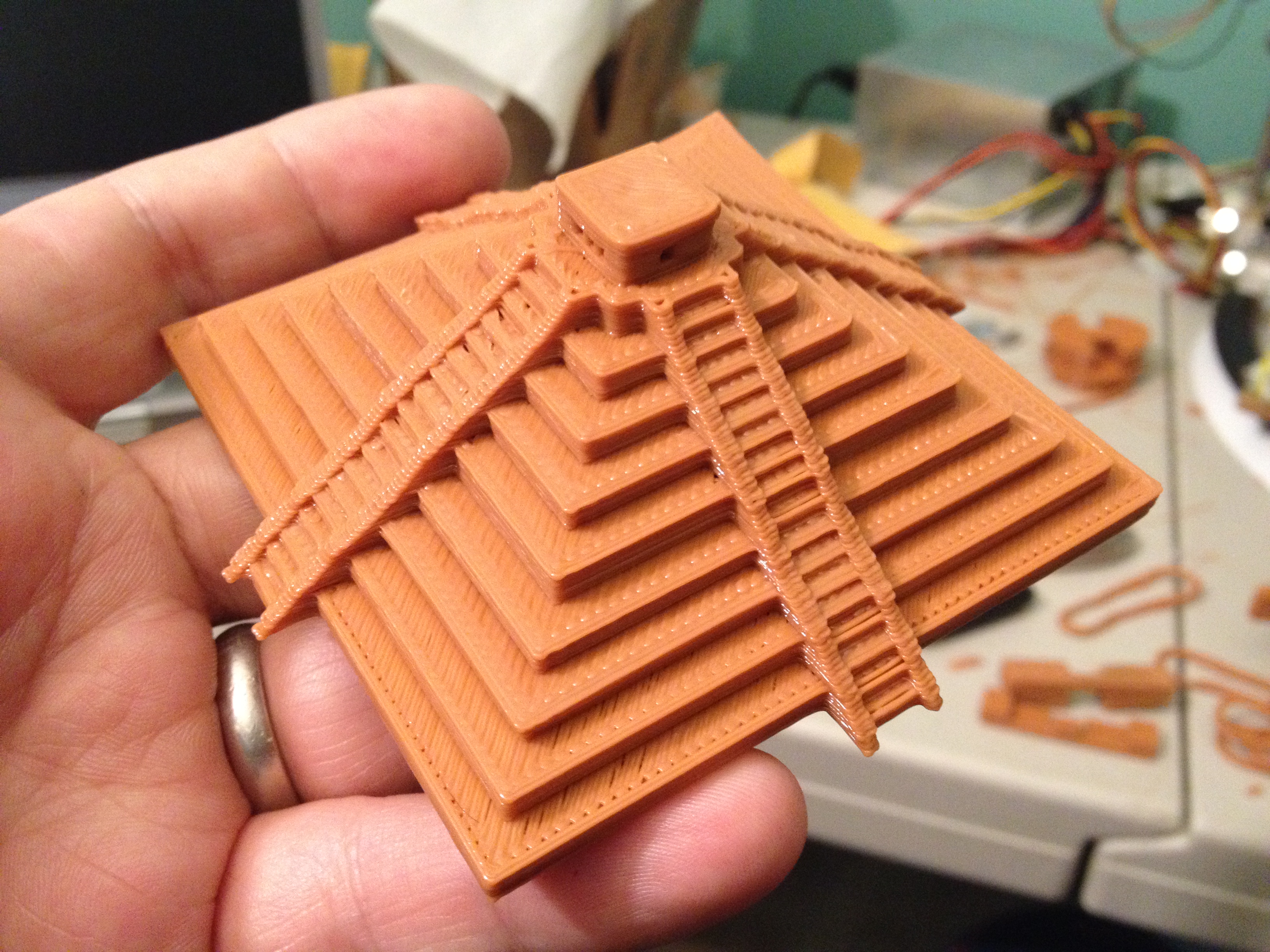

IMG_6958

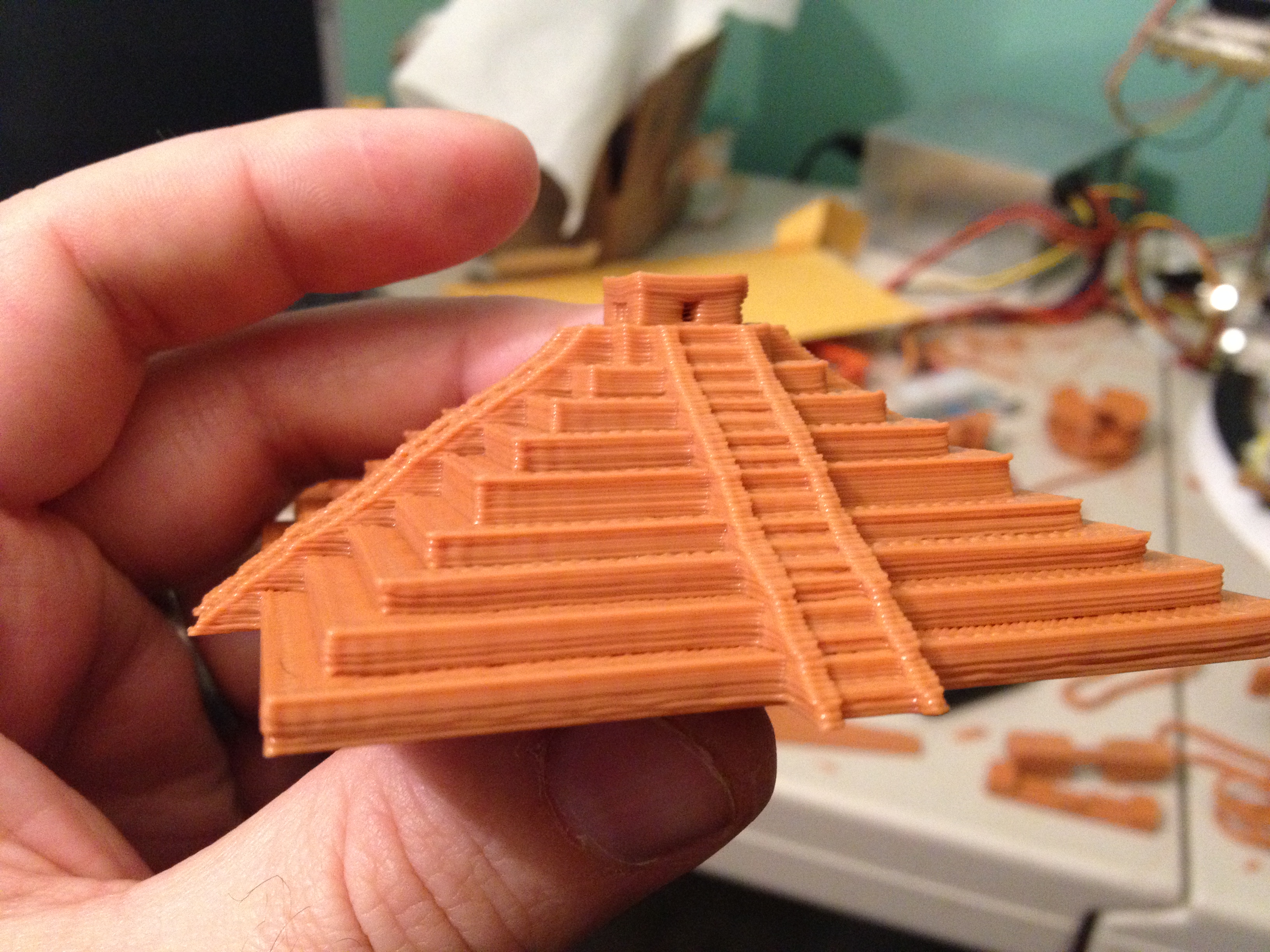

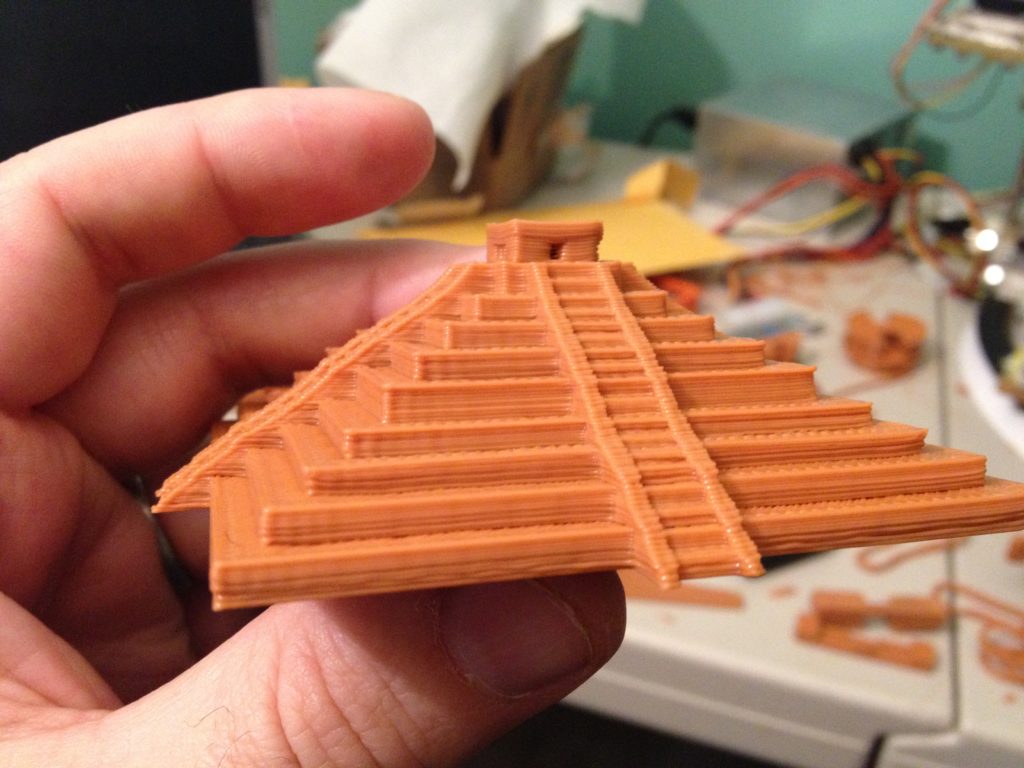

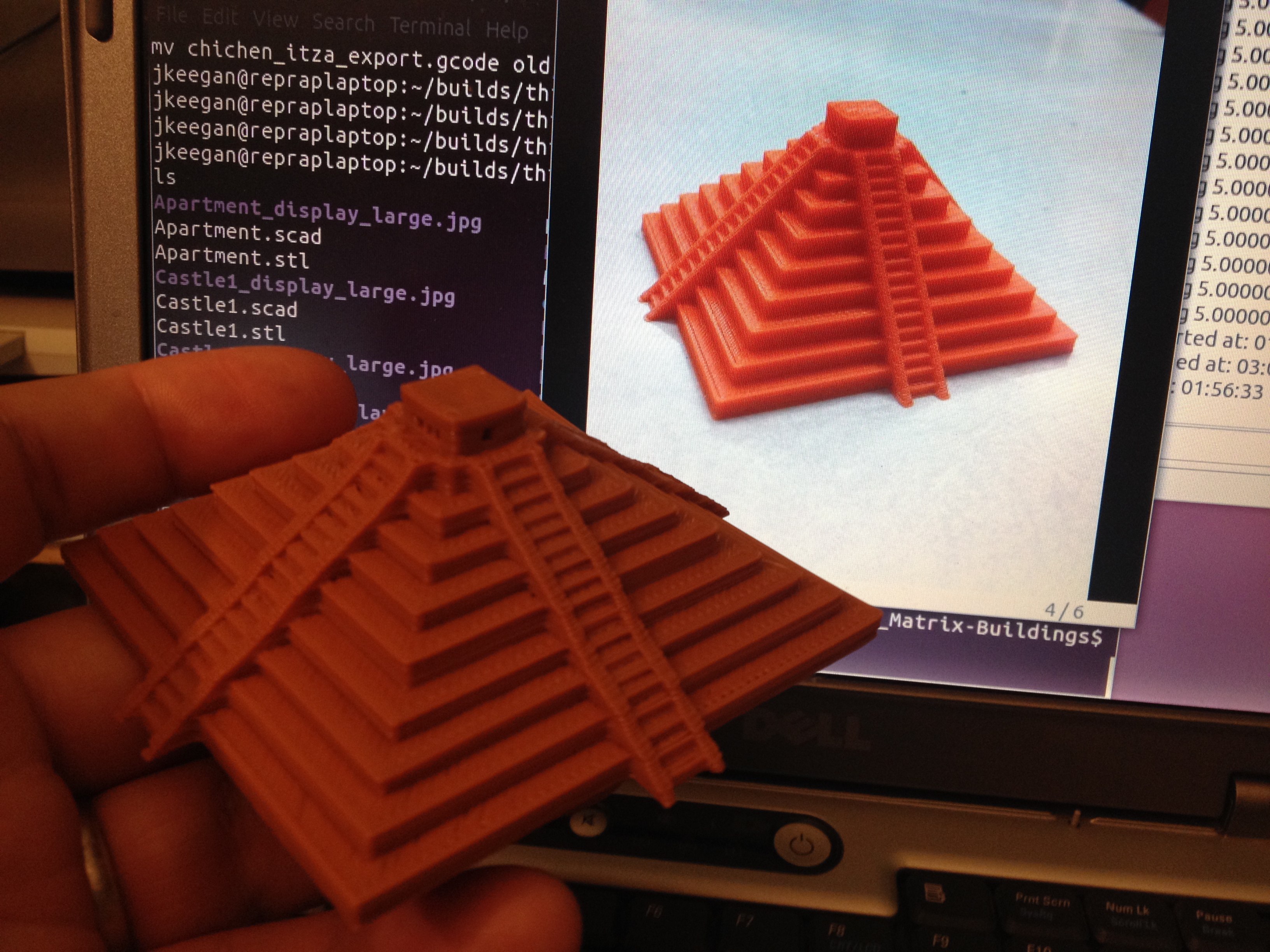

Here you can see that it wasn’t as tall as it should be, because of the Z-axis problem I mentioned above:

IMG_6957

IMG_6962

I had previously tried to print this once, half way down this older post, but didn’t even remember what it was after a failure.

This, by the way, was the day where I finally had time to start typing this post up.. The kids have friends over so the TV is occupied, and the desire to print something today is slightly less because I’d be using up something I could print on later days! Aaah! The real crazy part though is that I’m titling this without any “Four, no, xx months, part x of ?” garbage. But as of today, the day I’m typing this, I still haven’t finished blogging about the past year. That means I’m hoping to catch up sometime this month, which is crazy. We’ll see! [EDIT: Apparently not! Posting this out-of-order since it’s already the next February…]

Vibration Damper v3, “F” block – February 9, 2014

My z-axis problem had been getting in the way so I tried applying silicon lubrication to the leadscrews, which admittedly I hadn’t done in a while. It made a simple movement test of mine get better, but still didn’t eliminate the problem. I realized that while trying to print Vibration Damper v3. Instead I sat there and turned the leadscrew more after each layer.

First though, here are two videos I took while trying to figure out the Z-axis problem – one before silicone lubrication, one after.. (sorry the second video is truncated):

BEFORE:

AFTER:

Ok so like I said, I still had Z axis problems after that, but nothing quite as pronounced. (Since I’m typing this sentence in February of 2015 a year later, I’m not entirely sure what I did beyond that to fix the Z-axis, but it got better sometime after this).

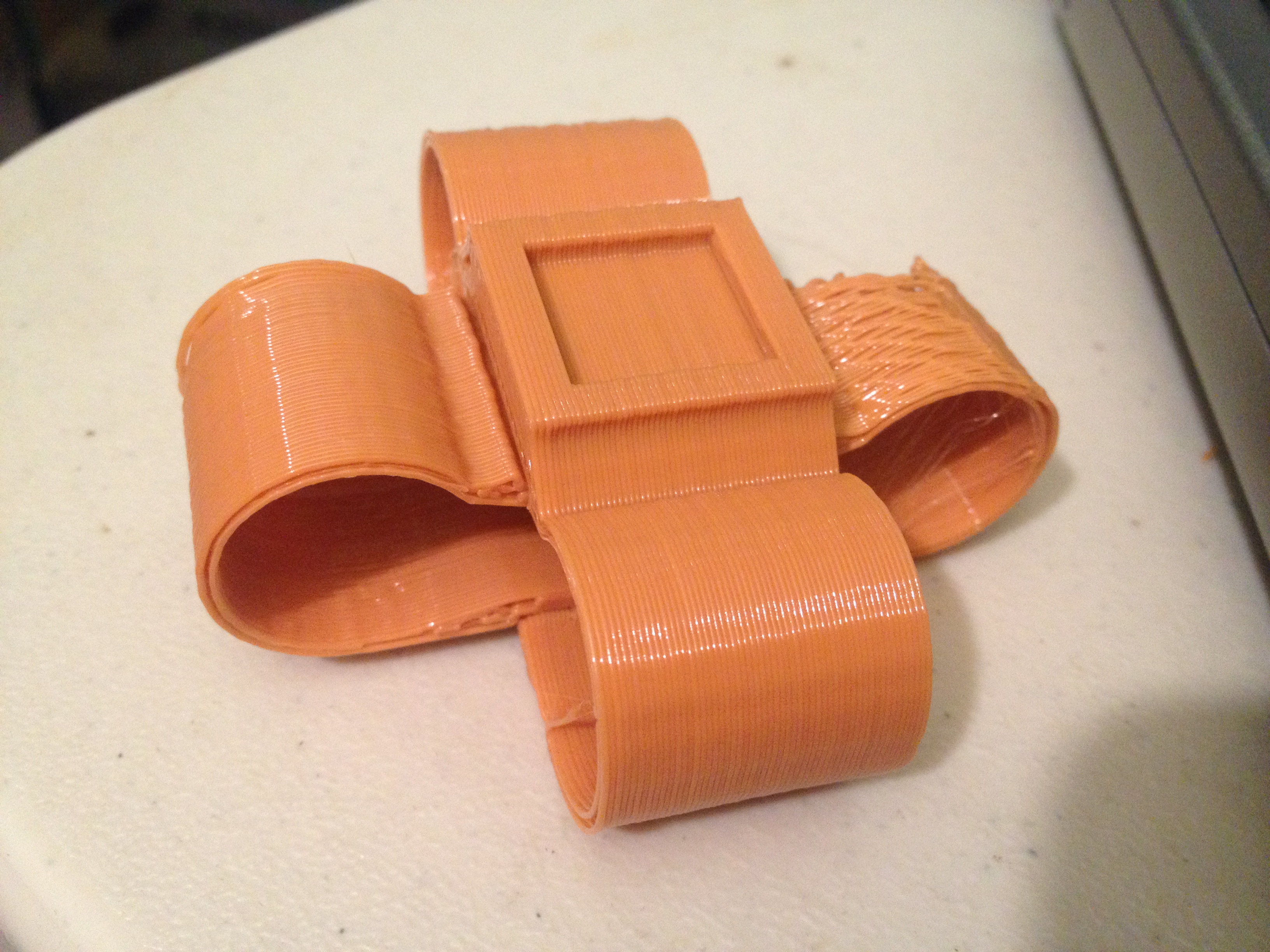

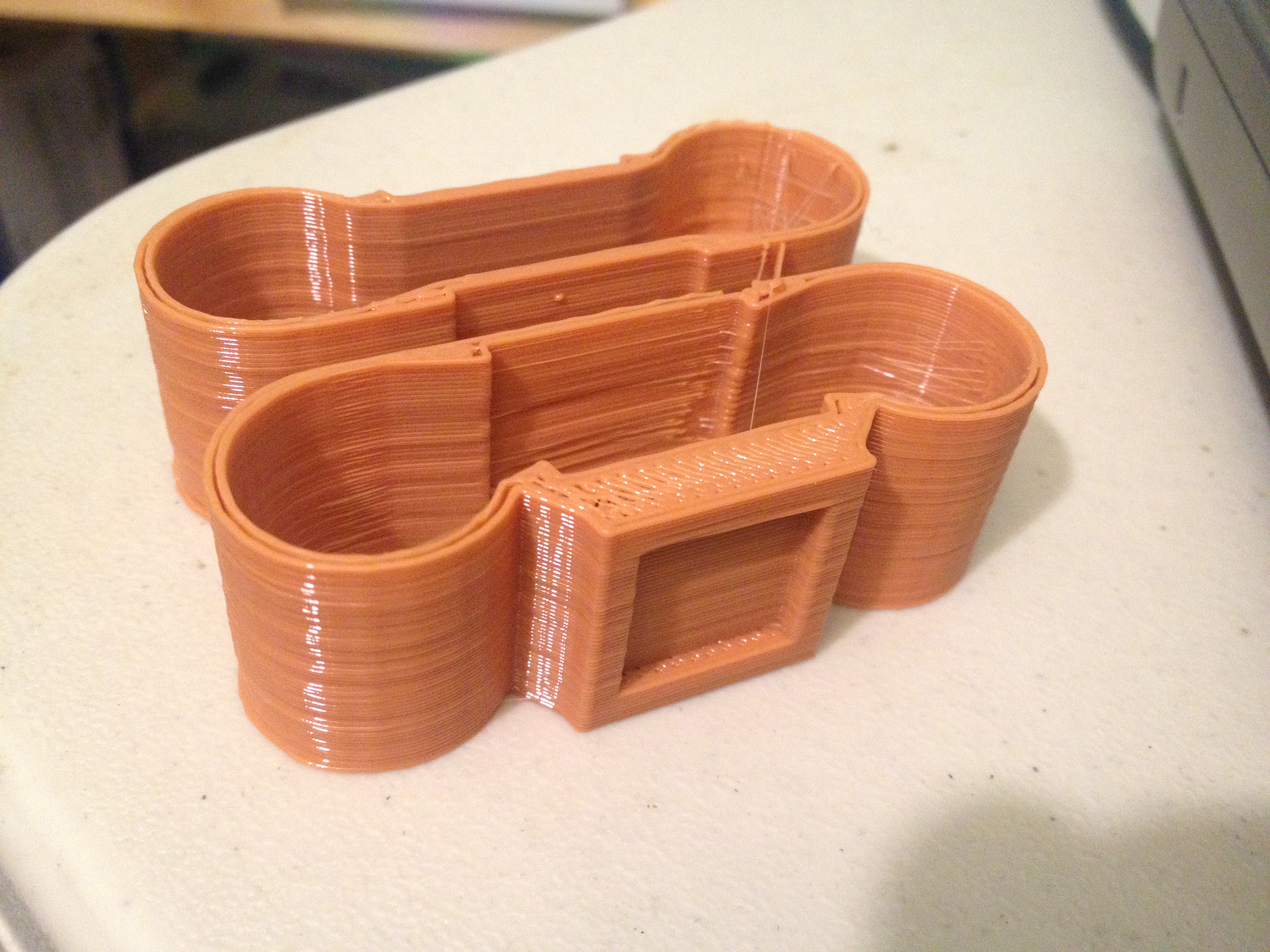

Here was the Vibration Damper, which had problems:

IMG_6986

IMG_6988

IMG_6989

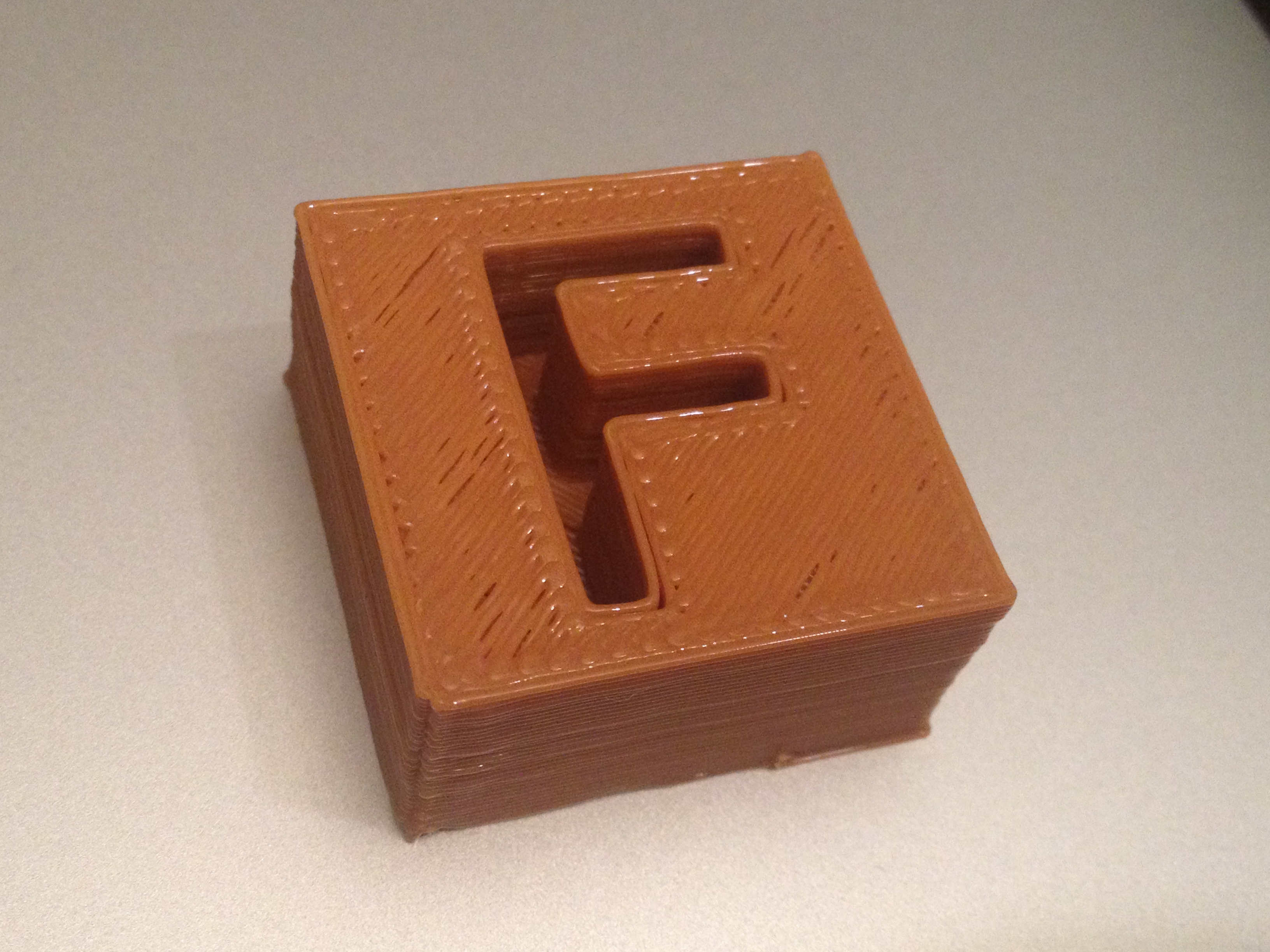

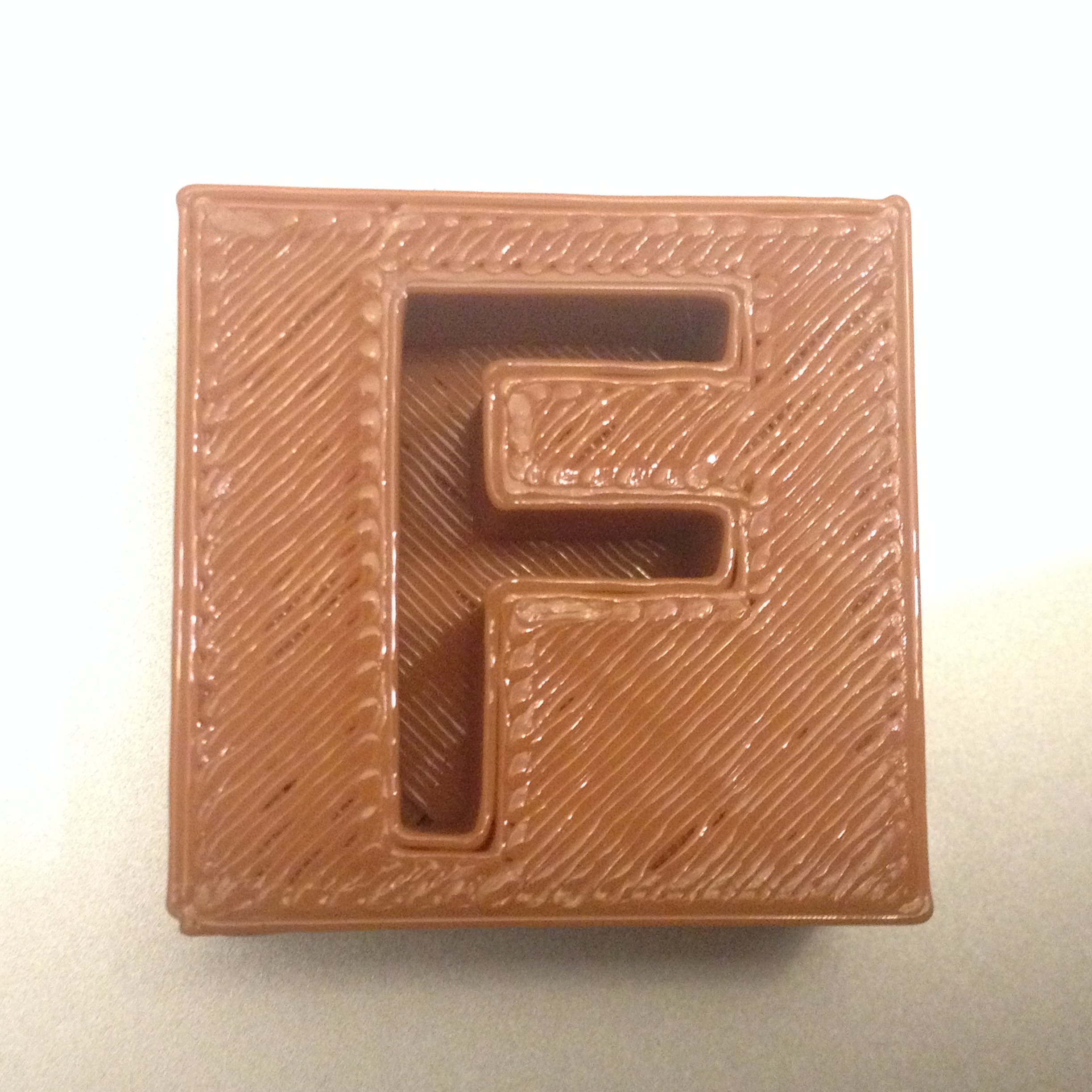

Since that had problems, I didn’t count it as my official part for February 9th. I made this “F”-block, which came out great:

IMG_6996

IMG_6999

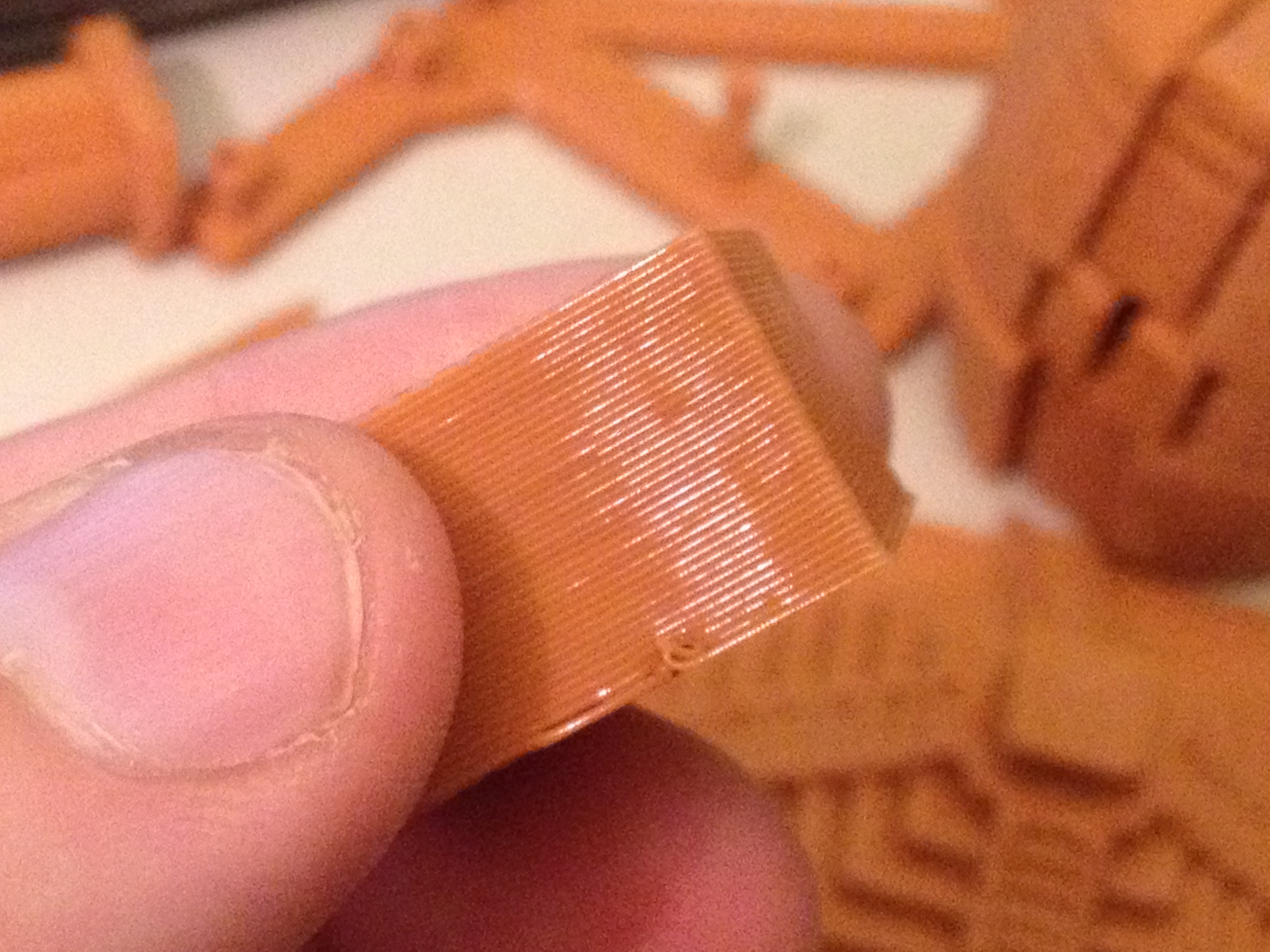

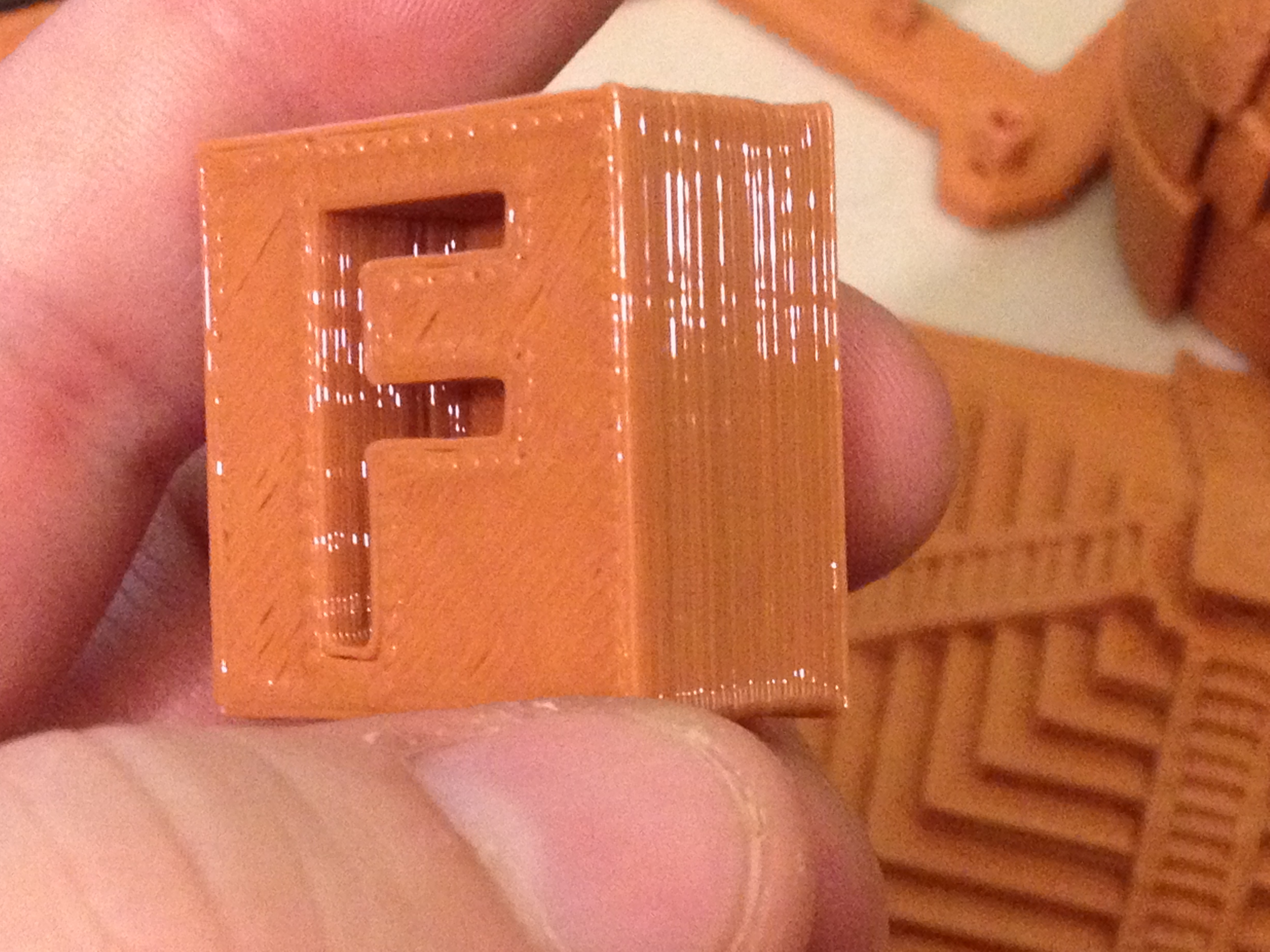

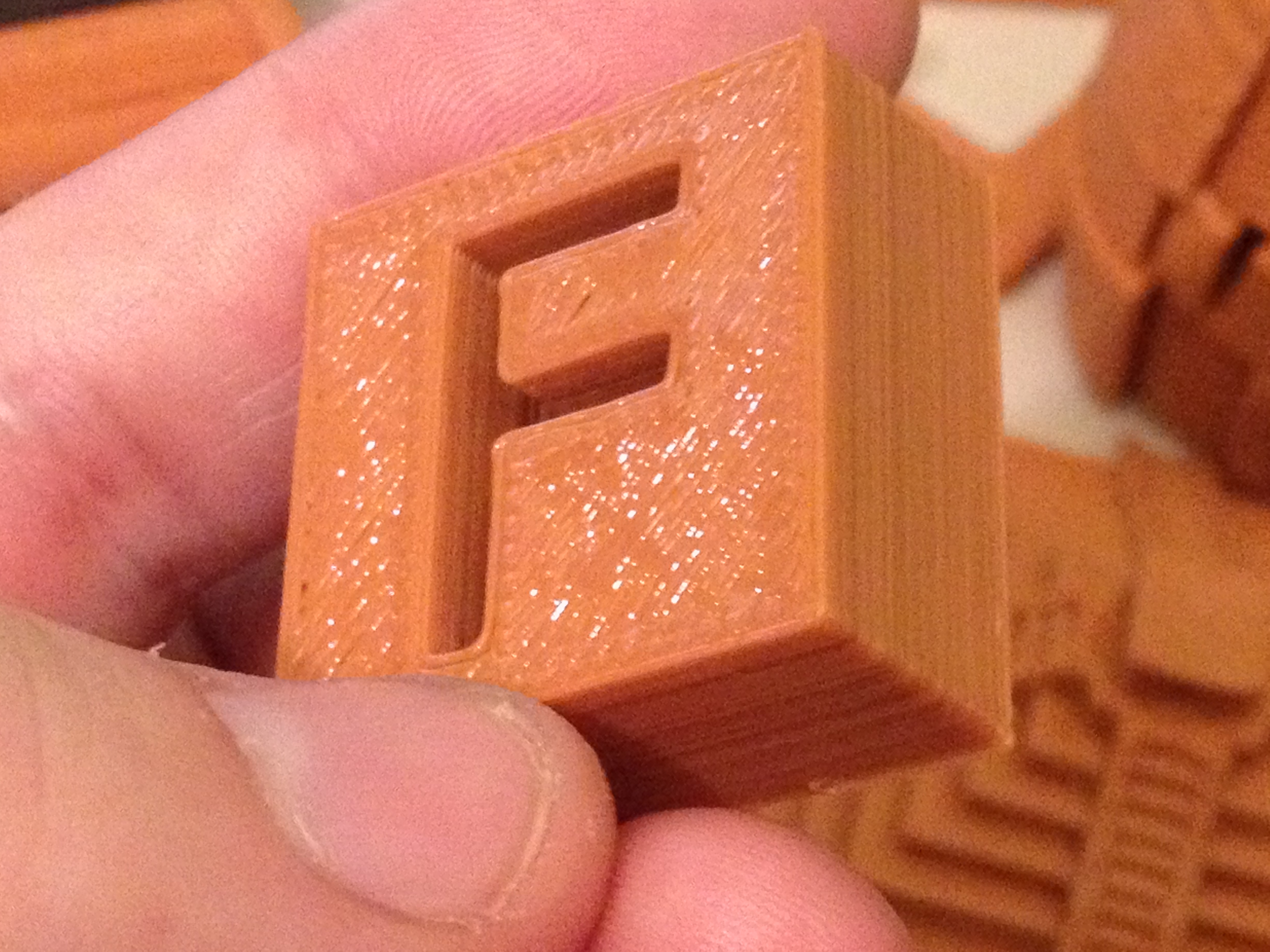

These next pictures were an attempt to show how much this looked like caramel to me, and how much I wanted to be able to eat that block..

IMG_7004

IMG_7006

IMG_7007

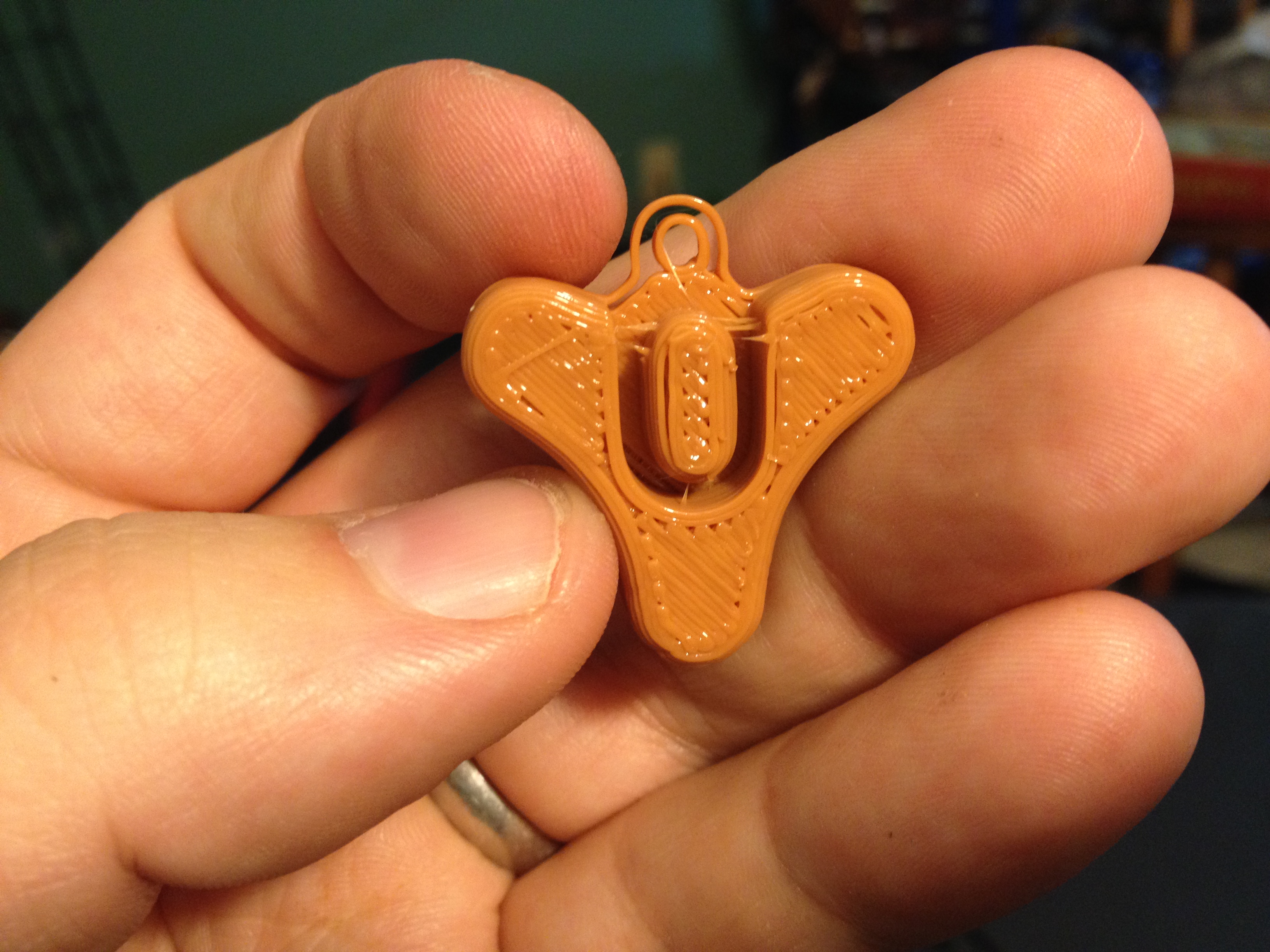

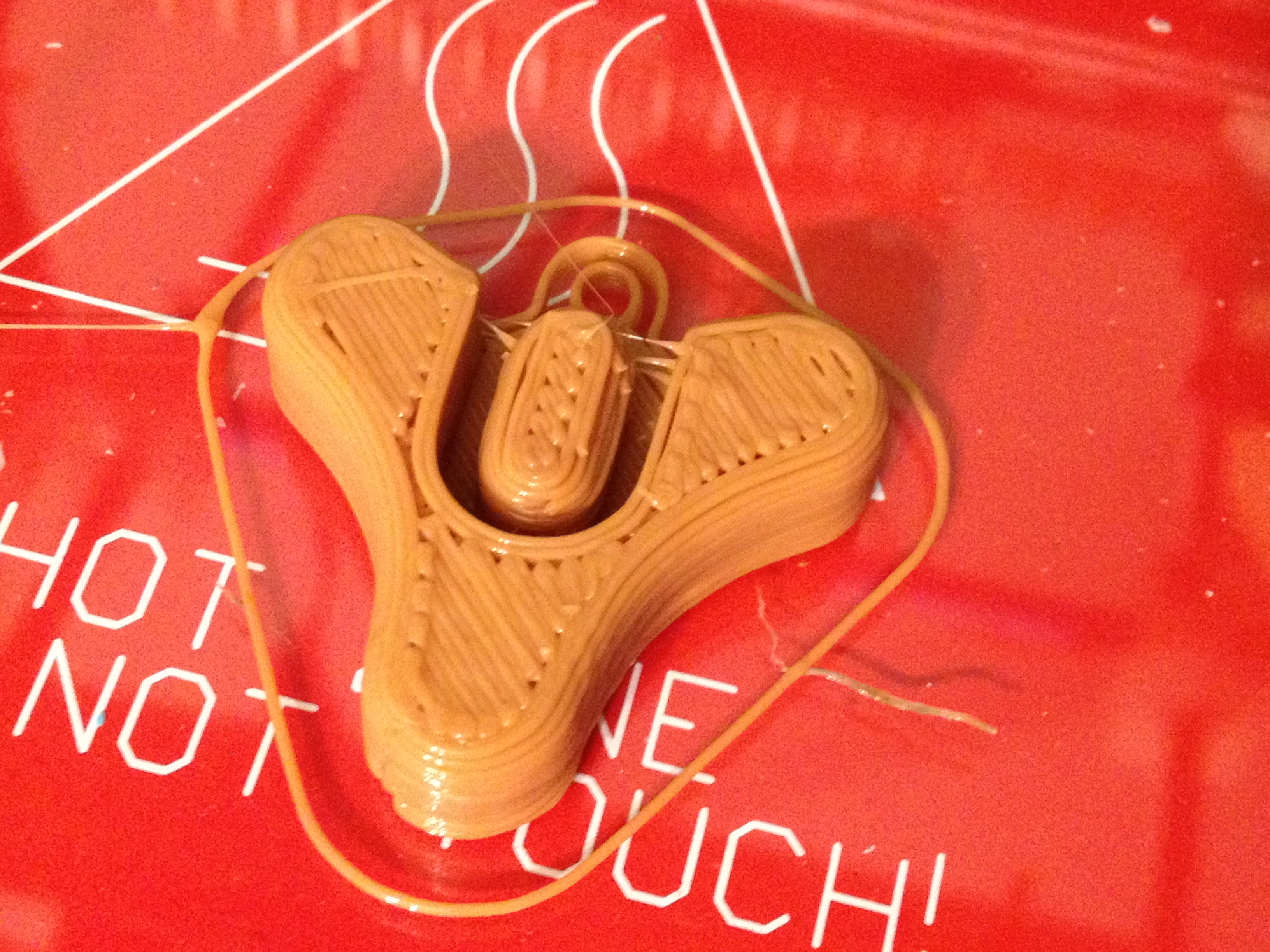

Bungie’s Game Destiny Pendant, Chain Mail – February 10, 2014

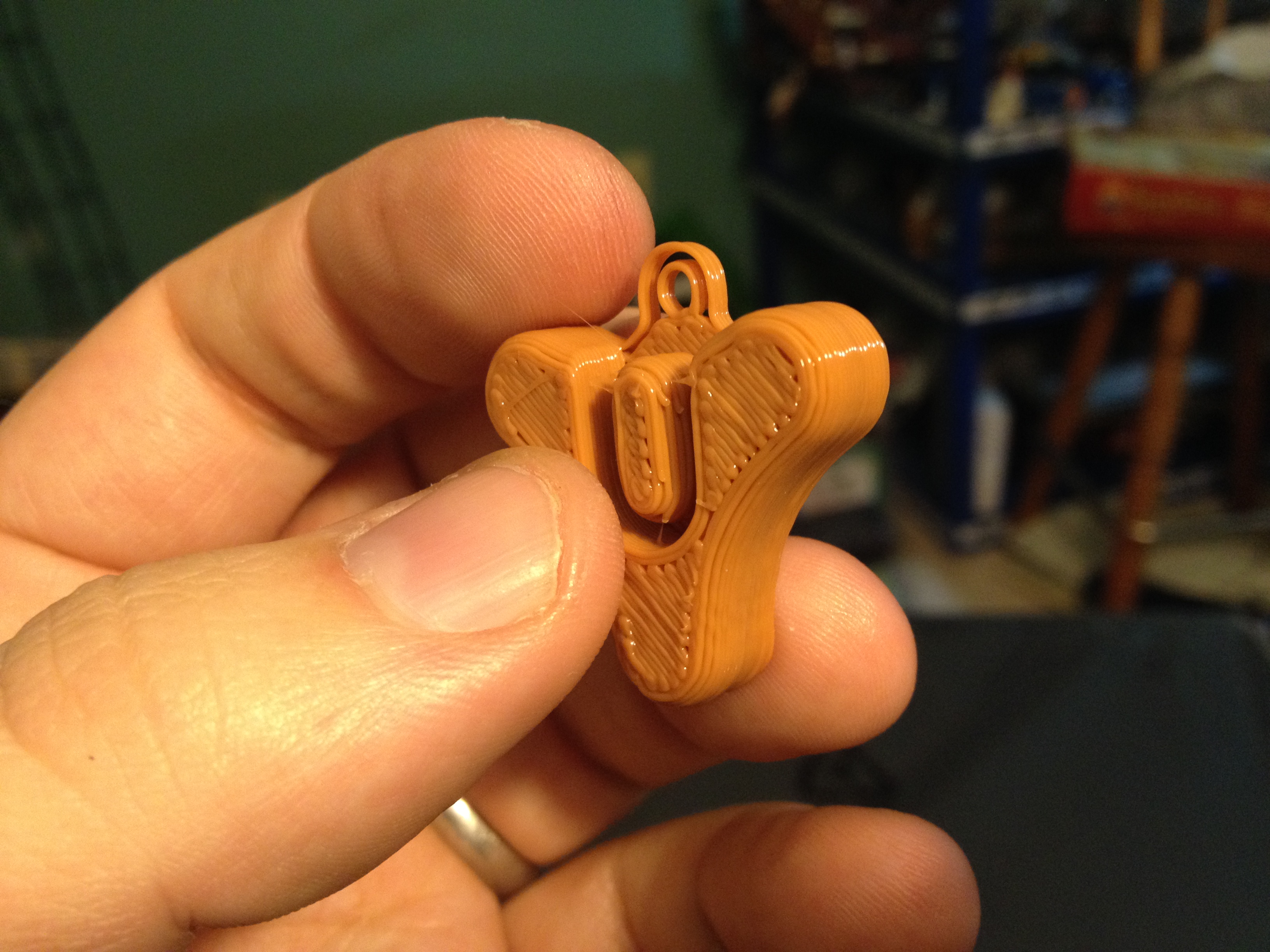

Back in February of 2014, it was much easier to do an entire February full of 3D prints, because Bungie had not yet released their incredible game Destiny (which has eaten up most of my spare time since September 2014!). They had, however, shown many copies of the logo for the game. Someone took it and made the Bungie’s Game Destiny Pendant object on thingiverse, which I printed on February 10th of 2014, before the rest of the world knew how awesome a game Destiny would become (I knew.. Love you Bungie!):

IMG_7028

IMG_7030

IMG_7032

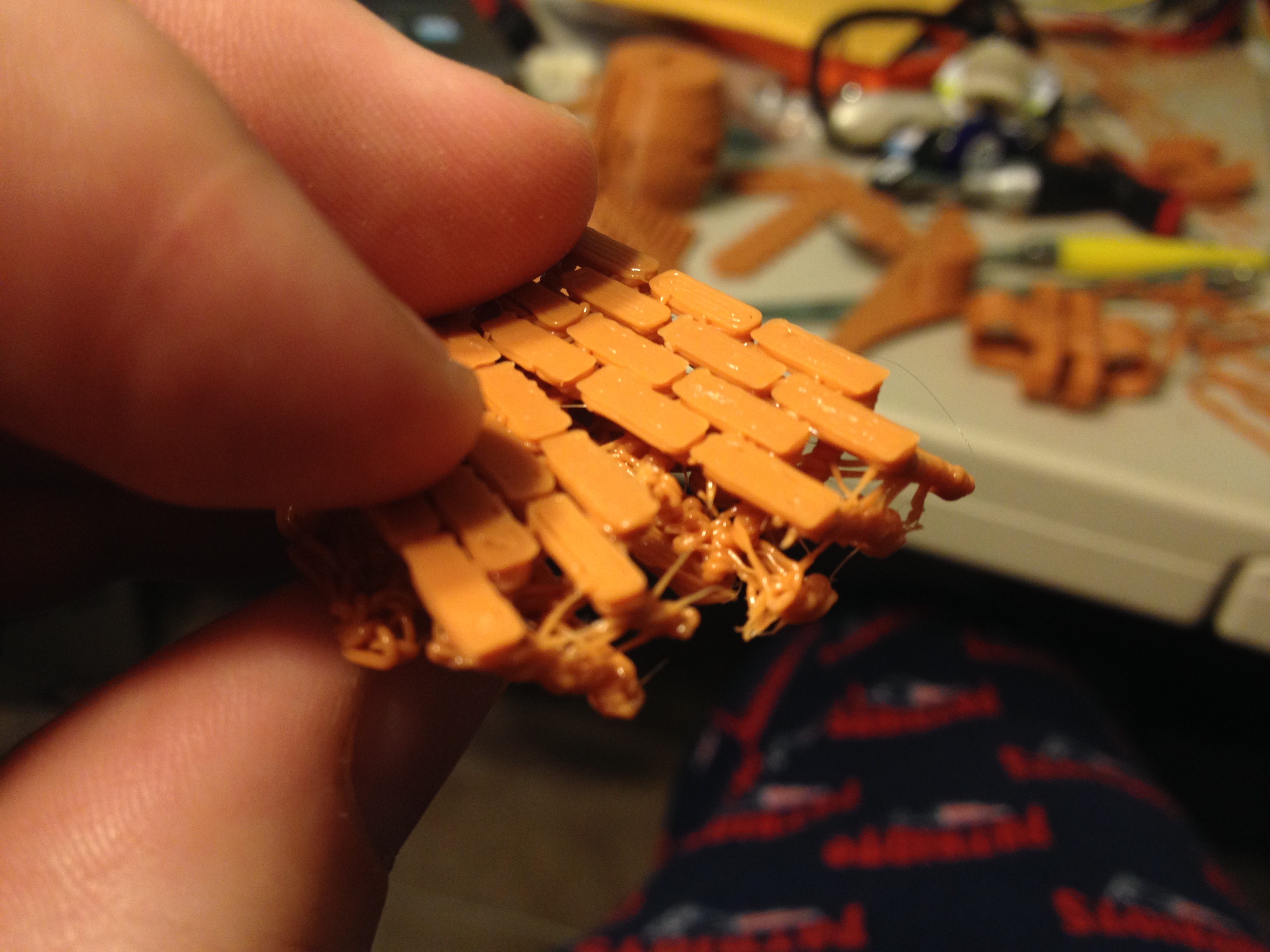

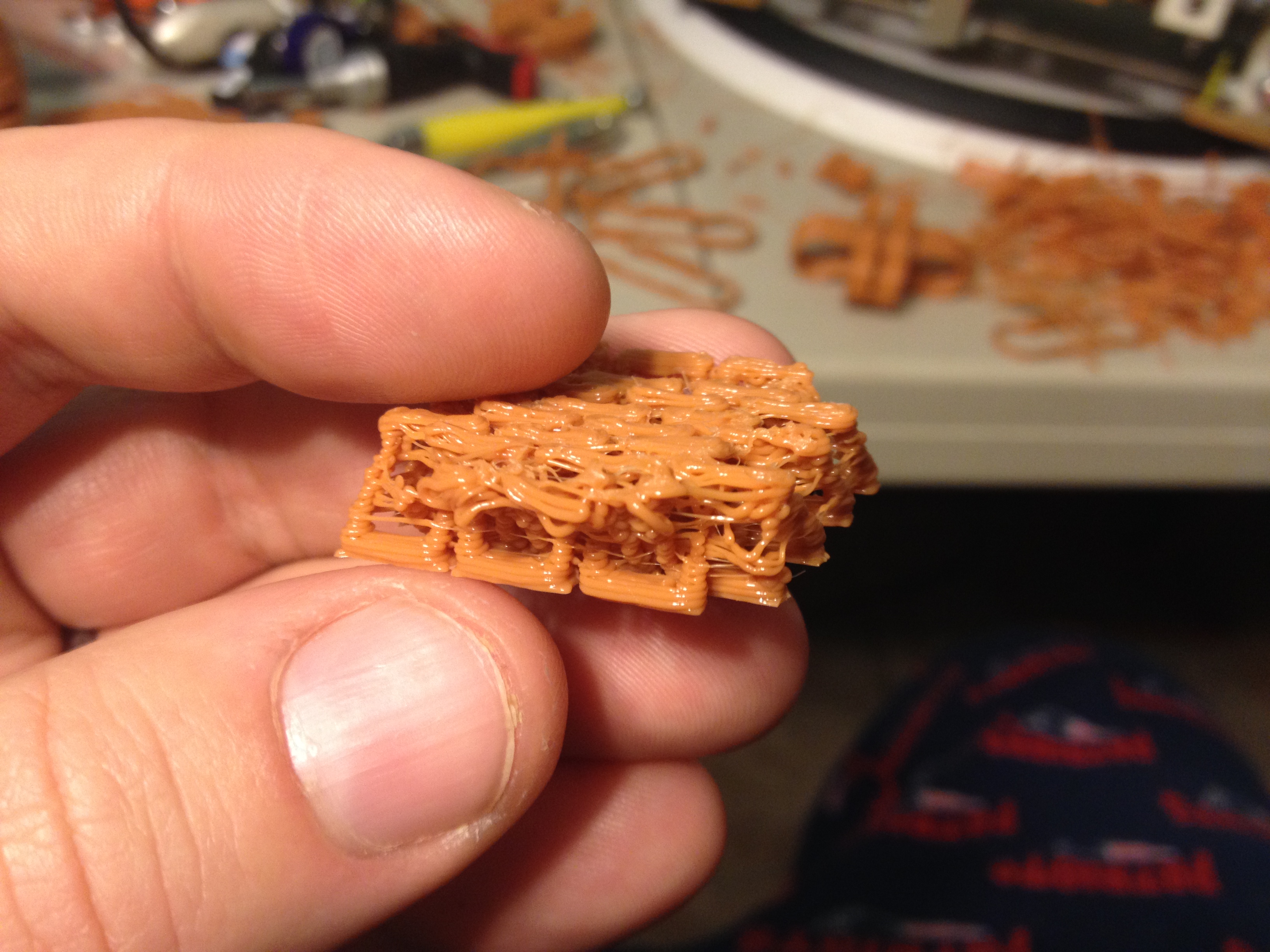

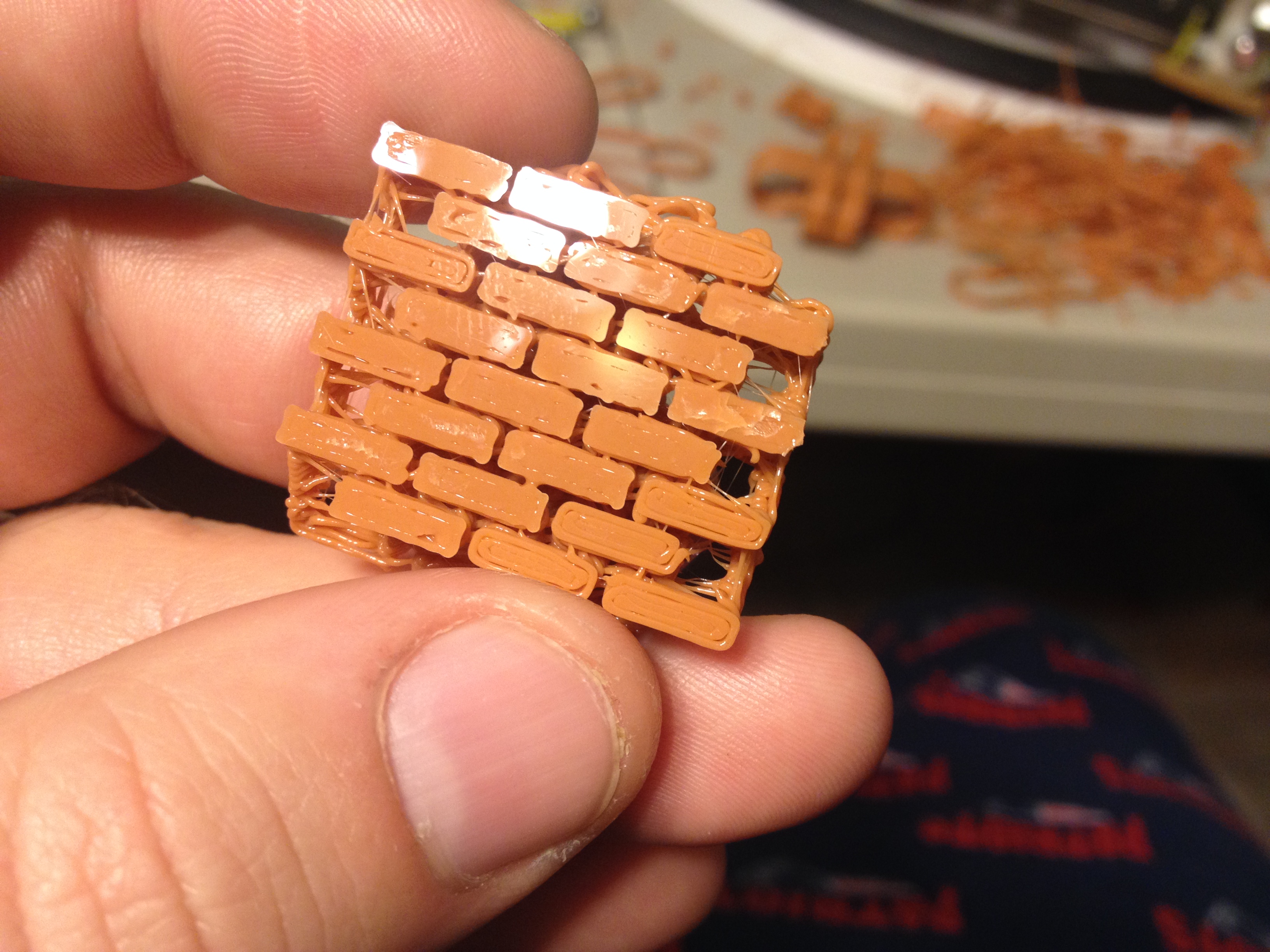

Before printing that, I had attempted to print some Chainmail.. That didn’t go so well. I tried printing out a small version, which fused together and broke apart when I tried to bend it. Then I tried scaling it up, and left that print unattended for too long. Feast your eyes on some failures:

IMG_7012

IMG_7013

IMG_7015

IMG_7017

IMG_7019

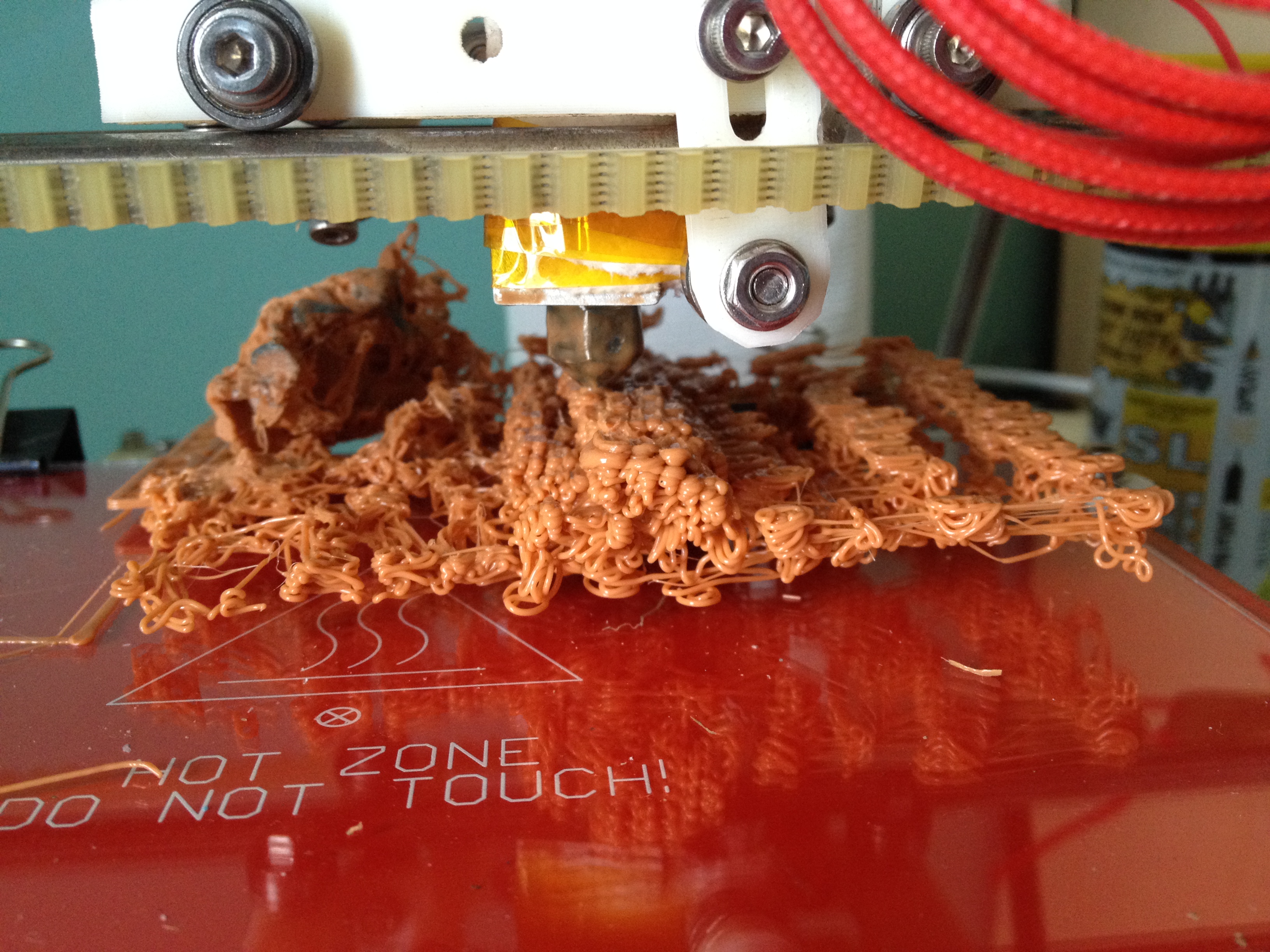

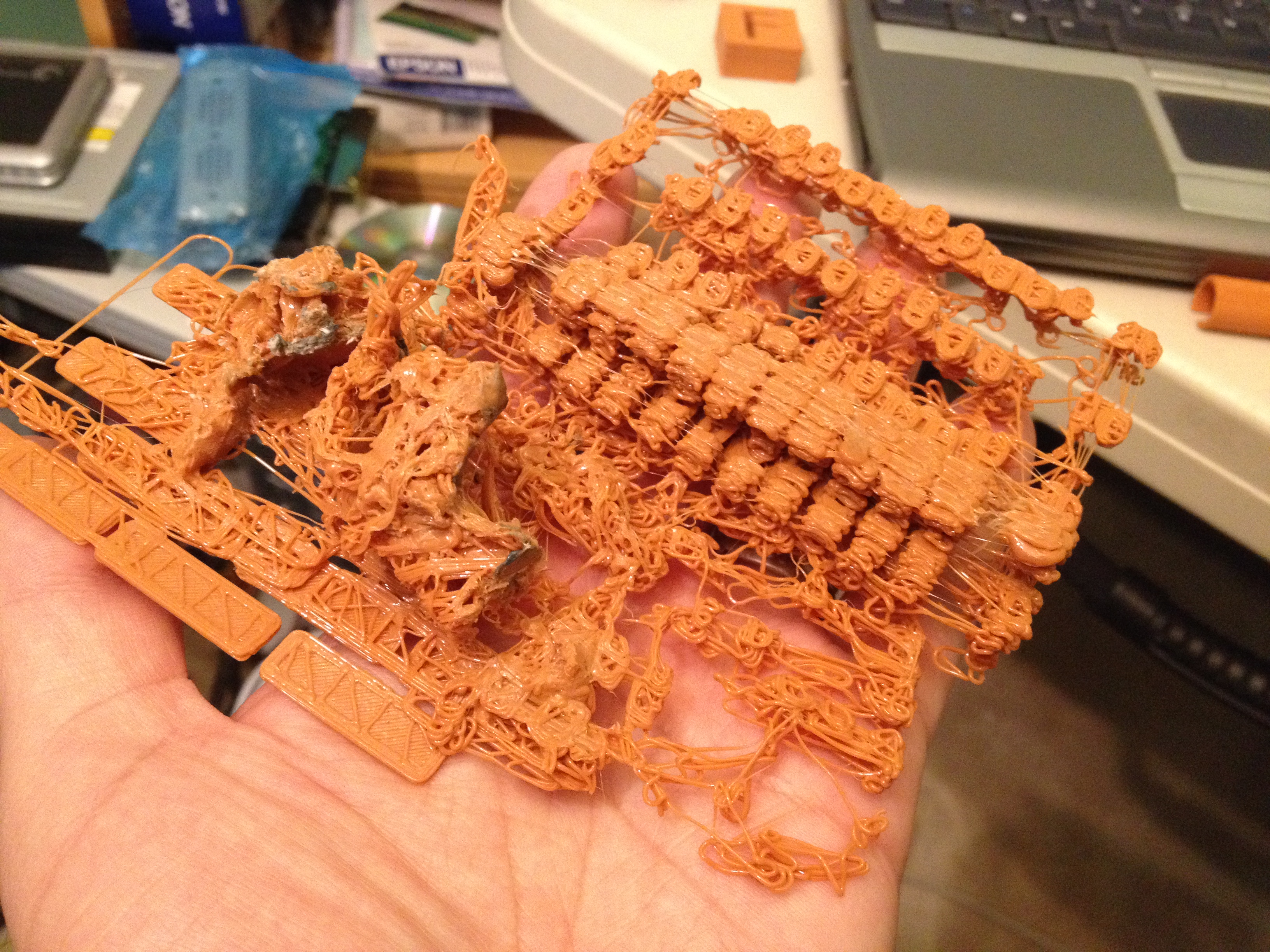

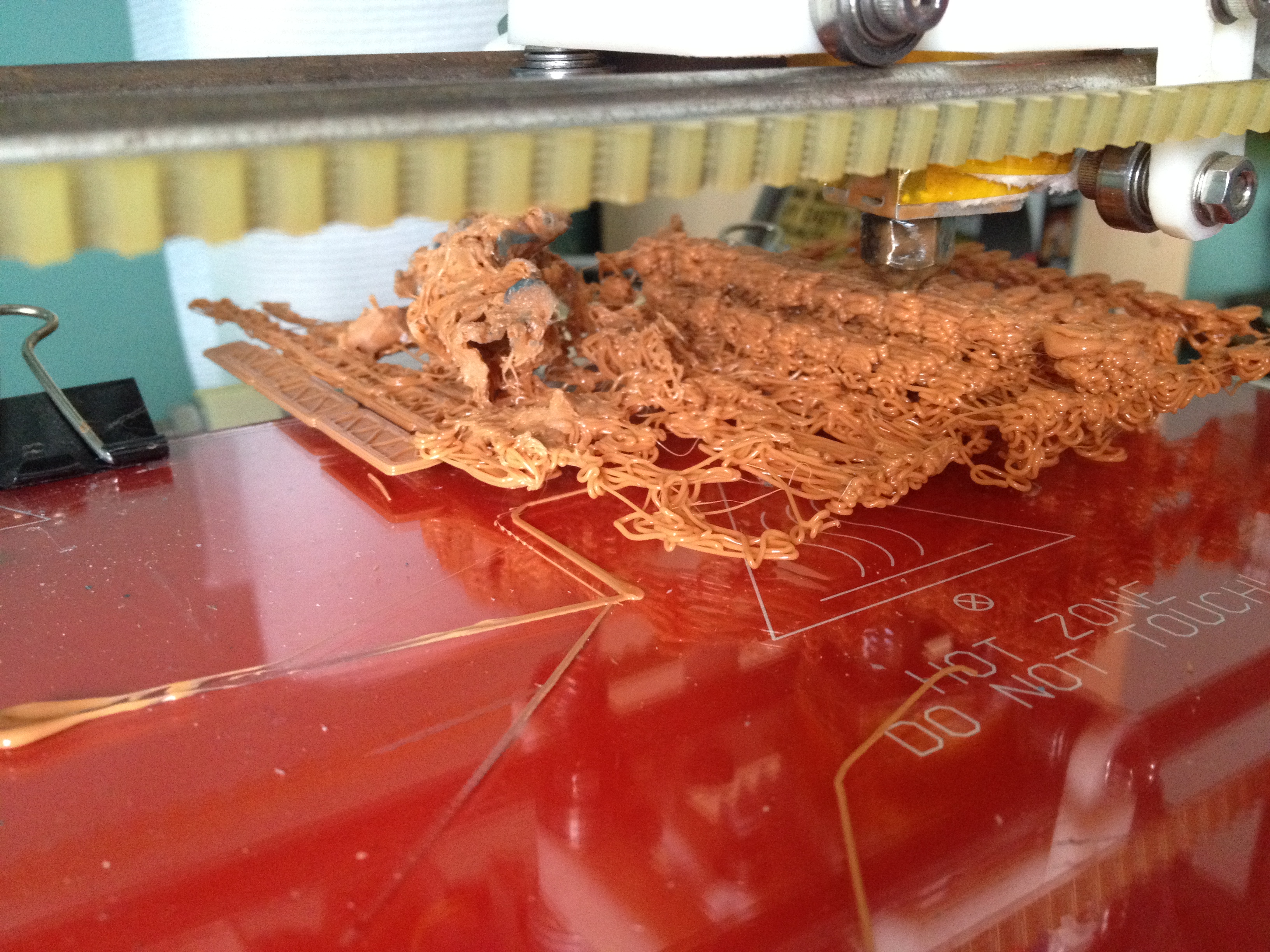

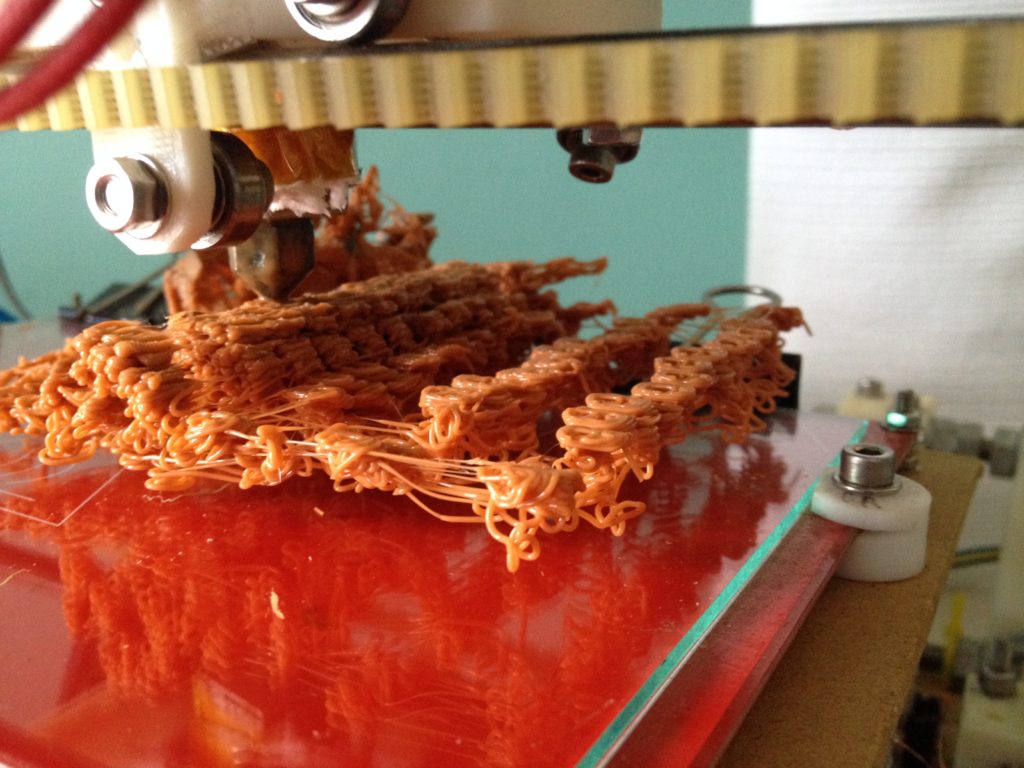

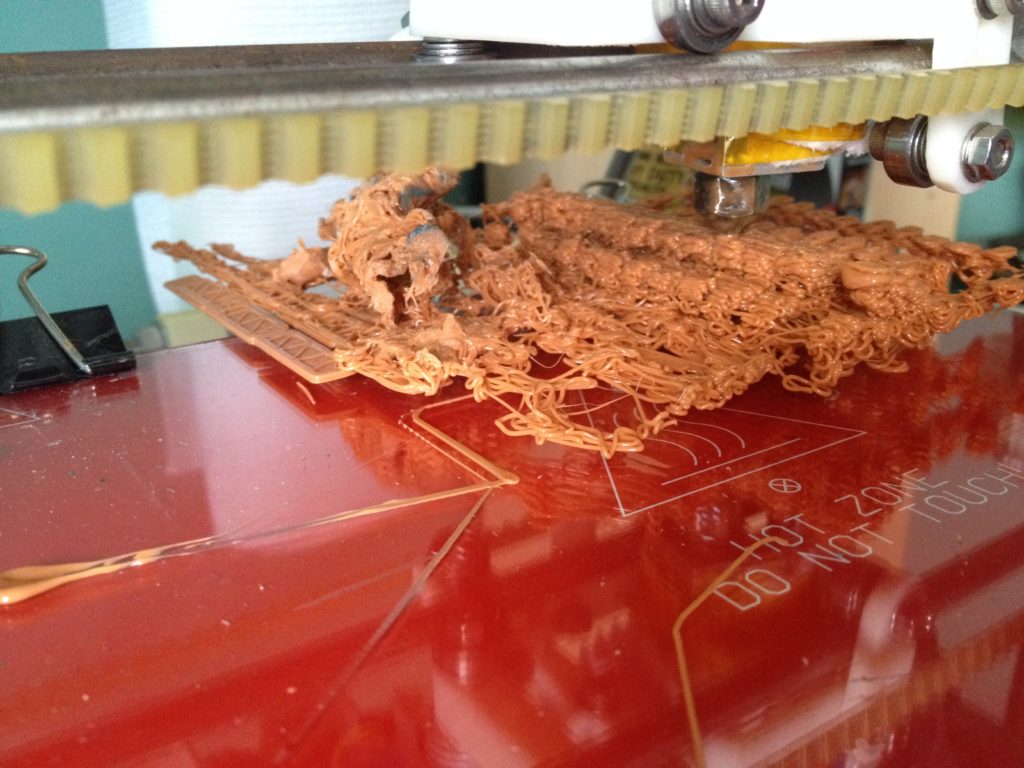

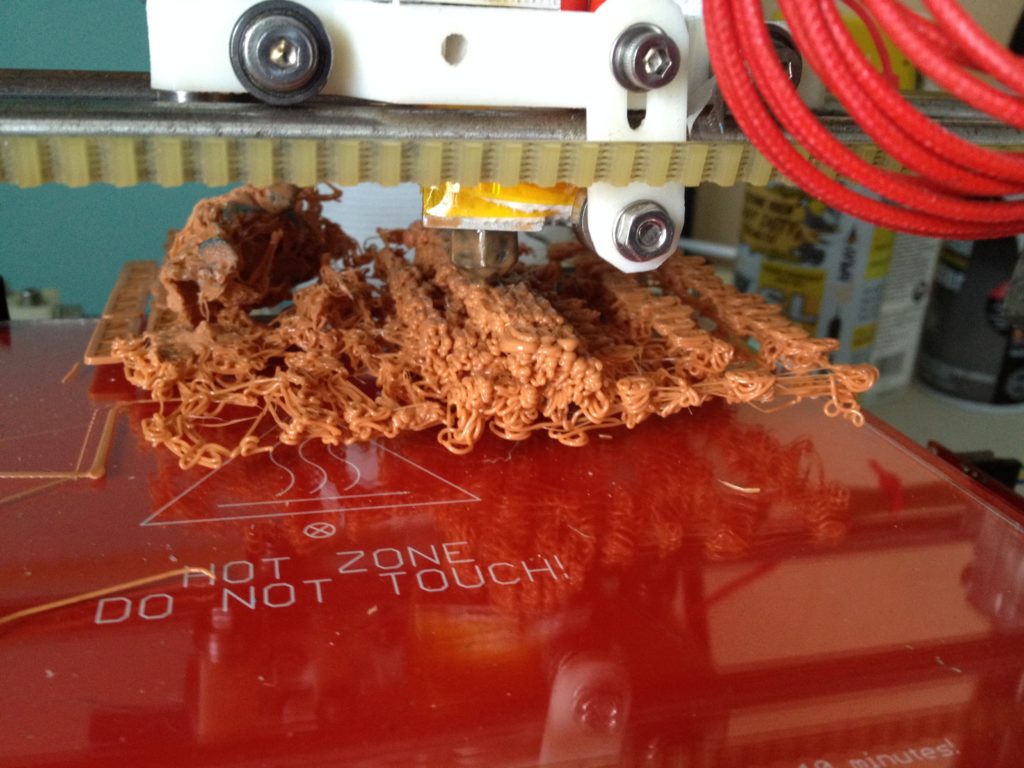

So like I said, I scaled it up, and left the printing unattended…

IMG_7020

IMG_7022

IMG_7023

IMG_7024

IMG_7025

Like I said, the official part for the day was the Bungie pendant. 🙂

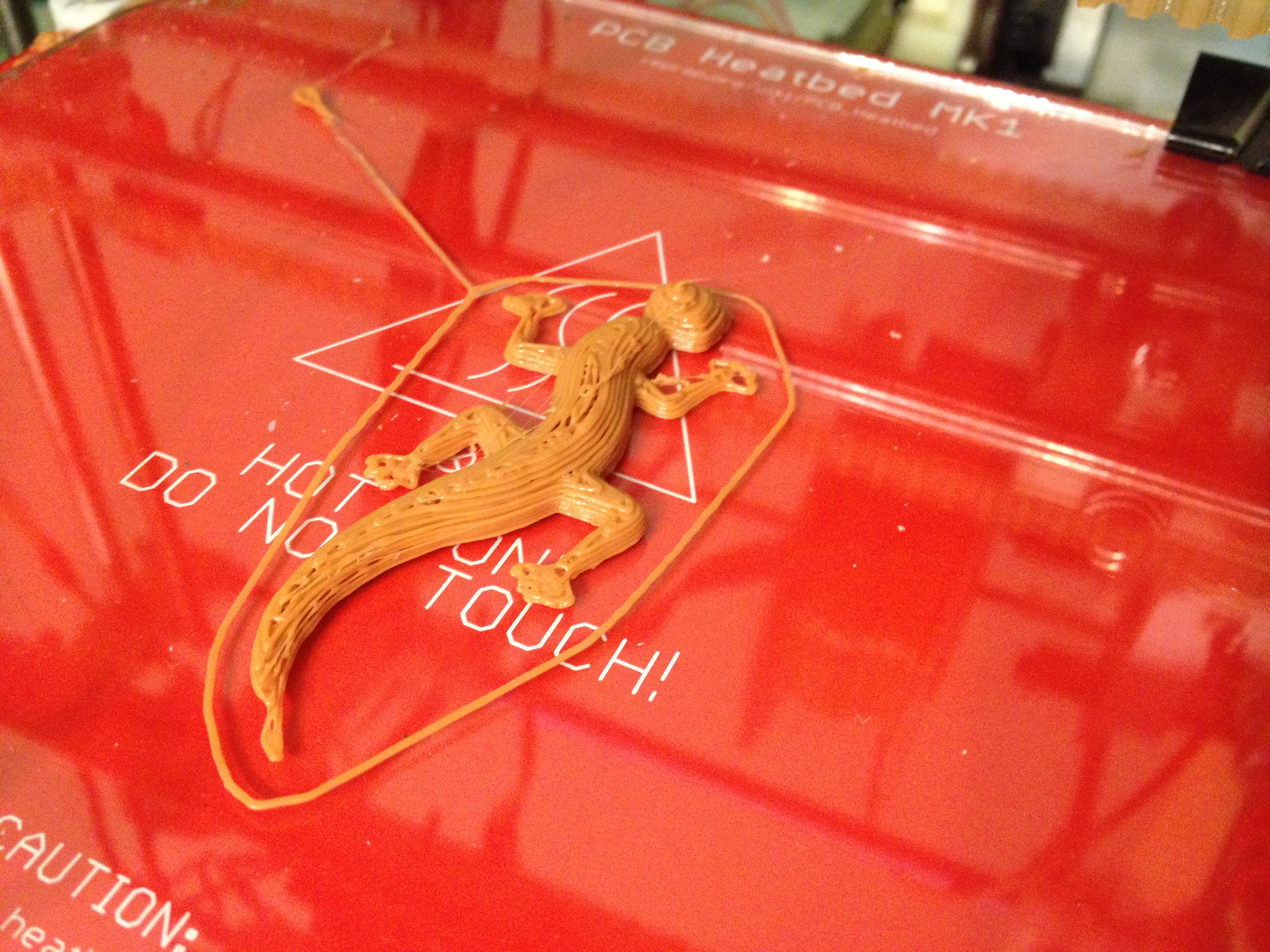

RepRap Name tab, A Gekko – Fixed, Simplified, and Plated – February 11, 2014

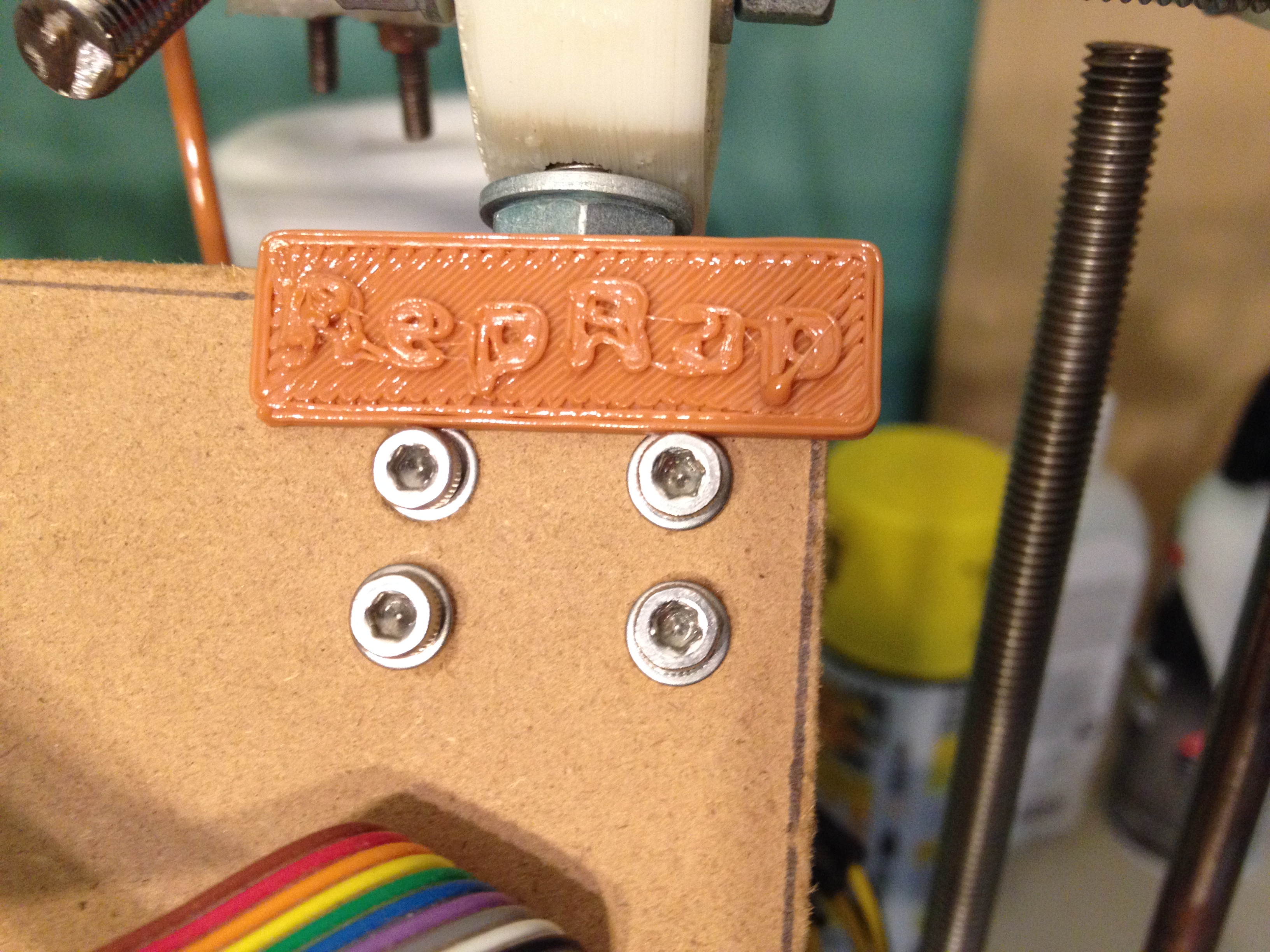

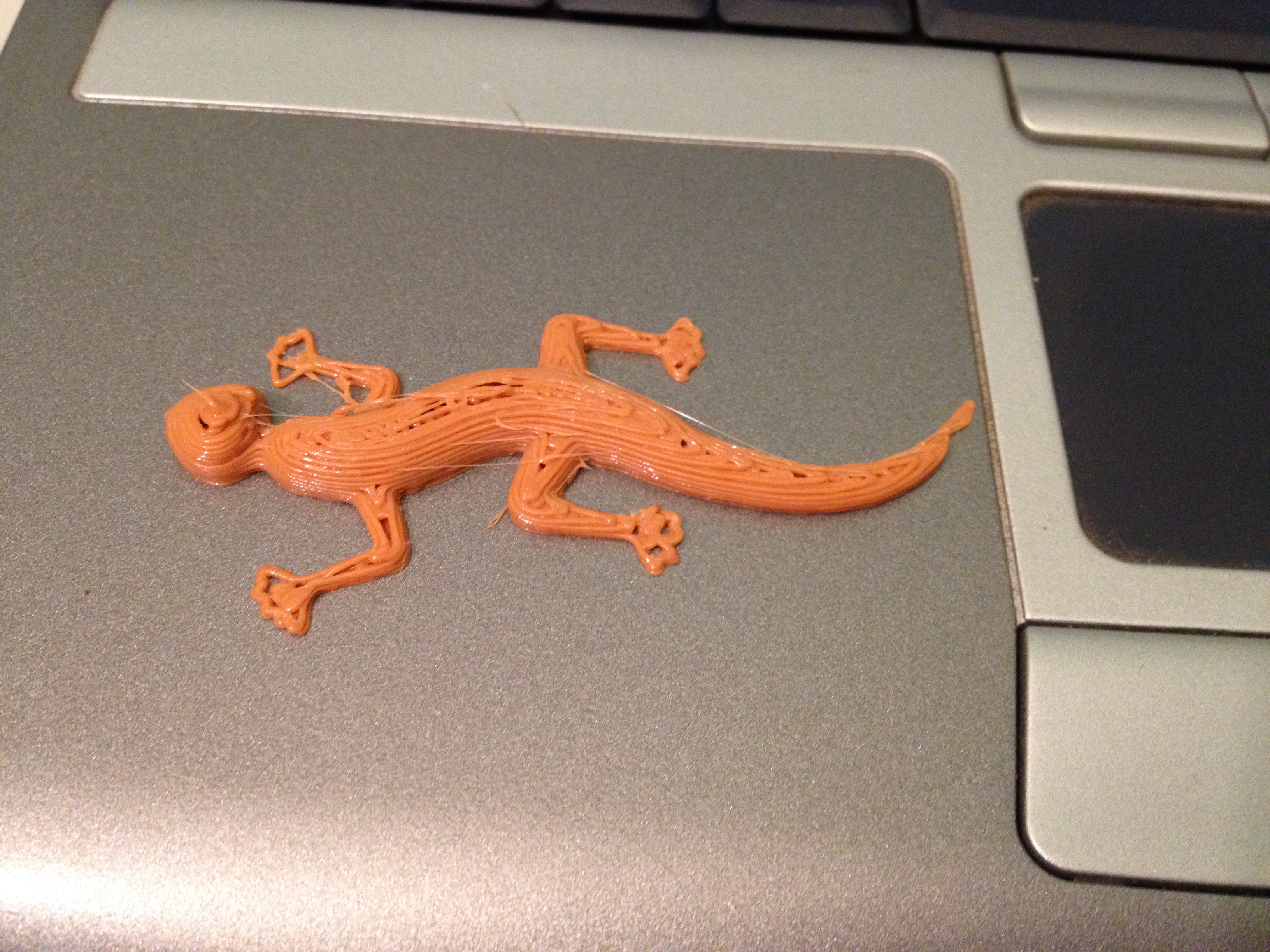

This day I made a RepRap Name tab, and a Gekko:

IMG_7042

IMG_7043

IMG_7046

IMG_7047

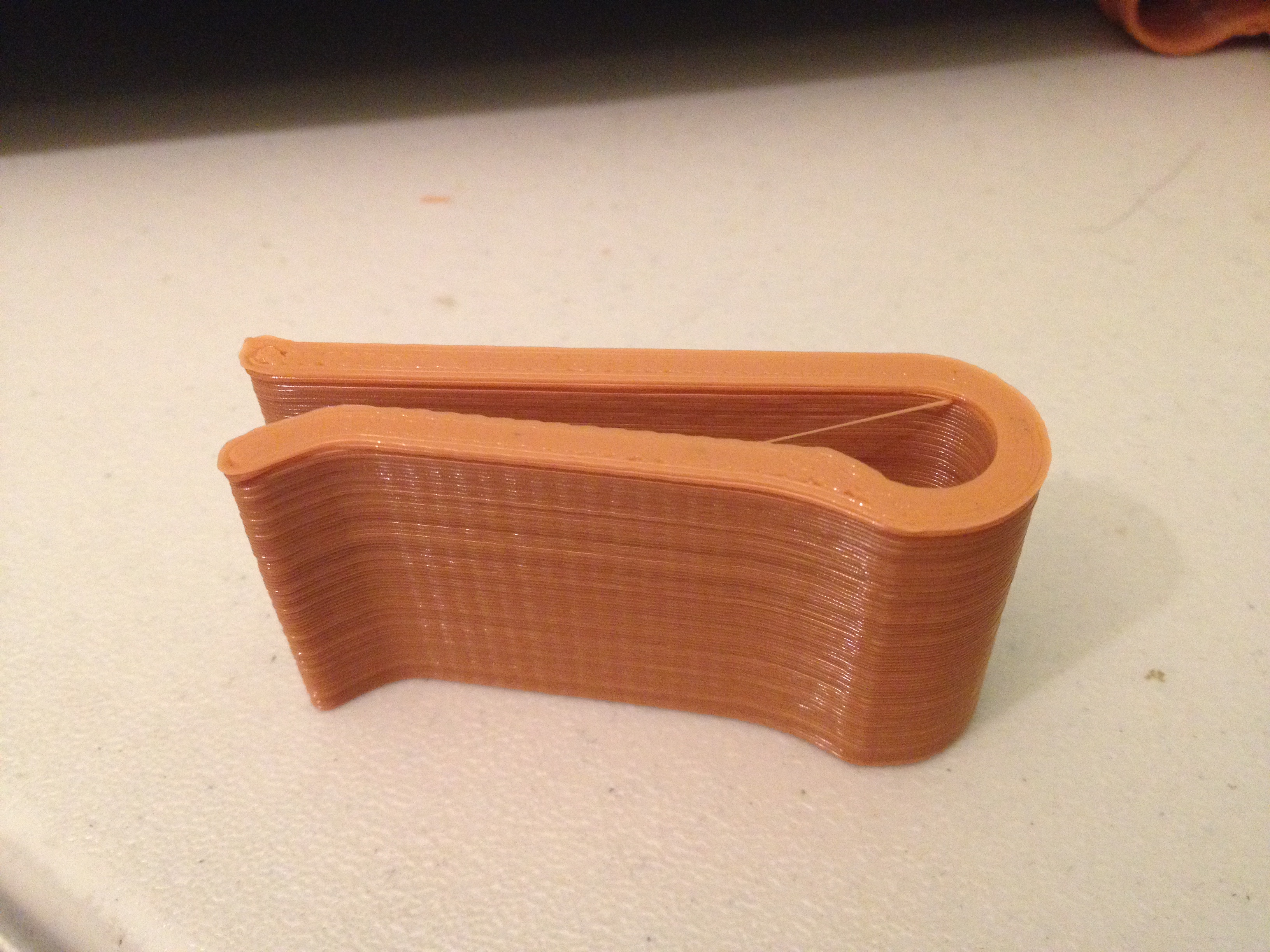

Money clip – February 12, 2014

I’d made this one before – it’s simple and pleasing to the eye. Here is the Money clip that I printed:

IMG_7048

IMG_7051

IMG_7052

space shuttle with tank and boosters, Cable chain – February 13, 2014

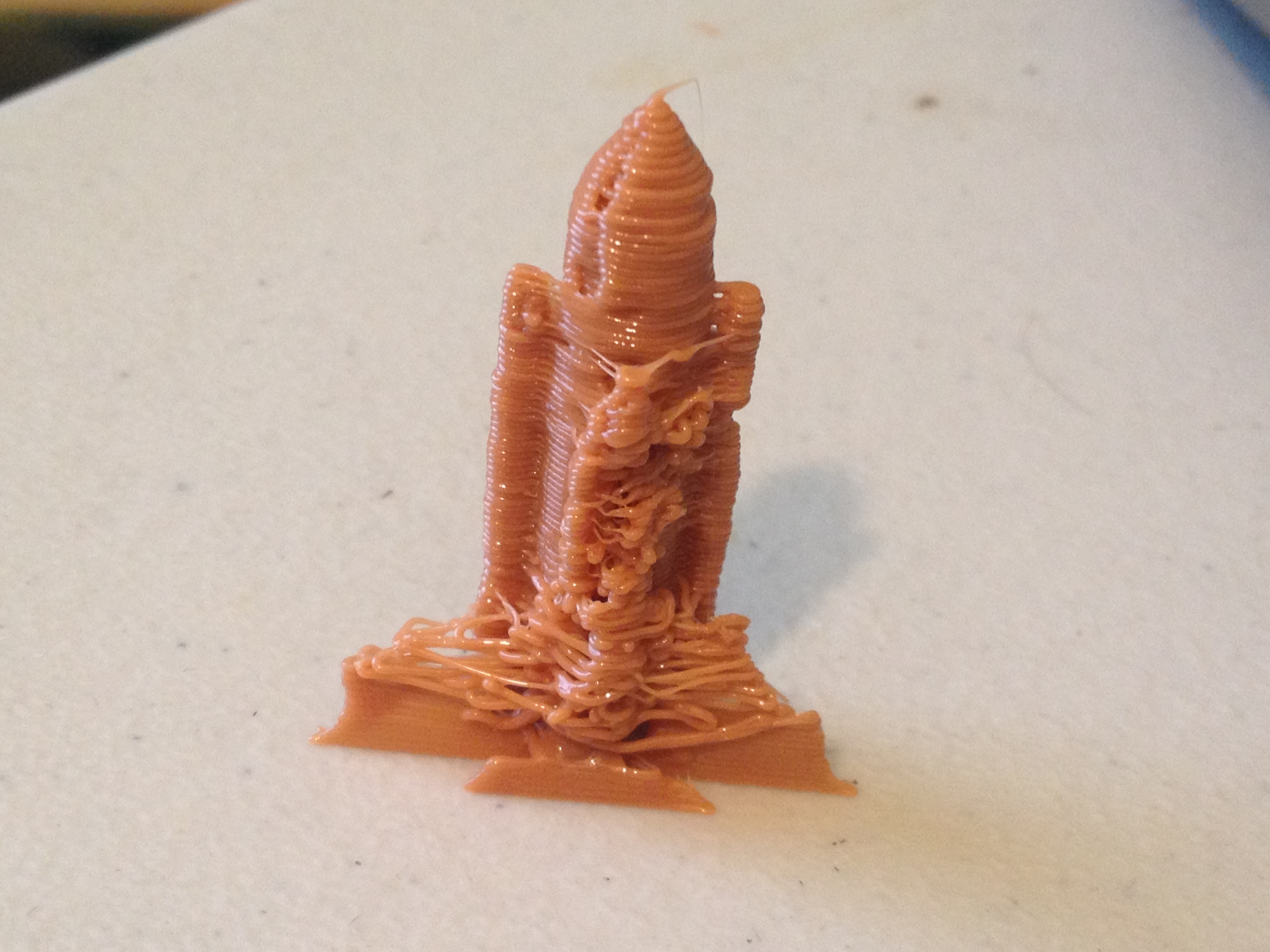

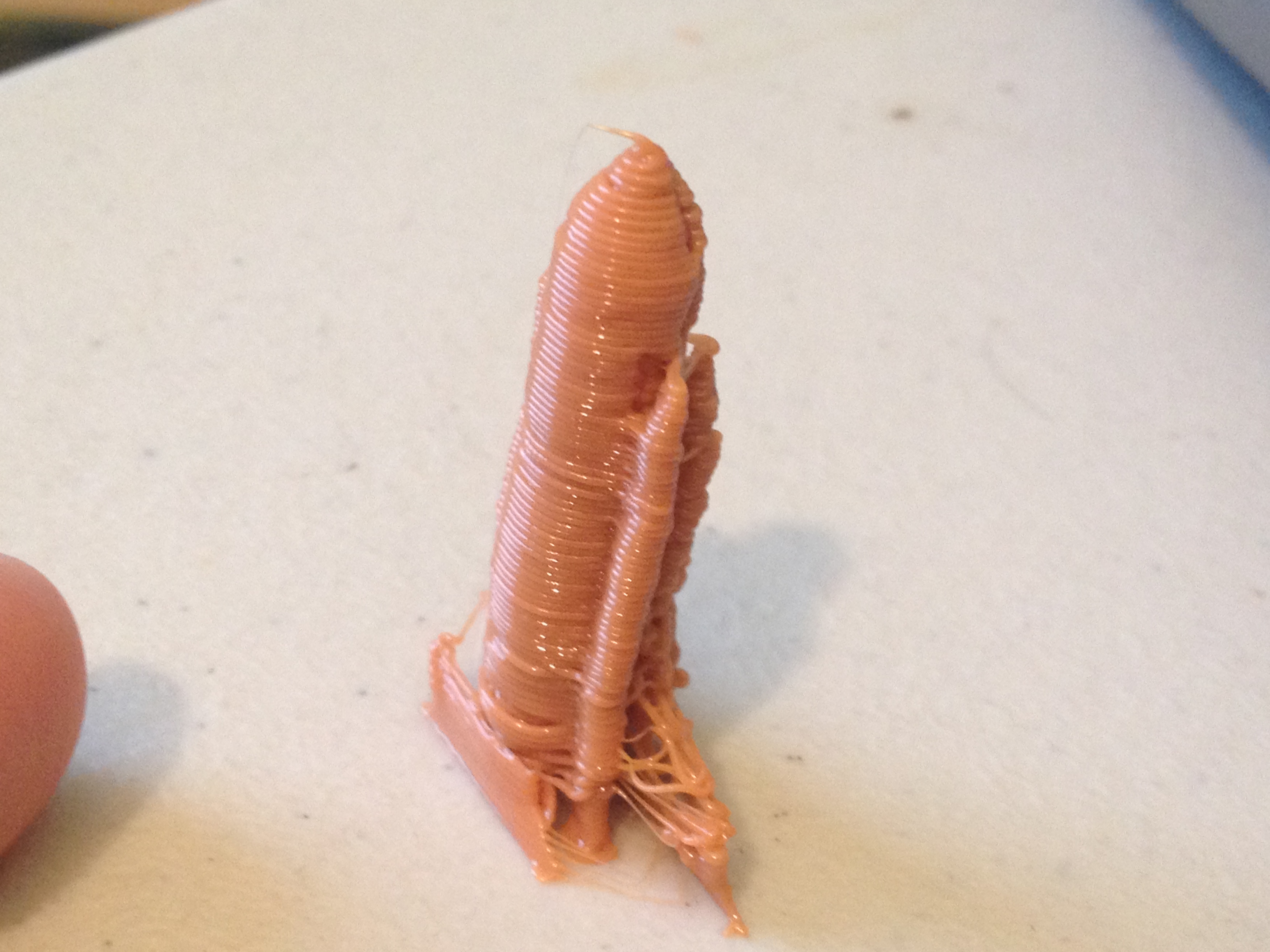

I tried printing out this mini space shuttle with tank and boosters, but it barely came out:

IMG_7055

IMG_7056

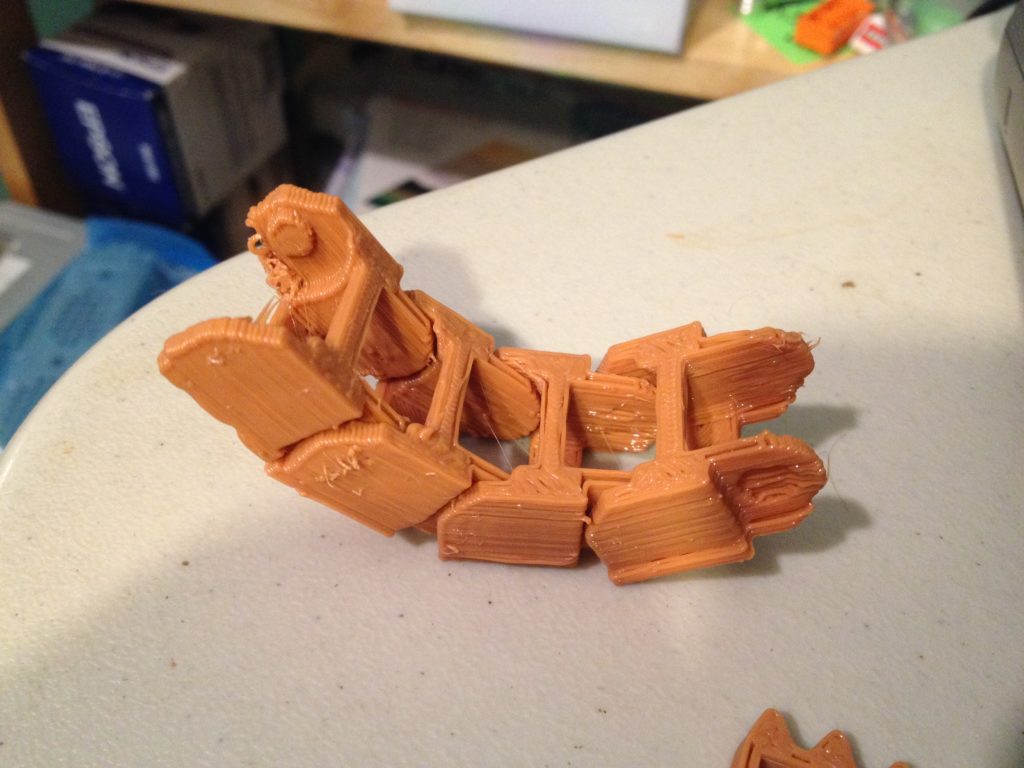

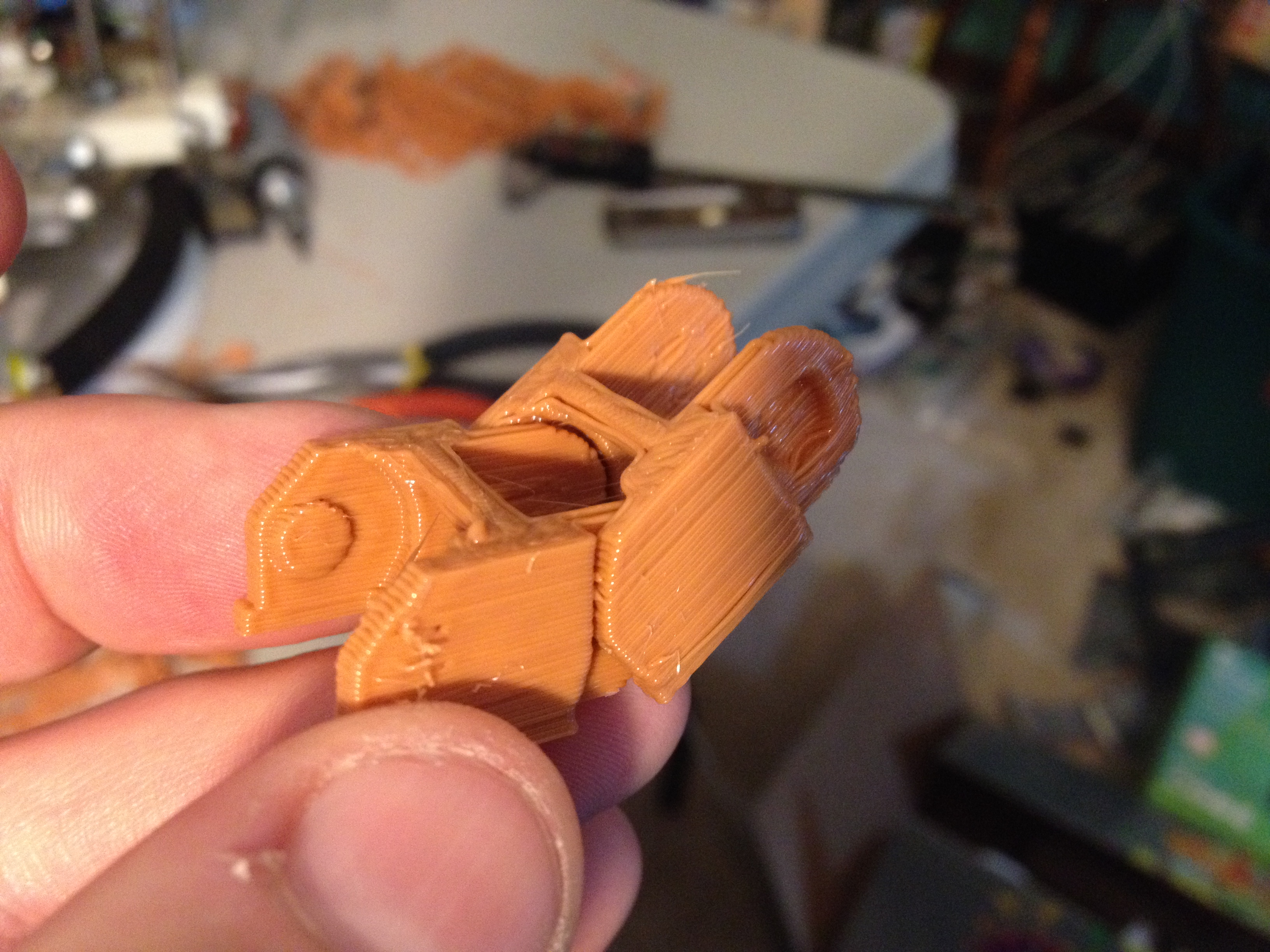

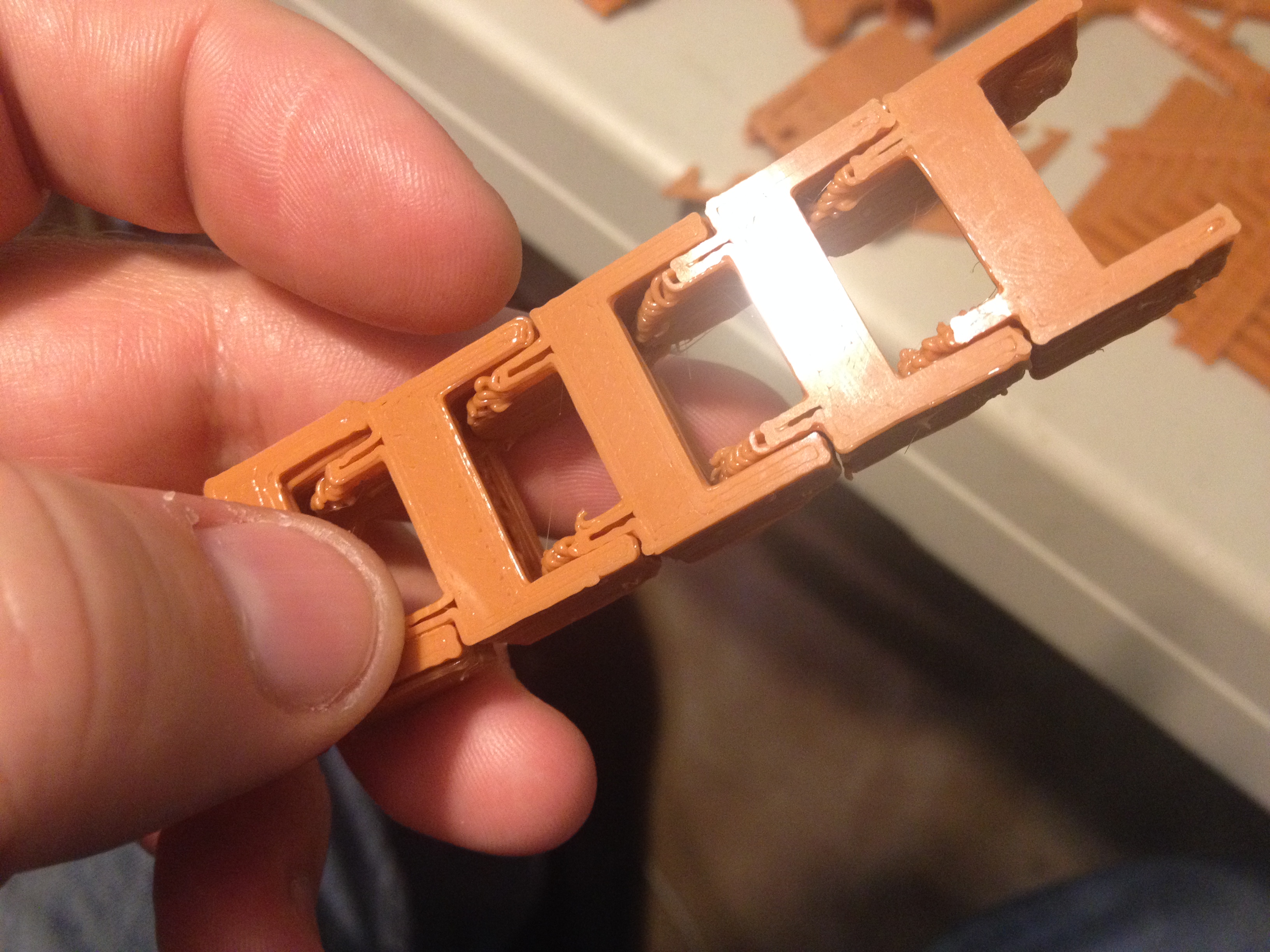

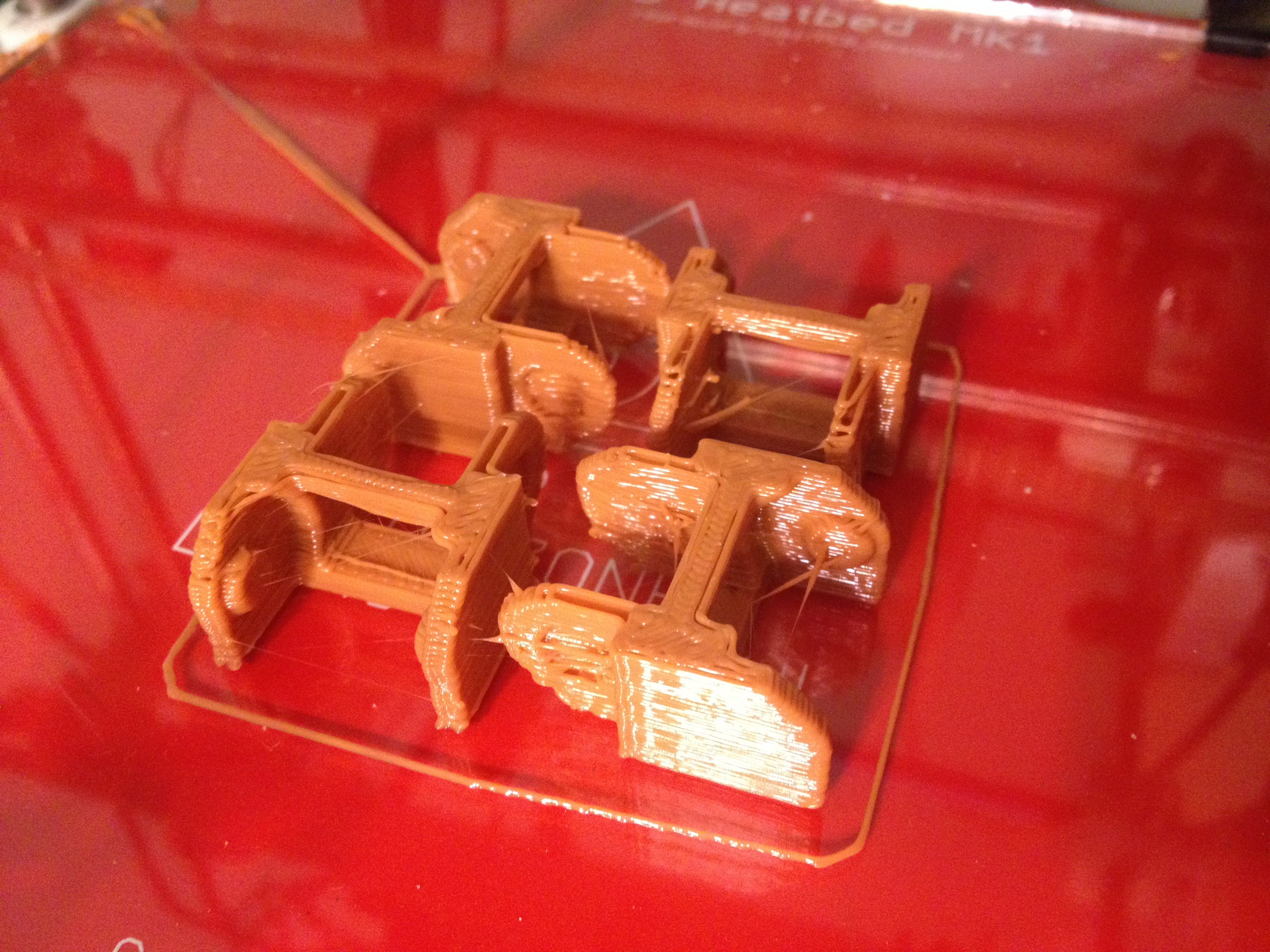

So instead I printed this Cable chain:

IMG_7069

IMG_7063

IMG_7067

IMG_7068

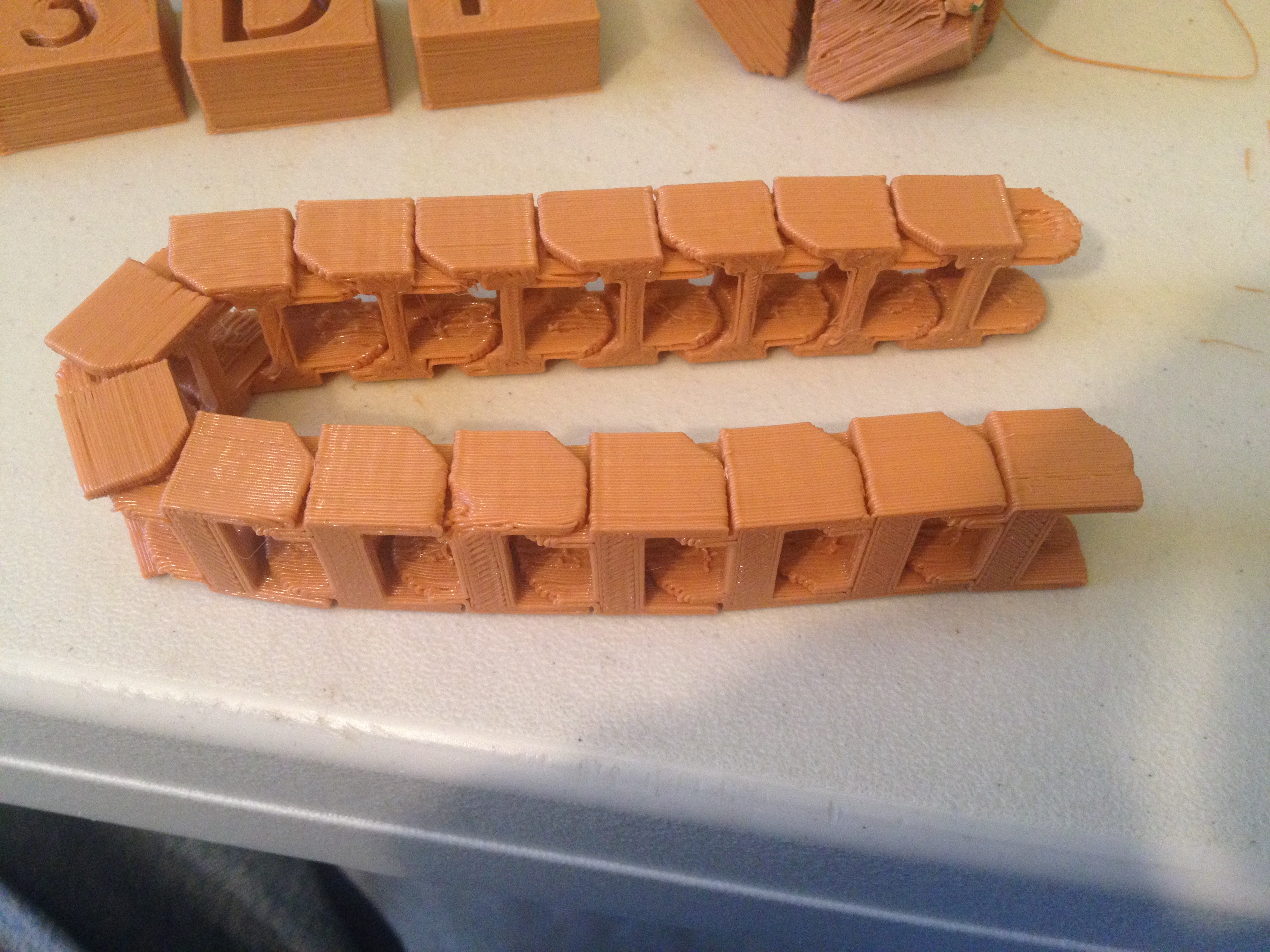

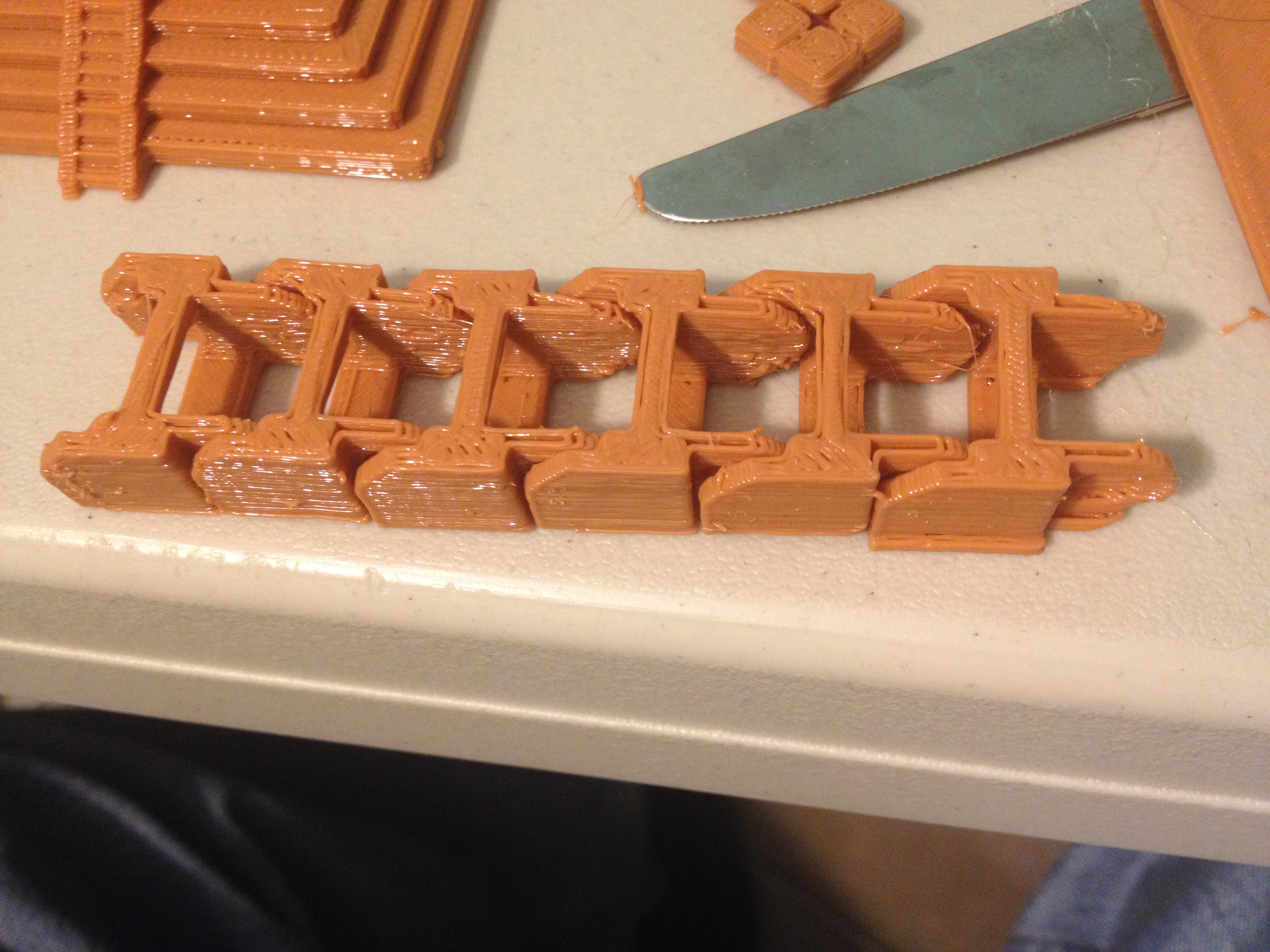

Over the next several days, if I finished my print for the day, I’d start up another 4 links of the chain, just to make it larger.

IMG_7084

IMG_7089

IMG_7086

IMG_7278

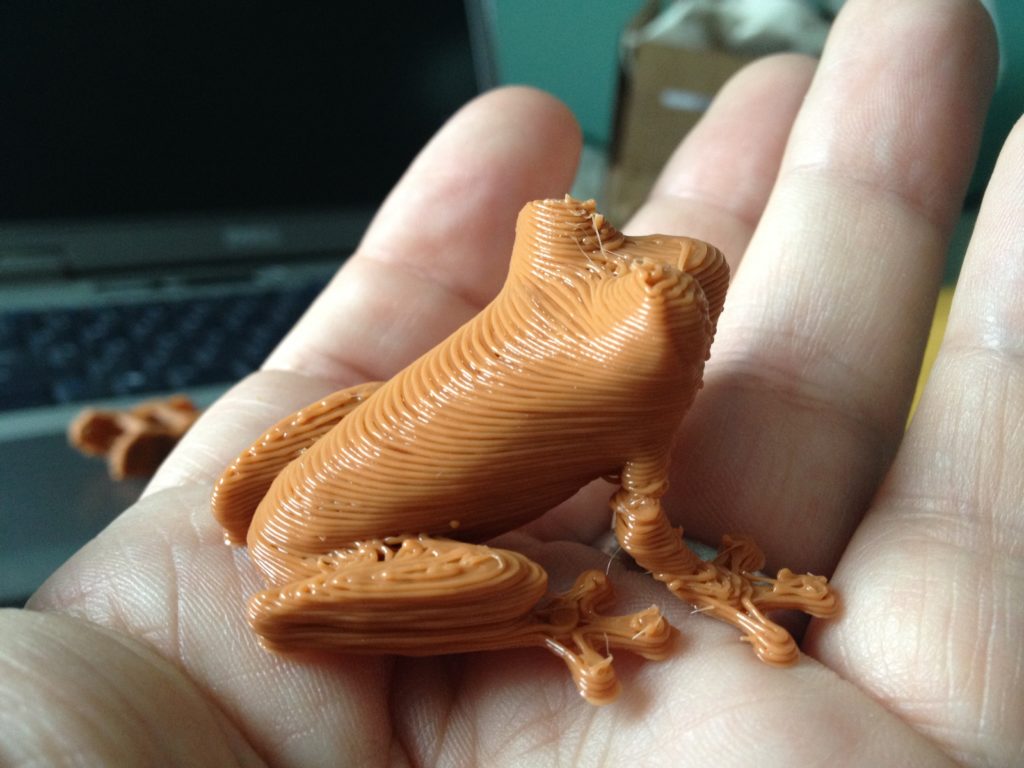

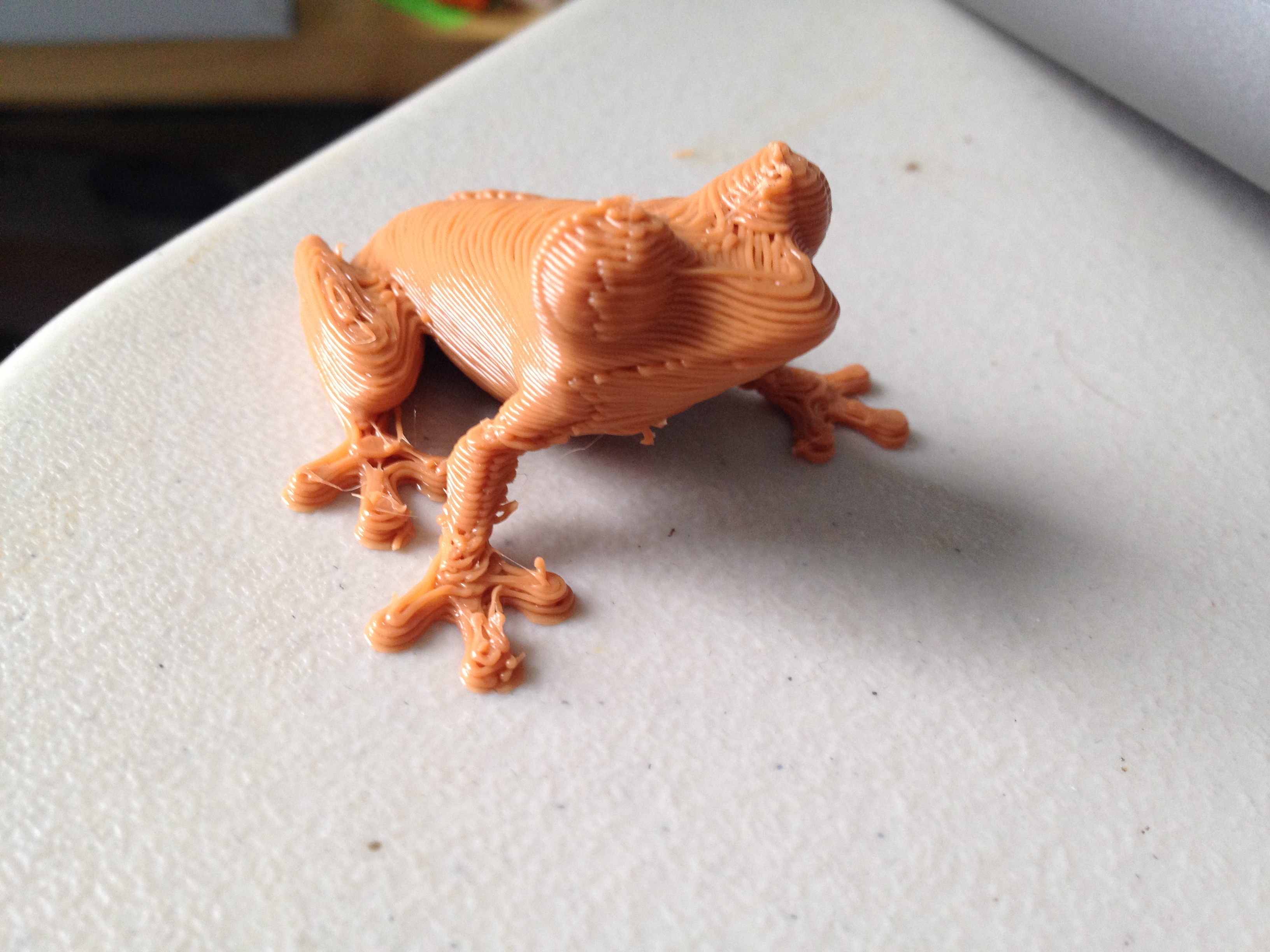

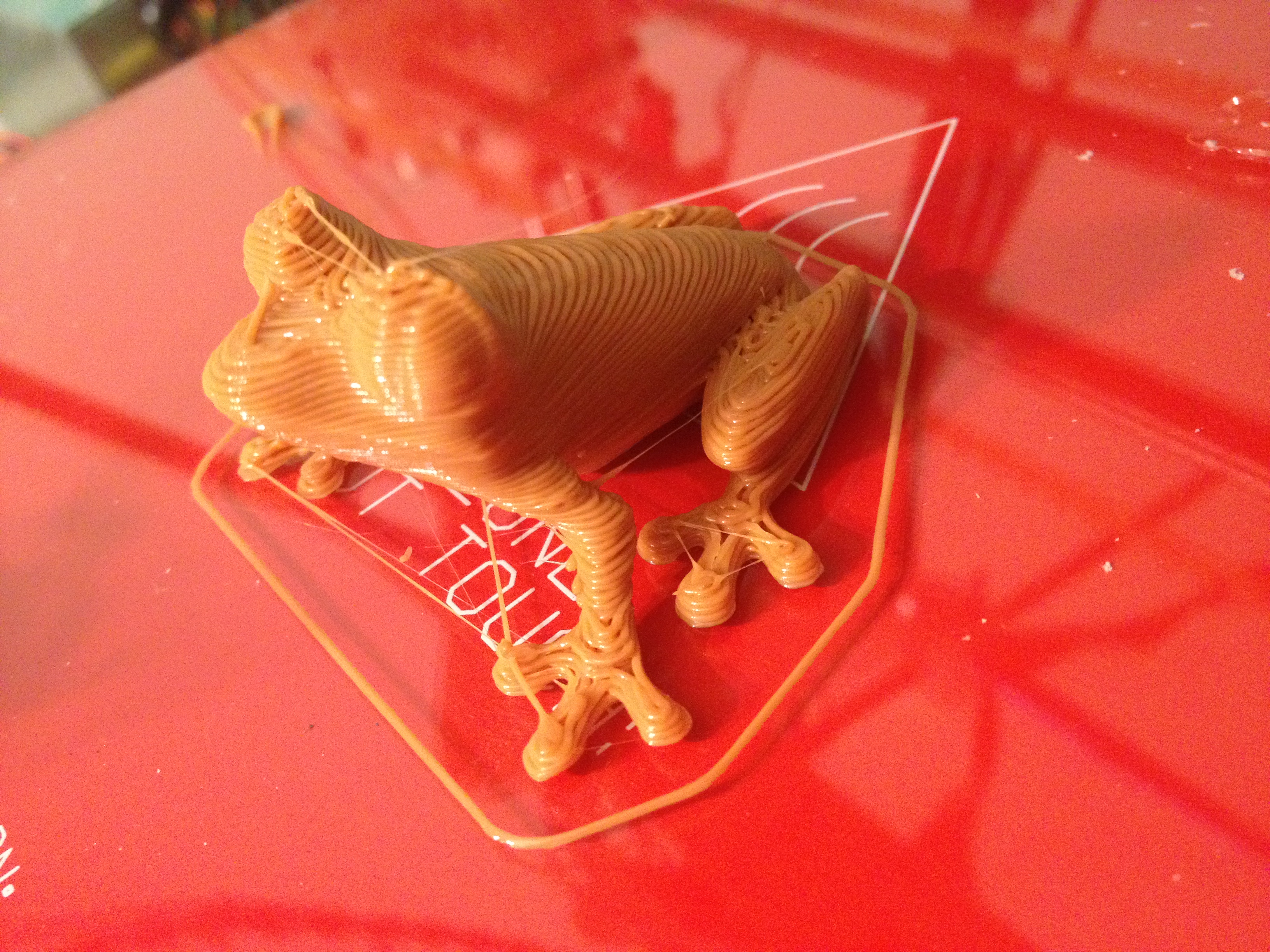

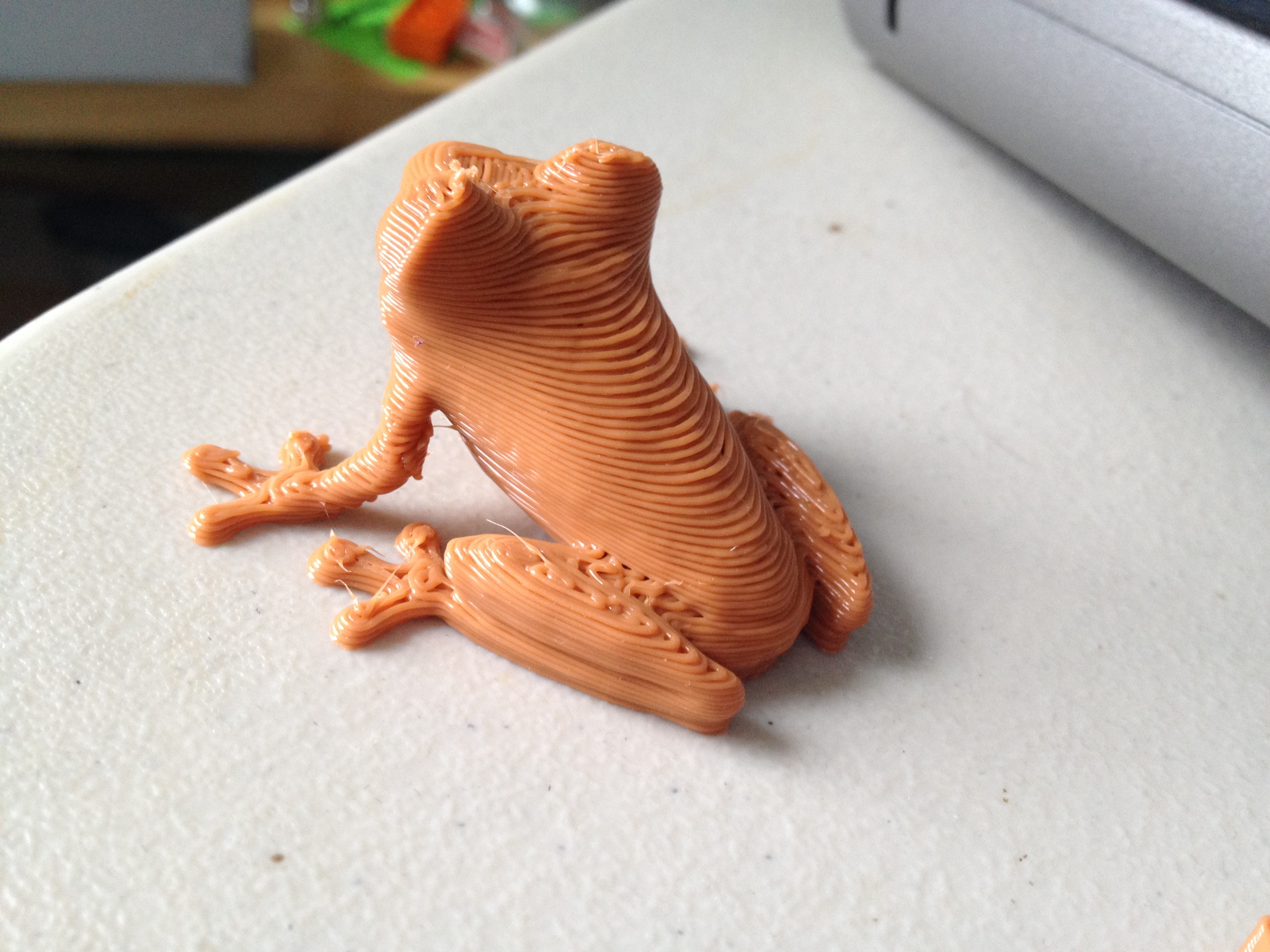

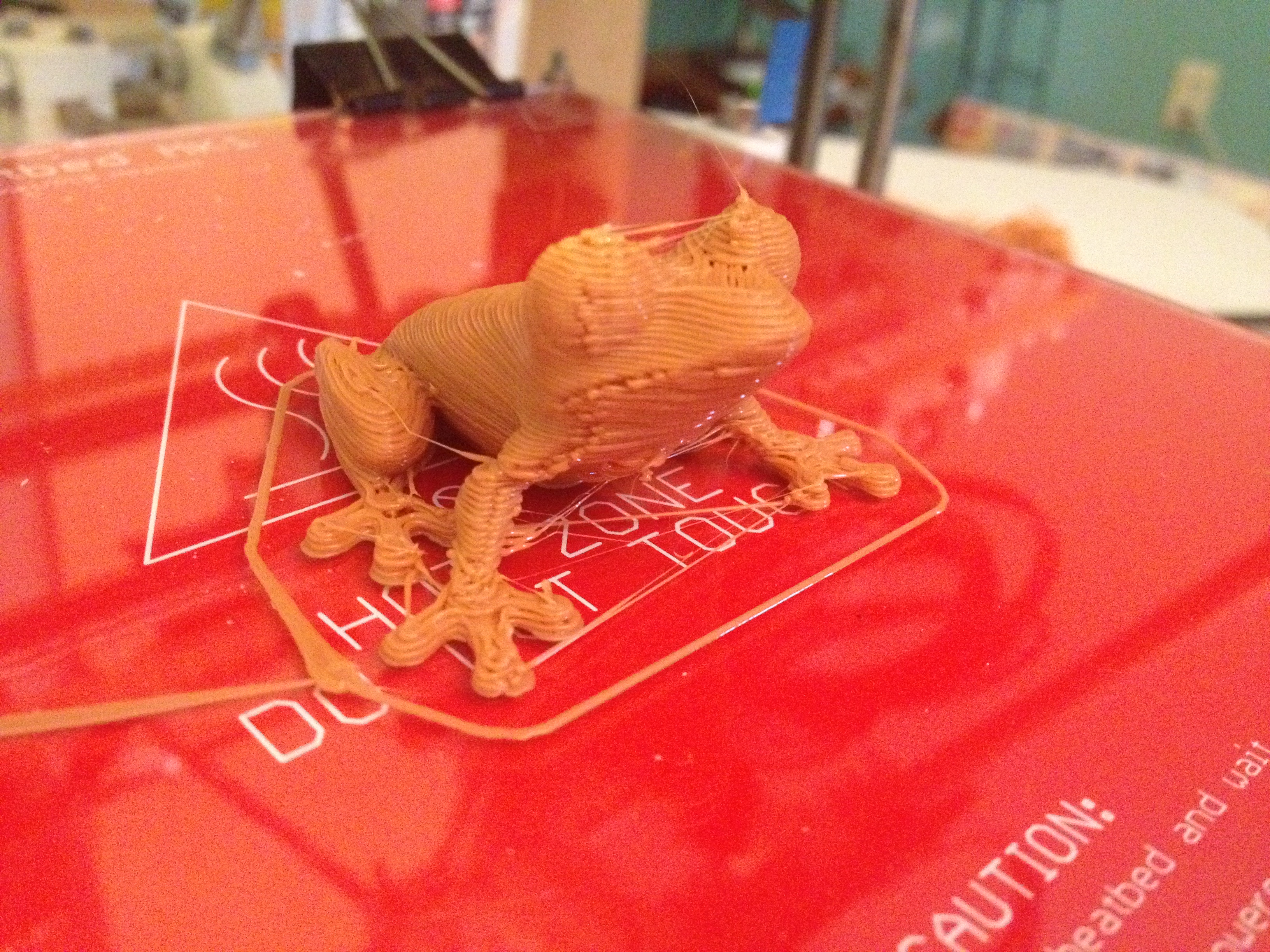

Treefrog – February 14, 2014

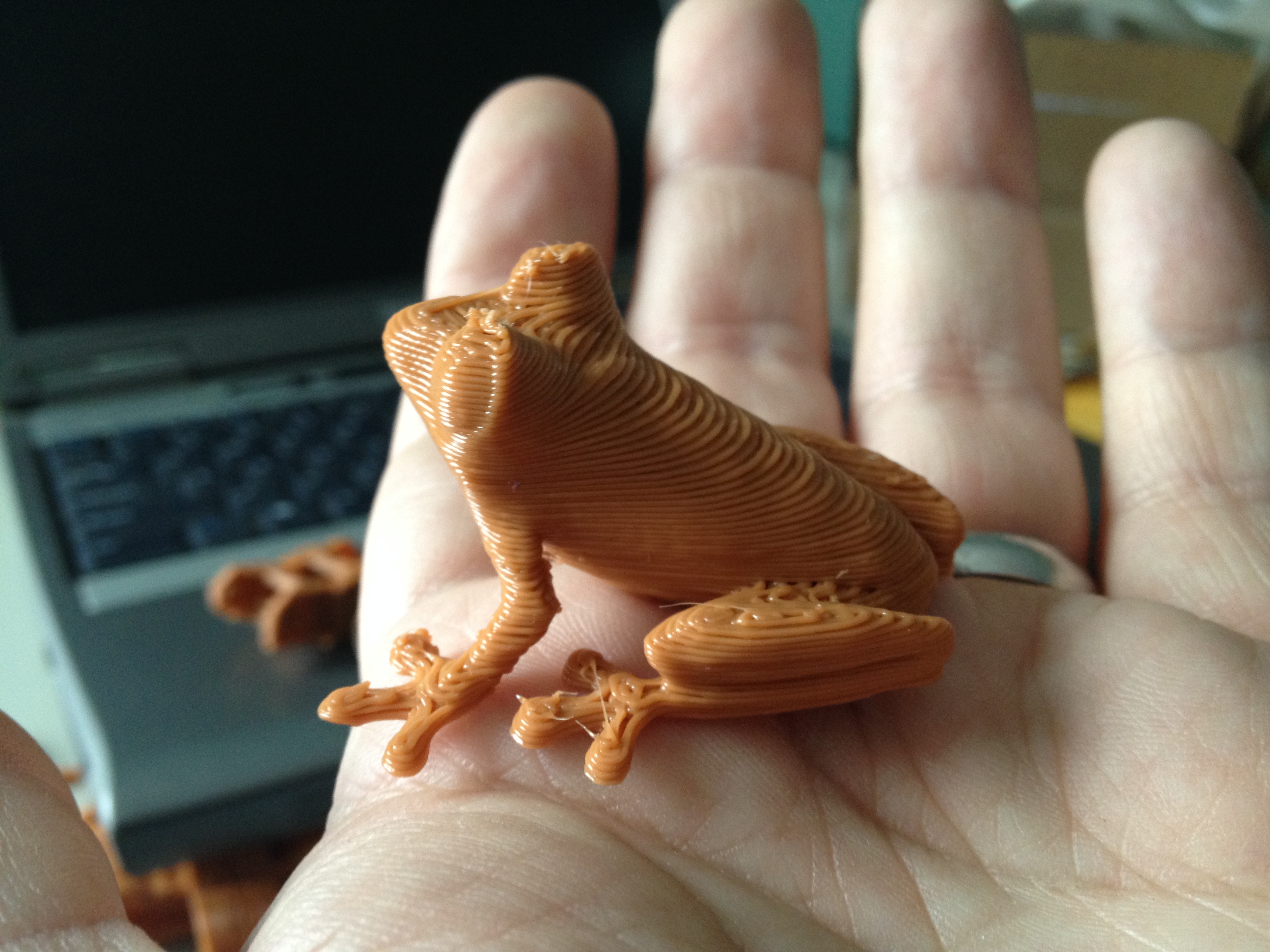

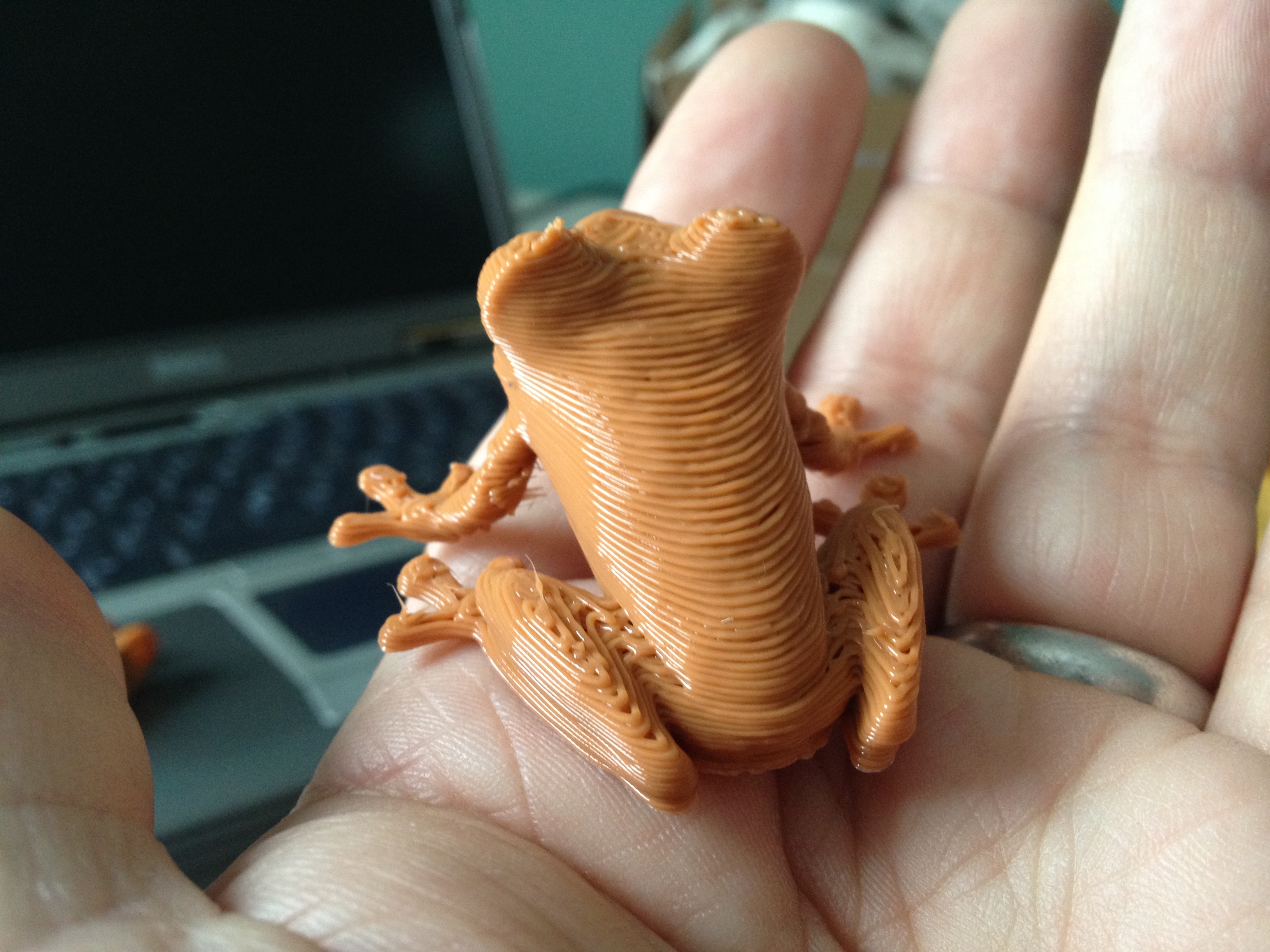

Somehow, up until this point, I had never printed a Treefrog!

IMG_7081

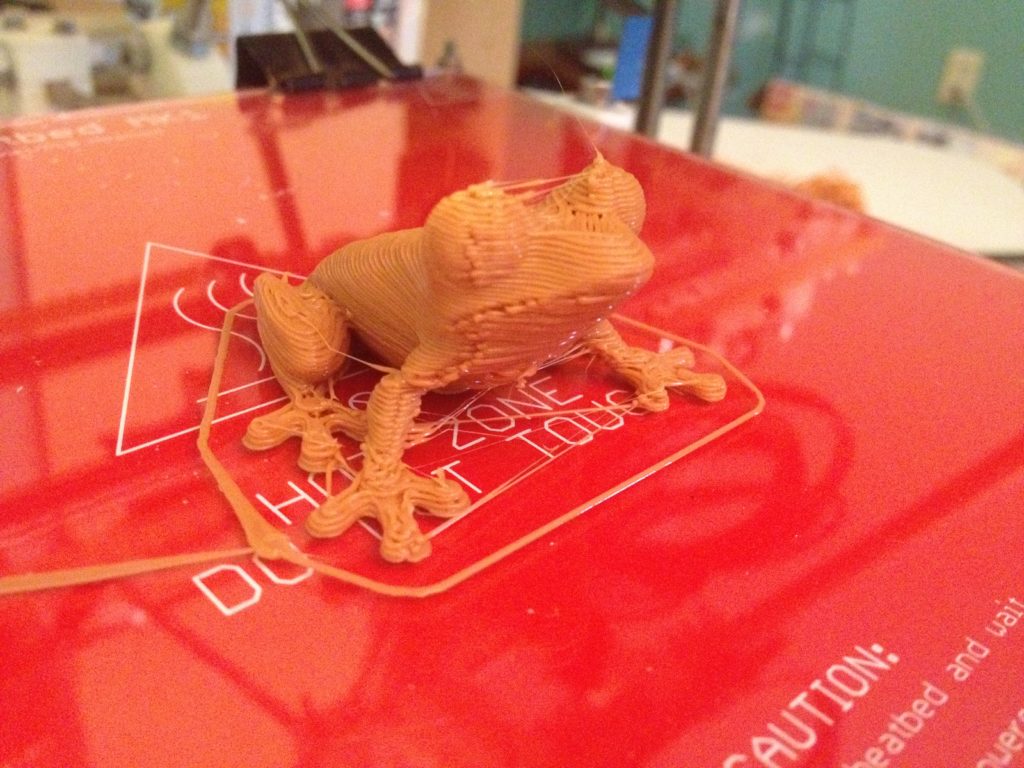

IMG_7083

IMG_7092

IMG_7097

IMG_7098

IMG_7094

IMG_7099

IMG_7100

IMG_7102

IMG_7103

IMG_7104

Yeah that’s a lot of pictures of a frog, but I really liked how it came out. 🙂

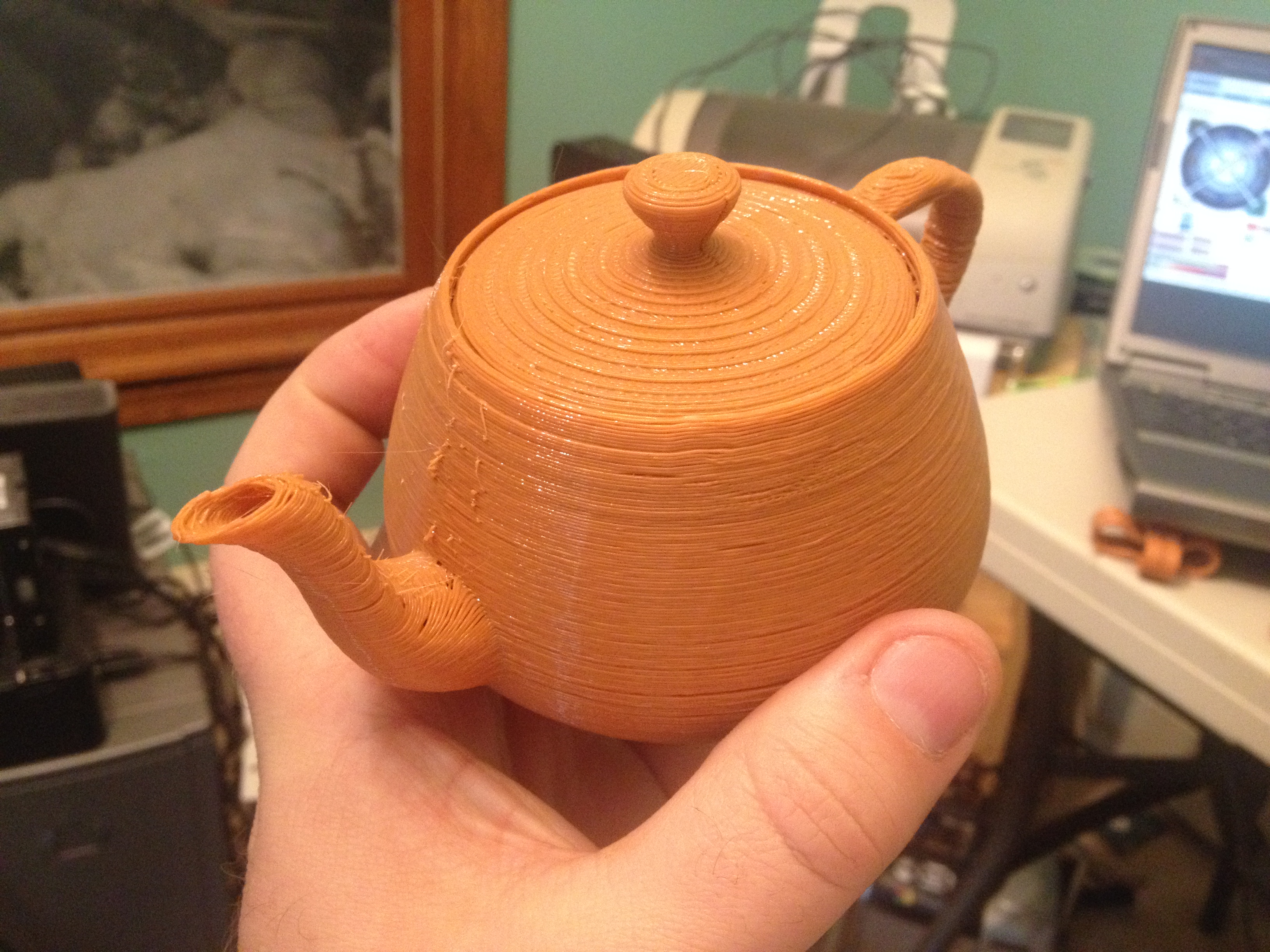

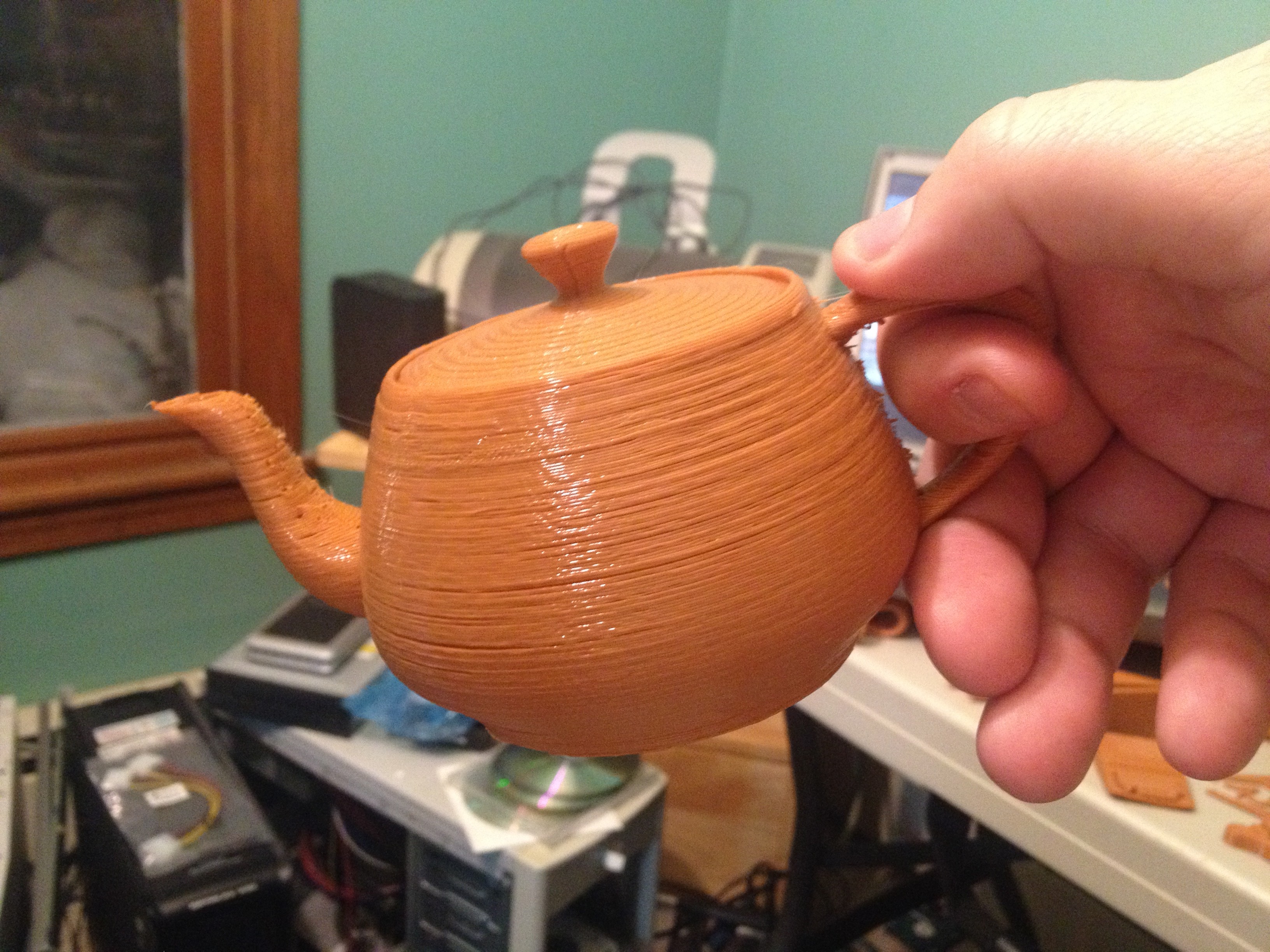

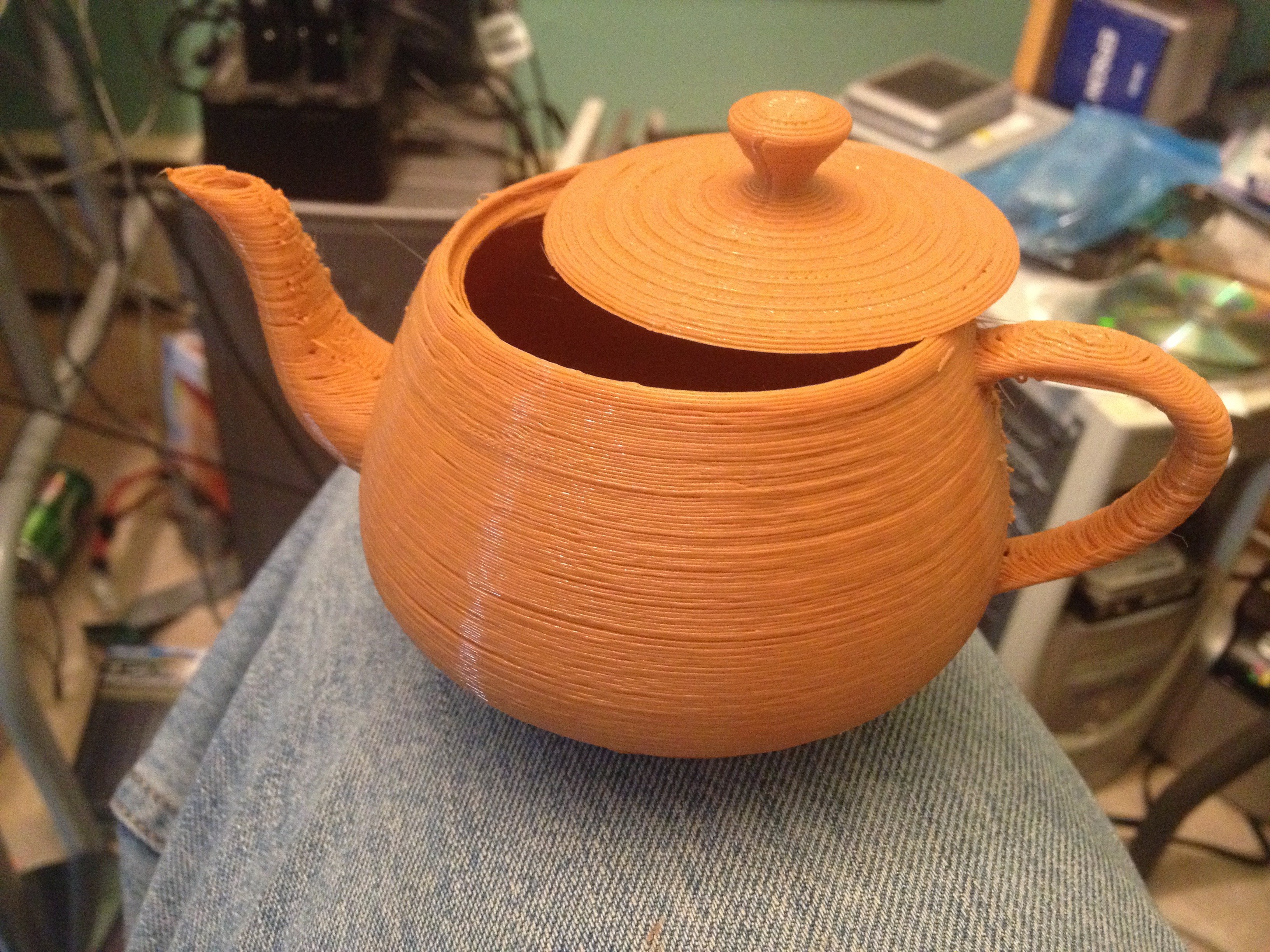

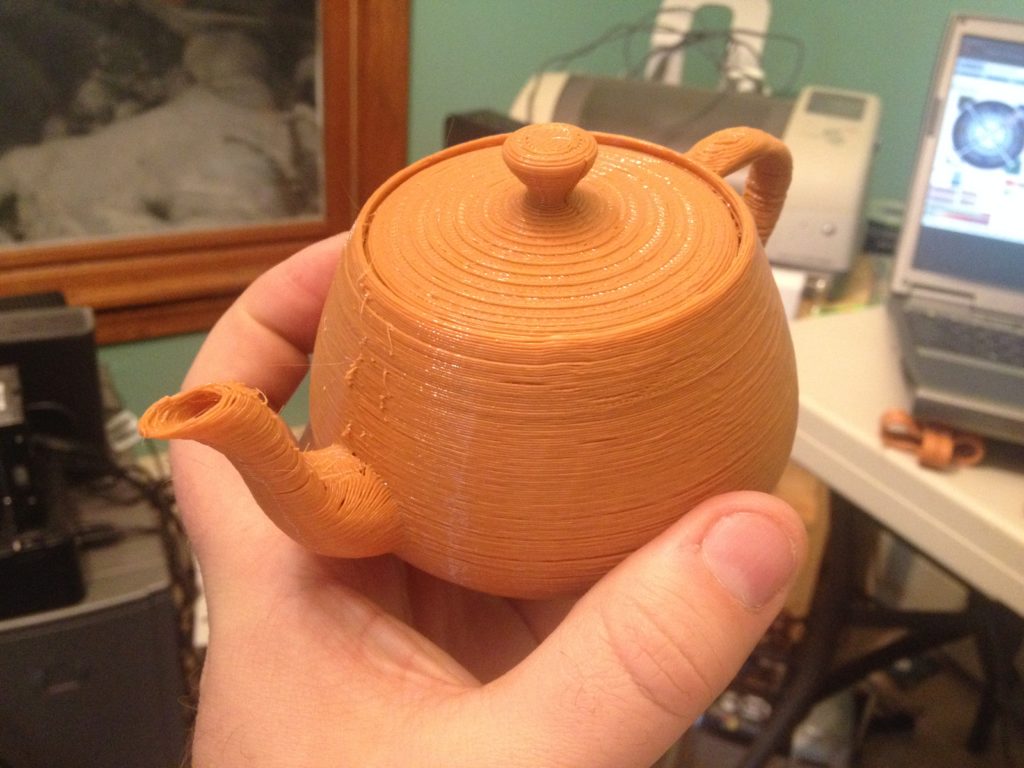

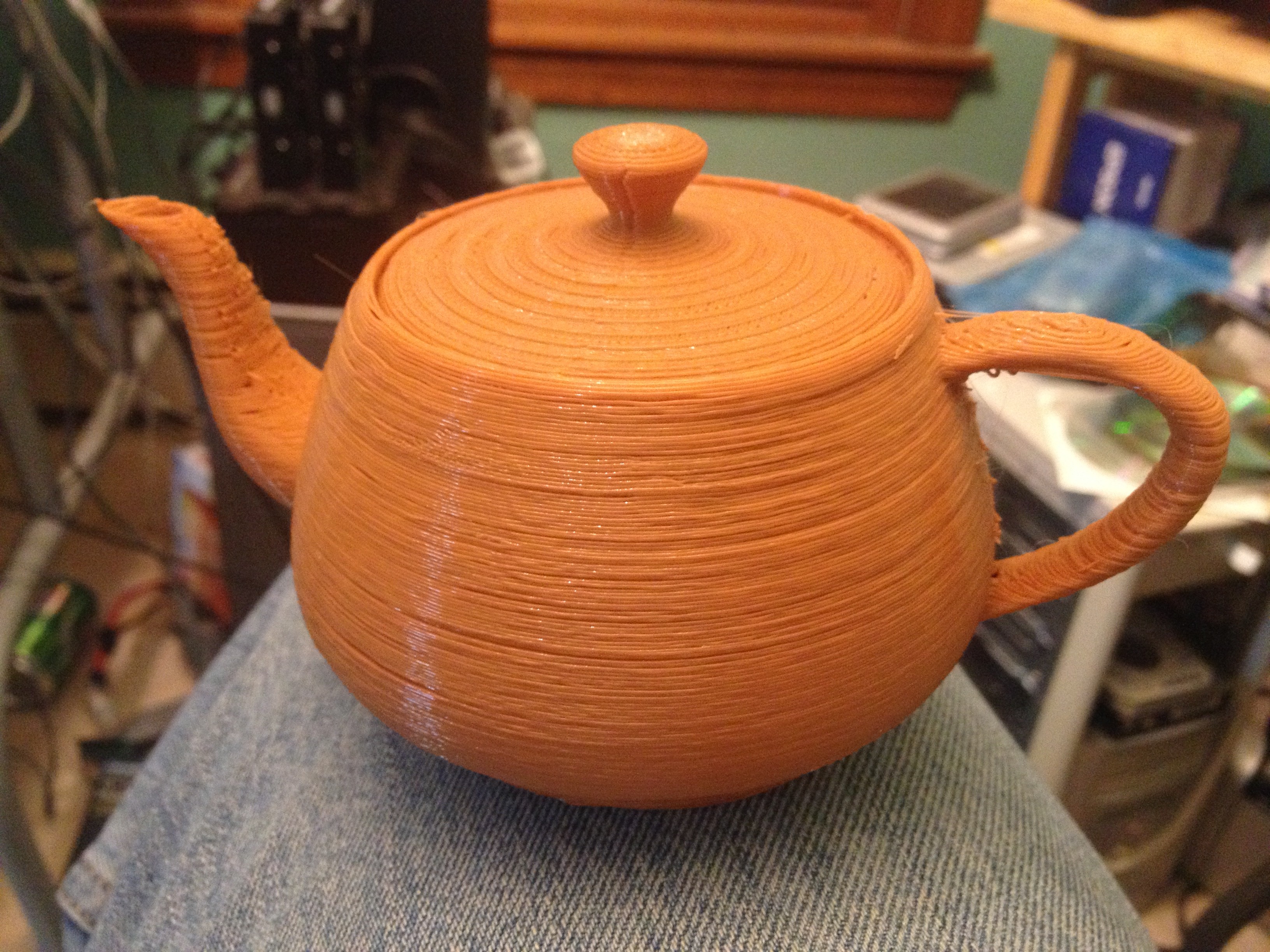

Utah Teapot – February 15, 2014

This was an old classic (thing #1176 – that’s a low number!) that I’d never gotten around to printing.. Here is the Utah Teapot:

IMG_7168

IMG_7169

IMG_7172

IMG_7175

IMG_7176

IMG_7150

Monarch Glider, Stanford Bunny, REDO: PL1Q Vampire Arm – February 16, 2014

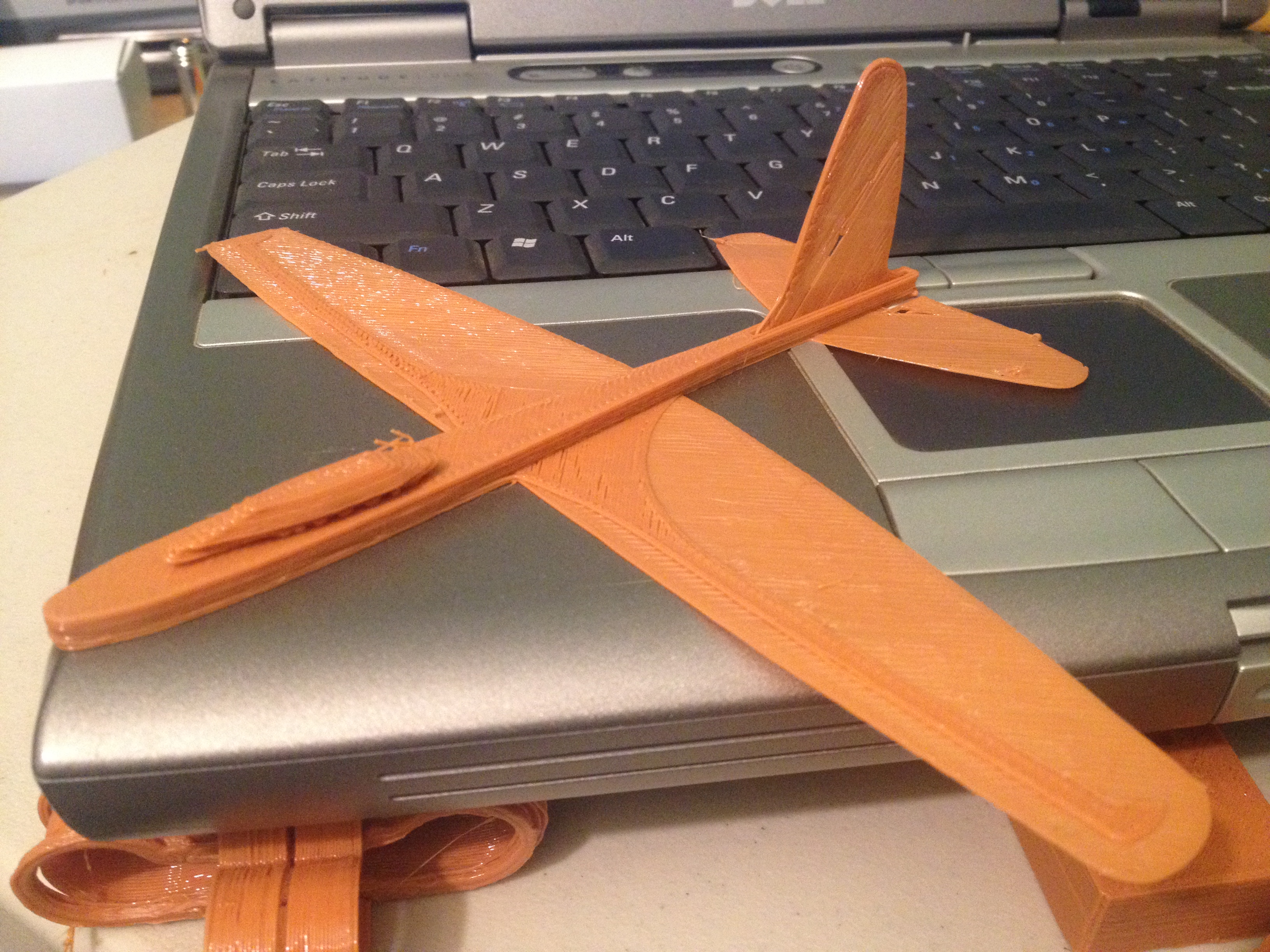

I wanted to give a risky print a try, so I printed the Monarch Glider (which I did throw once or twice, but didn’t have much grace..). Then again, I might have just been timid about breaking one of the things I printed for #FFo3DP

IMG_7199

IMG_7203

IMG_7224

IMG_7227

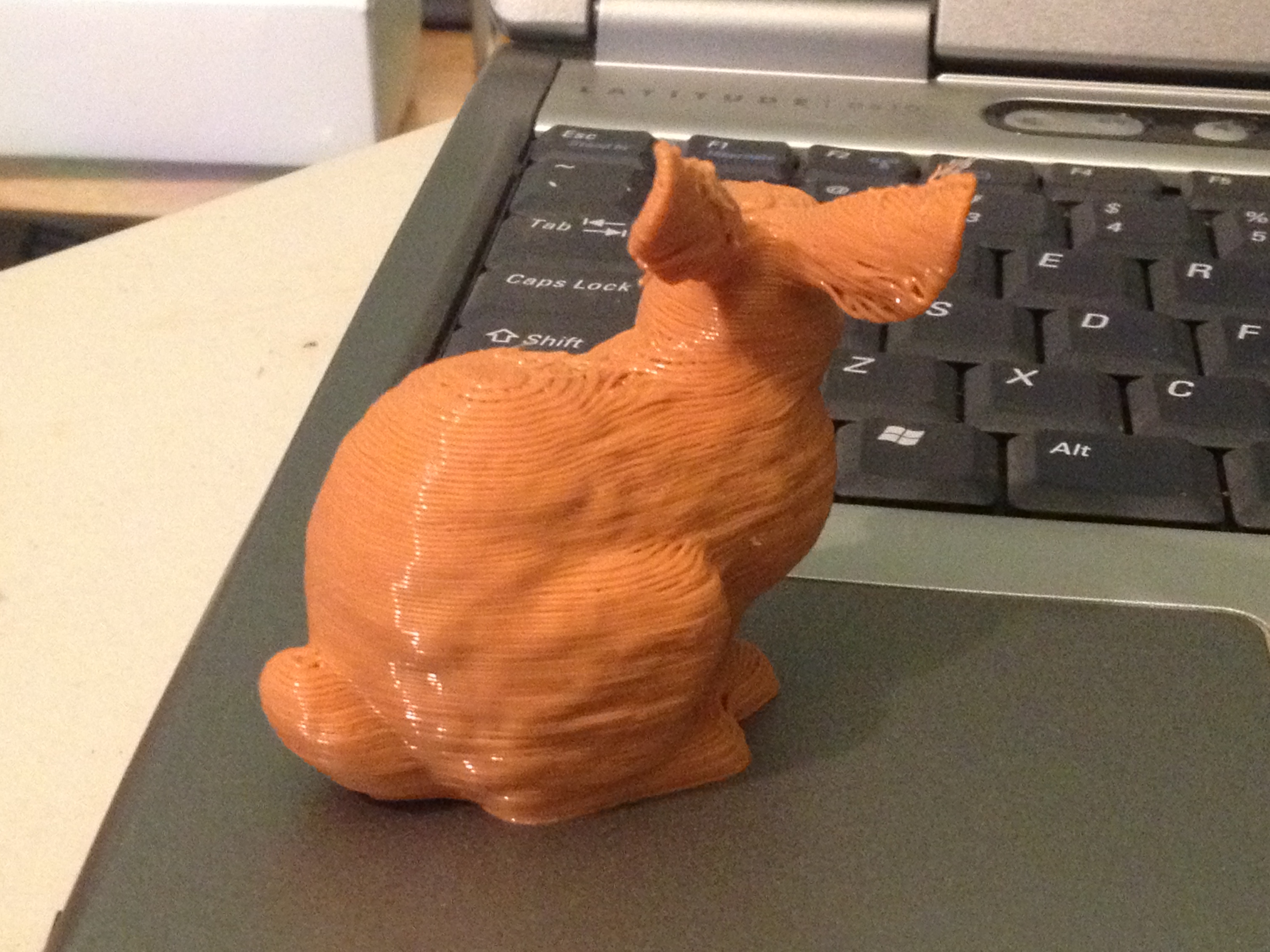

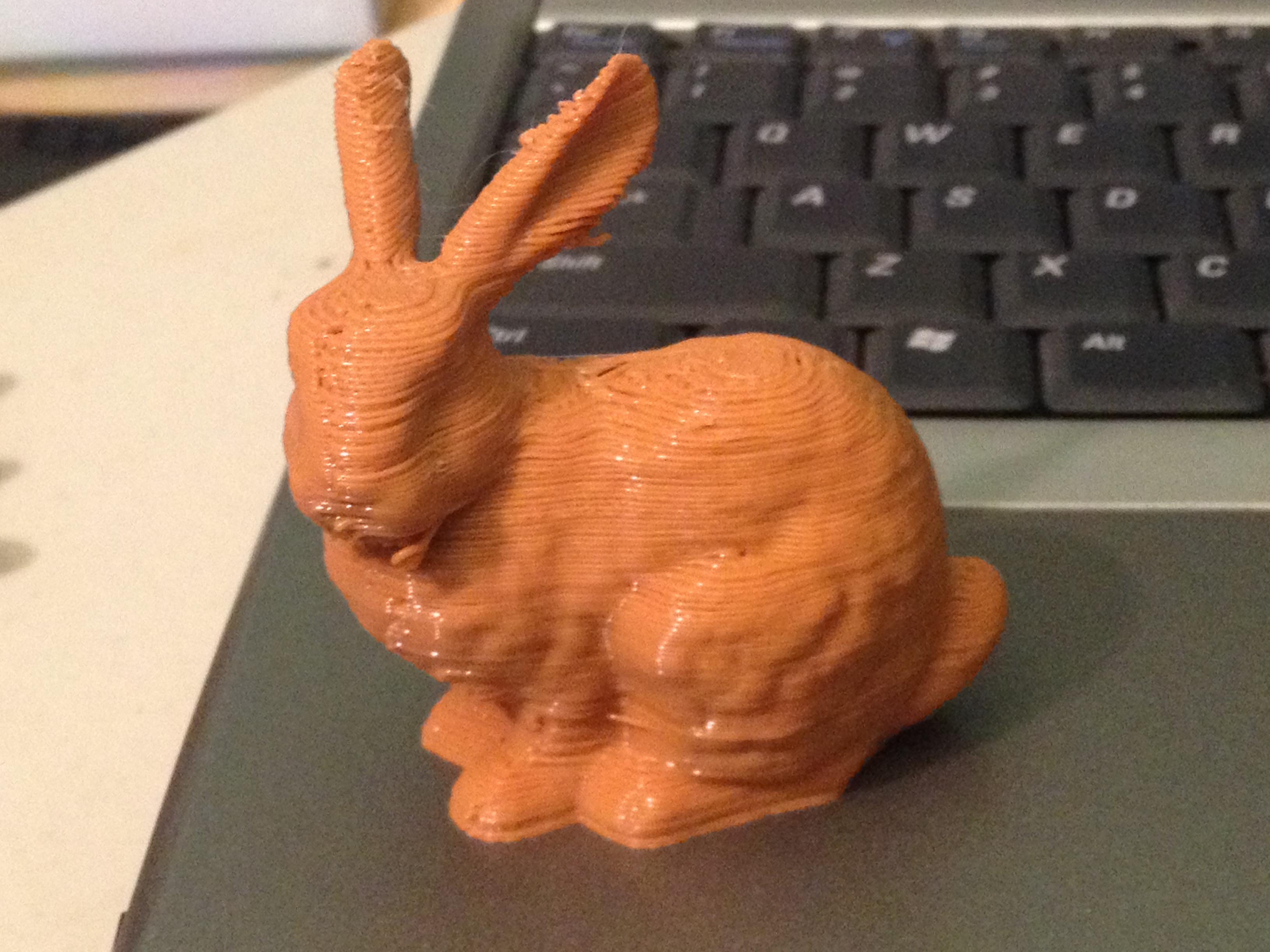

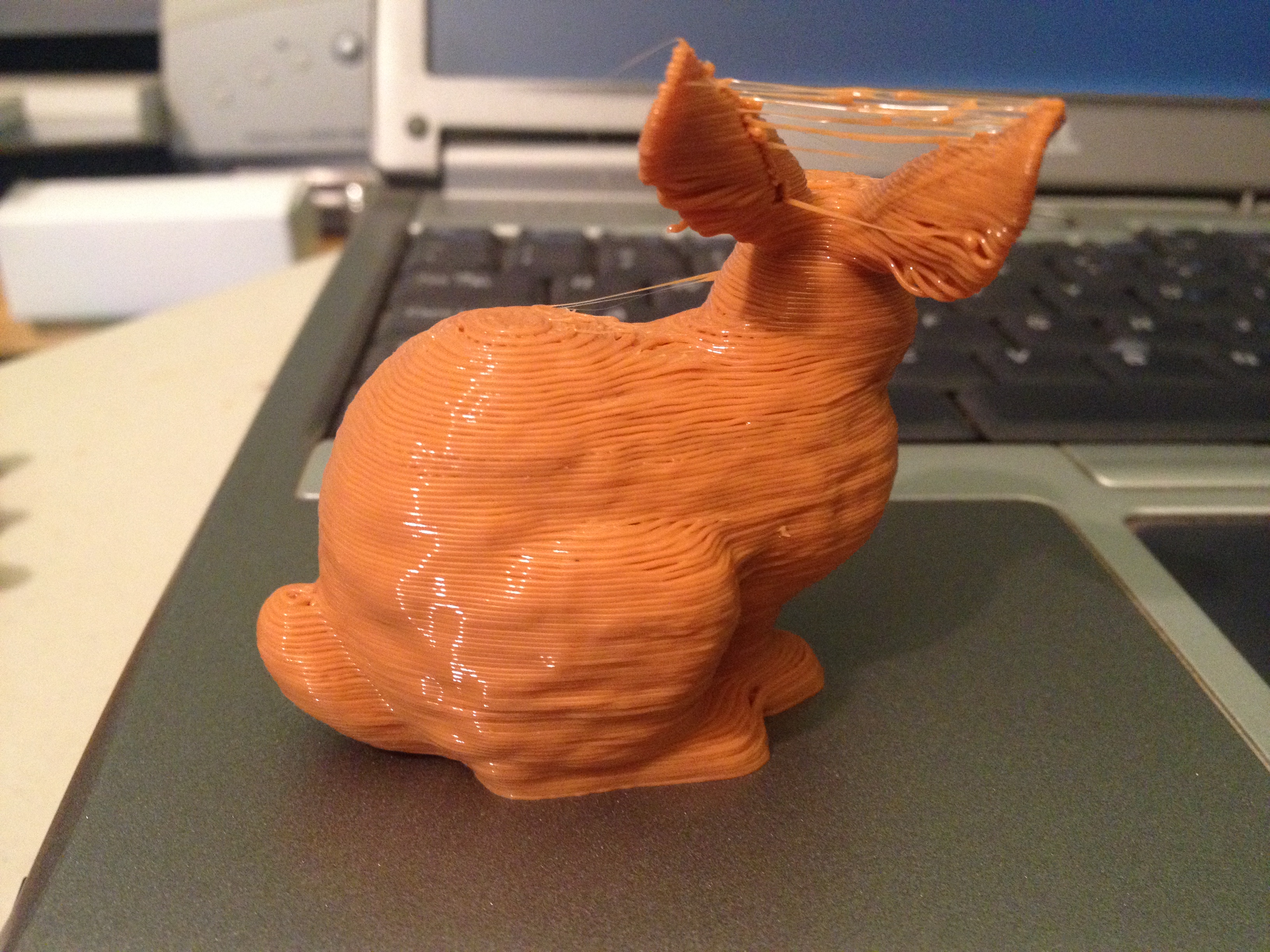

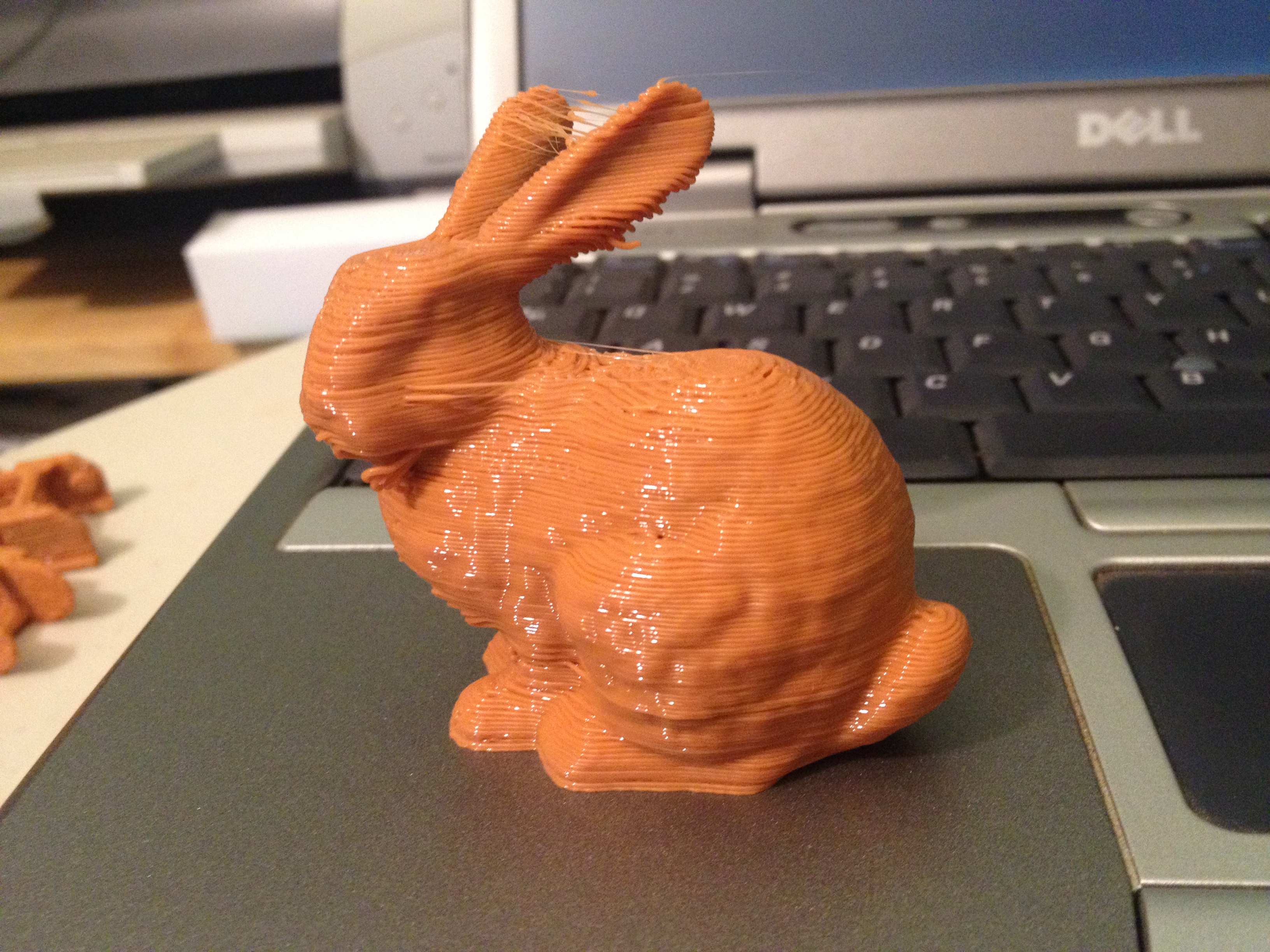

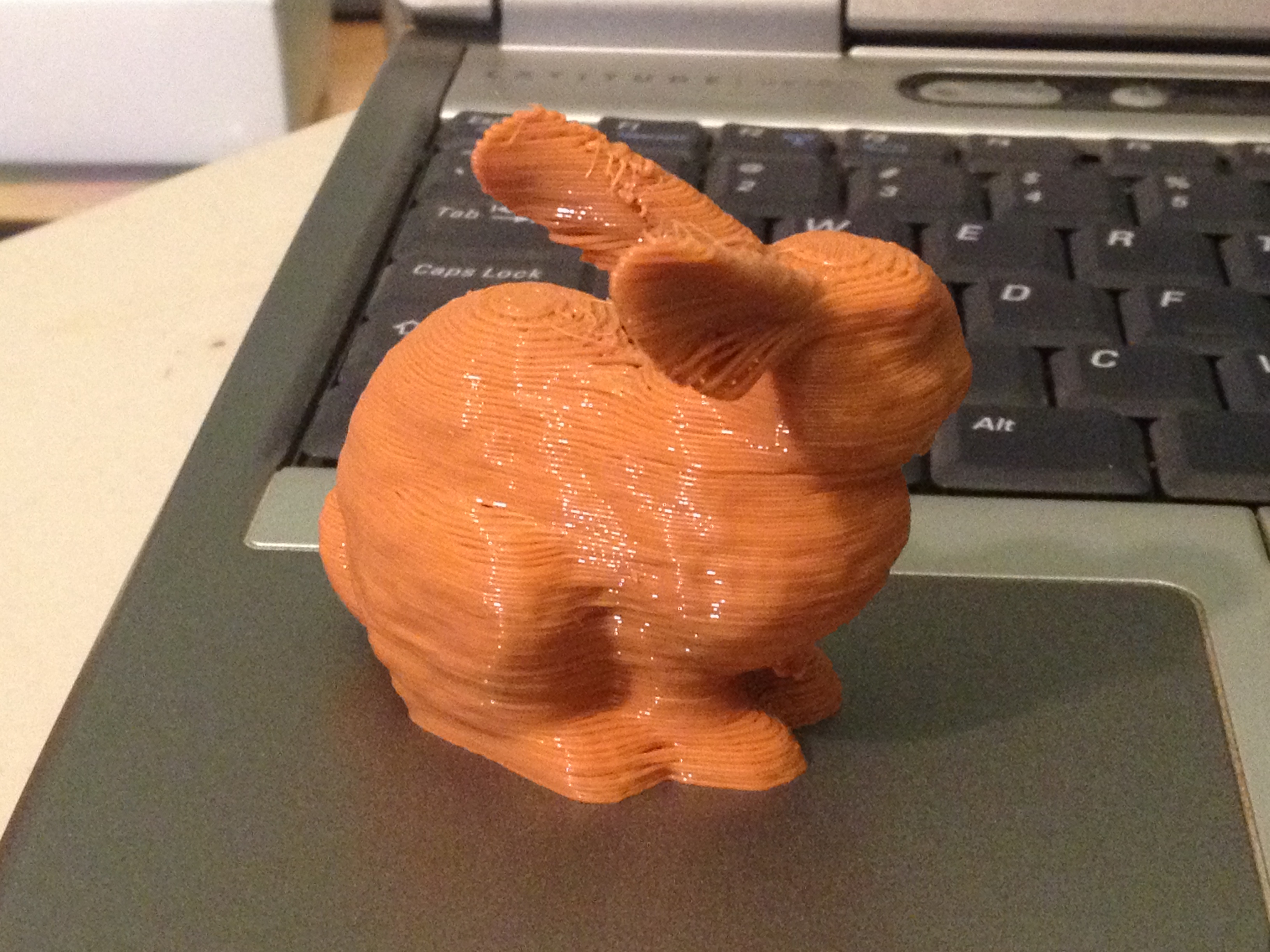

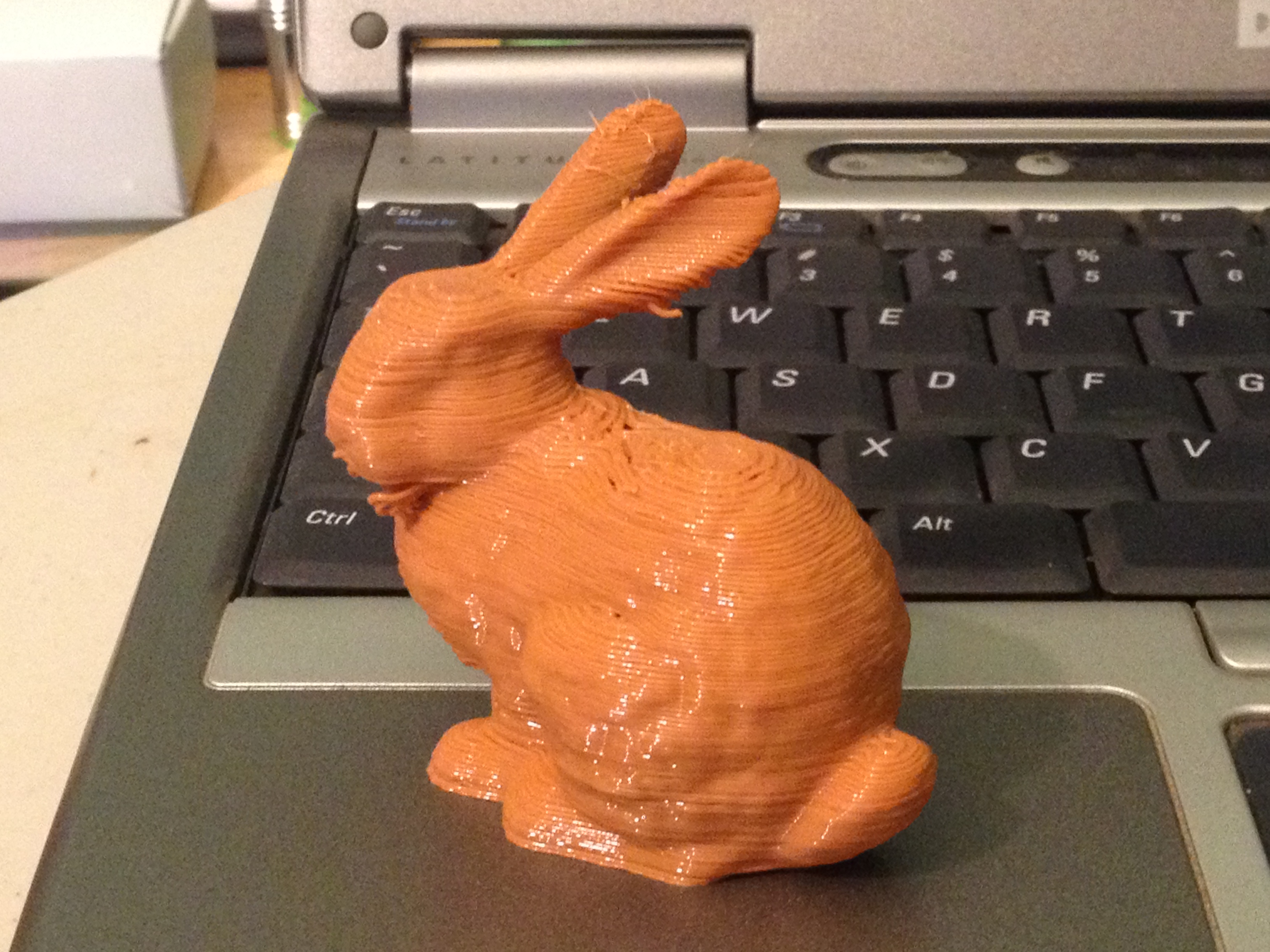

Since that turned out just okay, I decided to print another classic. I figured I’d tackle the Stanford Bunny, which goes all the way back to 1994 as a computer graphics test model.. I wasn’t sure how well it would come out. Oh man..

IMG_7211

IMG_7212

IMG_7216

IMG_7217

IMG_7218

IMG_7219

IMG_7220

IMG_7222

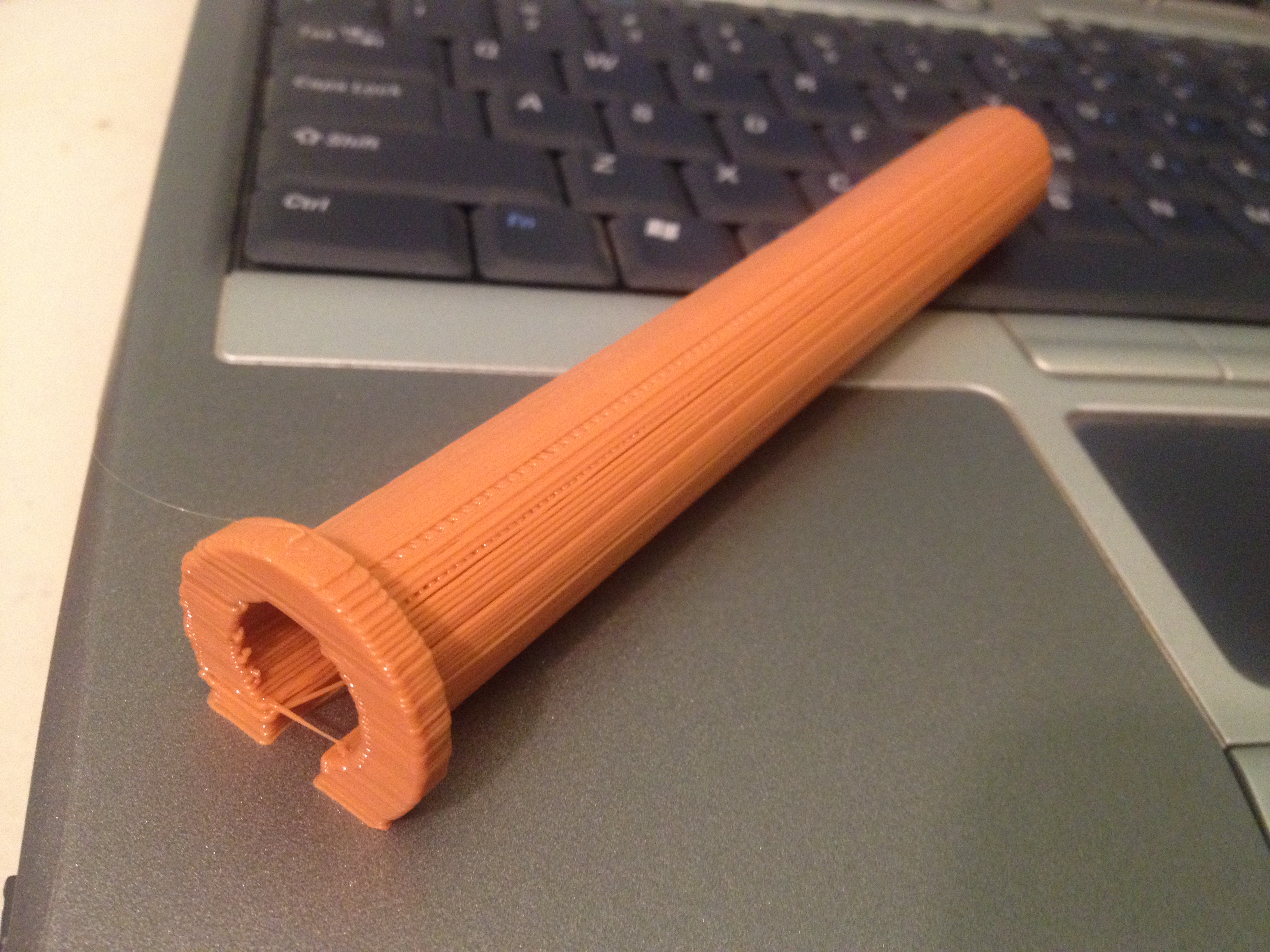

This day I also made another attempt at printing a quadcopter arm from the first day..
I realized that I’d been using the old gcode and that’s why it had failed on the earlier attempt.

IMG_7191

IMG_7192

IMG_7195

Here’s a comparison with the failed one:

IMG_7197

IMG_7198

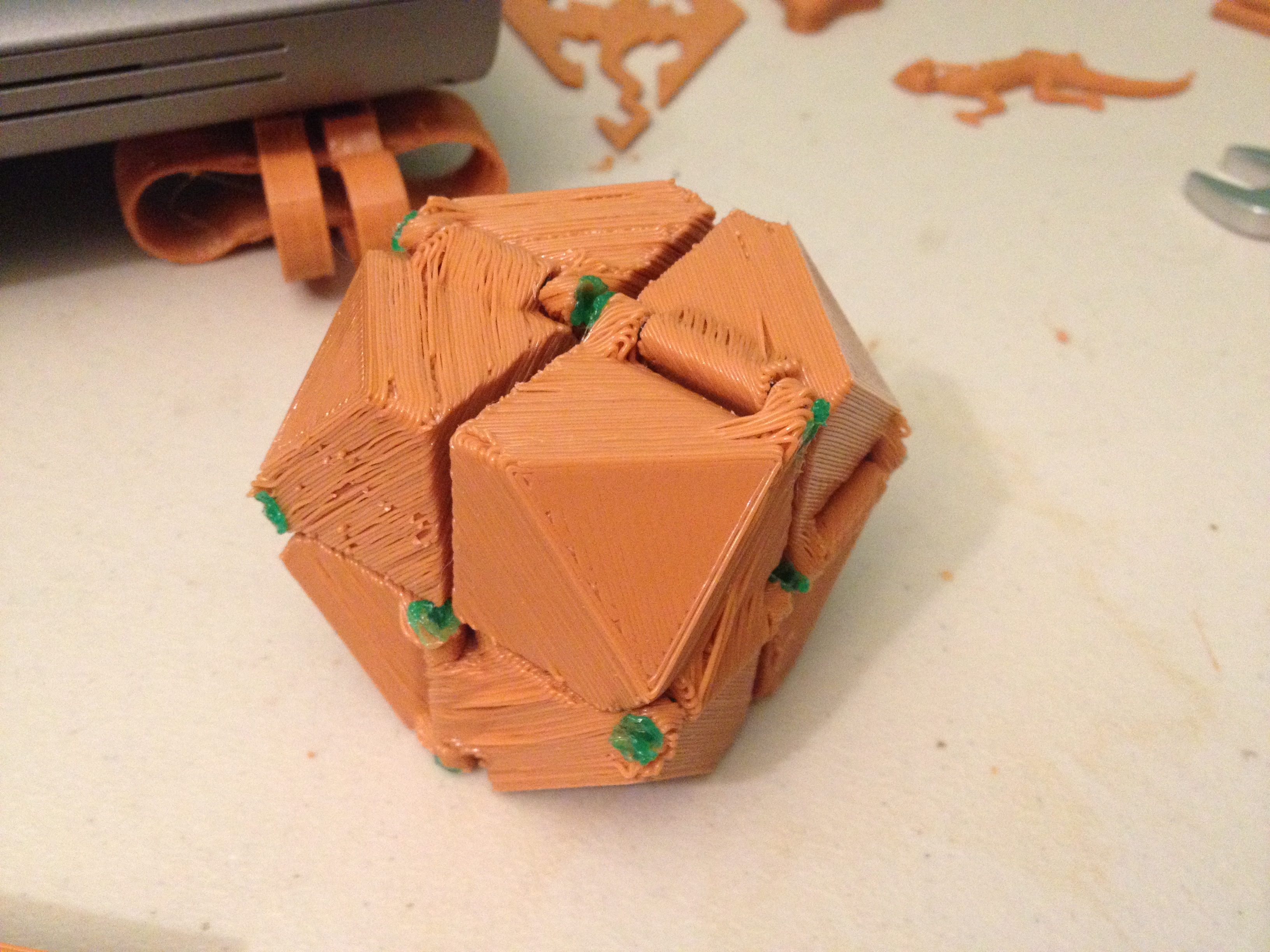

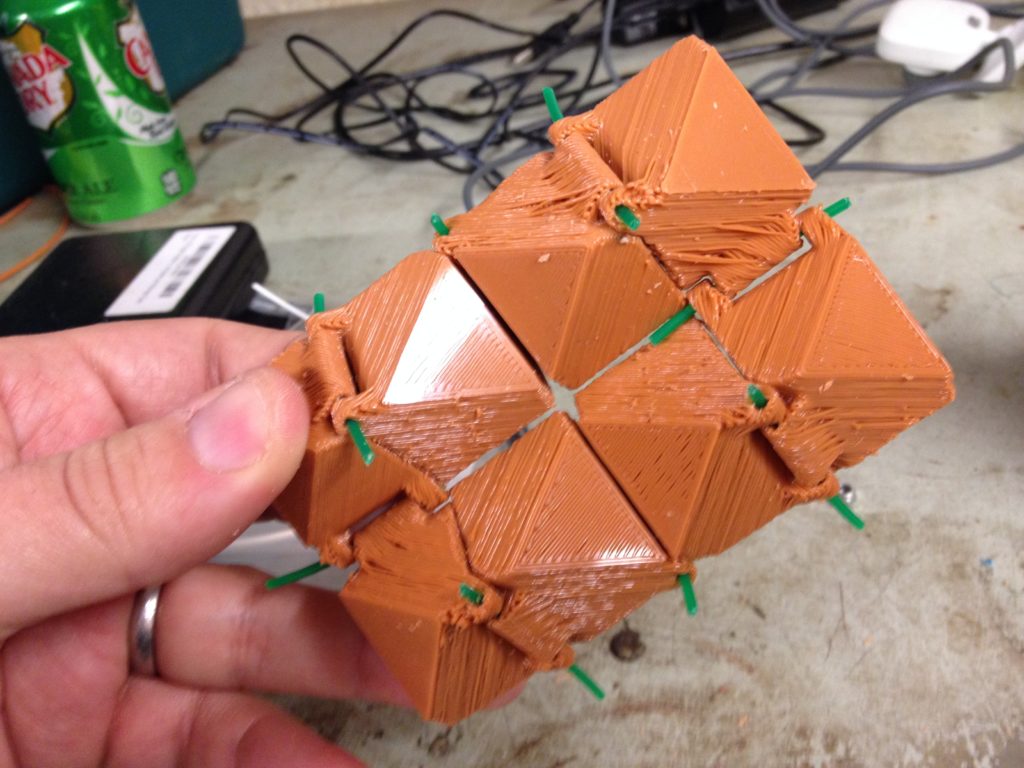

More durable folding cube with hinge pins – February 17, 2014

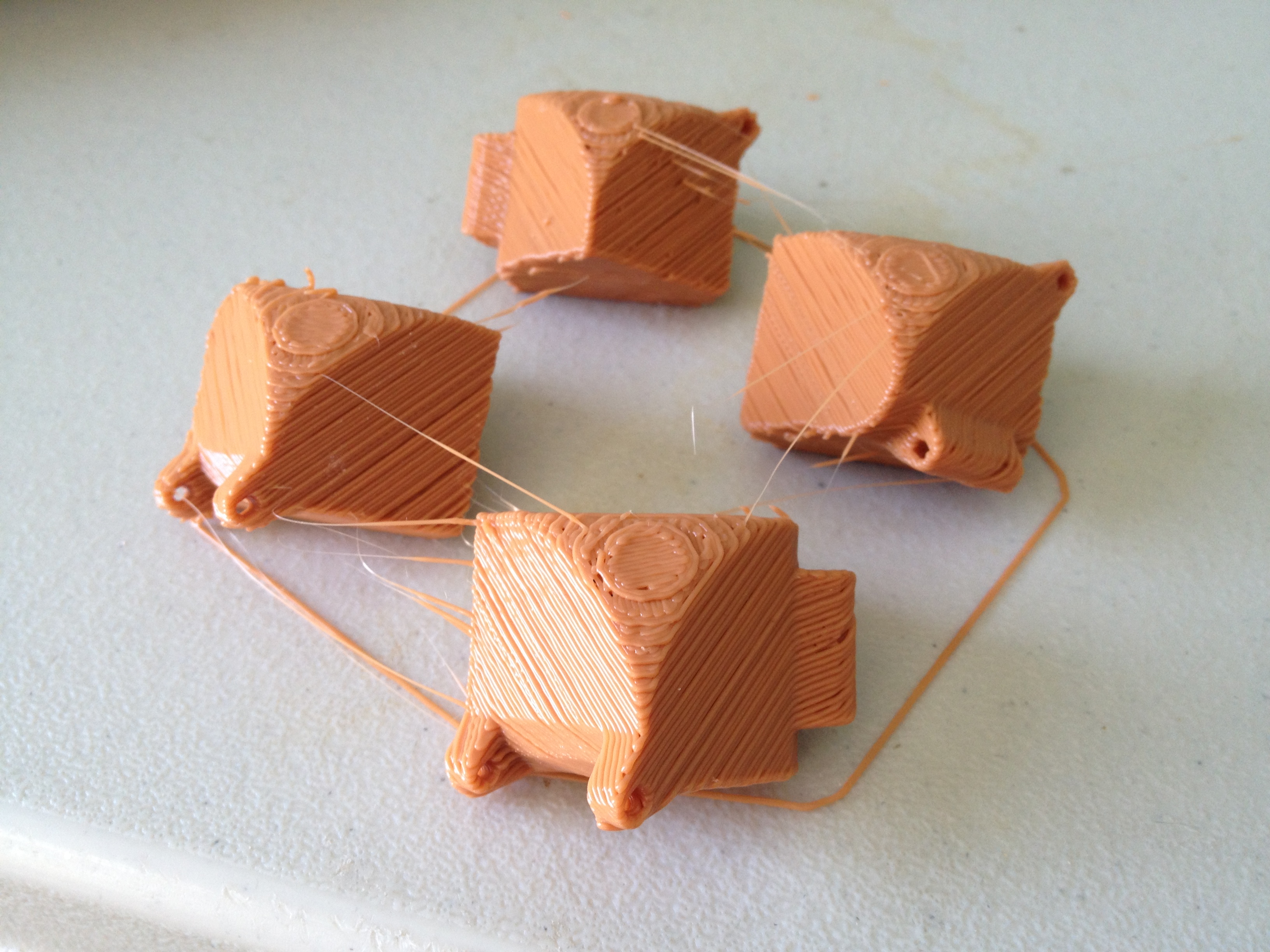

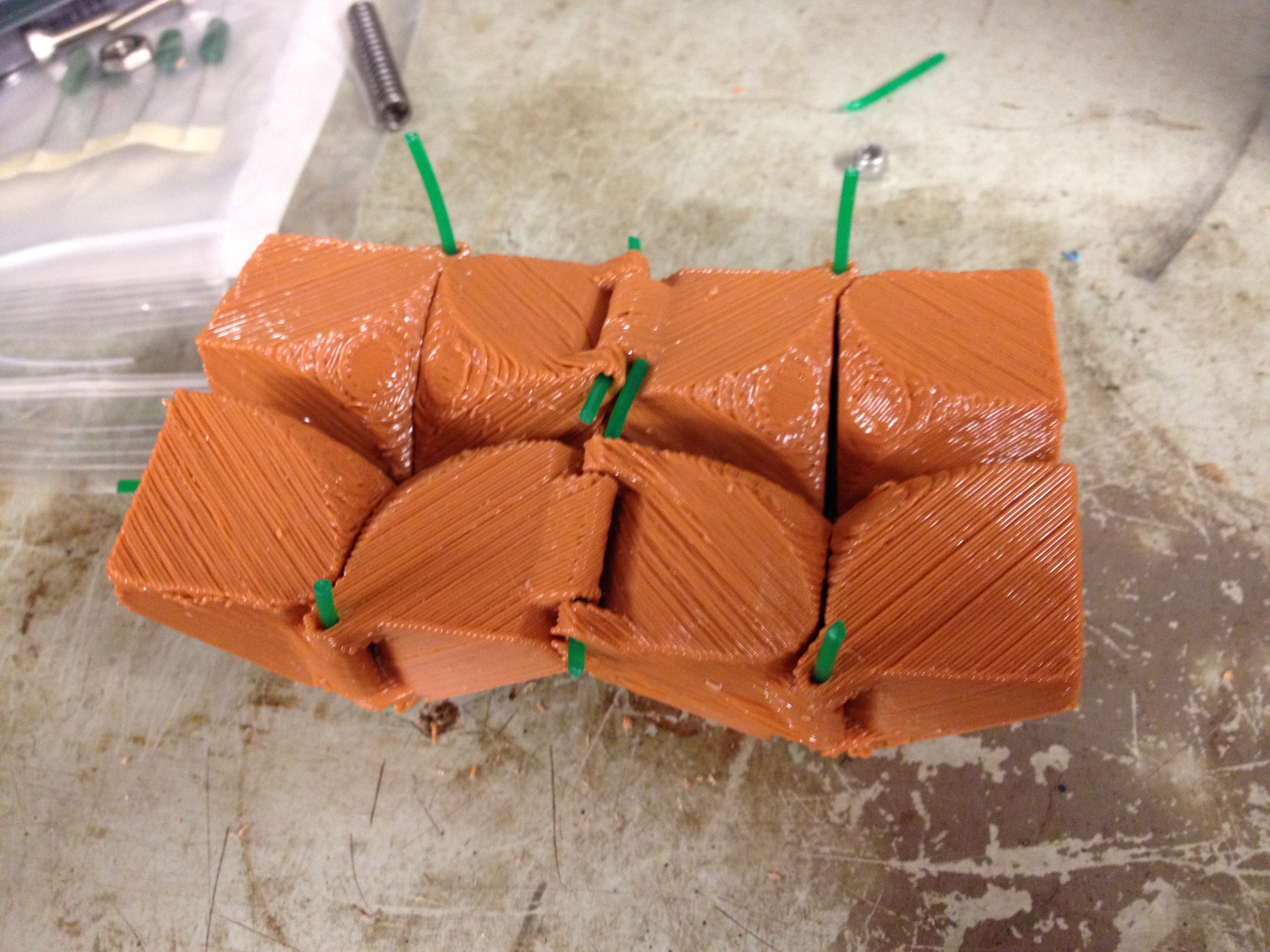

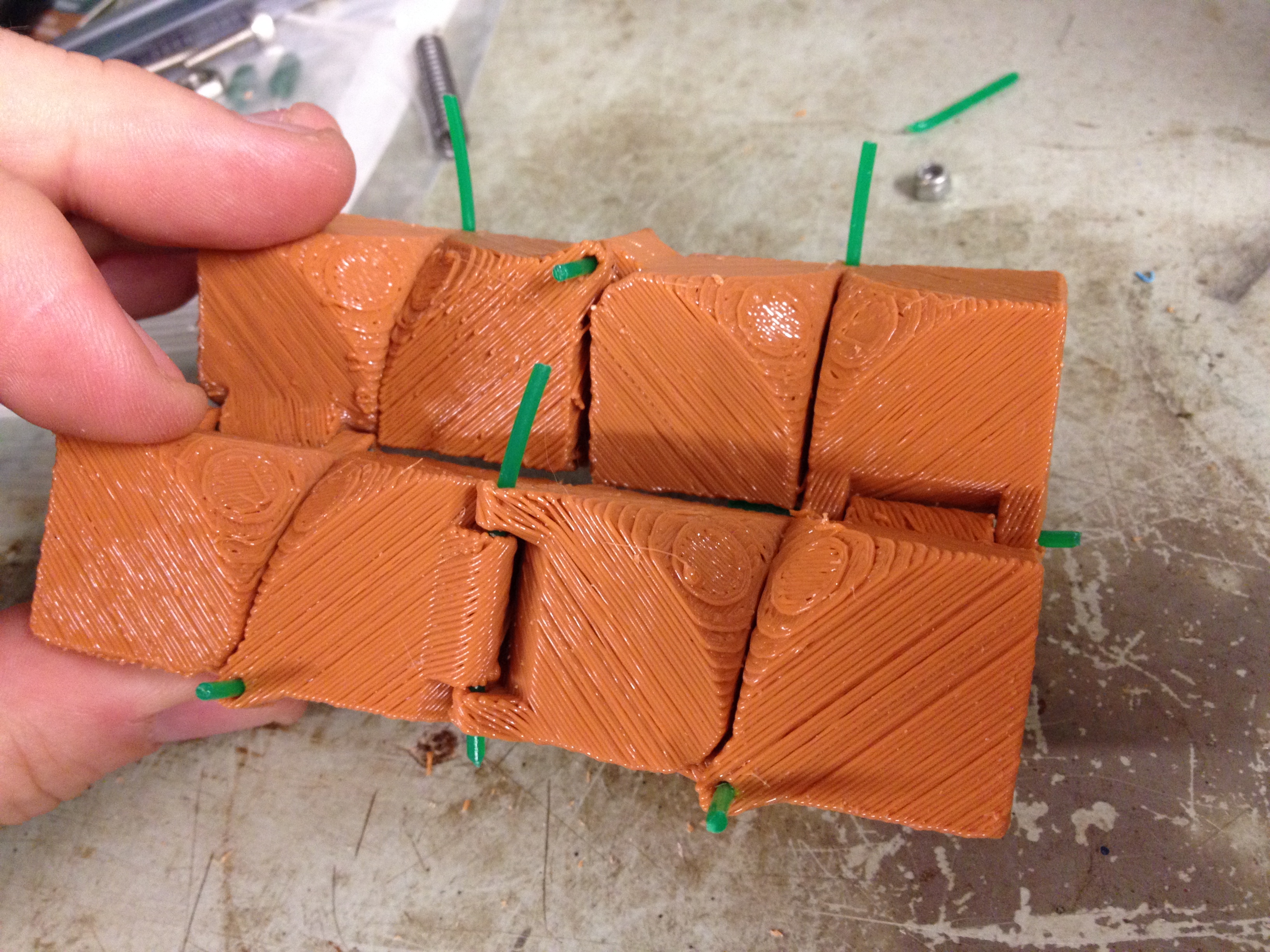

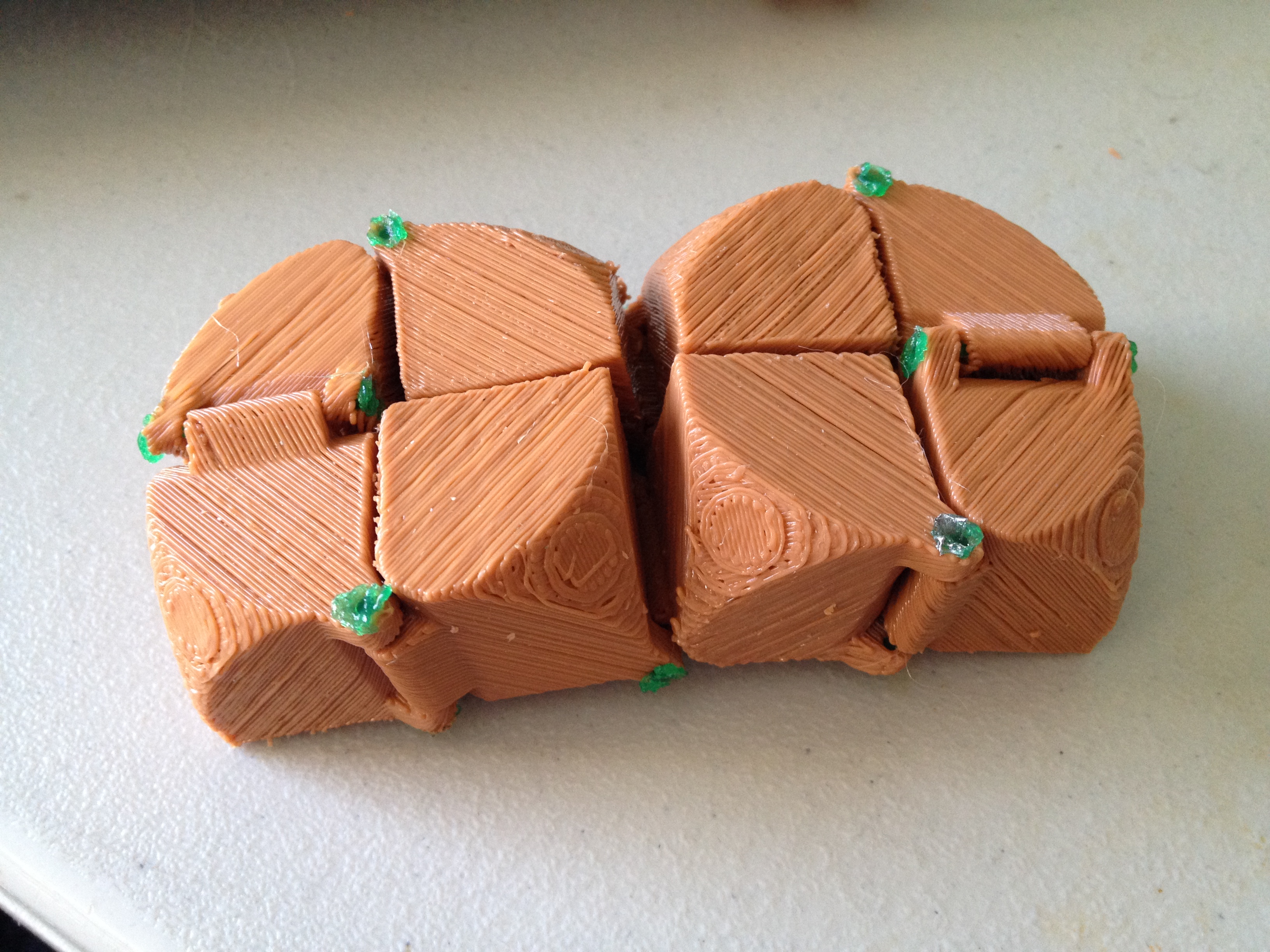

At work I had made several attempts to print Folding Cube by emmett, but the hinges always ended up breaking. So instead I wanted to try this variant, More durable folding cube with hinge pins. Instead of printing a hinge, you drill out the holes where the hinges would be to make them extra smooth, slide in some unused filament, and then melt the ends of that filament with a soldering iron (or extruder tip) to keep them from sliding out. It worked extremely well – it’s now February 2015 and despite using it like crazy, this folding cube hasn’t failed yet.

IMG_7229

IMG_7230

IMG_7231

IMG_7232

IMG_7234

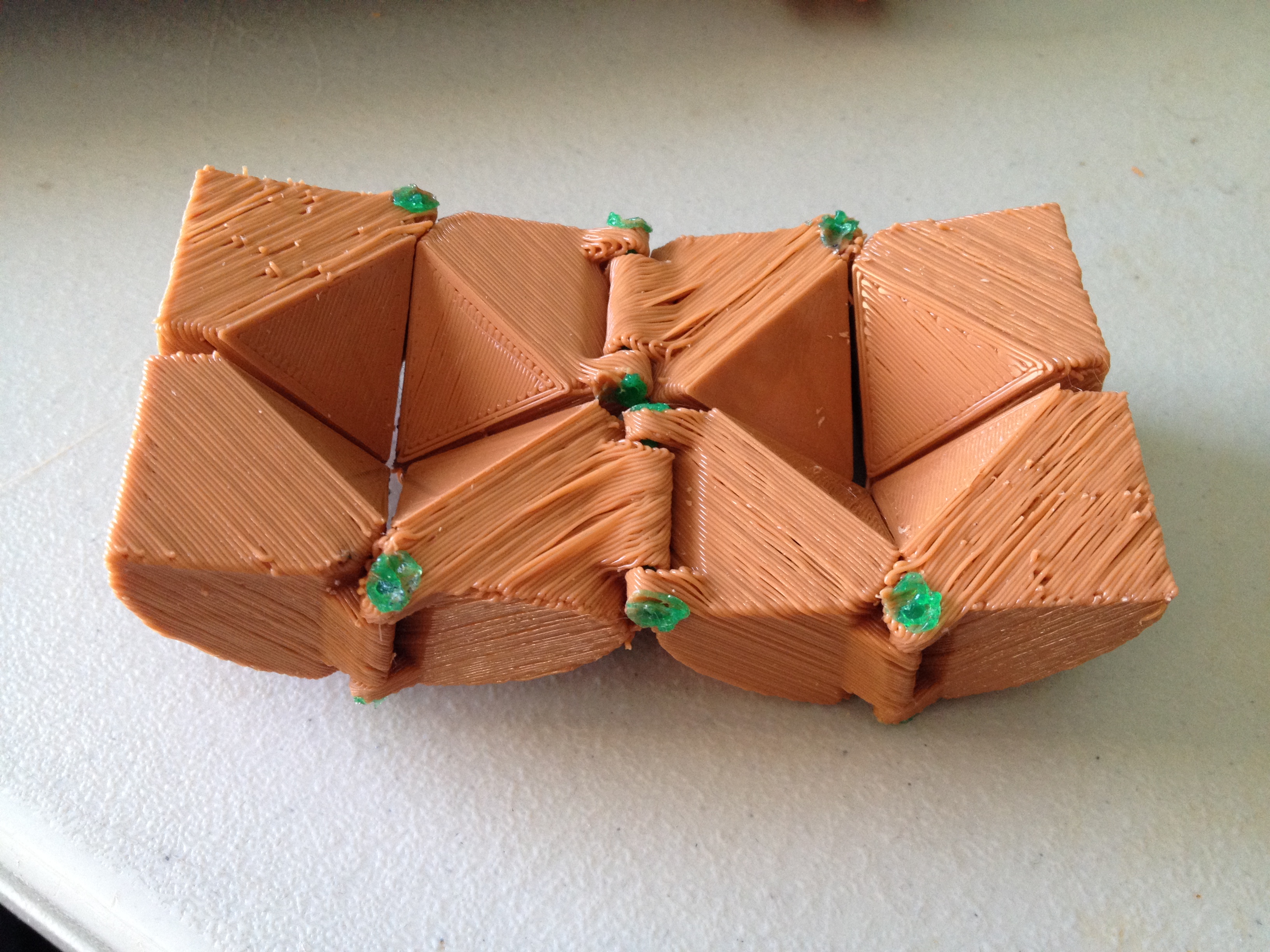

IMG_7235

IMG_7236

IMG_7237

IMG_7262

Here is video of it actually folding:

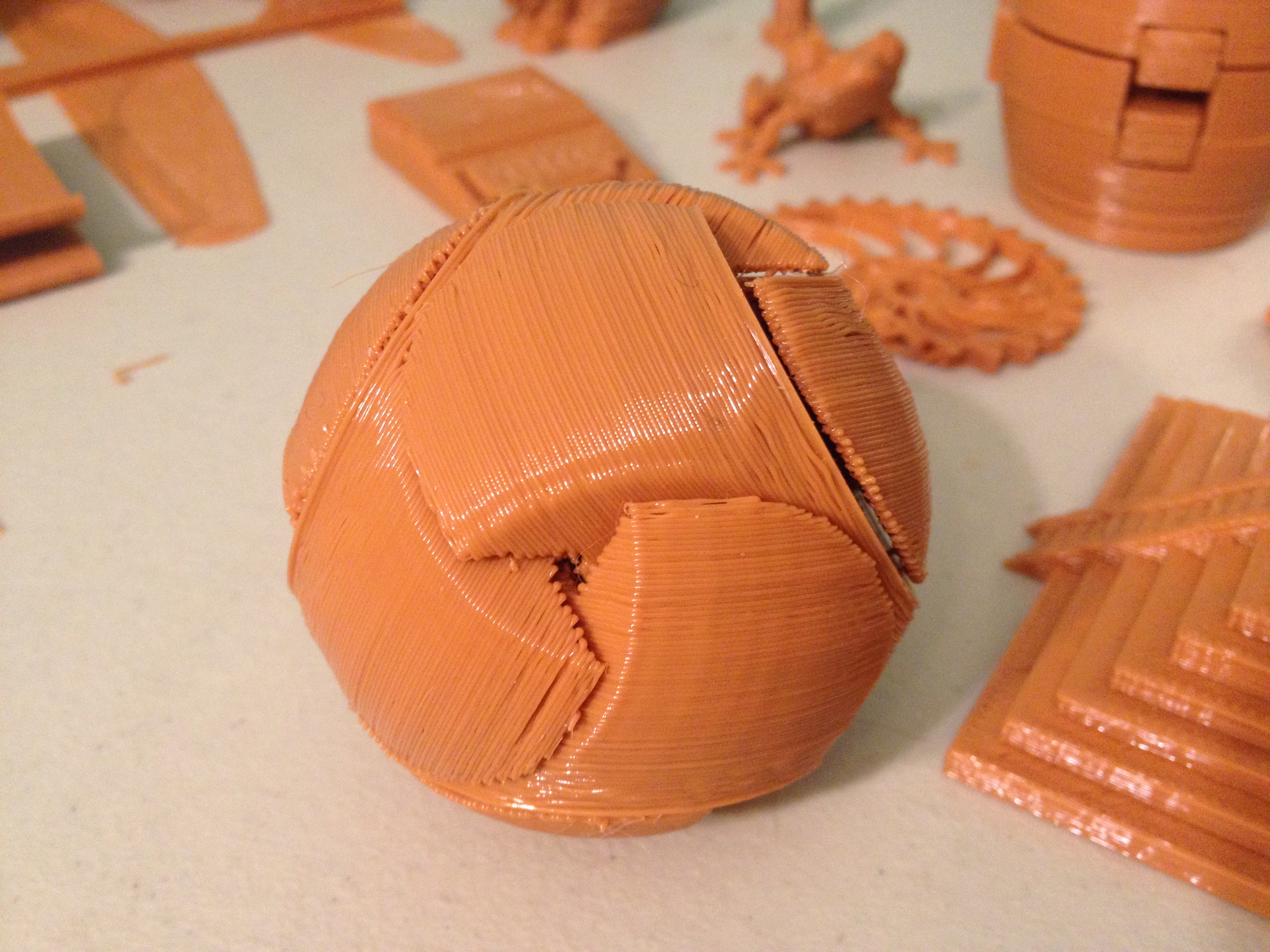

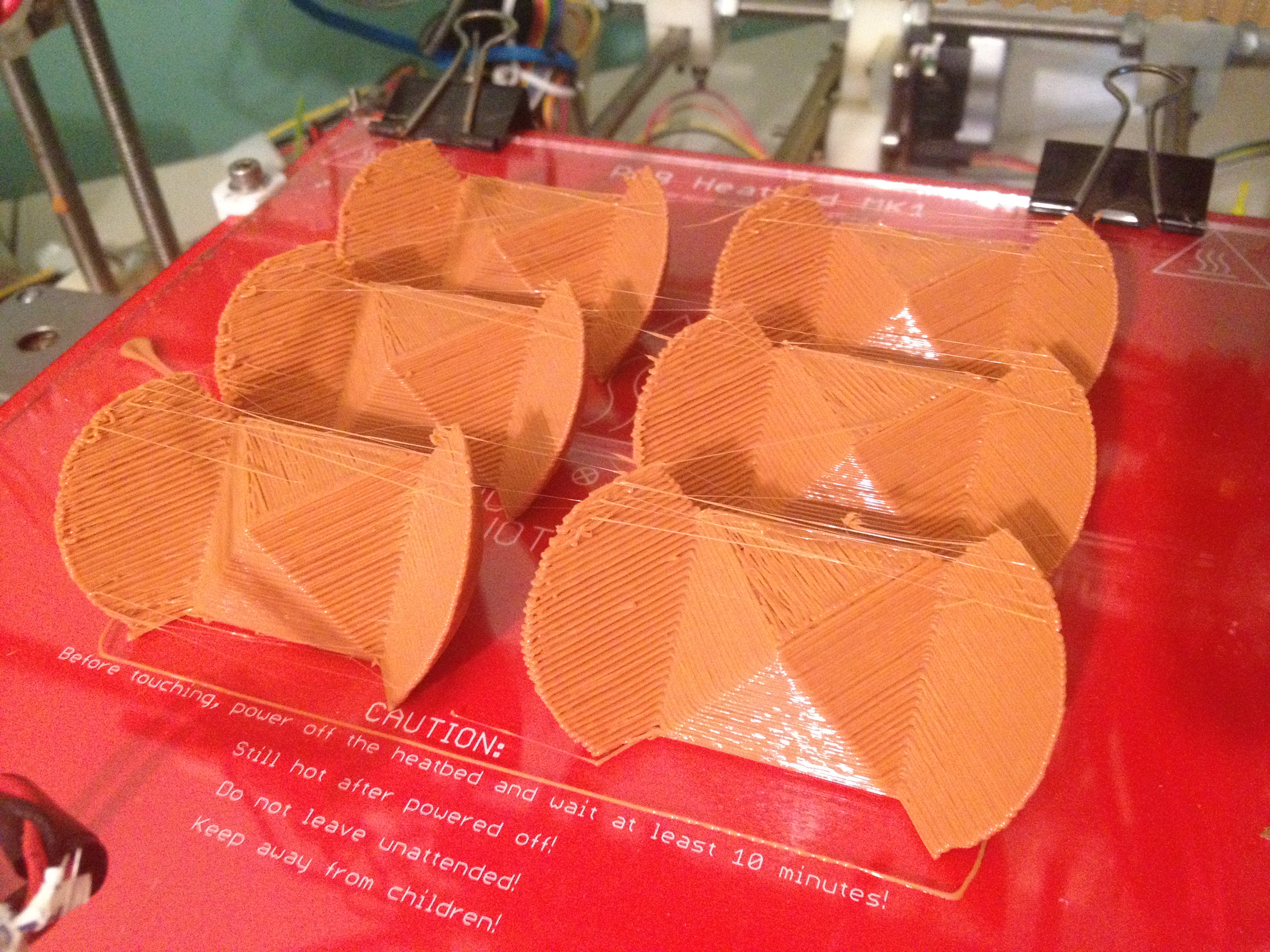

Puzzle Sphere – February 18, 2014

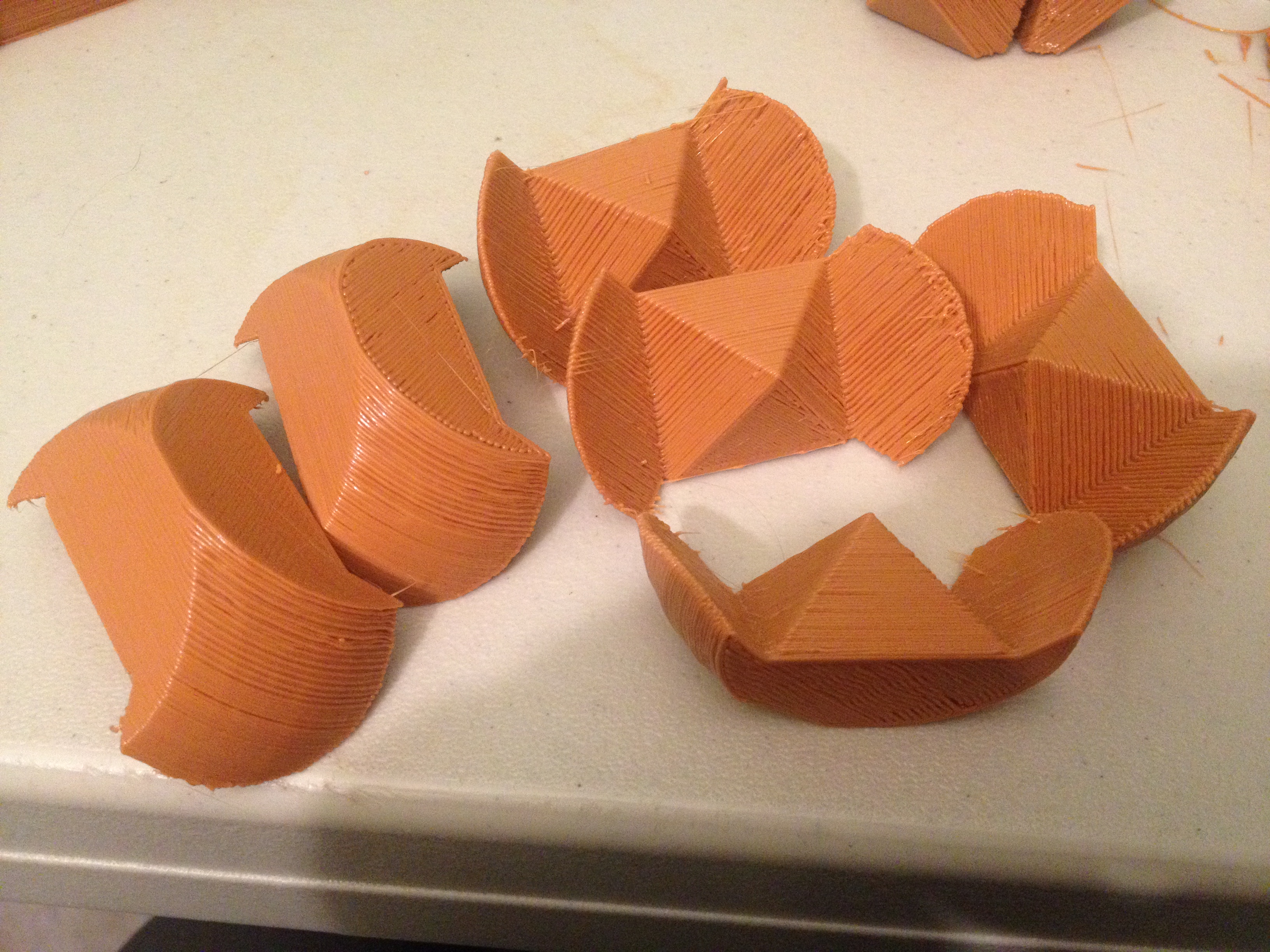

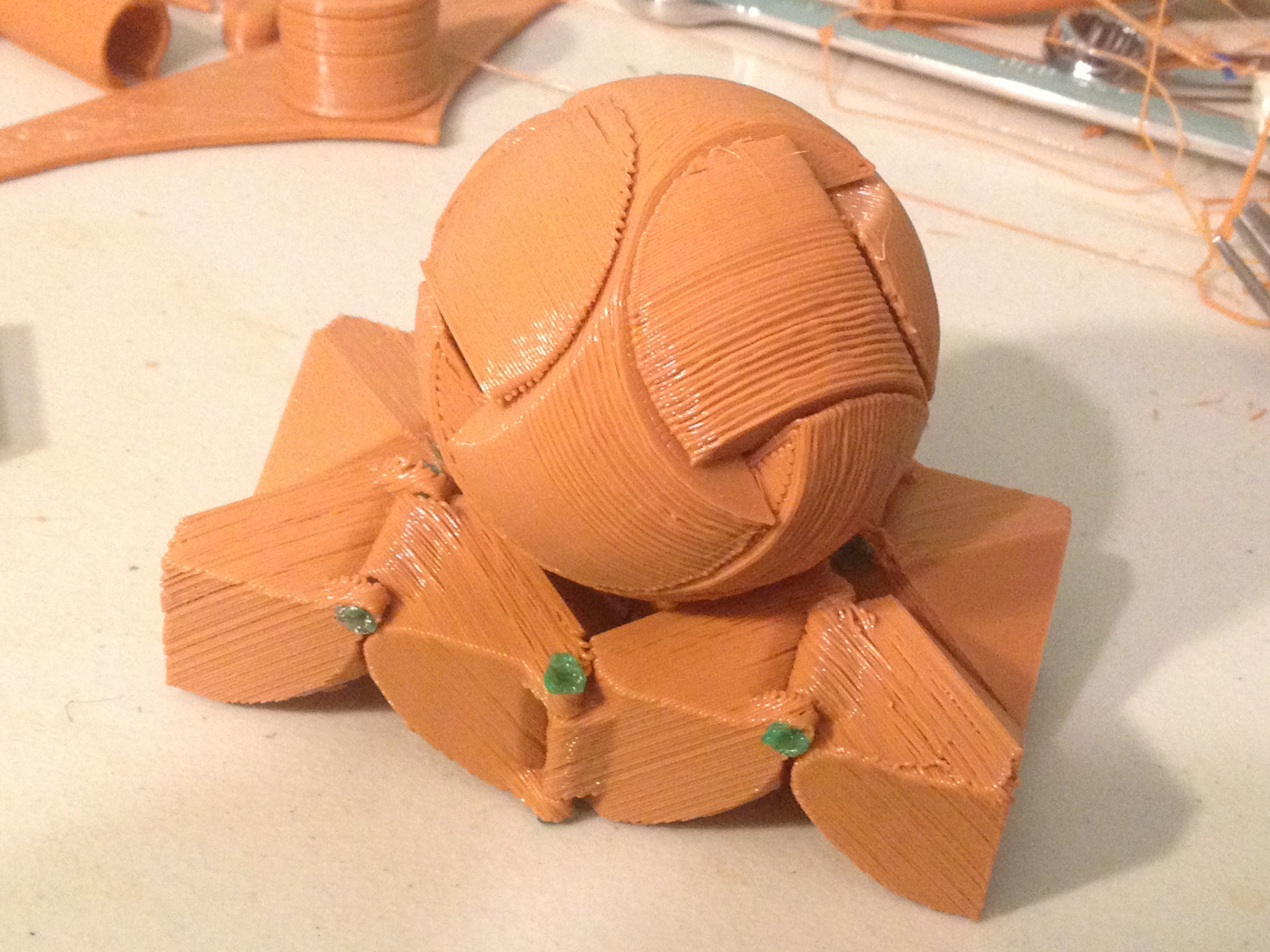

Next I printed a cool Puzzle Sphere that unlike its cousins doesn’t have a different “key” piece, but rather the pieces are all the same.

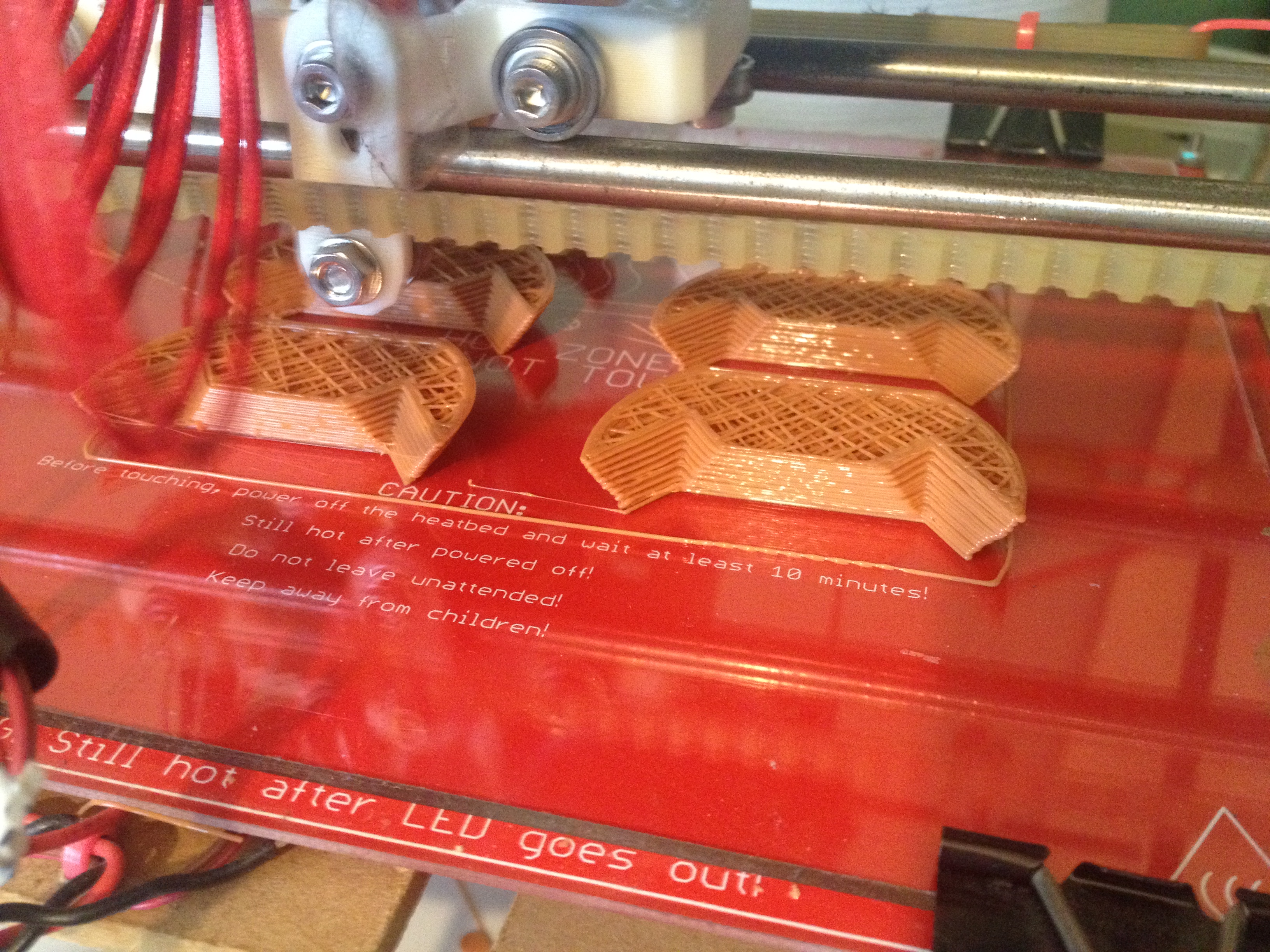

IMG_7284

IMG_7288

IMG_7290

IMG_7294

IMG_7299

IMG_7300

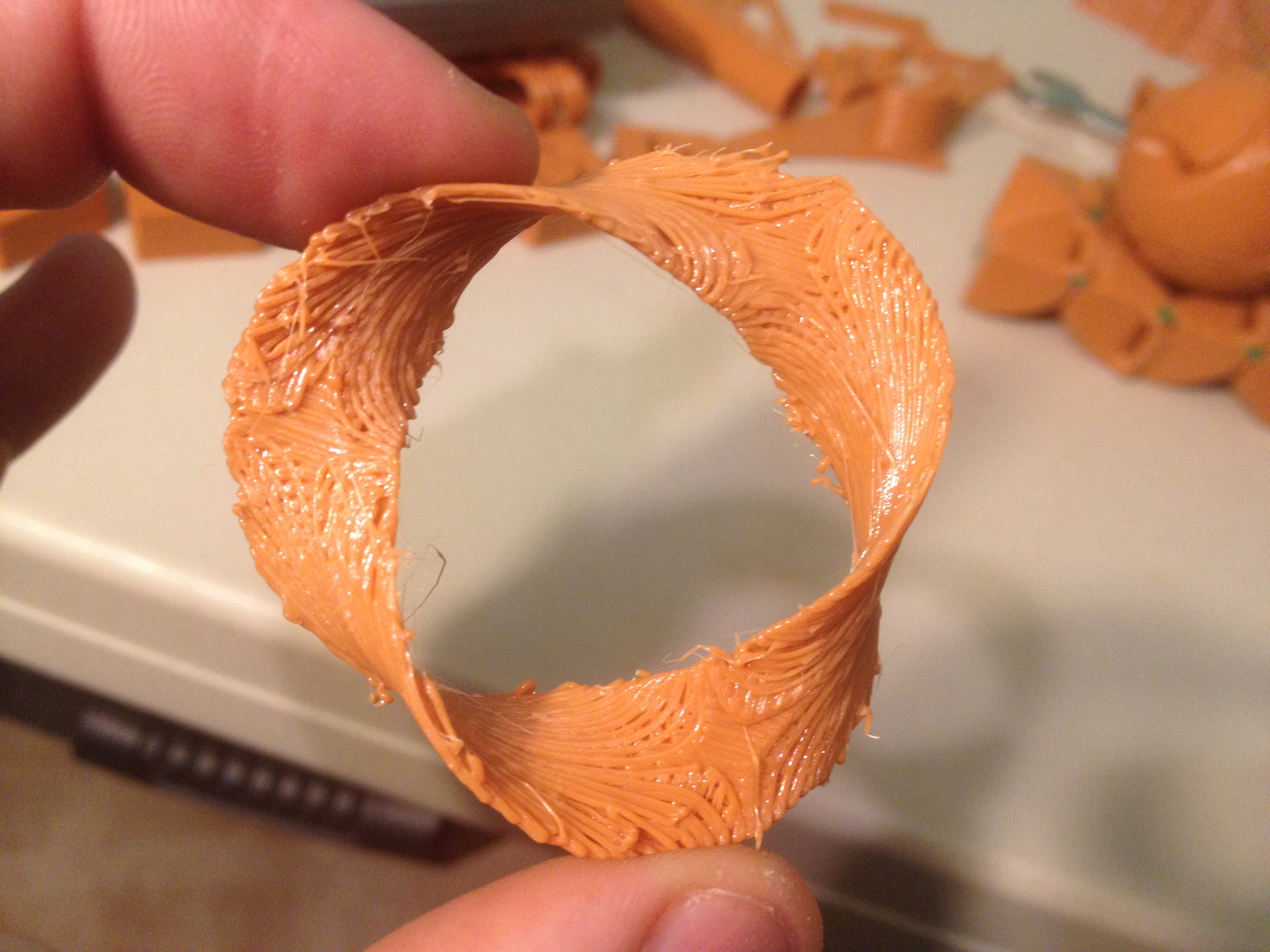

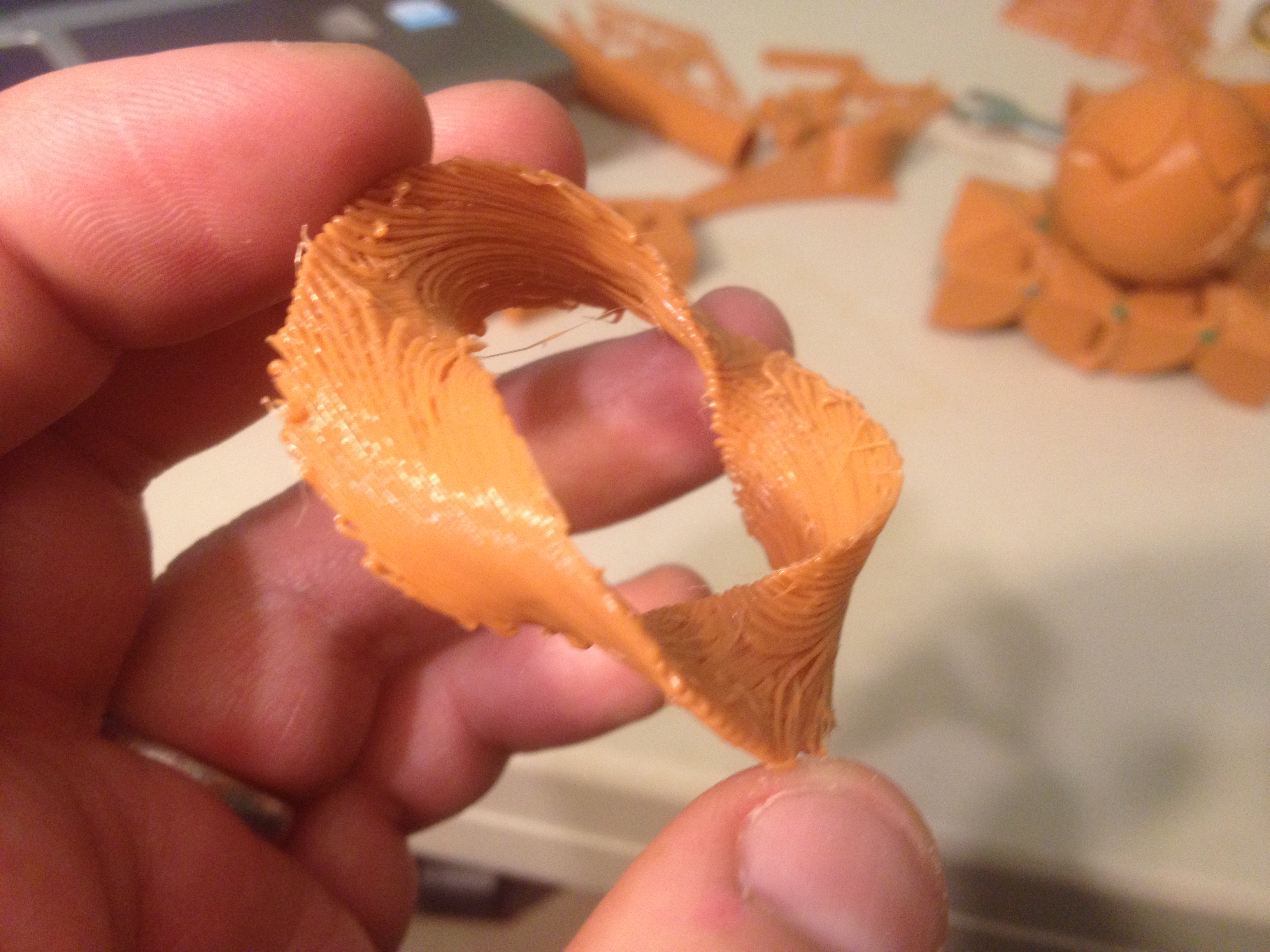

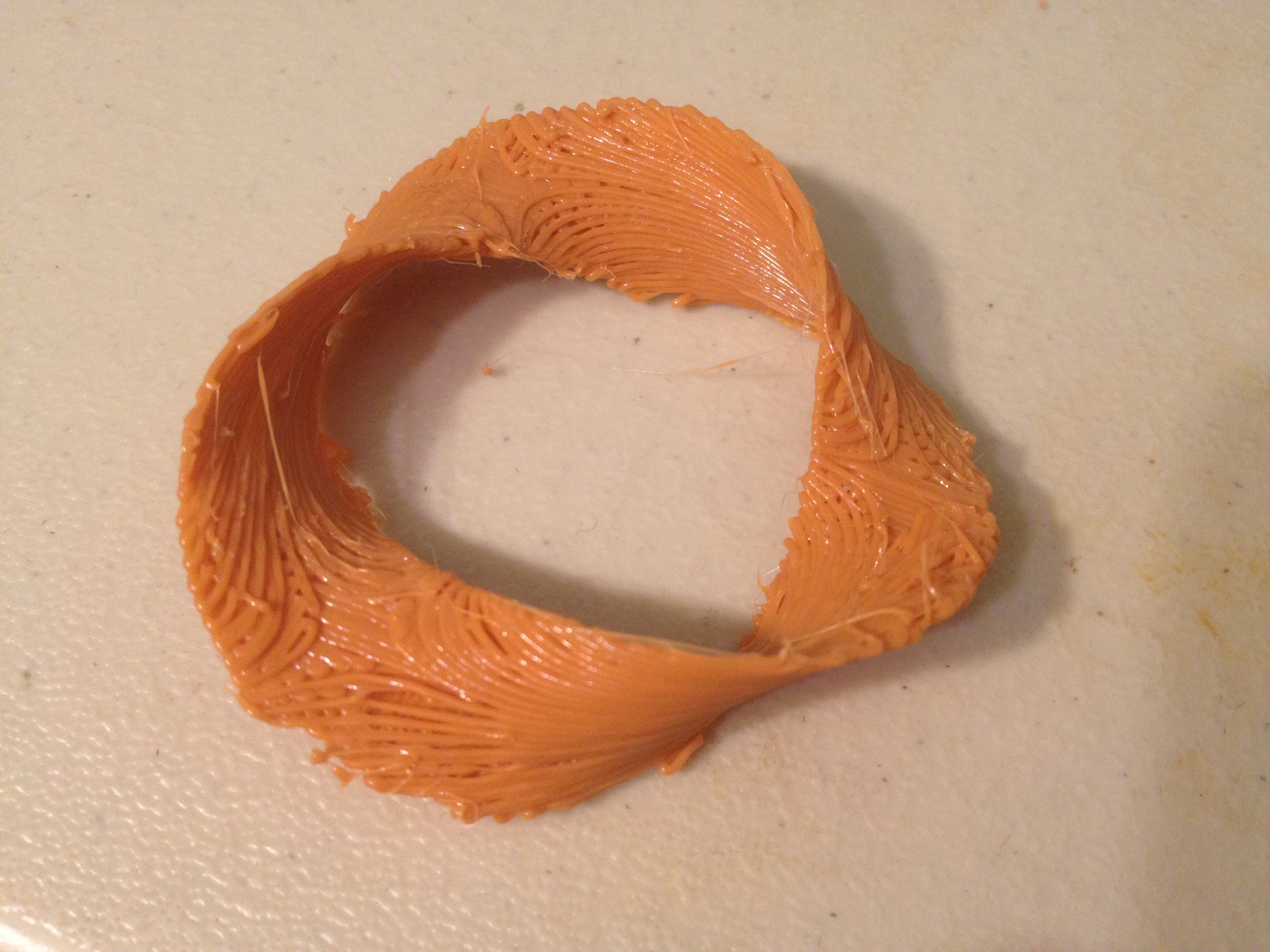

Mobius Surface – February 19, 2014

This one didn’t turn out great, but I did want to try it (and by this point, I was looking for things to print each day, and this was on my list). I printed a Mobius Surface (a shape with only one side), which required printing with support material.

IMG_7308

IMG_7311

IMG_7305

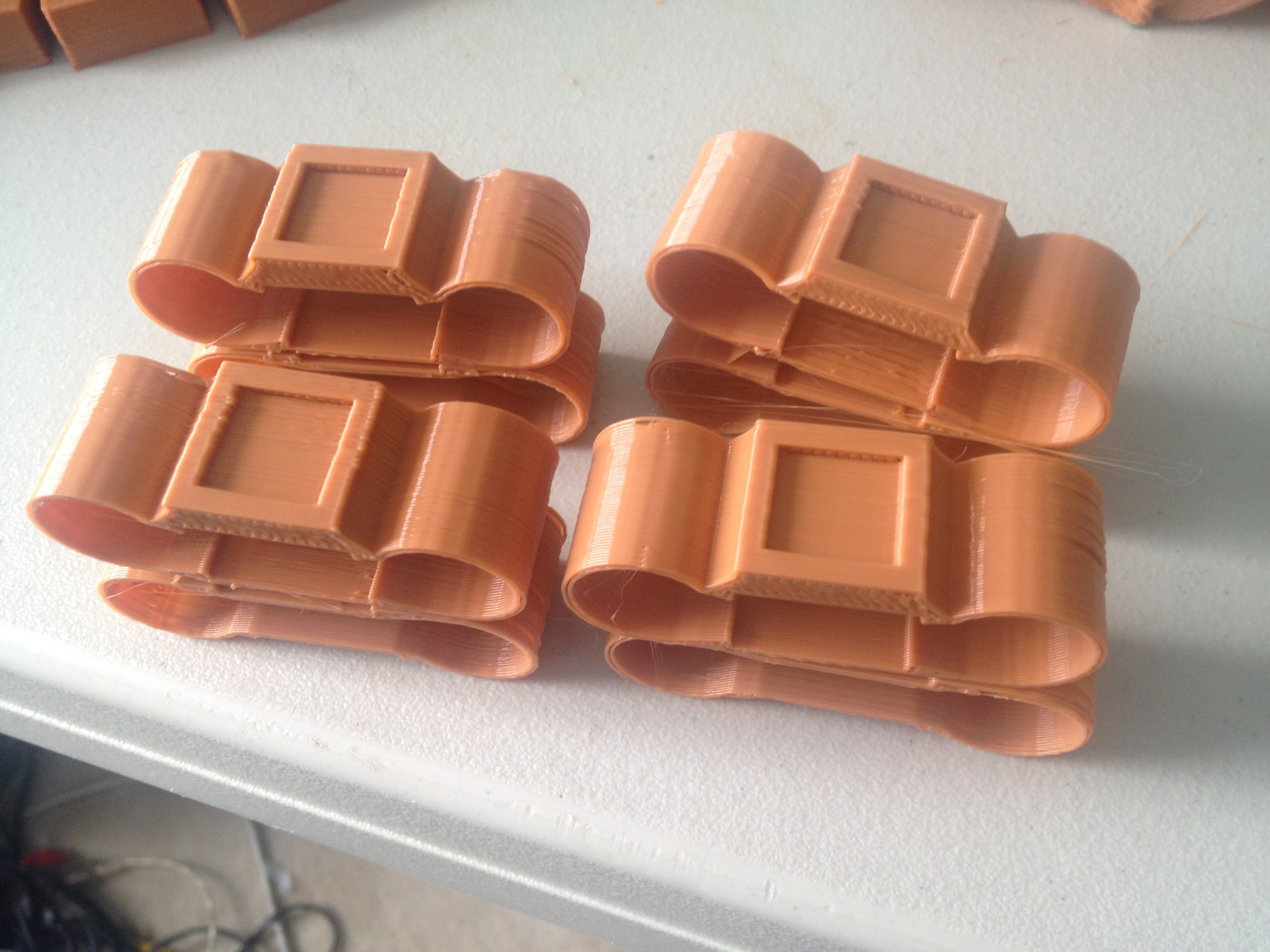

Since I had free time, I also printed up a bunch more of the vibration dampeners from before:

IMG_7327

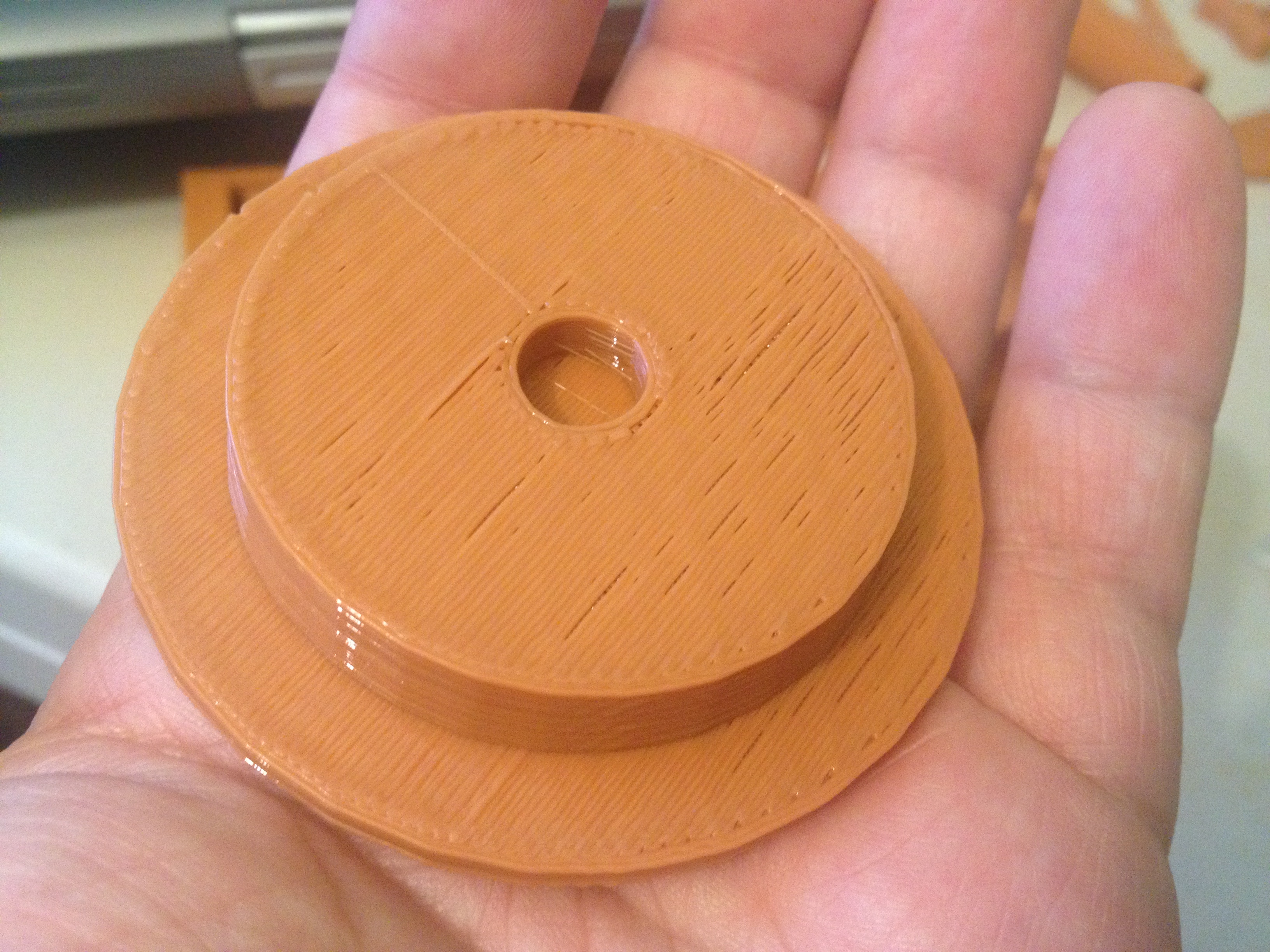

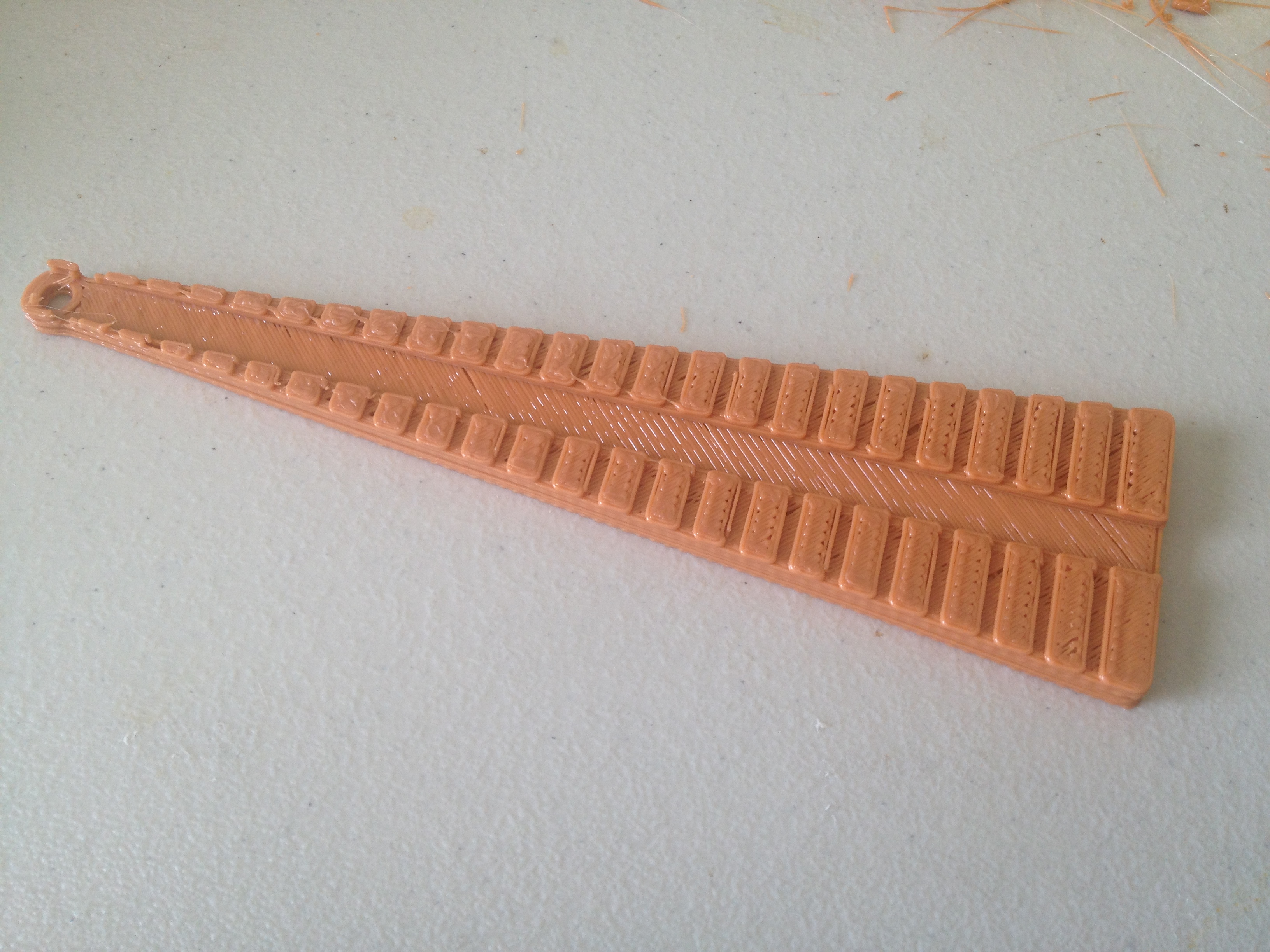

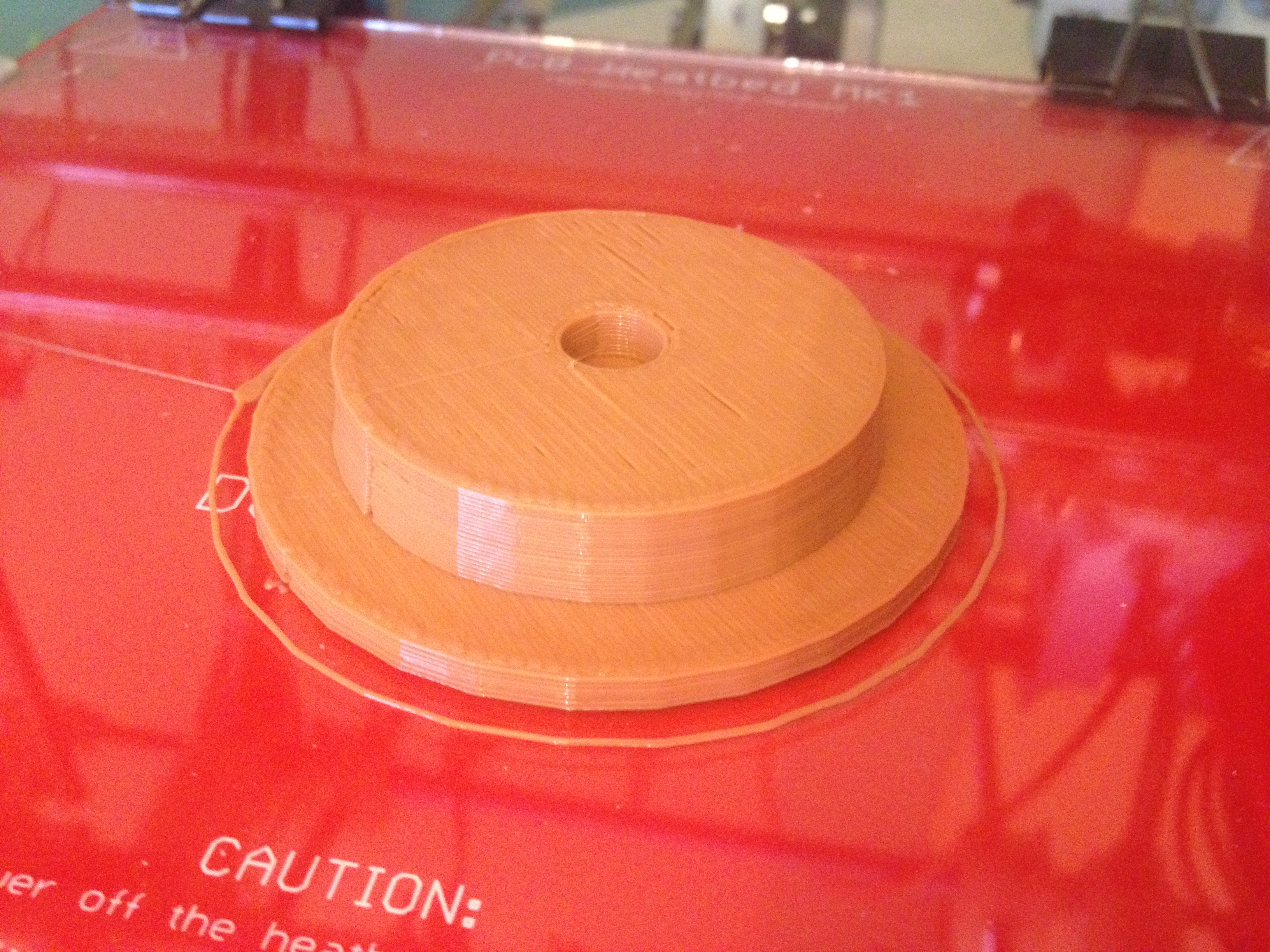

Resistor lead forming tool, Parametric ( Ultimachine 1Kg ) spool hub bearing, REDO: chichen_itza matrix building – February 20, 2014

Another simple looking object (which, again, was in high demand at the time, since I wanted objects I could reliably print each day) was this Resistor lead forming tool that lets you bend the leads of resistors to set widths suitable for insertion into a breadboard or circuit board:

IMG_7330

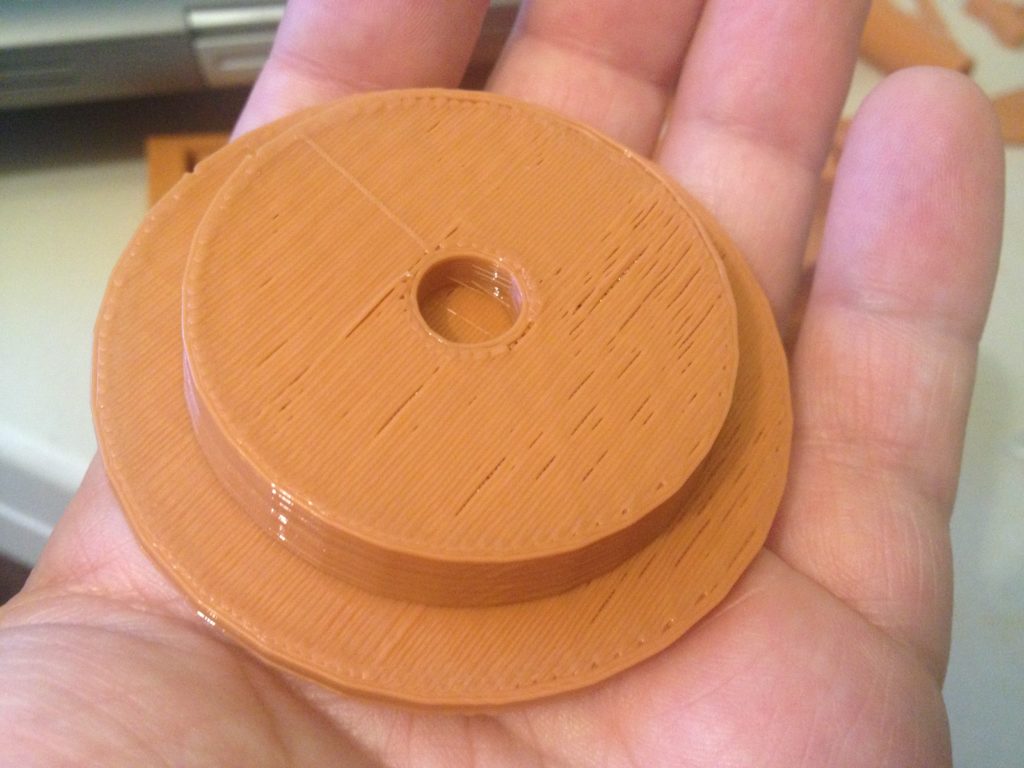

It was right around now that I ran out of that orange/tan plastic. I had a roll of opaque yellow PLA from ultimachine.com, but needed an appropriate spool holder for the type of spool that it was on. Time for another print!

IMG_7360

IMG_7361

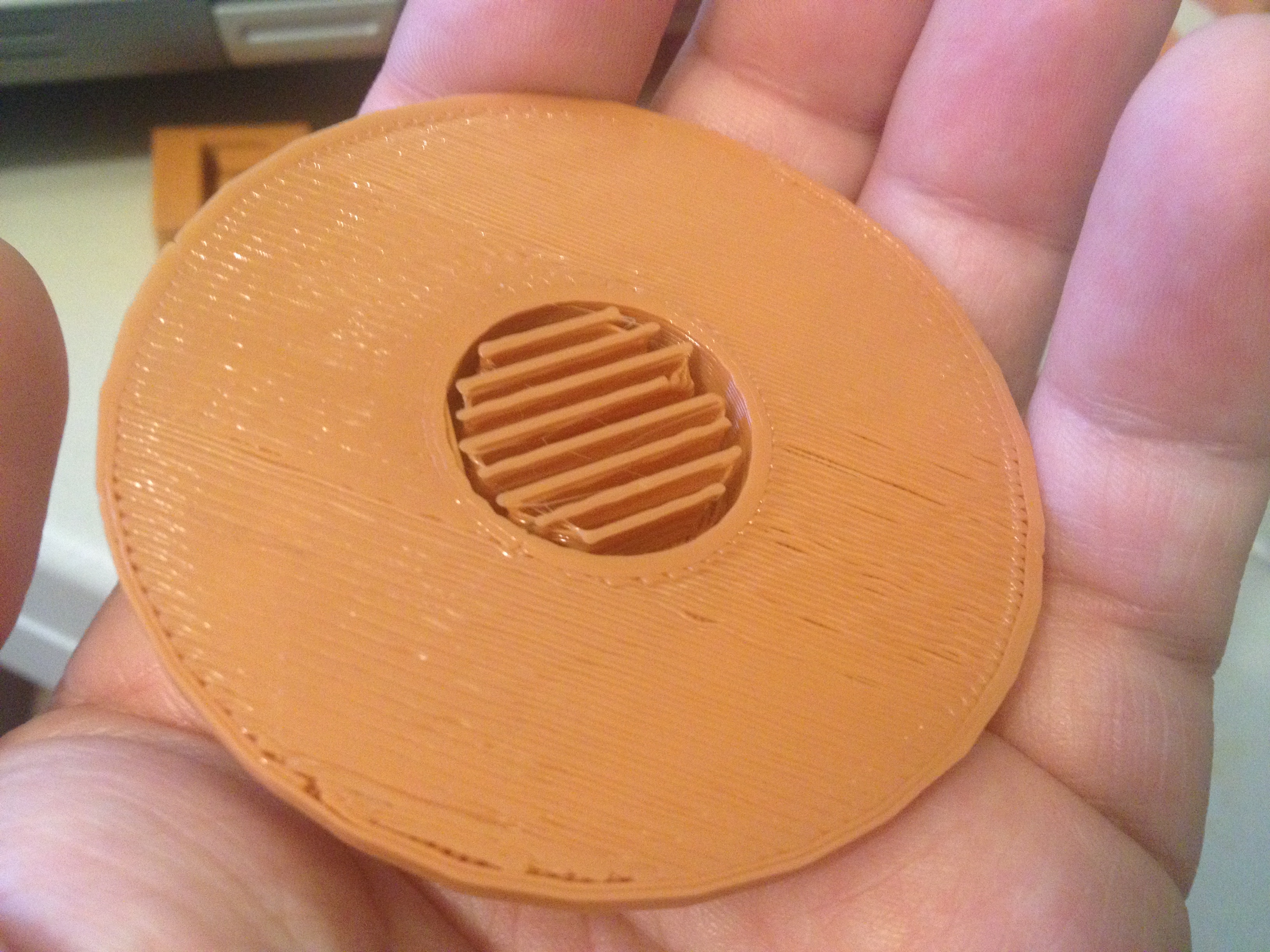

IMG_7362

IMG_7364

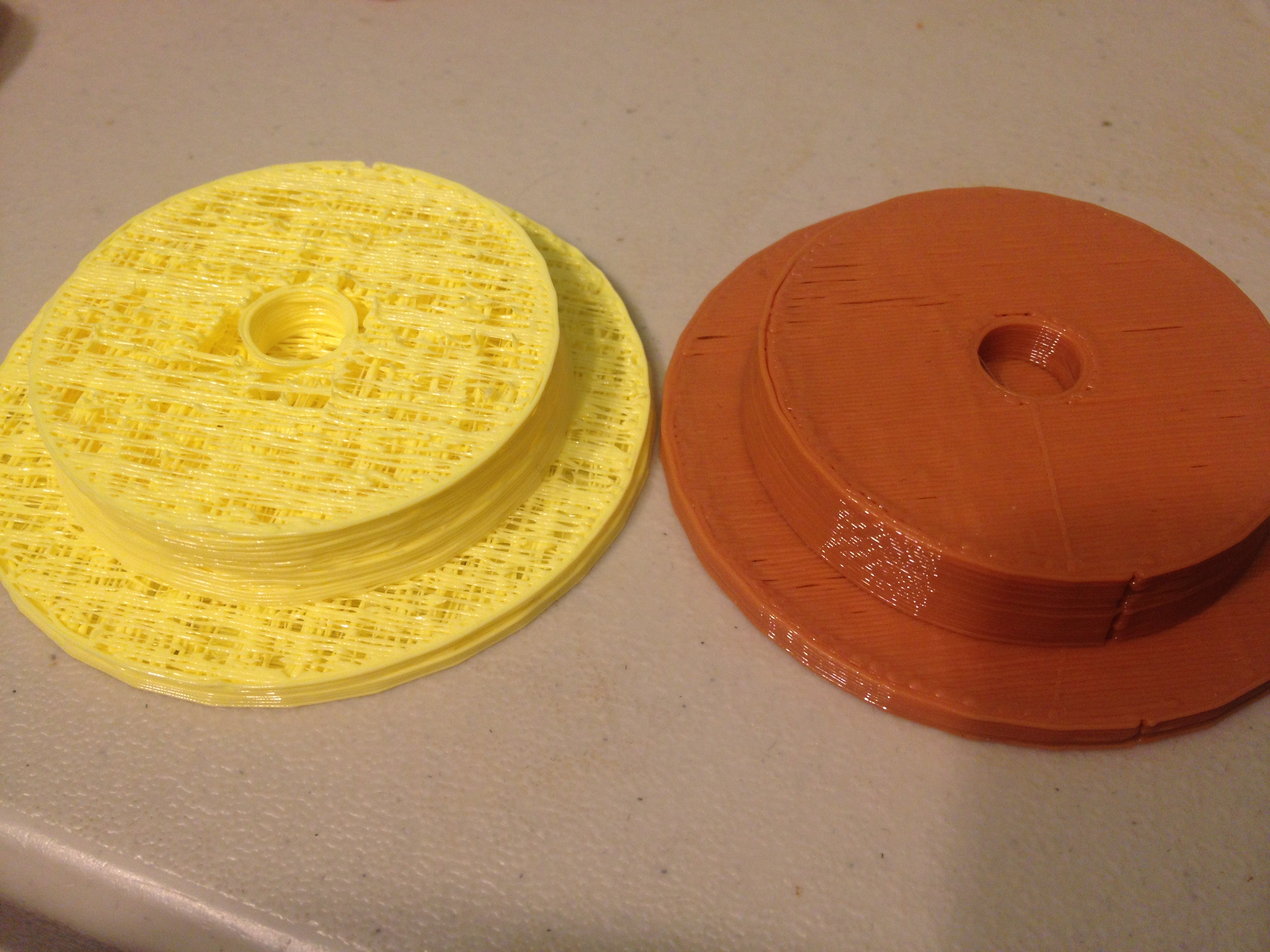

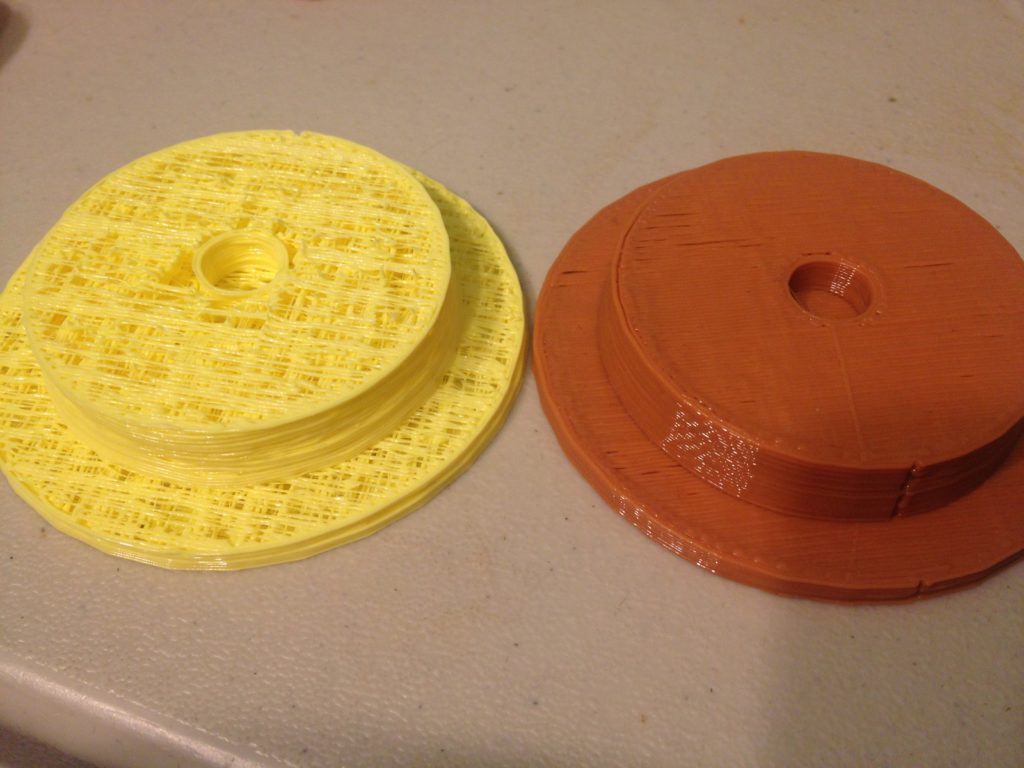

Then when I went to print another with yellow, it turned out awful:

IMG_7392

Thankfully I’d just forgotten to adjust the temperature for the new filament (new color = new temperature).

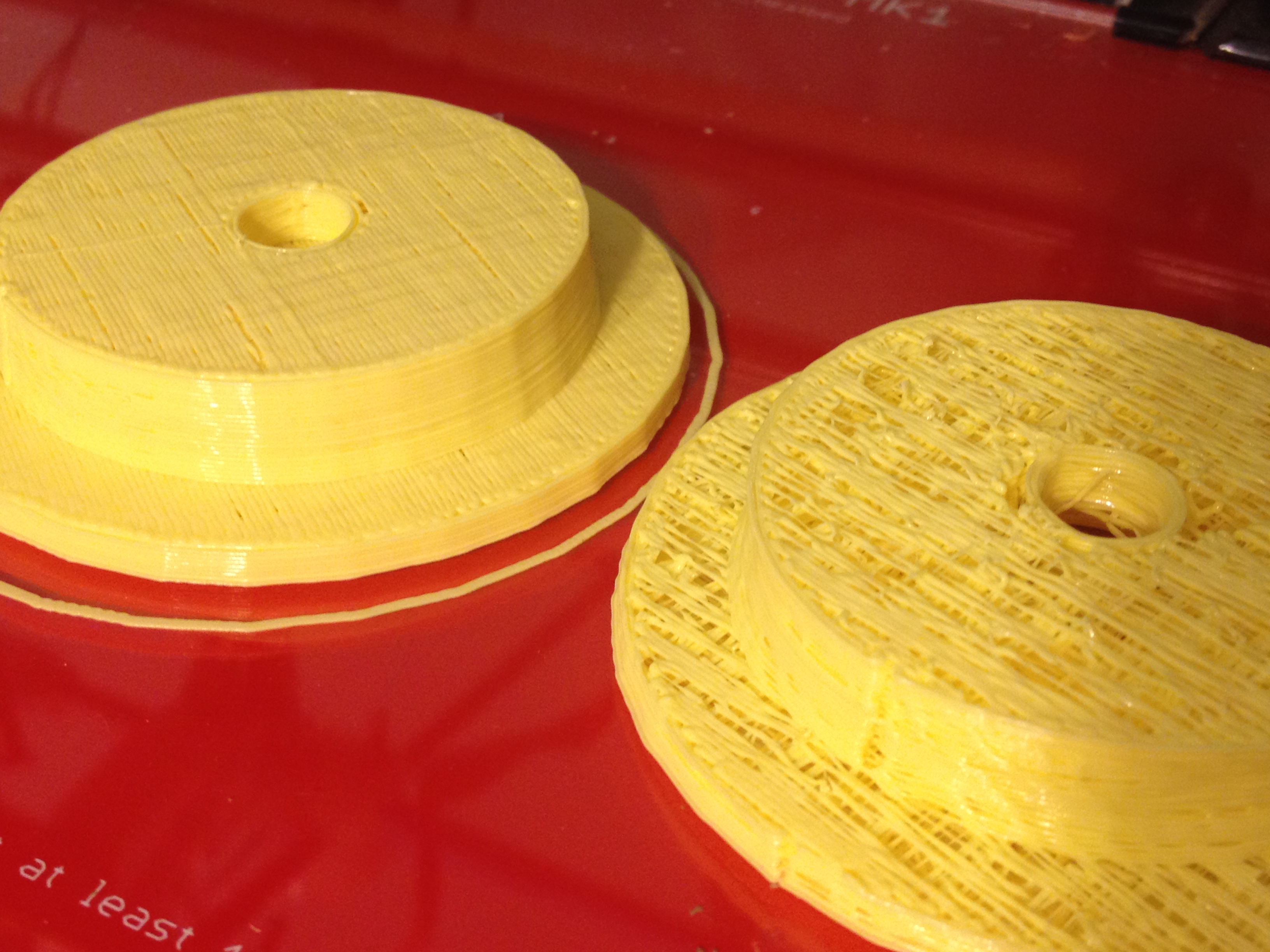

Here is the new print side-by-side with the awful print:

IMG_7403

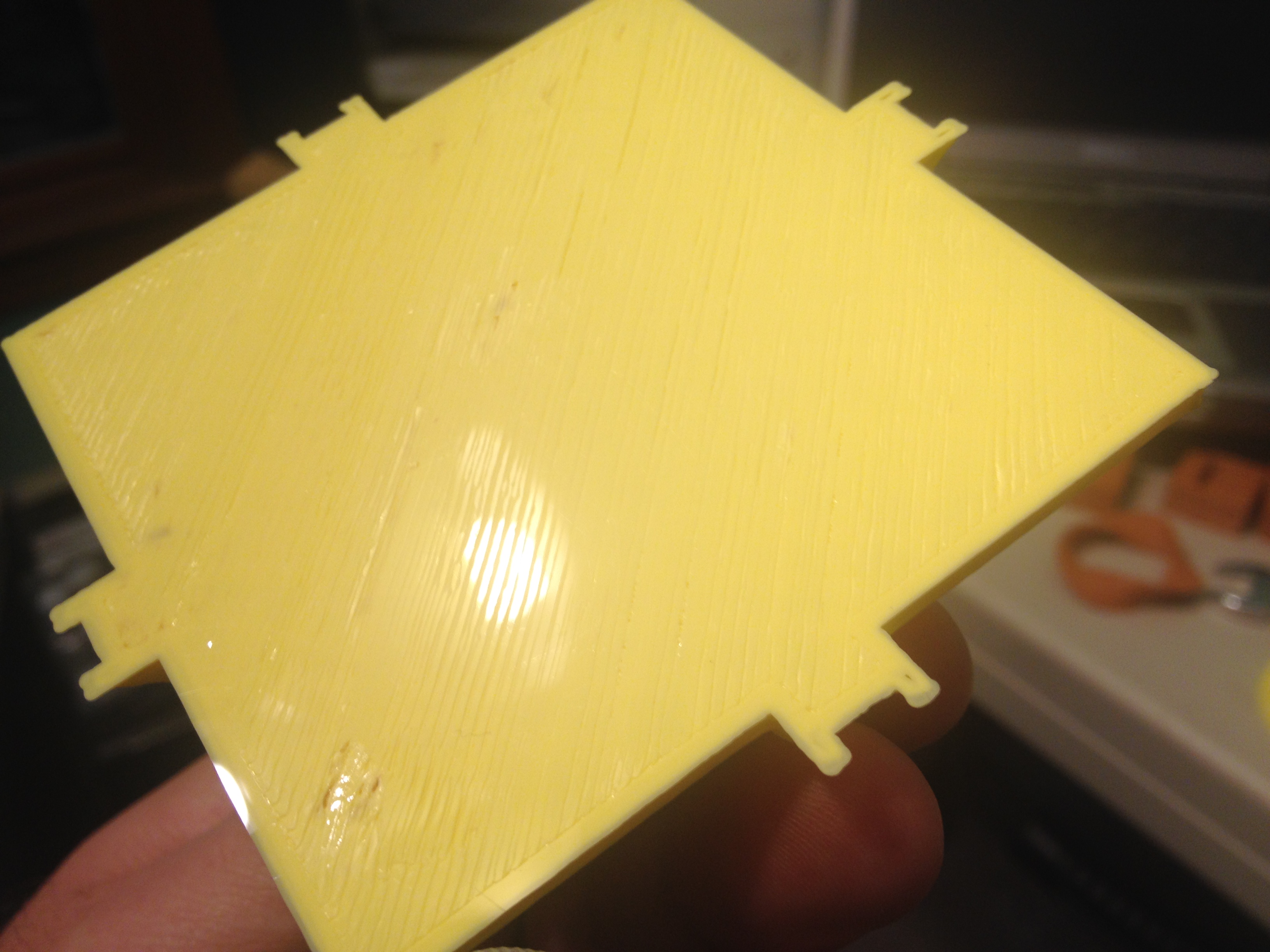

Having my official print for the day done, I tried redo-ing the Chichen Itza print, which had previously suffered from bad Z height, at least partially because of a lack of lubrication.

IMG_7411

IMG_7410

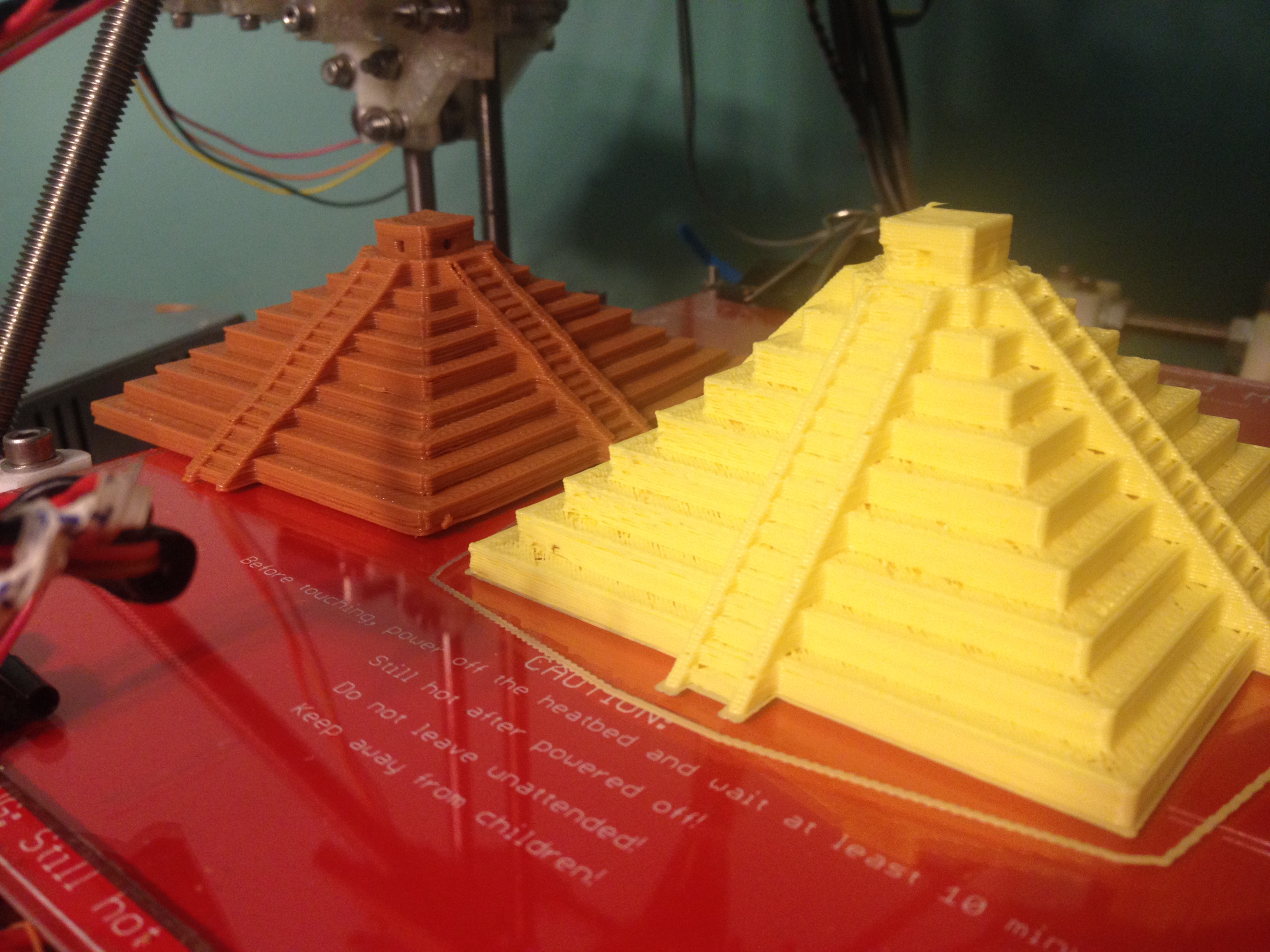

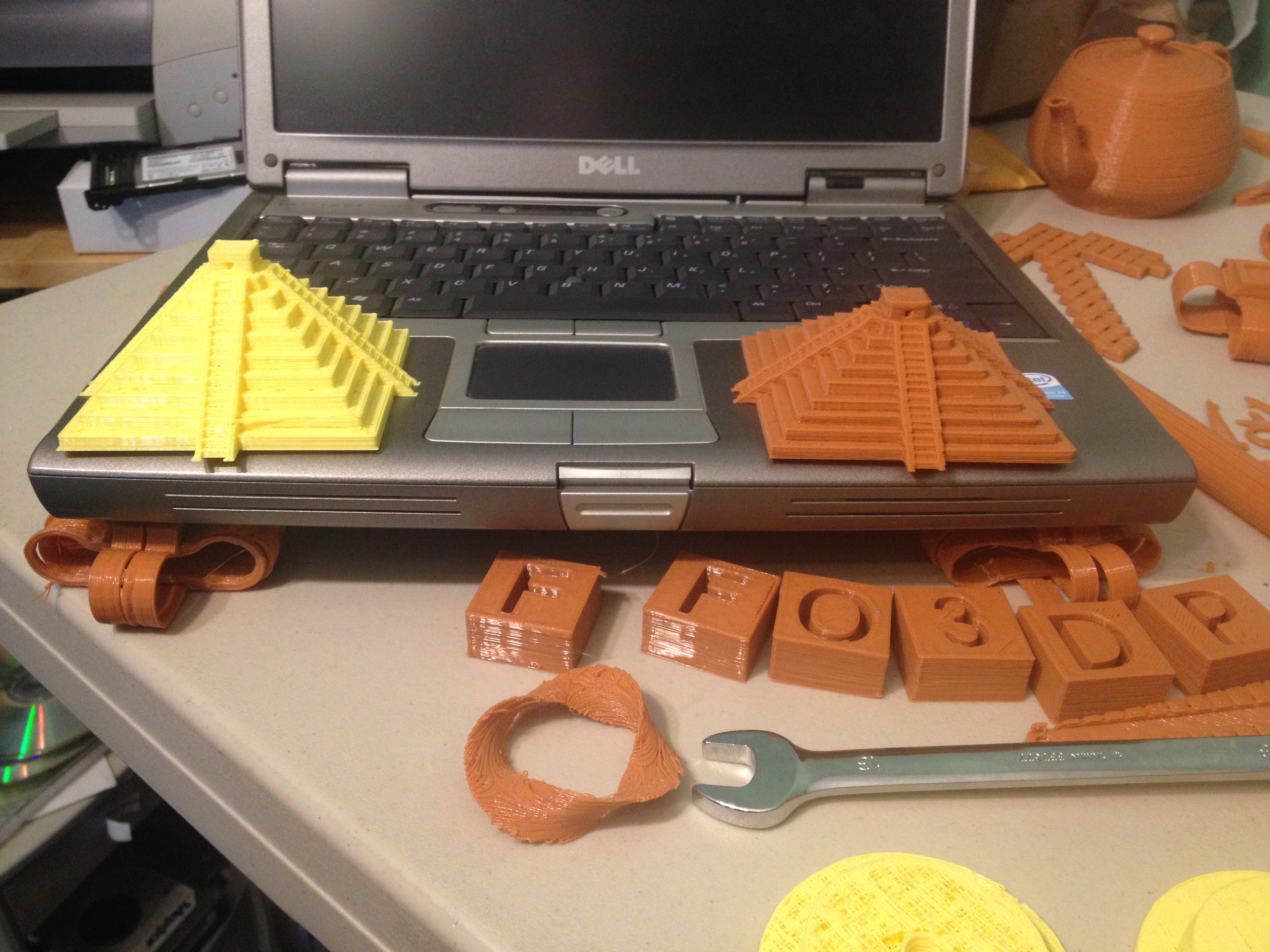

Here it is against the original for comparison. Note the increased/accurate height on the new yellow print, and the consistency of the stair height.

IMG_7408

IMG_7413

Coat Hanger – Dual Prong, center parts 1 and 2 of quadcopter – February 21, 2014

Next I wanted a hook for my towel in the bathroom (full disclosure – one year later, not only did I not mount/use this hook, but I bought Laurie another hook from a store that uses a special adhesive to stick to the wall incredibly well).

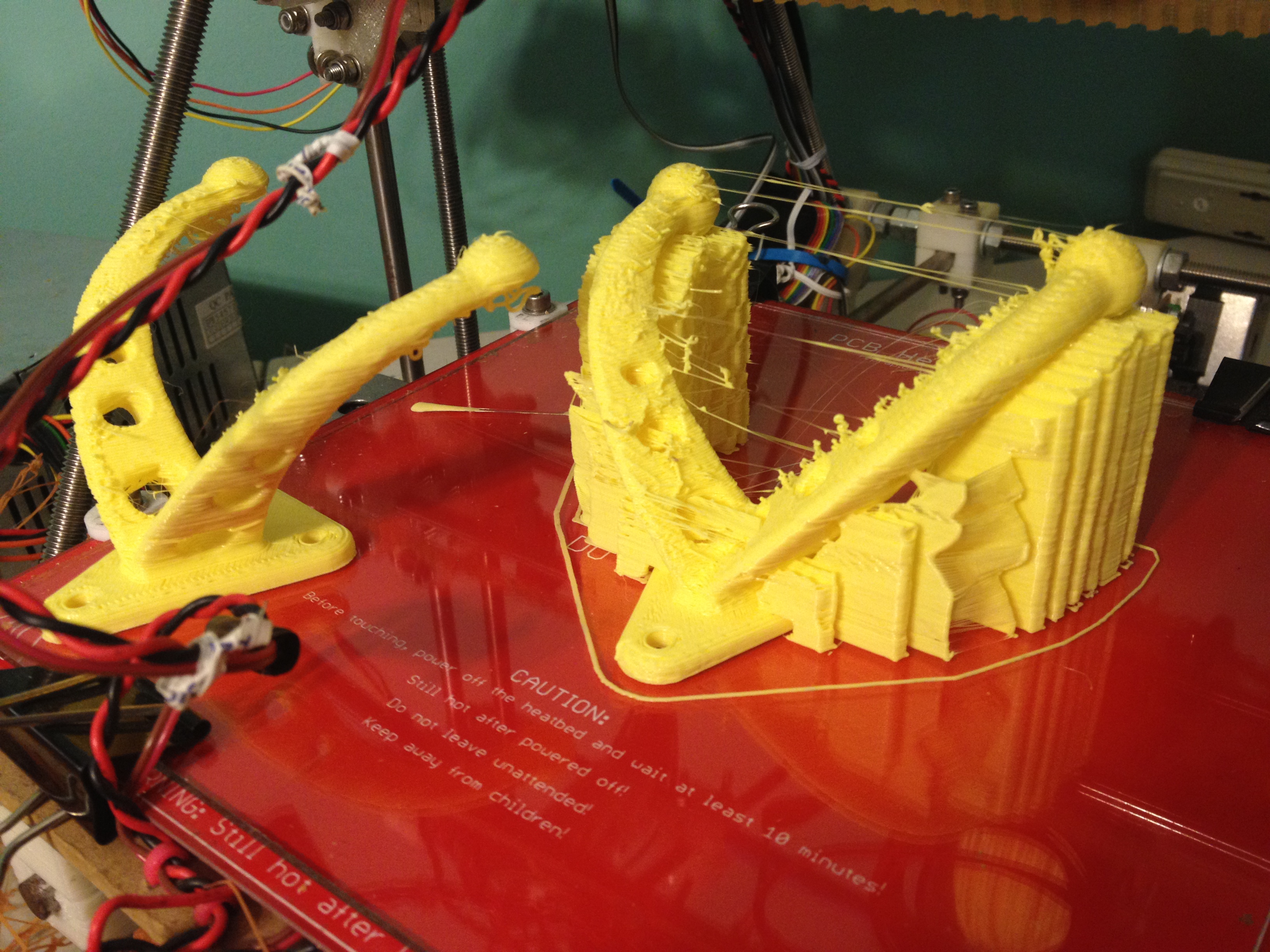

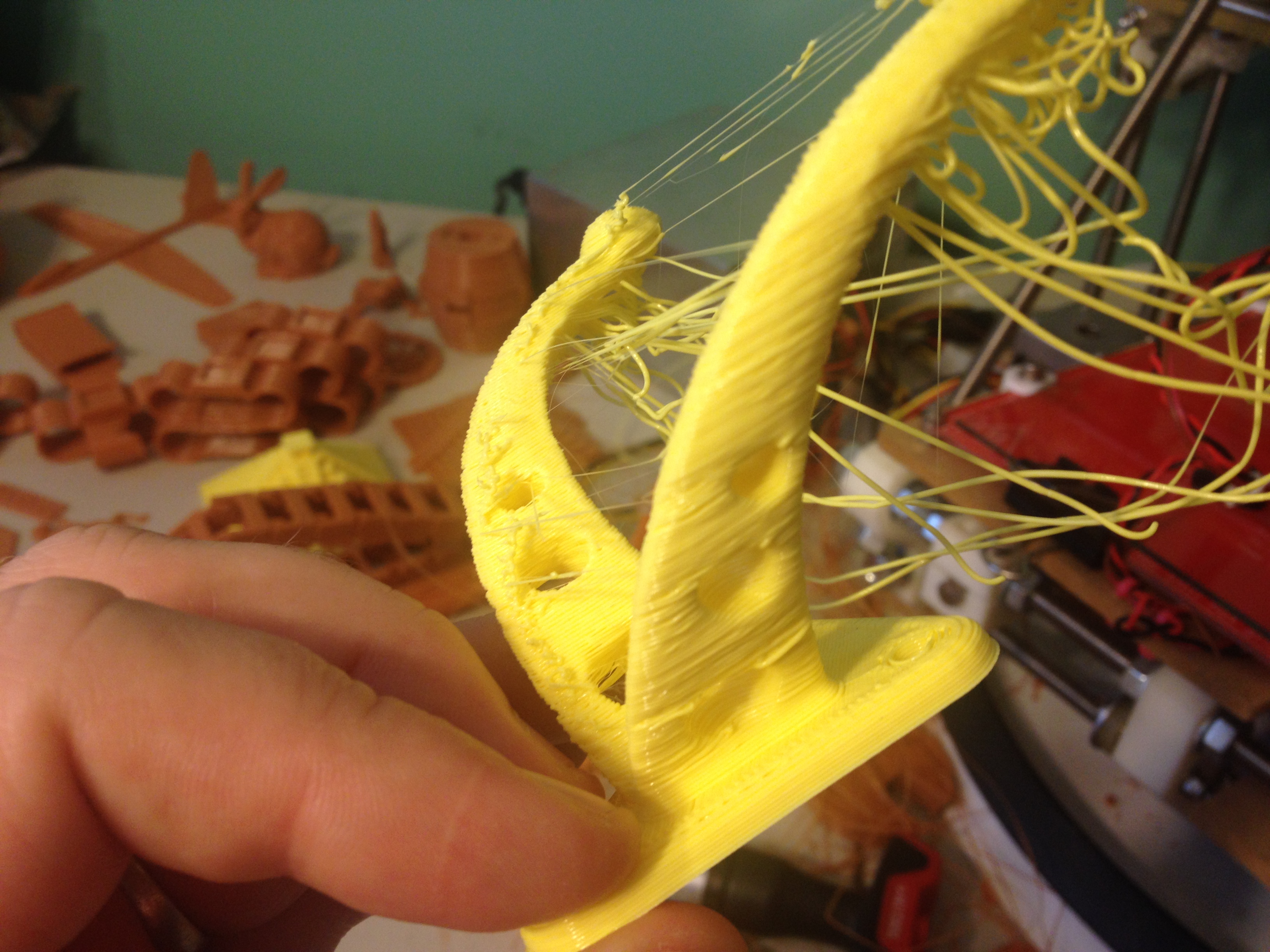

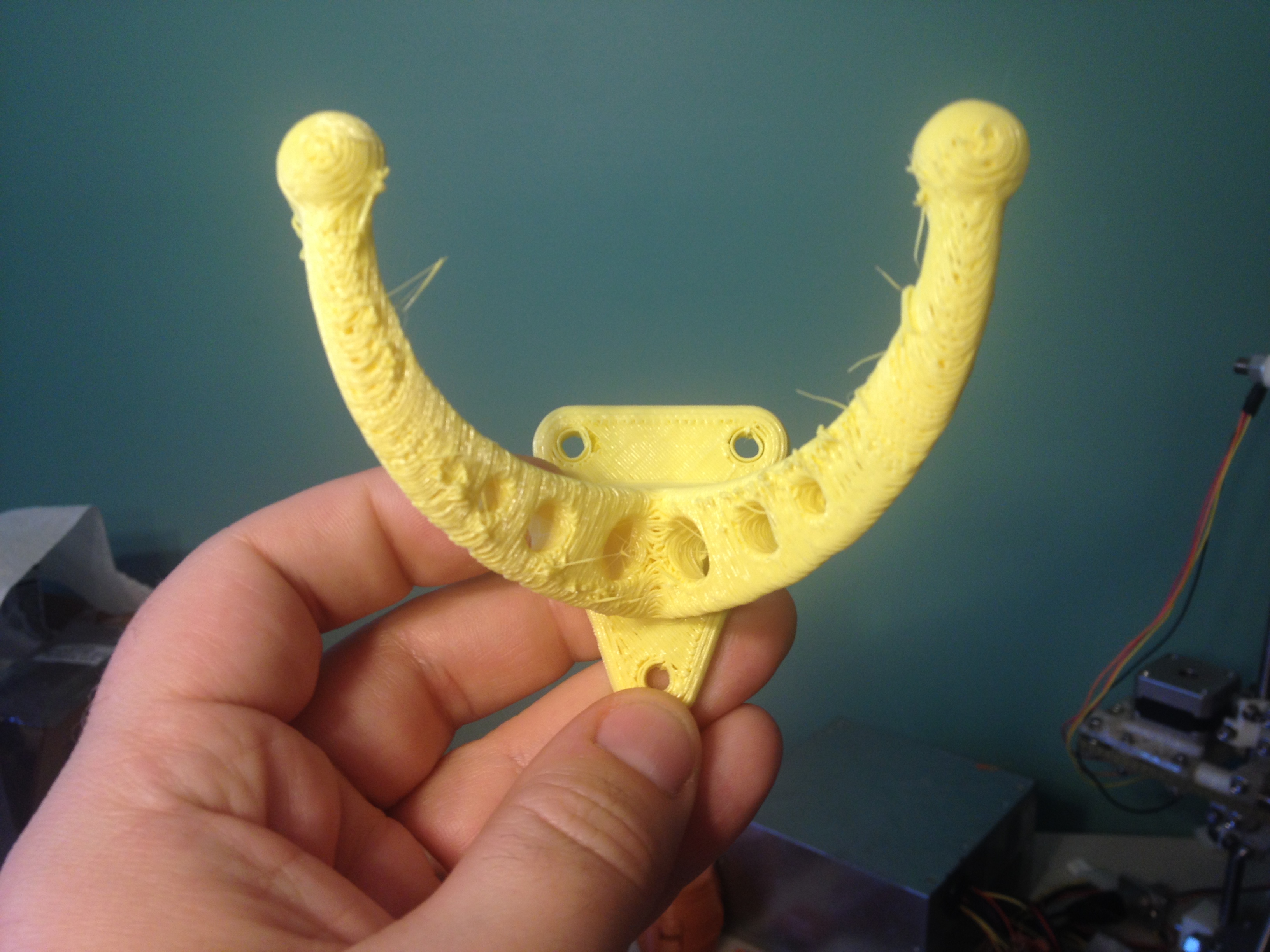

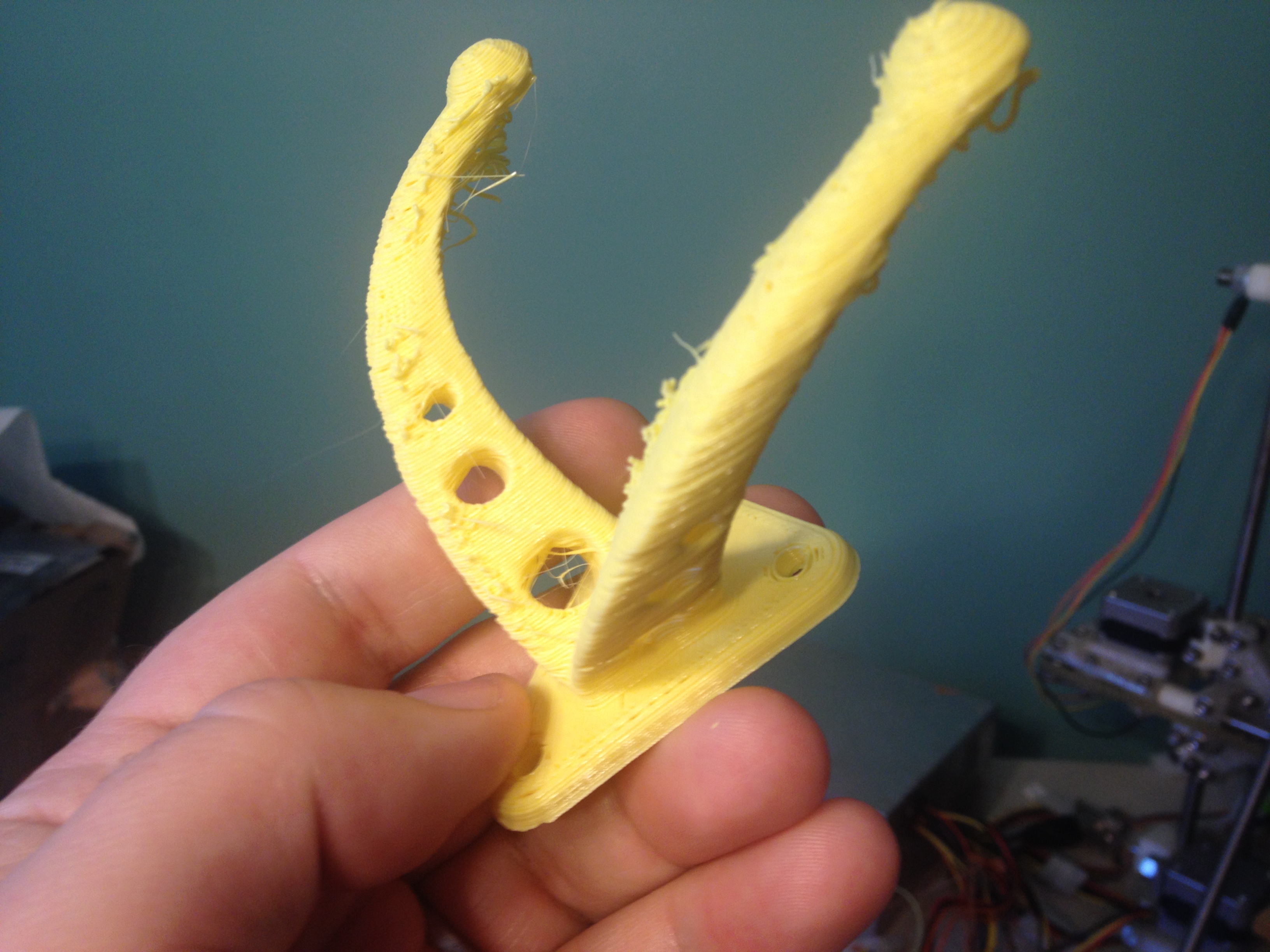

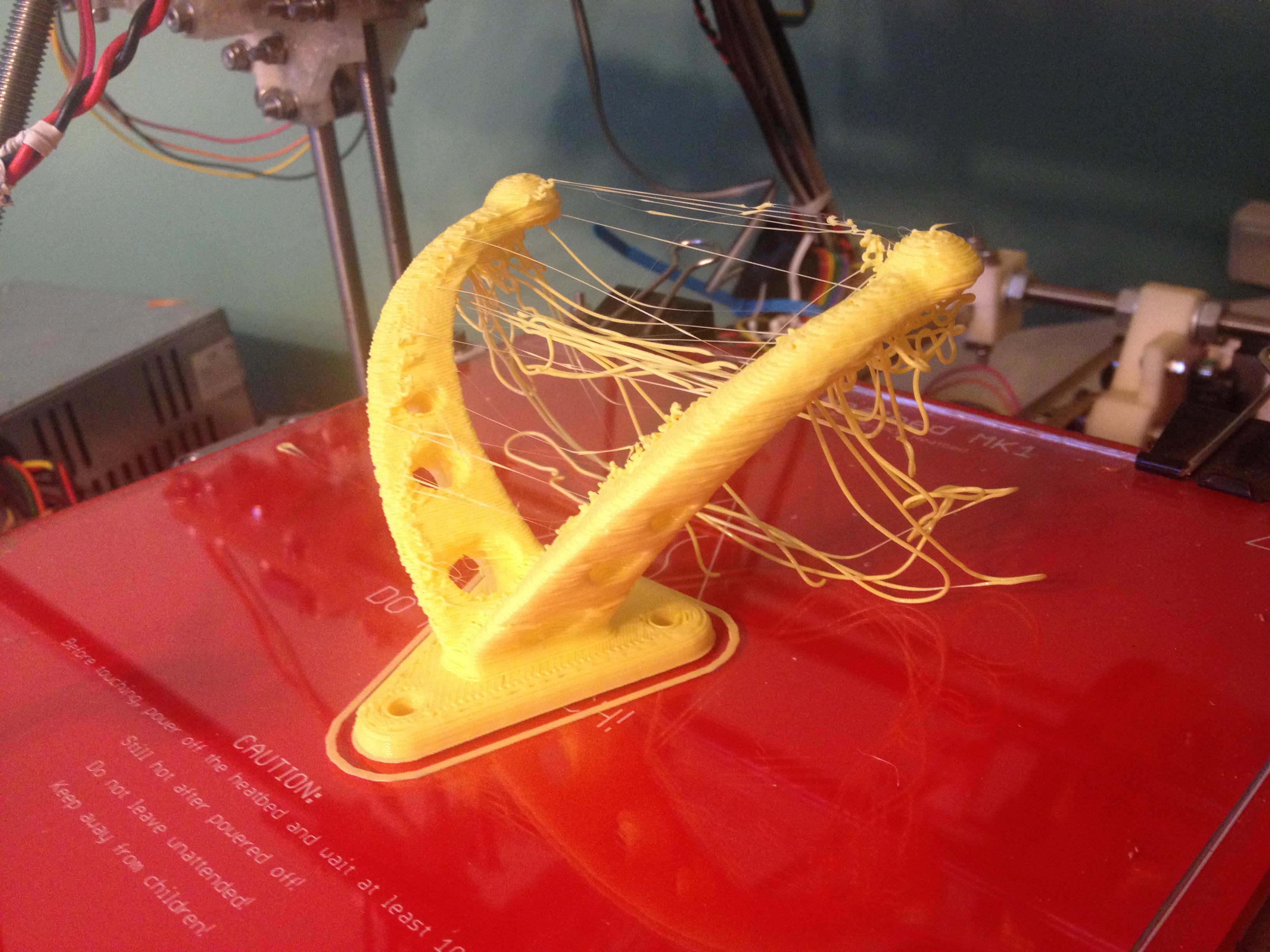

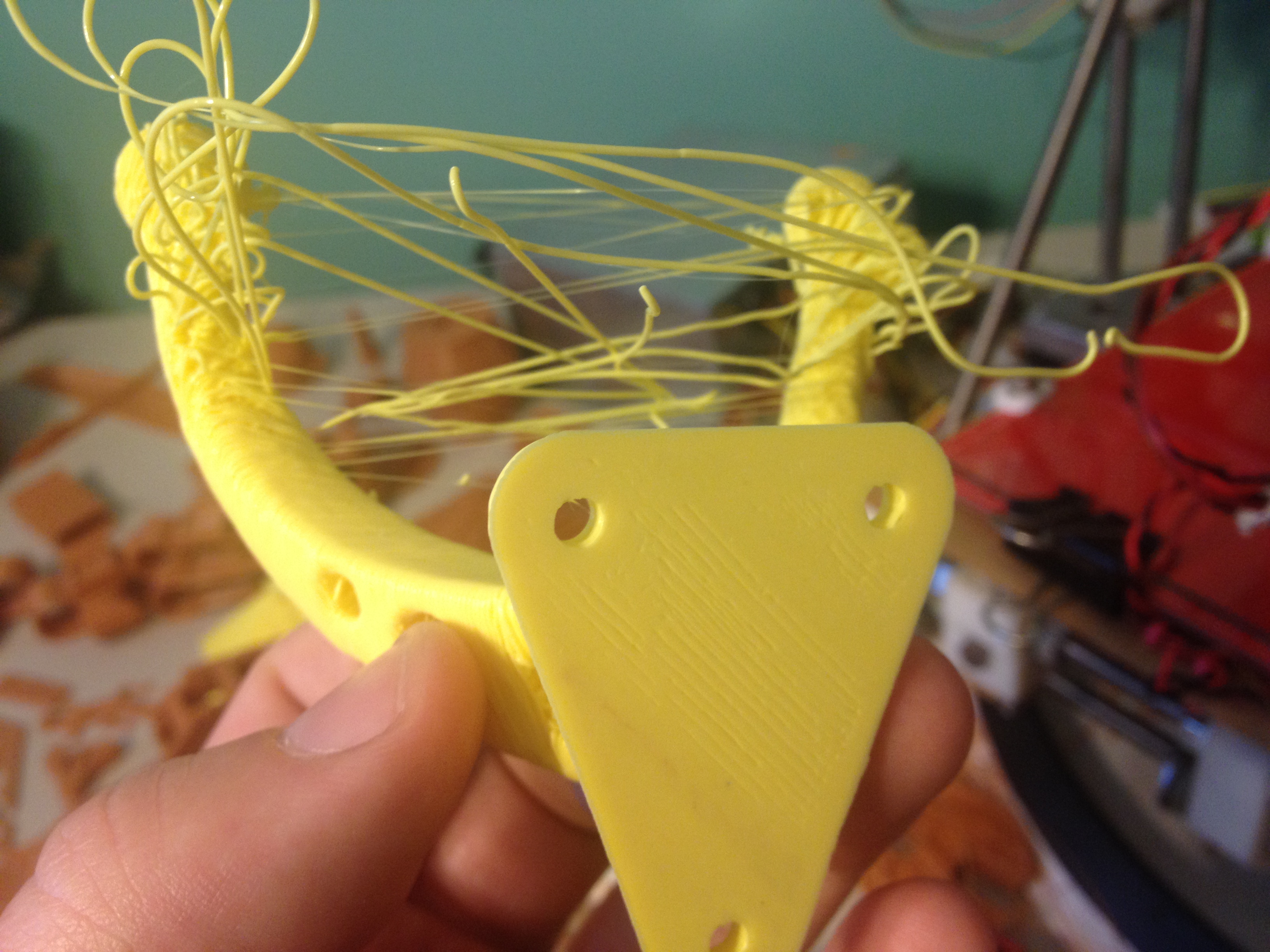

Anyway, I printed Coat Hanger – Dual Prong. First I tried it without any support material:

IMG_7419

IMG_7421

IMG_7422

IMG_7423

IMG_7424

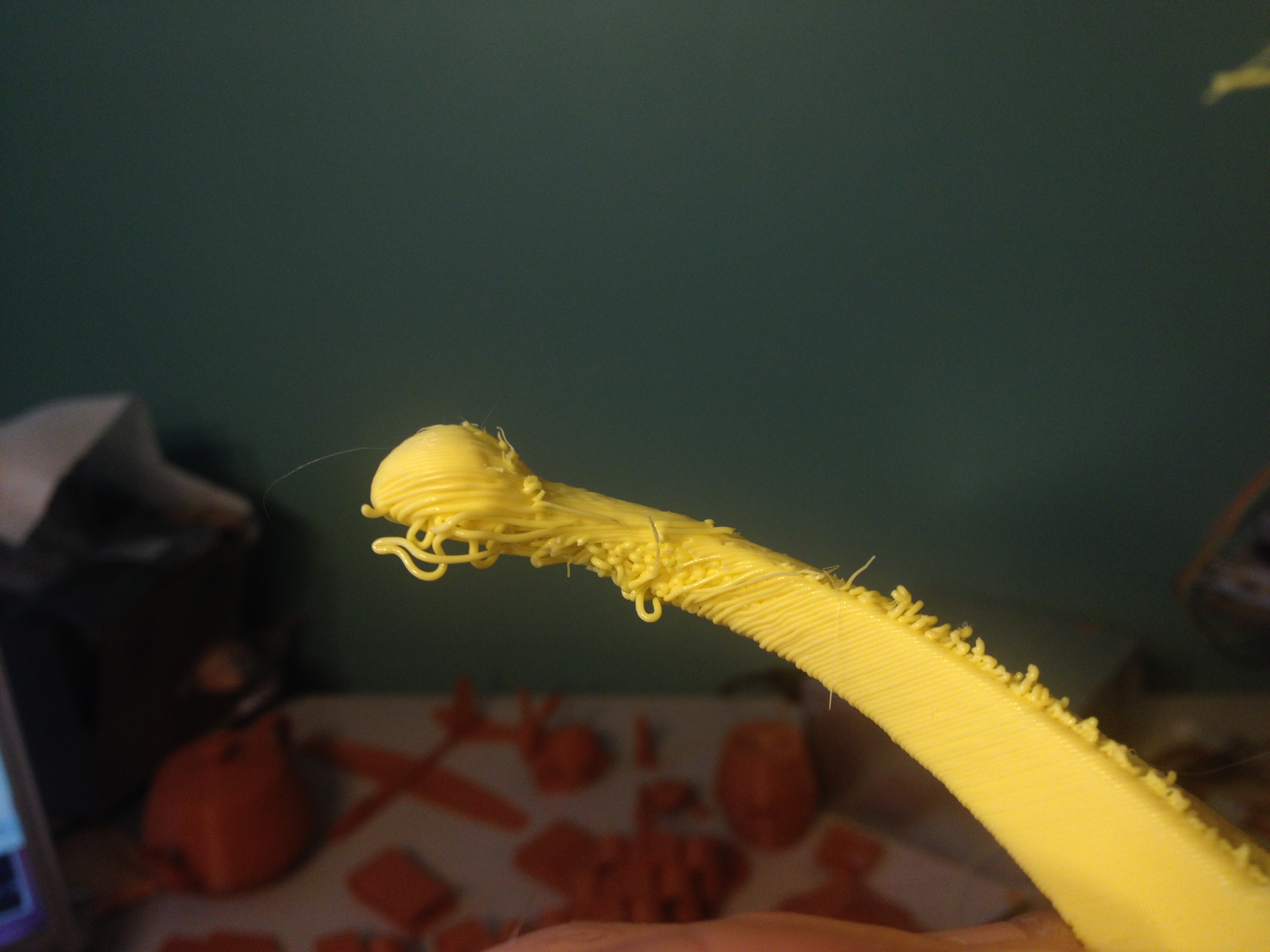

IMG_7427

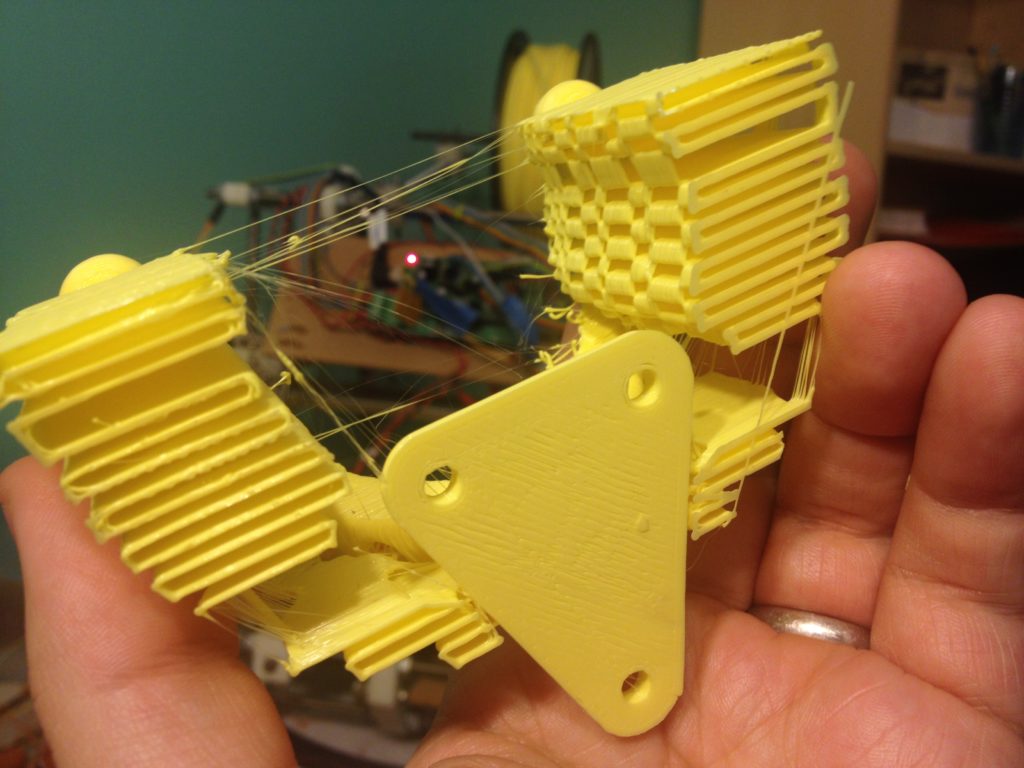

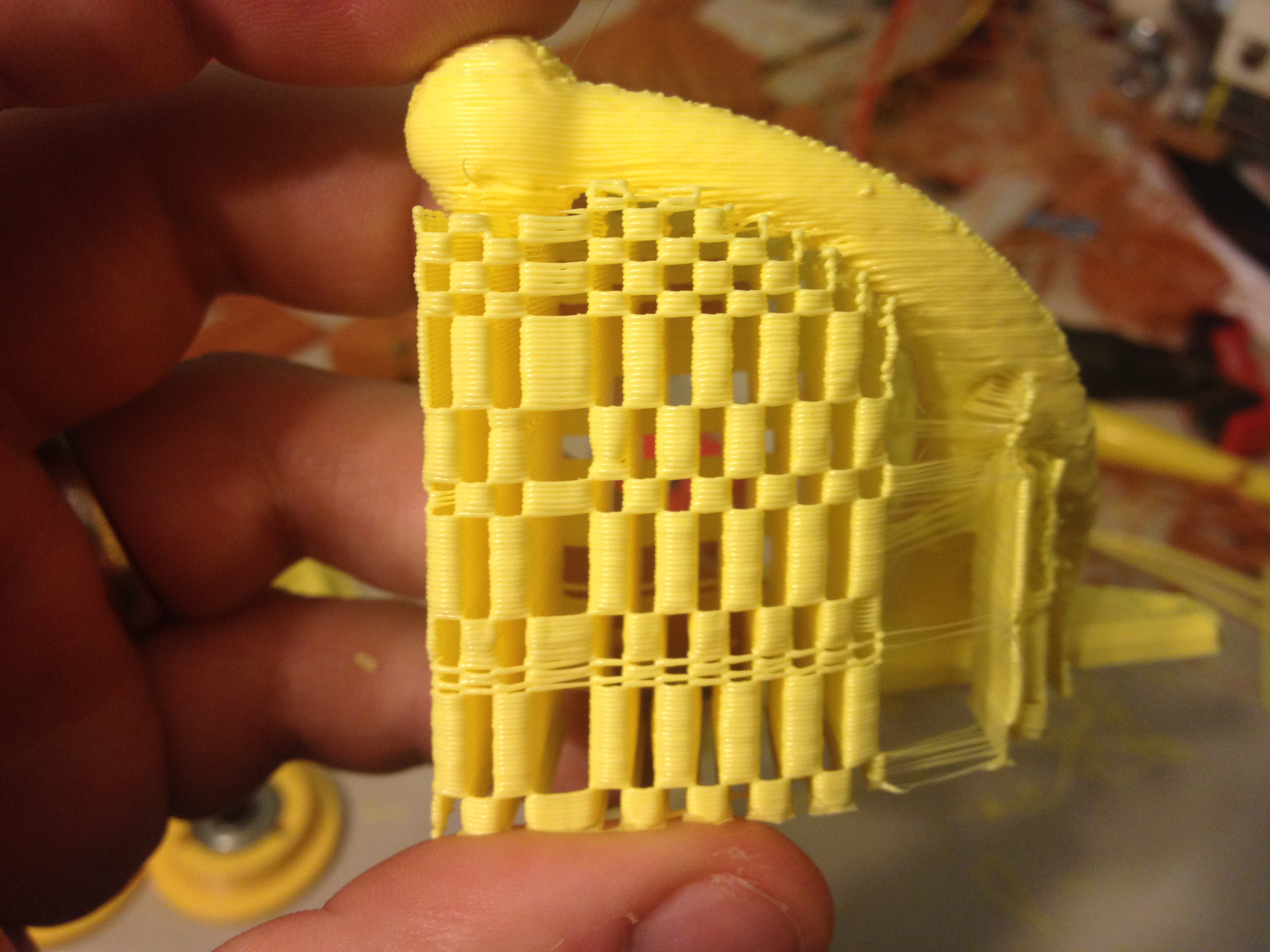

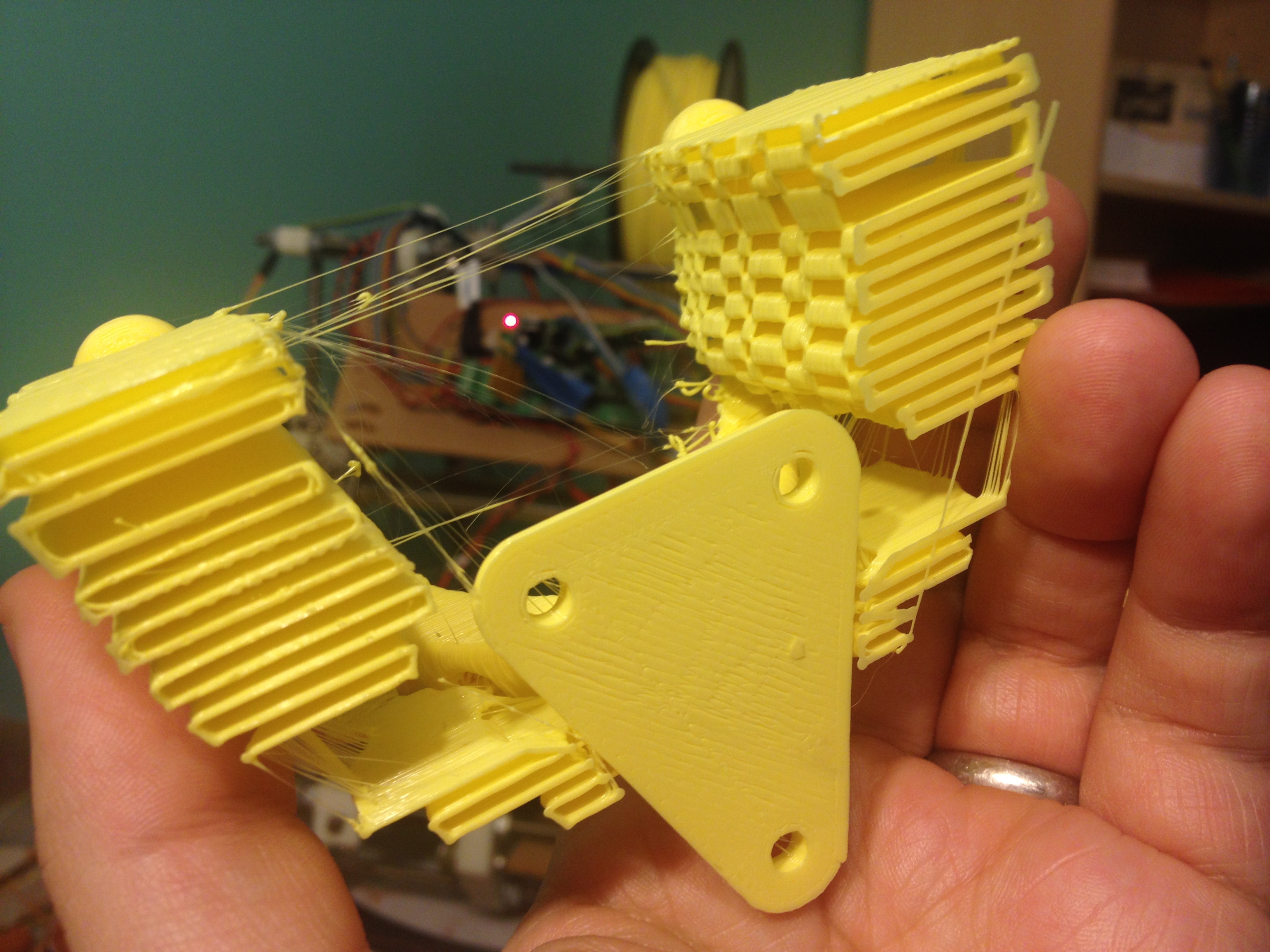

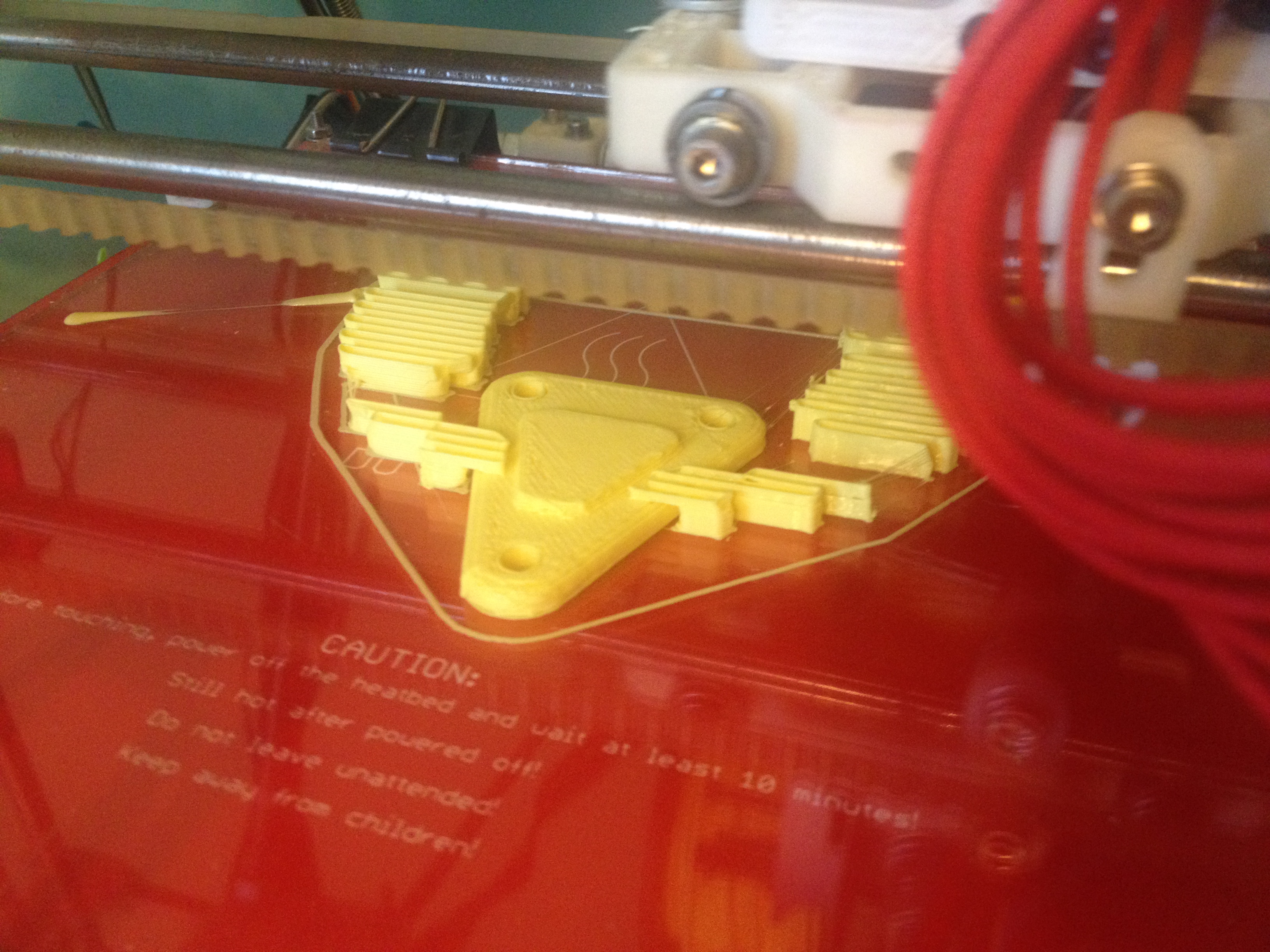

As you can see in that last picture, the ends of the hook didn’t come out that great, so I tried printing it again, this time with support material.

IMG_7428

IMG_7431

IMG_7433

IMG_7434

IMG_7435

IMG_7437

IMG_7438

I also printed two parts of my quadcopter that I’d previously printed with clear PLA. If they were stronger I’d use those, and if the same, they’d act as a spare.

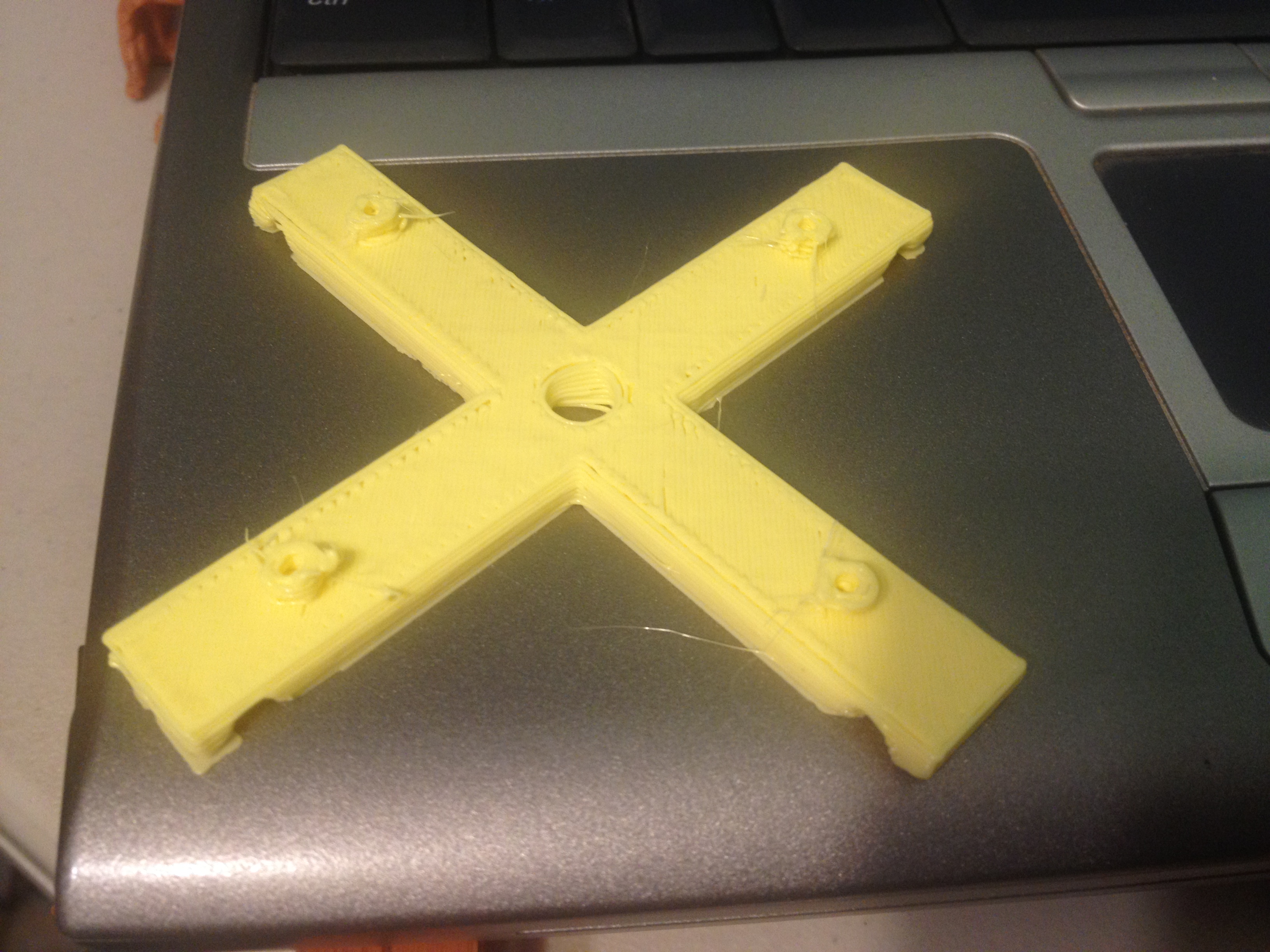

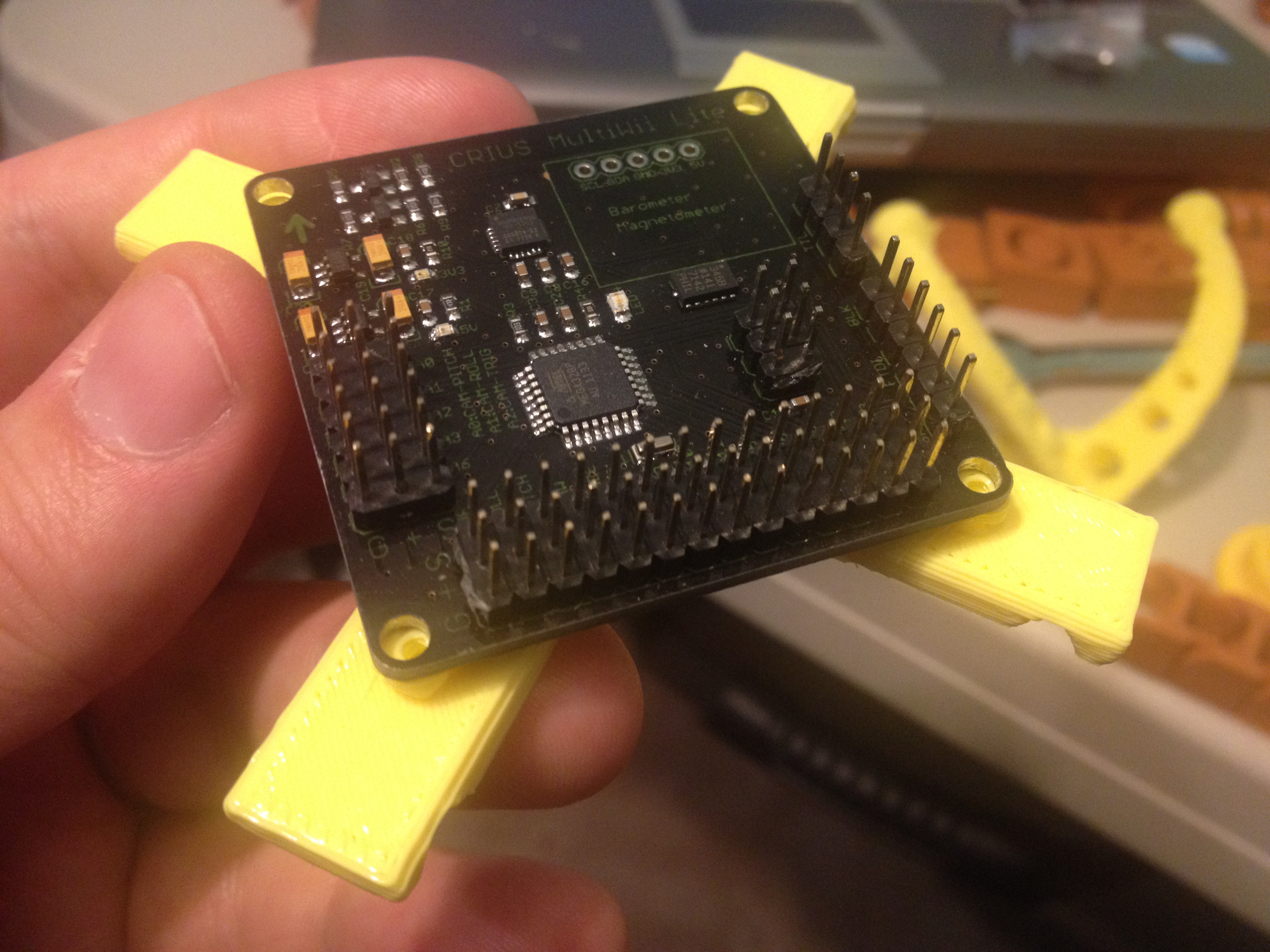

Here’s the mount for the electronics (body part 2):

IMG_7461

IMG_7466

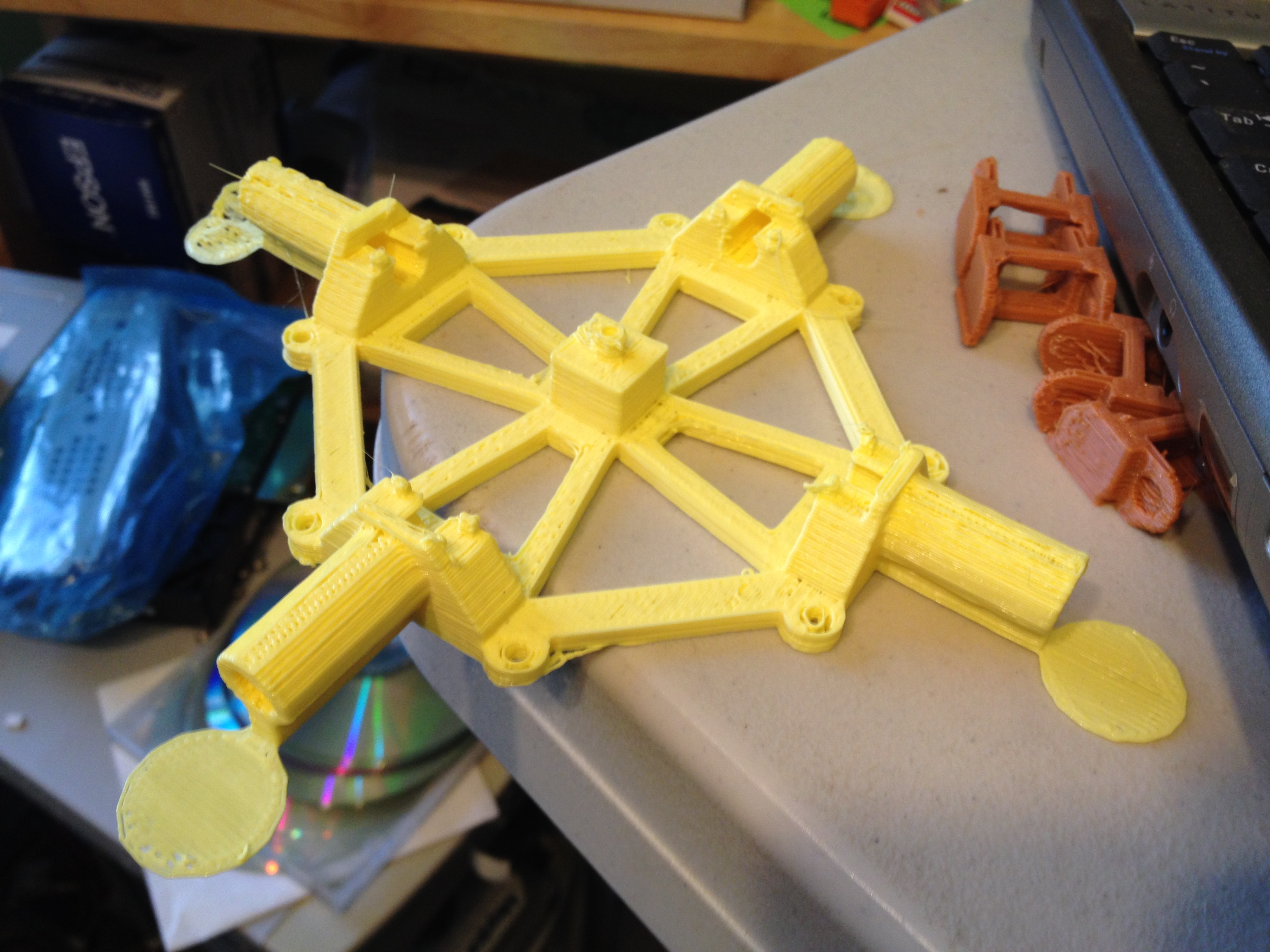

Here was the center base of the quadcopter (body part 1):

IMG_7470

…and here is the electronics mount in place over the center base:

IMG_7471

Clip, xbox one smartglass mount, End pieces for cable chain – February 22, 2014

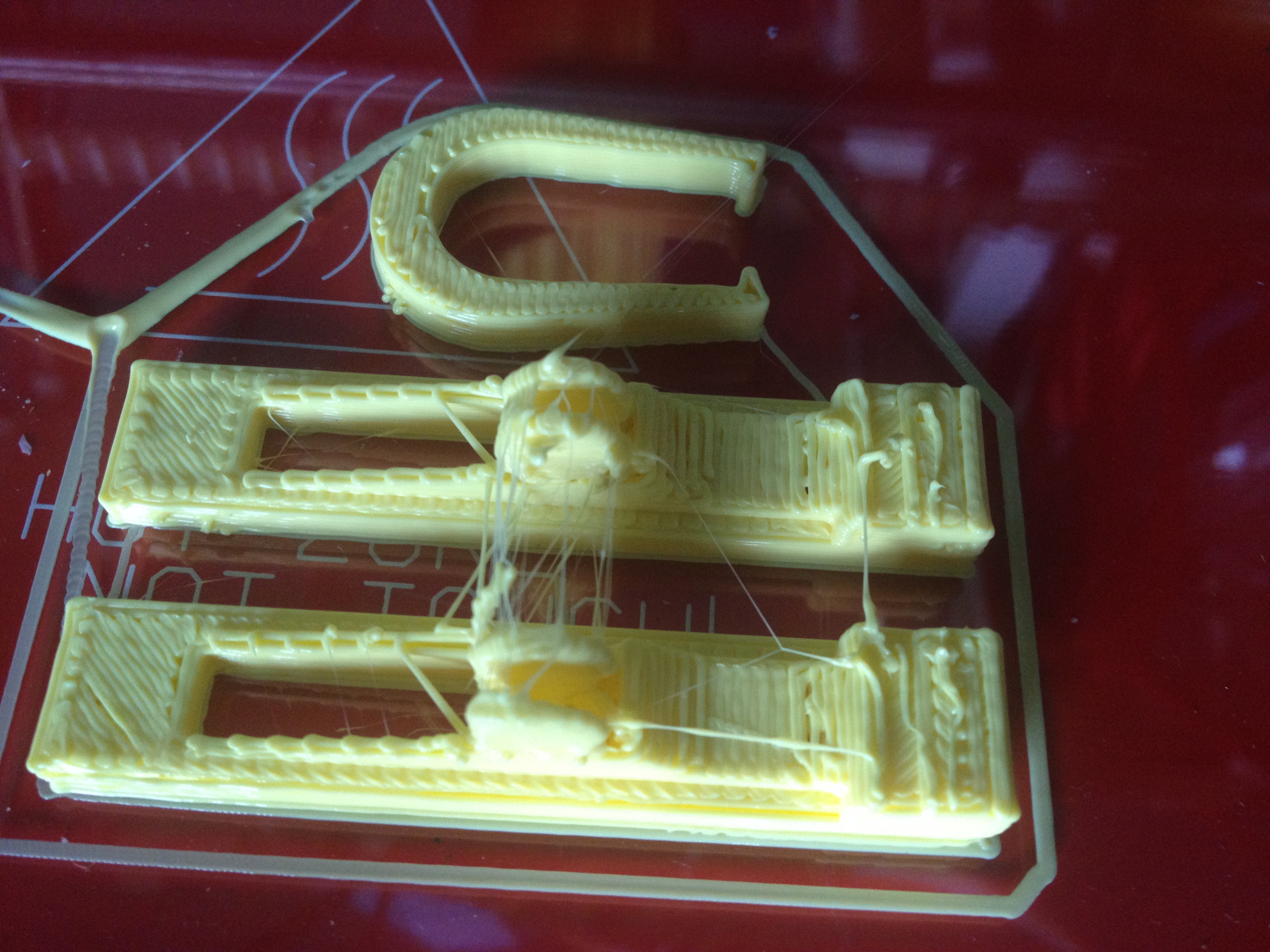

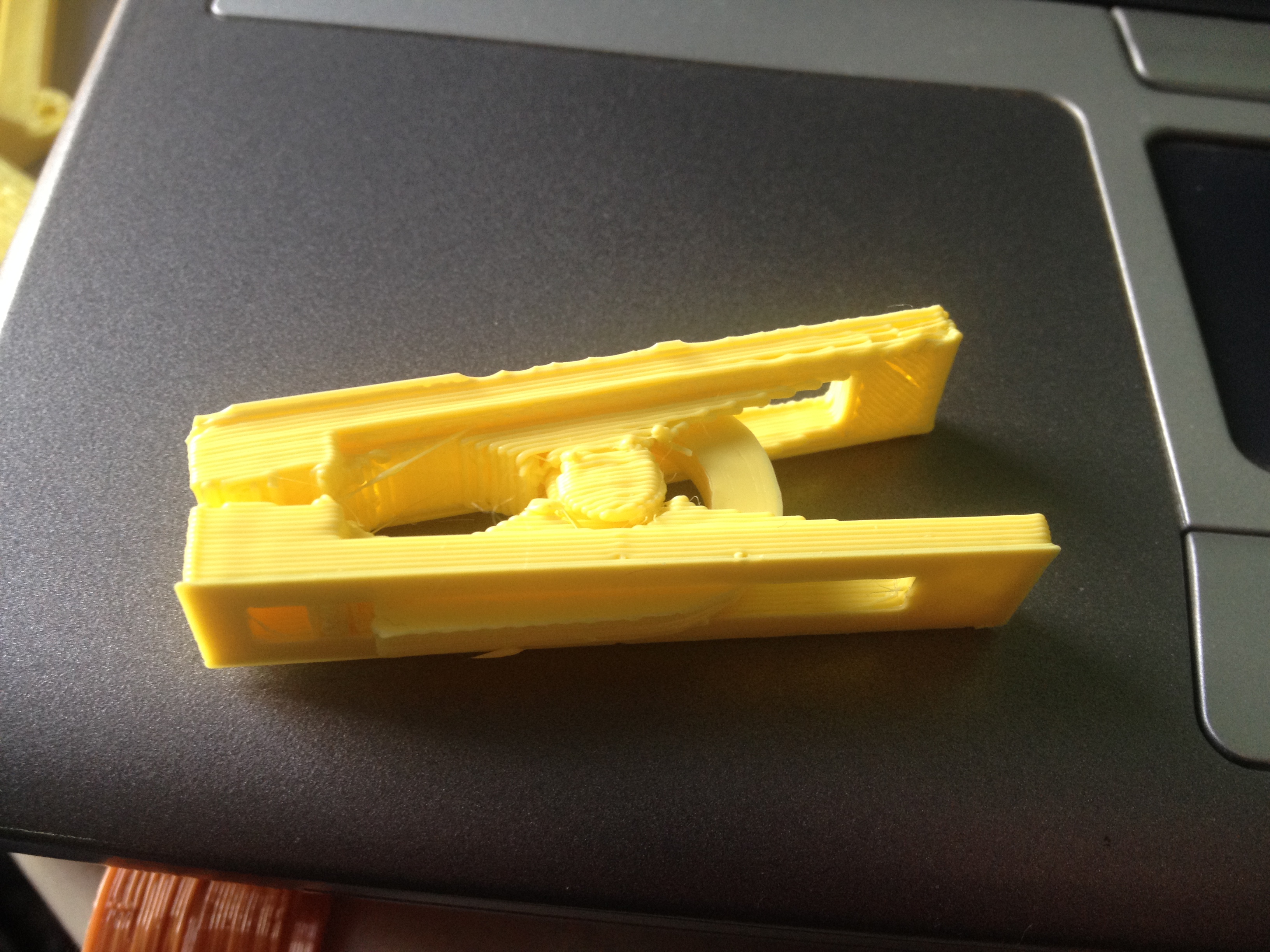

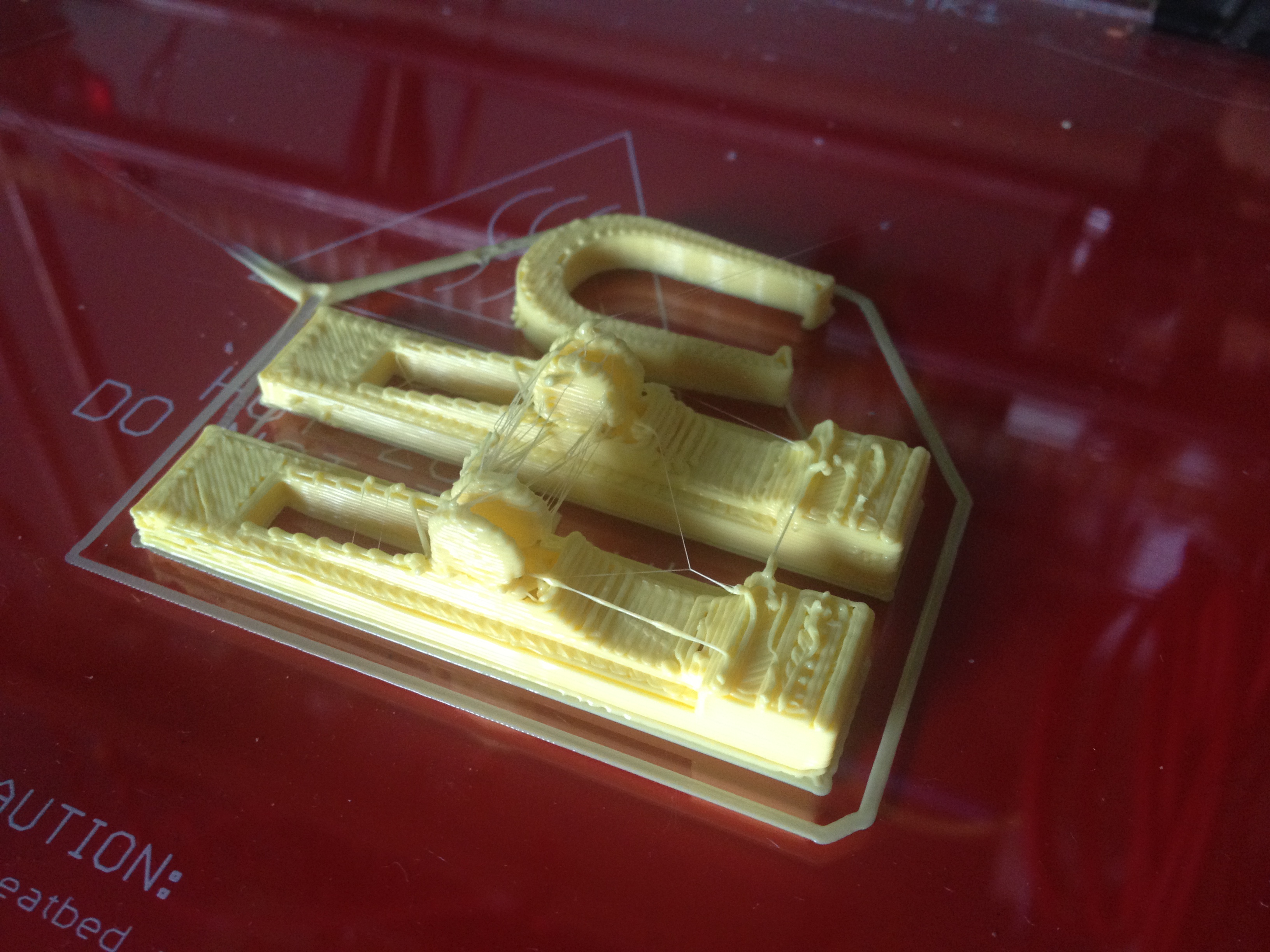

I tried three things this day. The first was a Clip. I was curious to see if this would work. It almost/sorta did. It wasn’t incredibly strong, but it did have a springy clip behavior, as it was supposed to:

IMG_7473

IMG_7474

IMG_7475

IMG_7476

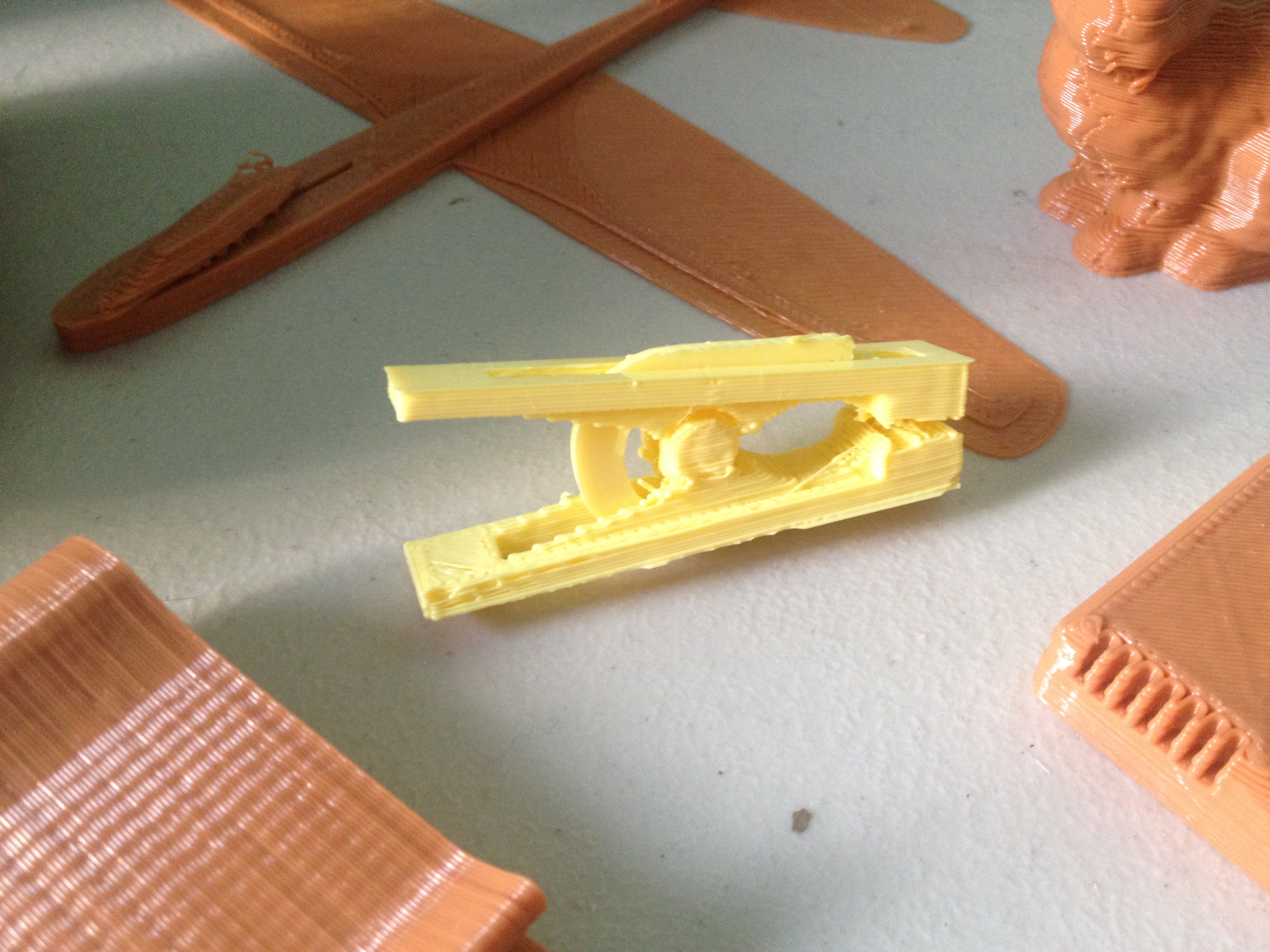

IMG_7477

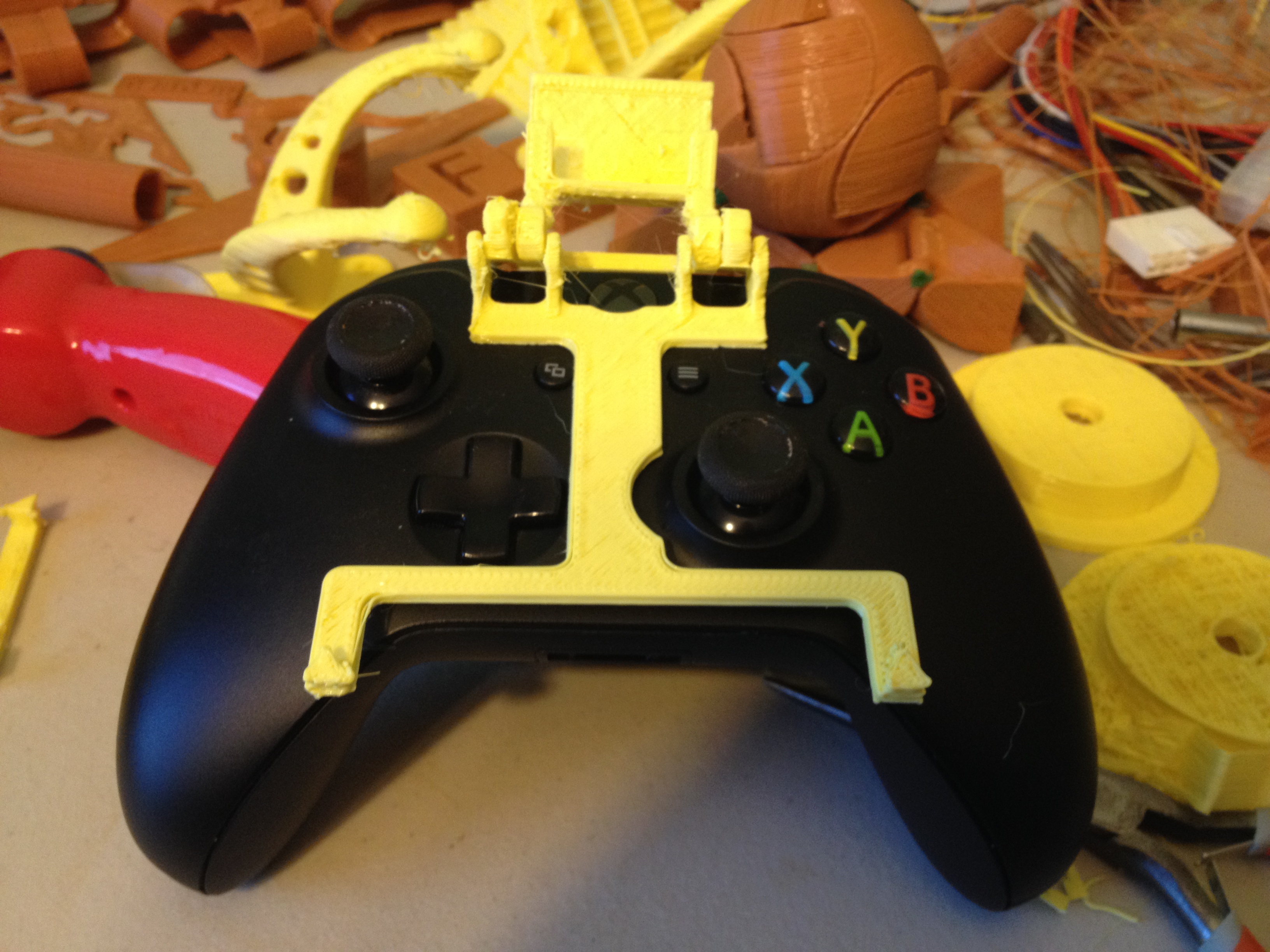

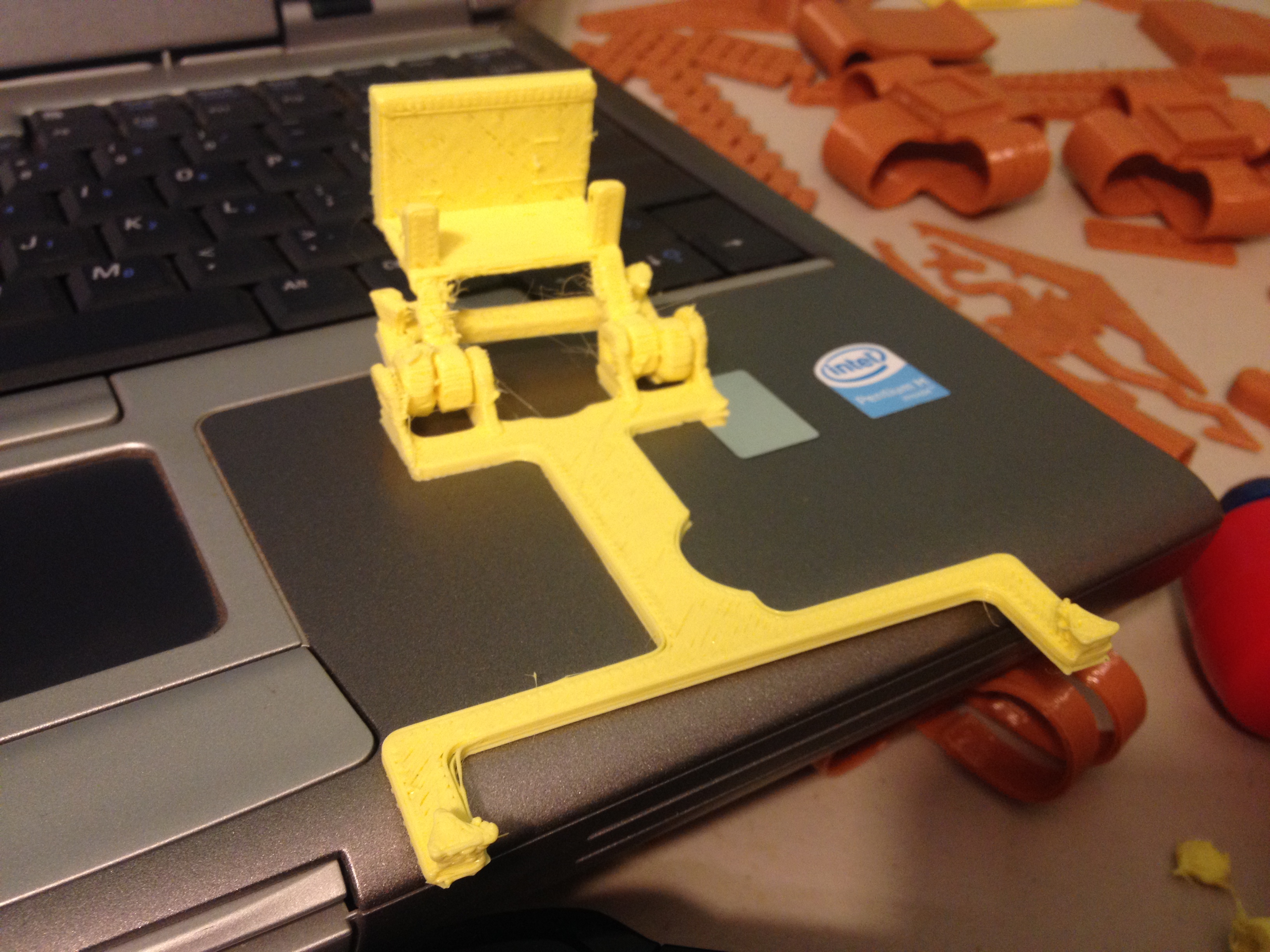

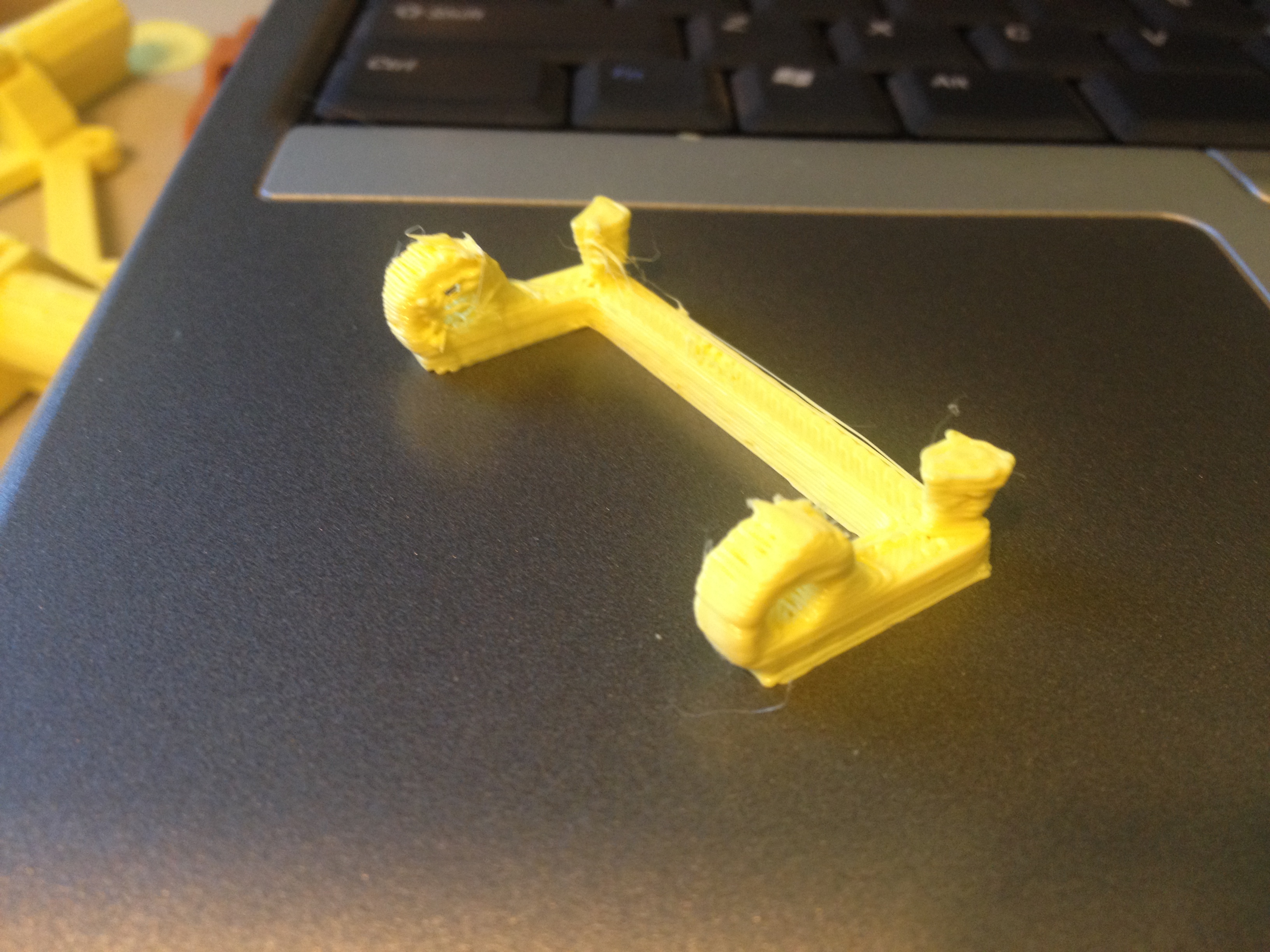

Next, I saw someone had made a mount to hold your smartphone over your Xbox One game controller, so you could run the SmartGlass app and have an alternate display for your controller. I tried printing that, the xbox one smartglass mount:

IMG_7481

IMG_7499

IMG_7500

IMG_7501

IMG_7503

IMG_7502

Eh.. My prints of it weren’t the strongest, so I never ended up actually using it.

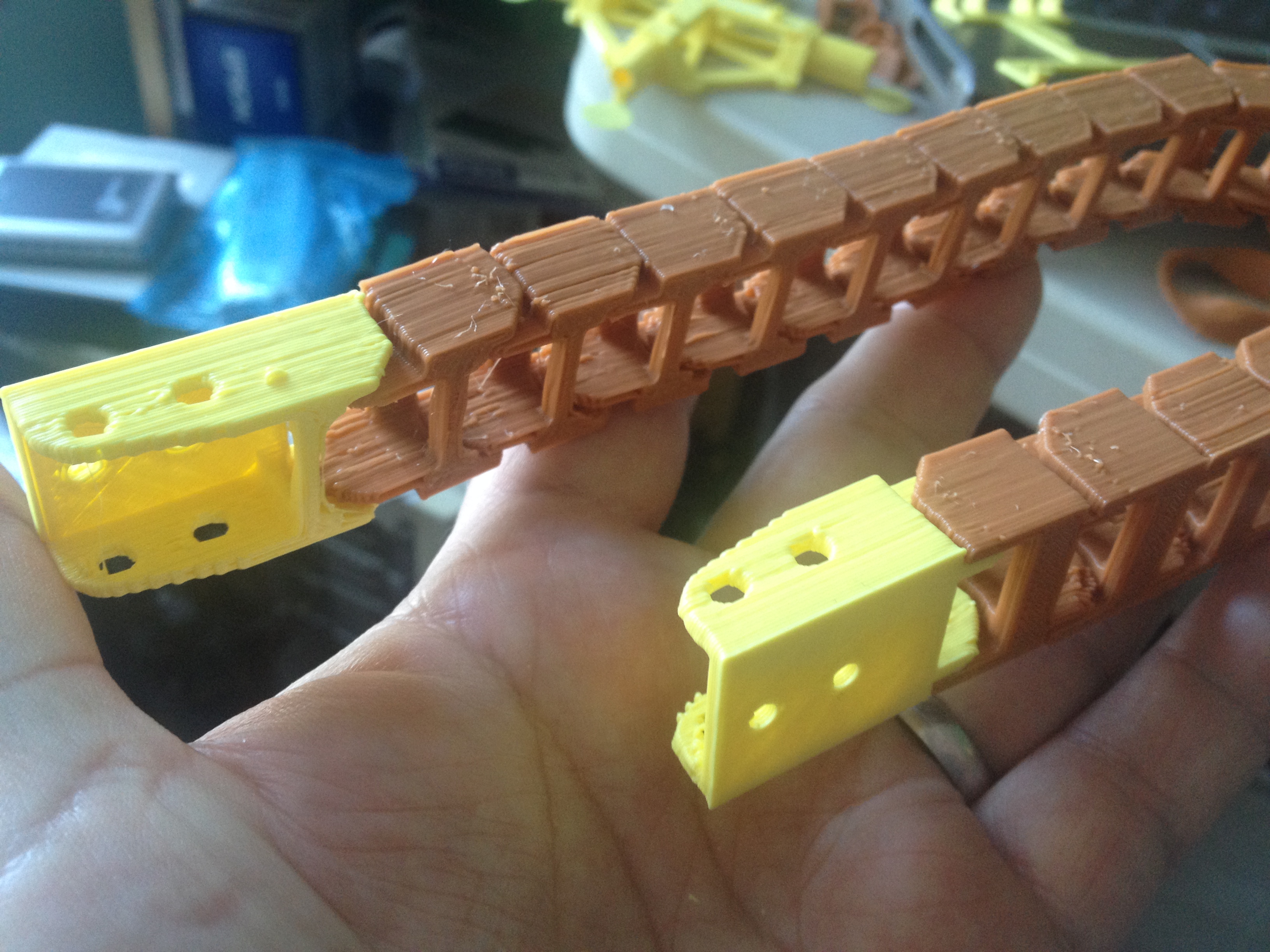

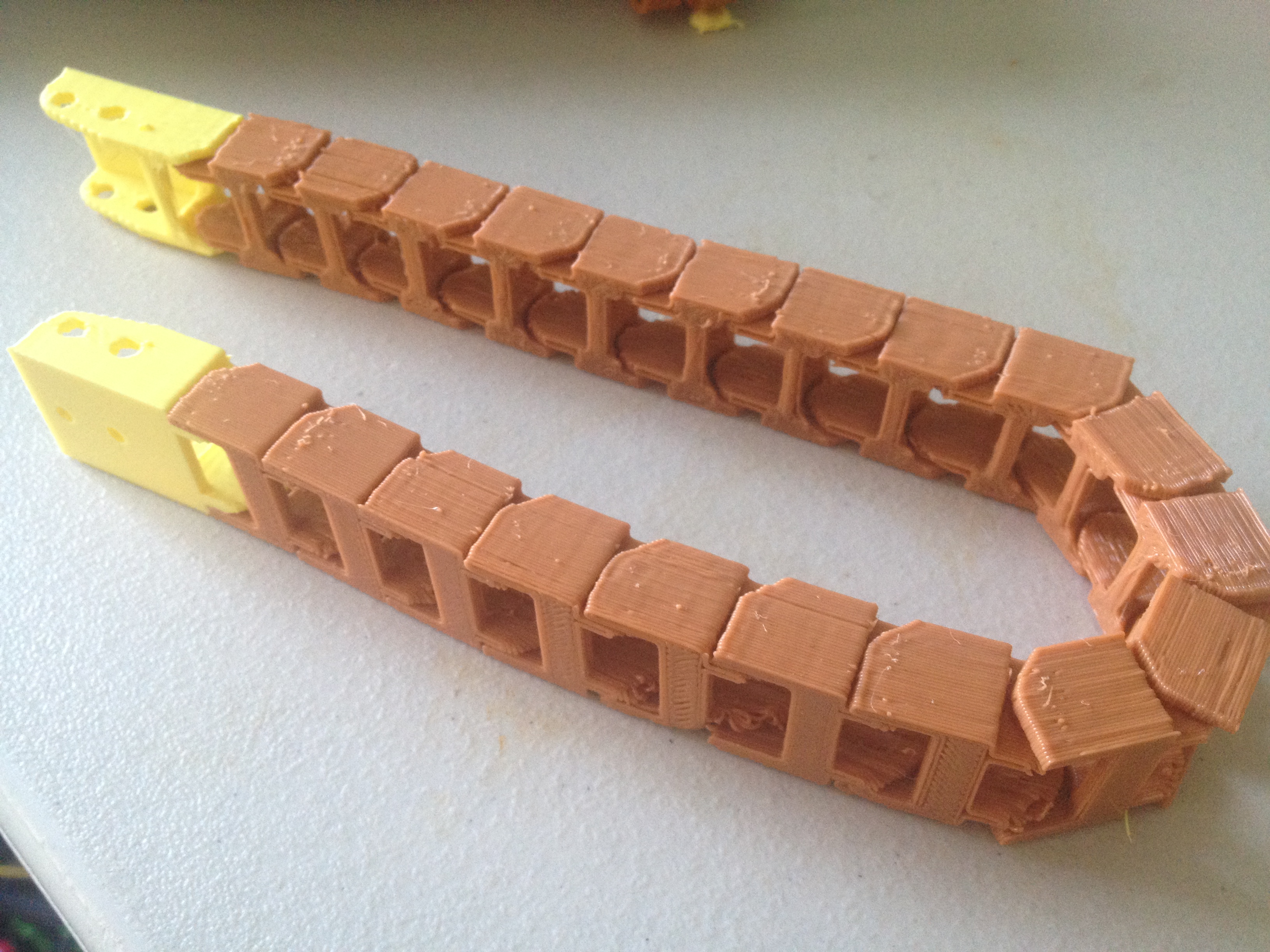

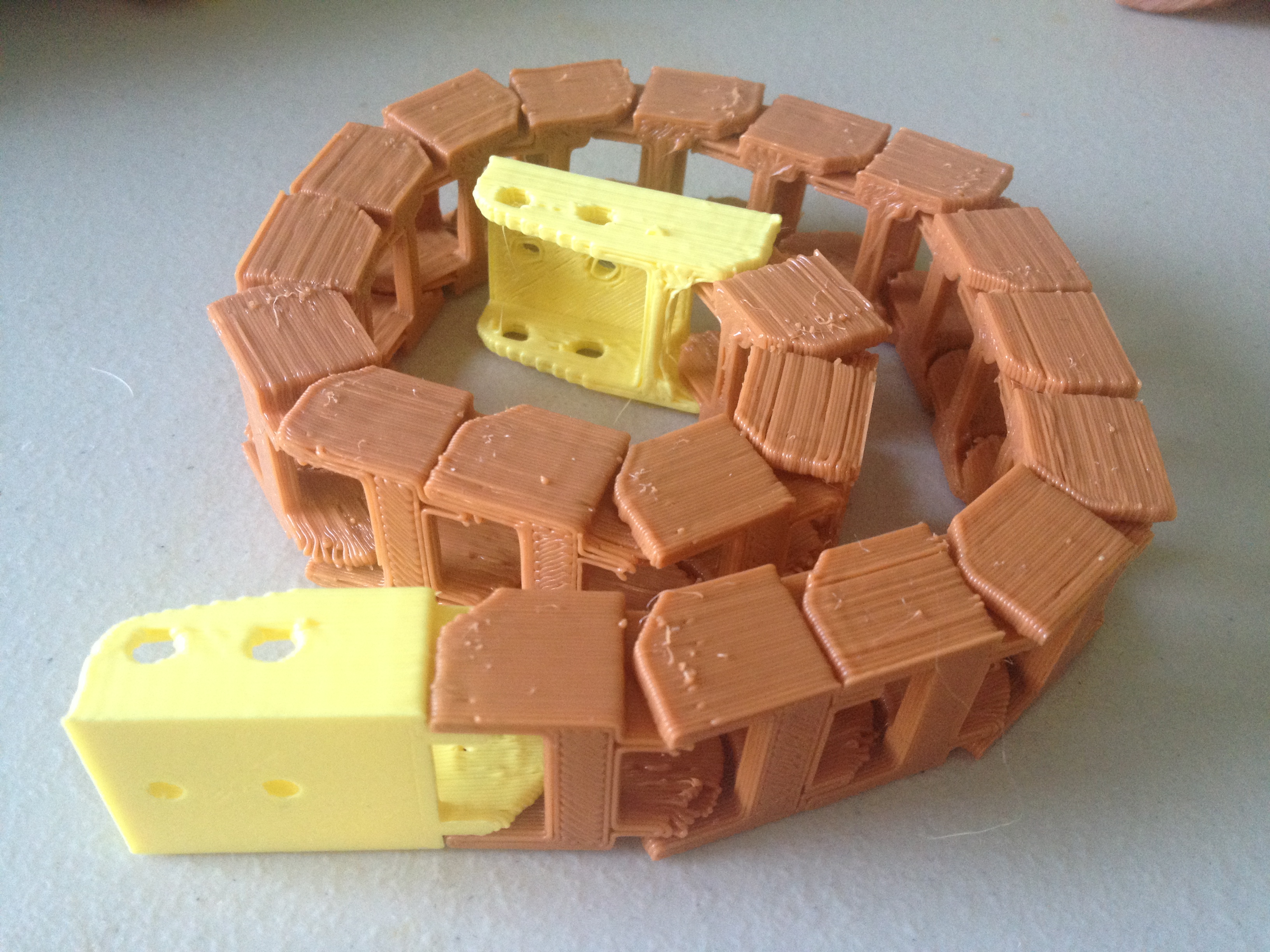

And I also printed end pieces to the Cable Chain I’d printed previously. Here they are, along with all of the pieces of the Cable Chain that I’d snuck in over the past 9 days:

IMG_7486

IMG_7484

IMG_7489

IMG_7493

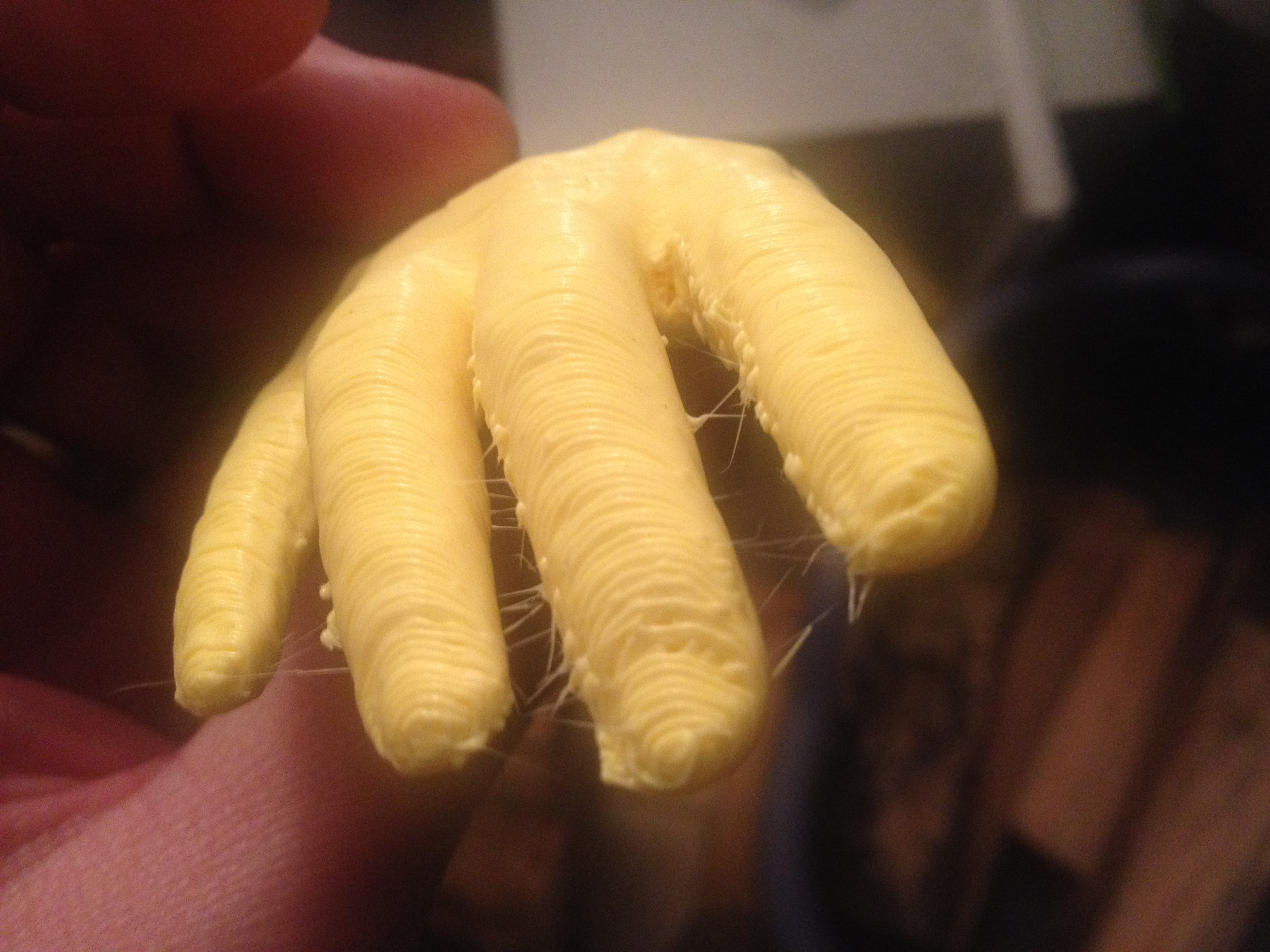

Talk to the Hand (maybe too tall?) – February 23, 2014

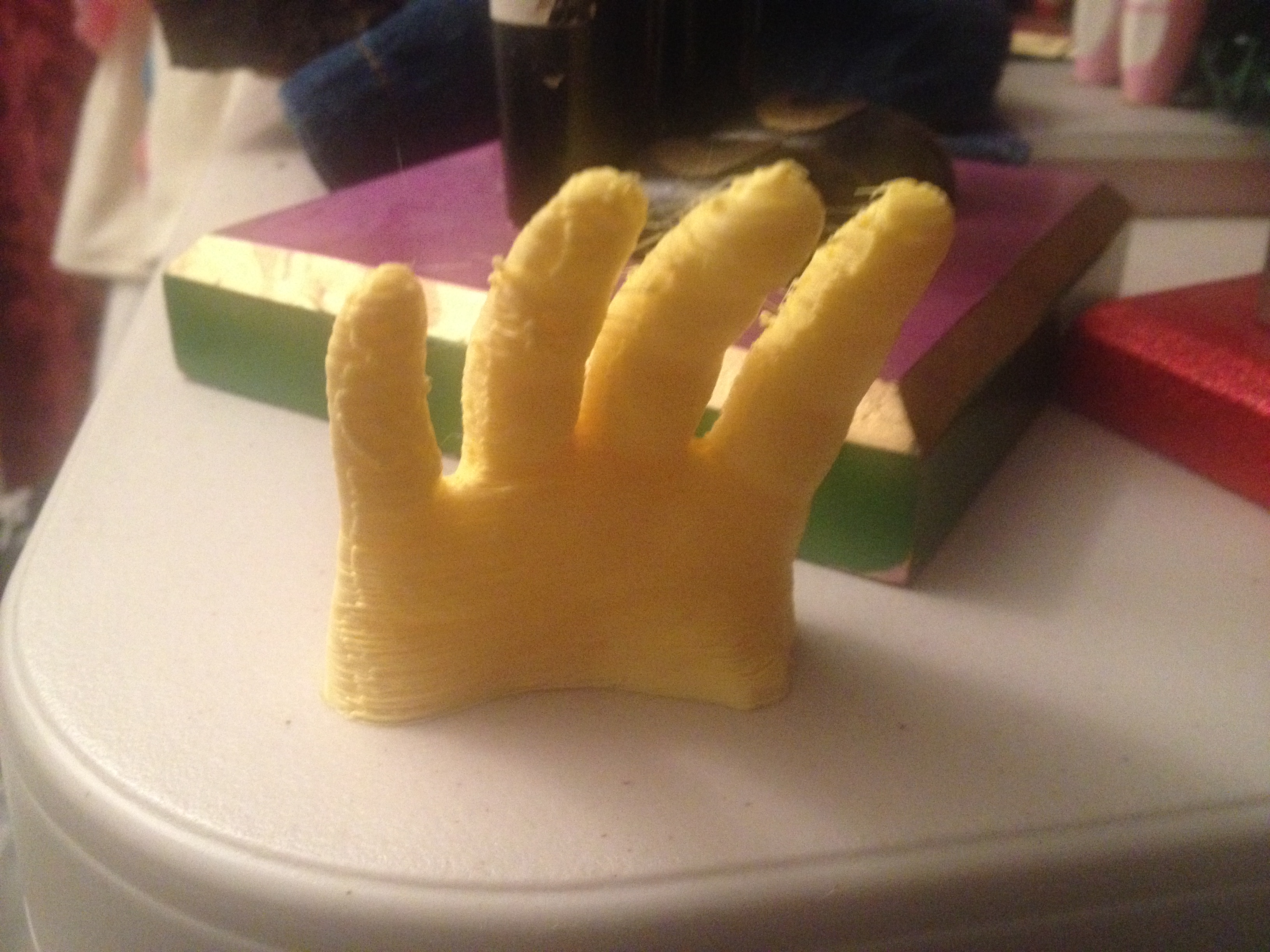

I love this next print – Talk to the Hand – Flat base. I saw Chris Connelly print one of these at Makerfaire five months earlier (his was larger), and it was flat out creepy (it triggered something in the mind about recognizing a person).

IMG_7534

IMG_7535

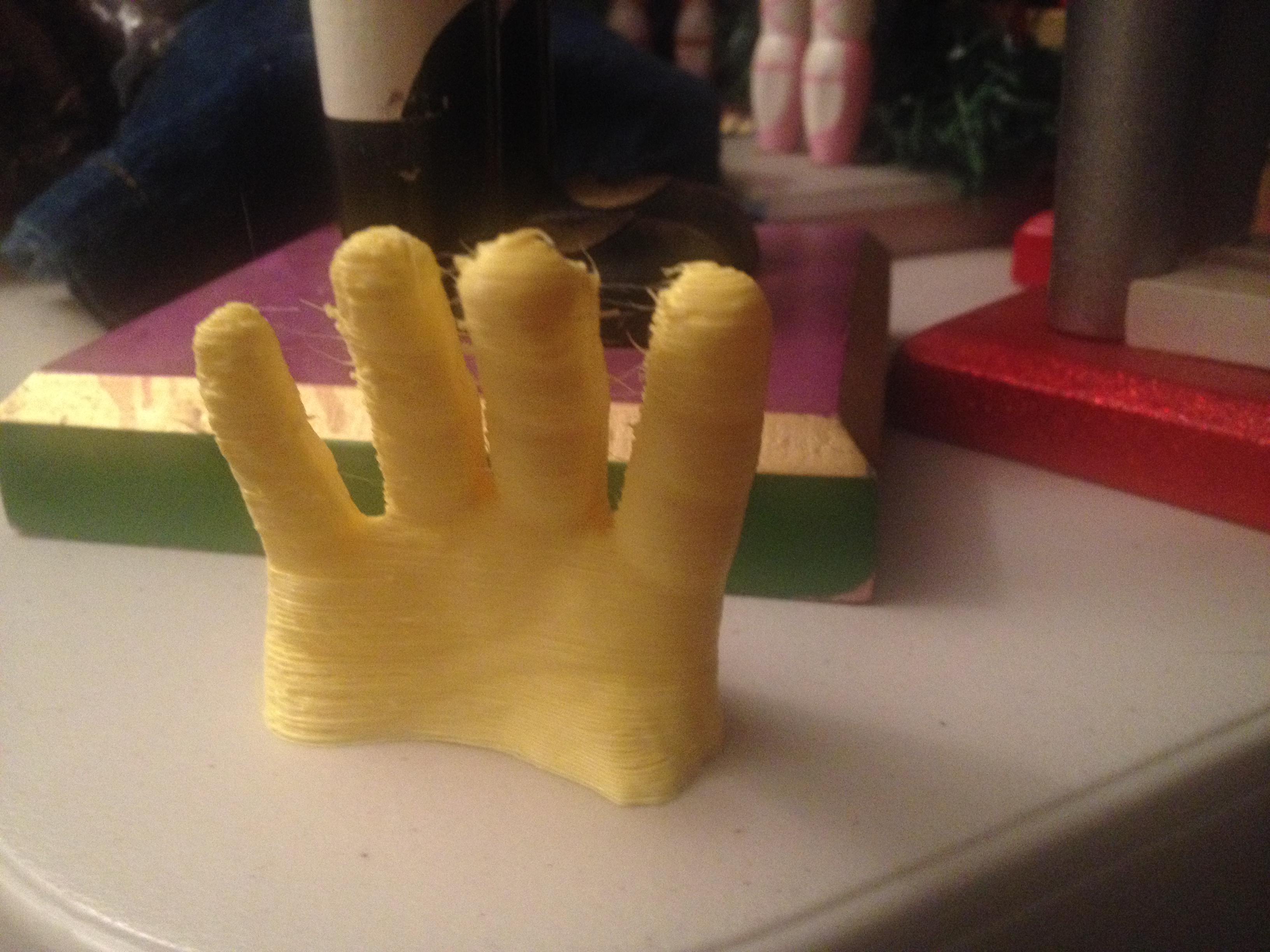

IMG_7536

IMG_7532

IMG_7533

…and here’s a picture that betrays how small my version of that print really is:

IMG_7530

Thing1 – February 24, 2014

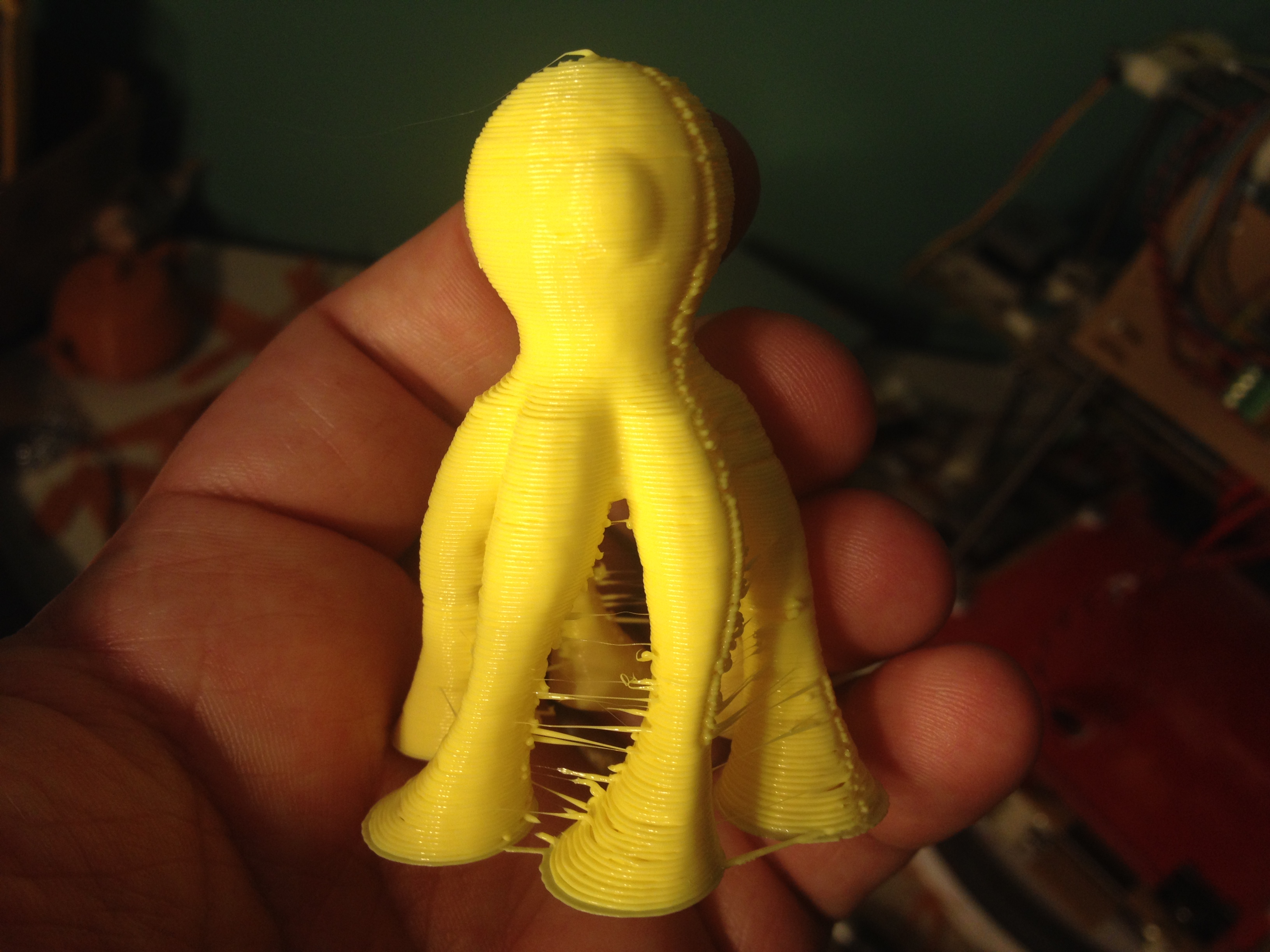

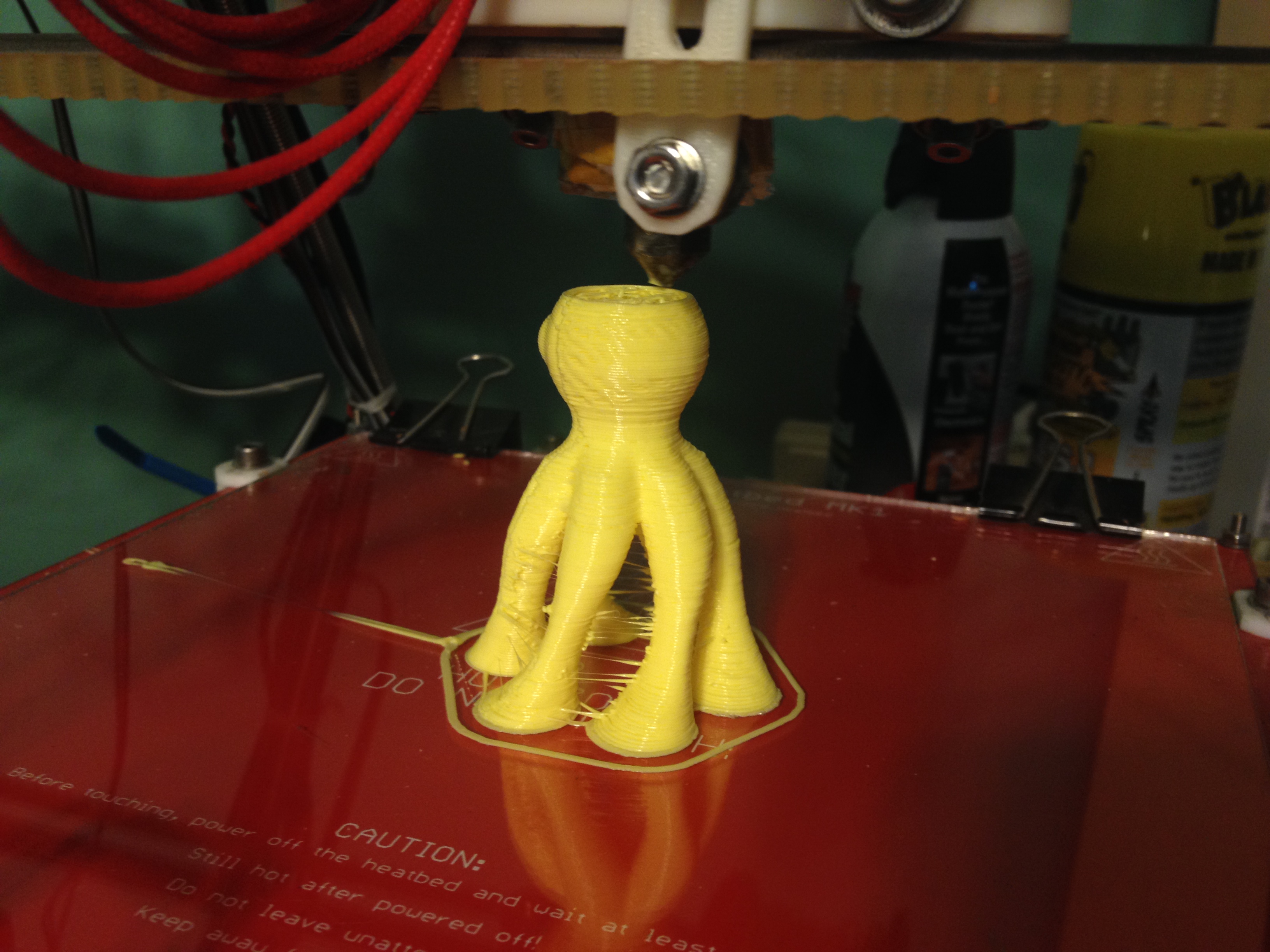

Here’s a little eyeball-monster called Thing1 that I’d seen people printing before (I think I had printed one of these at the end of Makerfaire five months prior to this):

IMG_7546

IMG_7553

IMG_7552

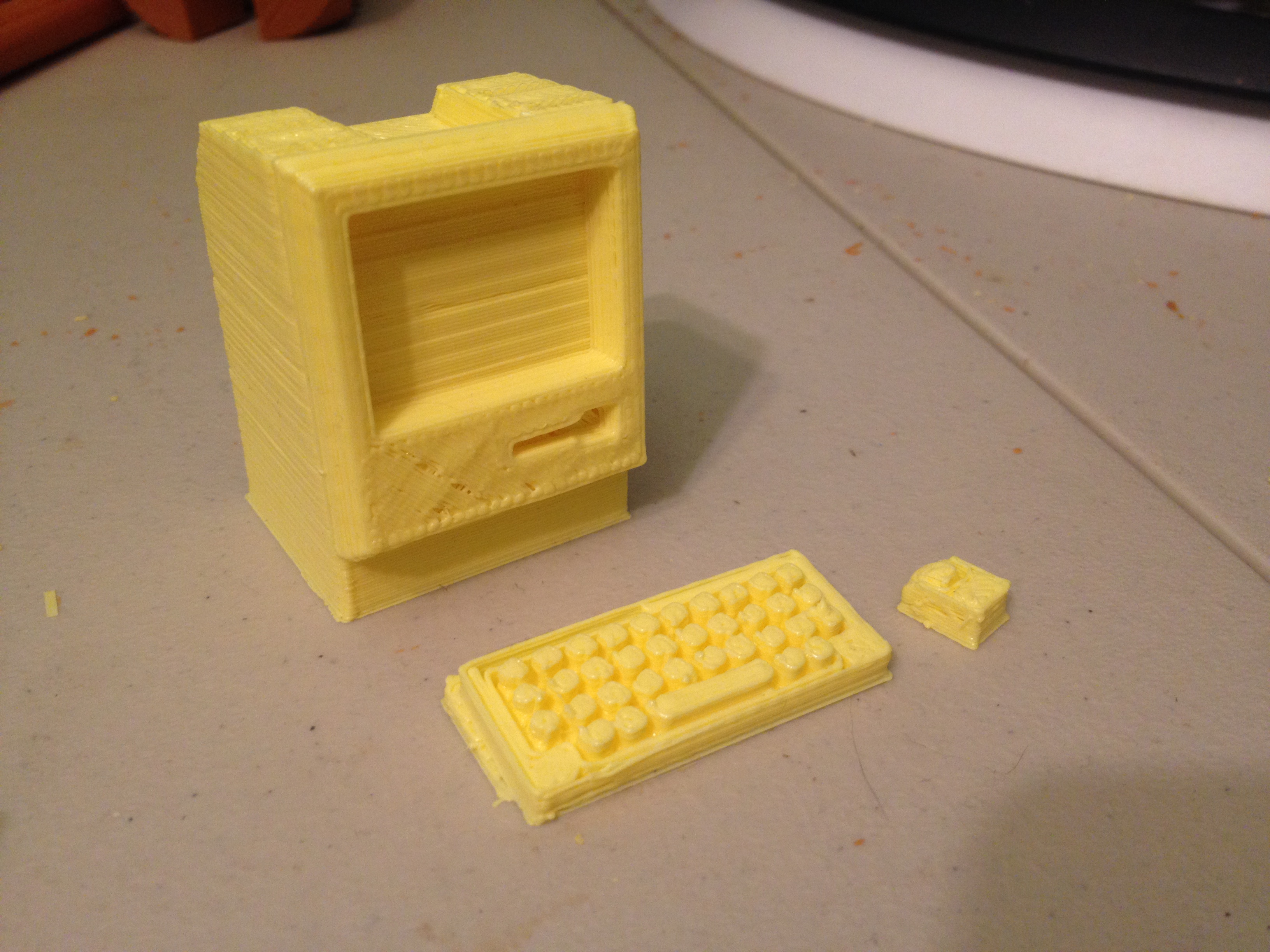

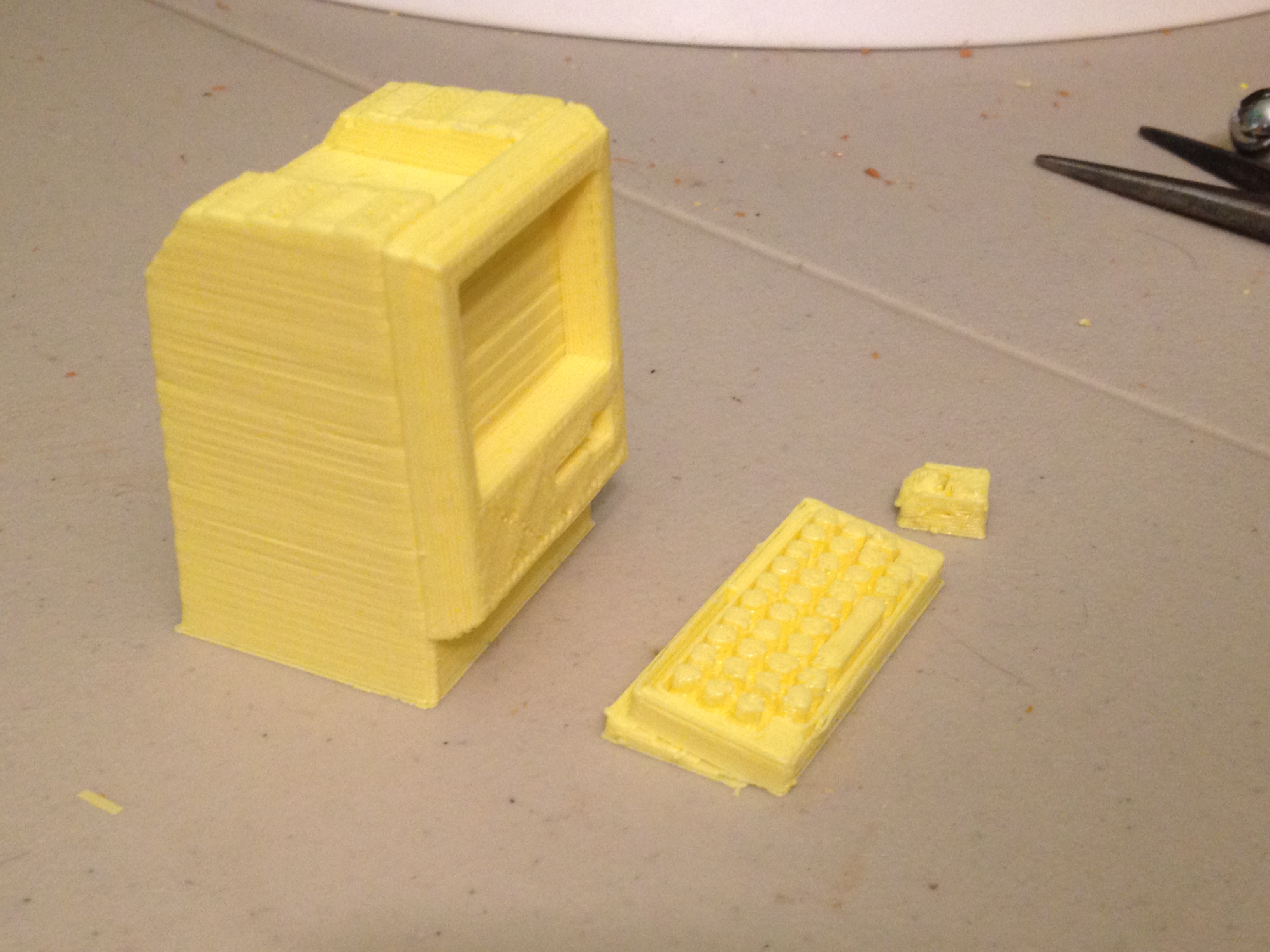

Mini Apple Macintosh – February 25, 2014

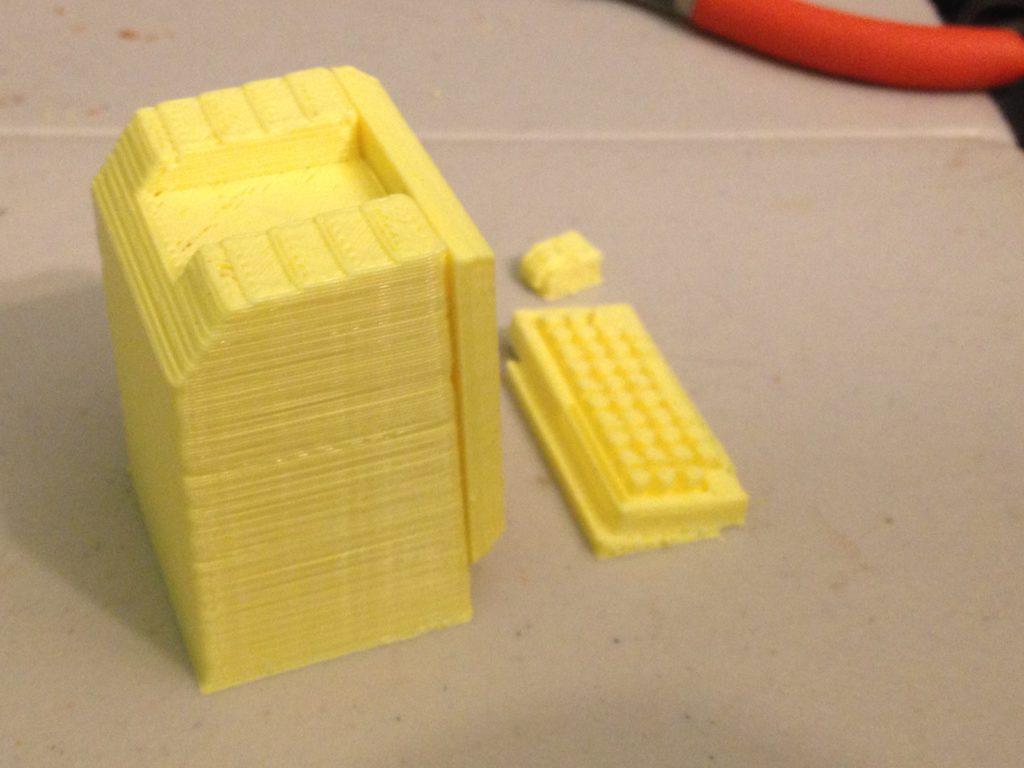

Like the Apple II before it, I printed out another one of the computers I’ve owned – a Mini Apple Macintosh:

IMG_7577

IMG_7576

IMG_7570

(There were little screens and logos you could print out on a paper printer and tape them on.. I did print them, but never got around to attaching them and taking a picture).

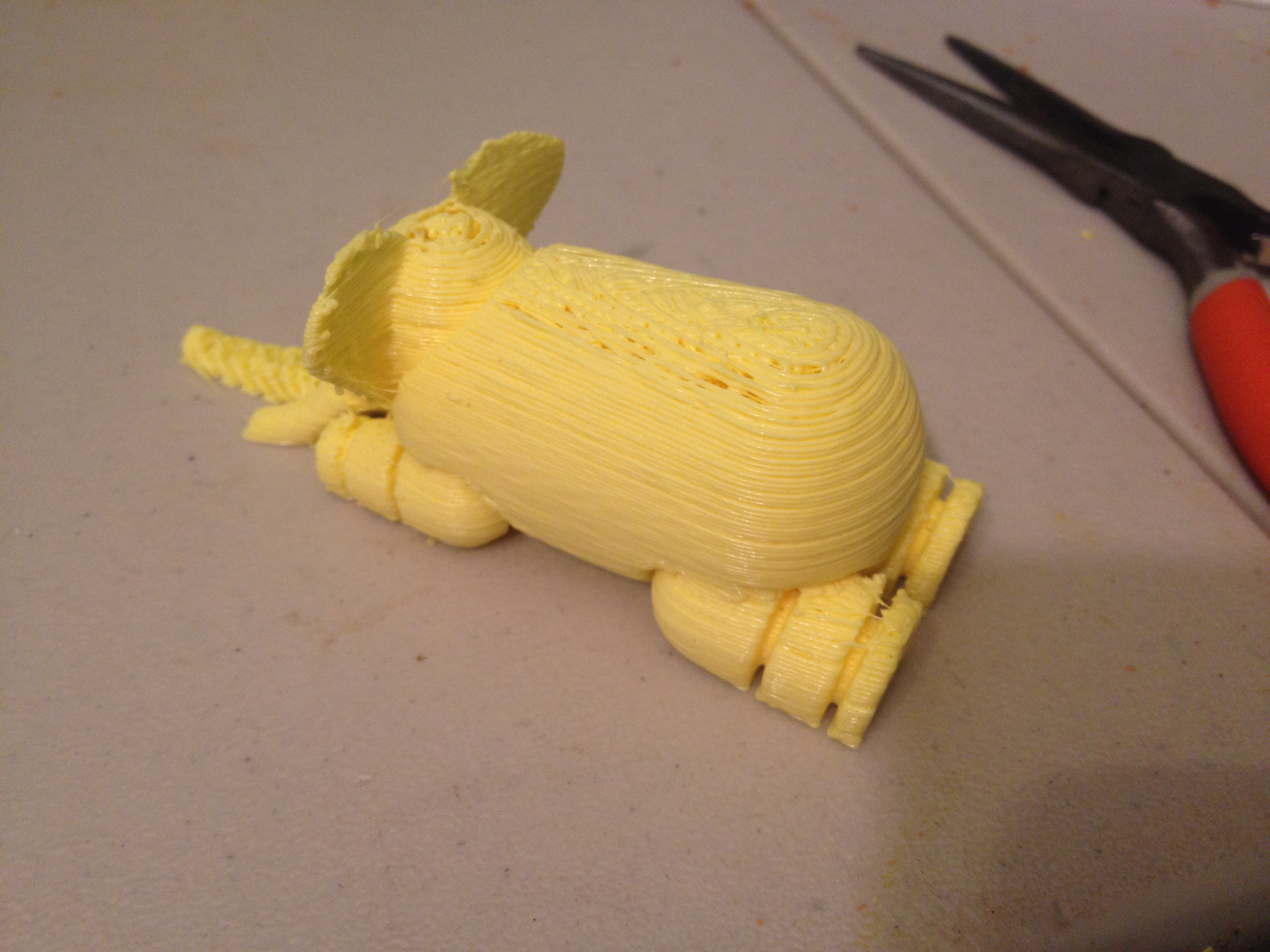

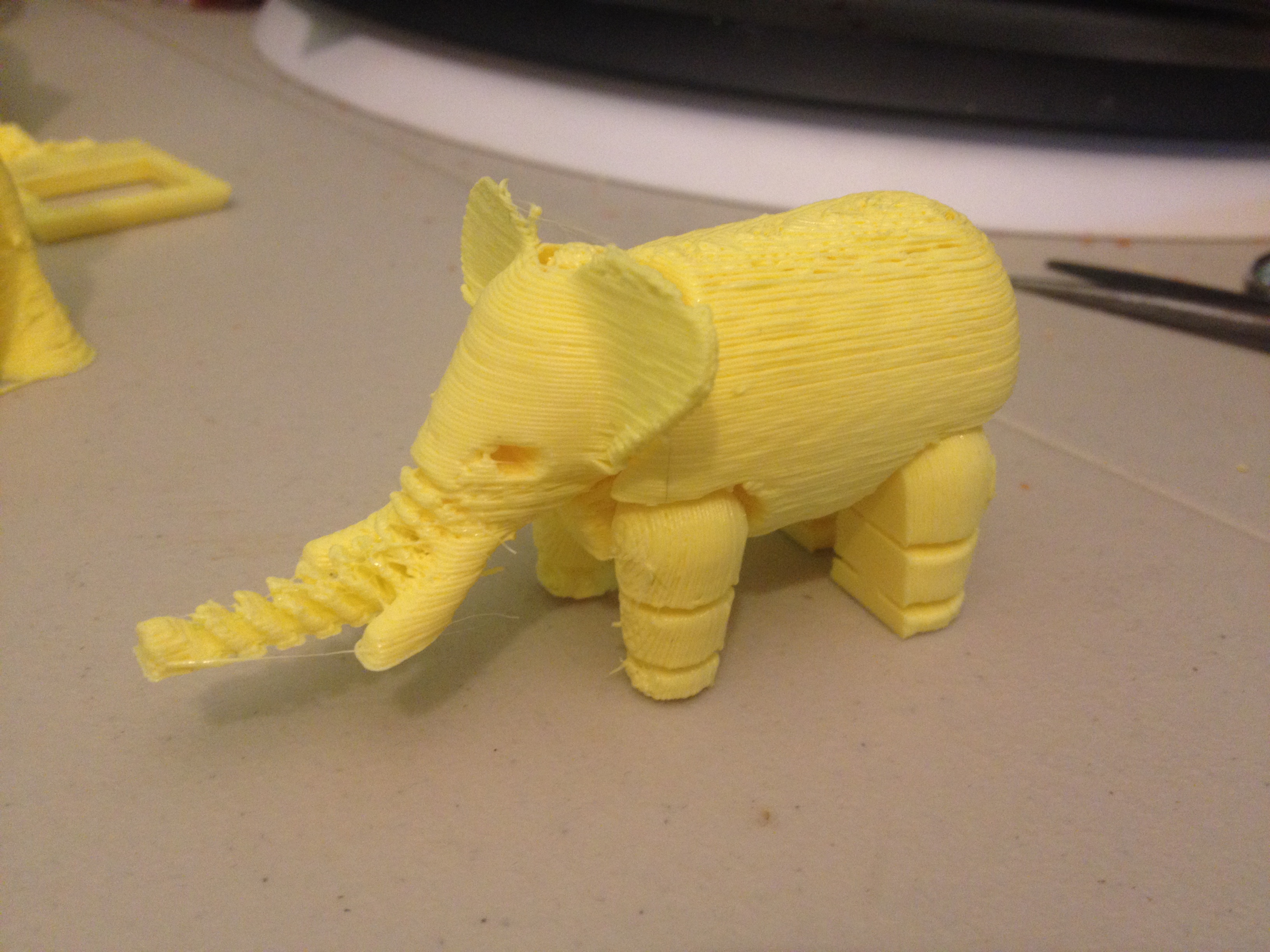

Elephant (LFS_Elephan.STL) – February 26, 2014

I like how this one started out:

IMG_7580

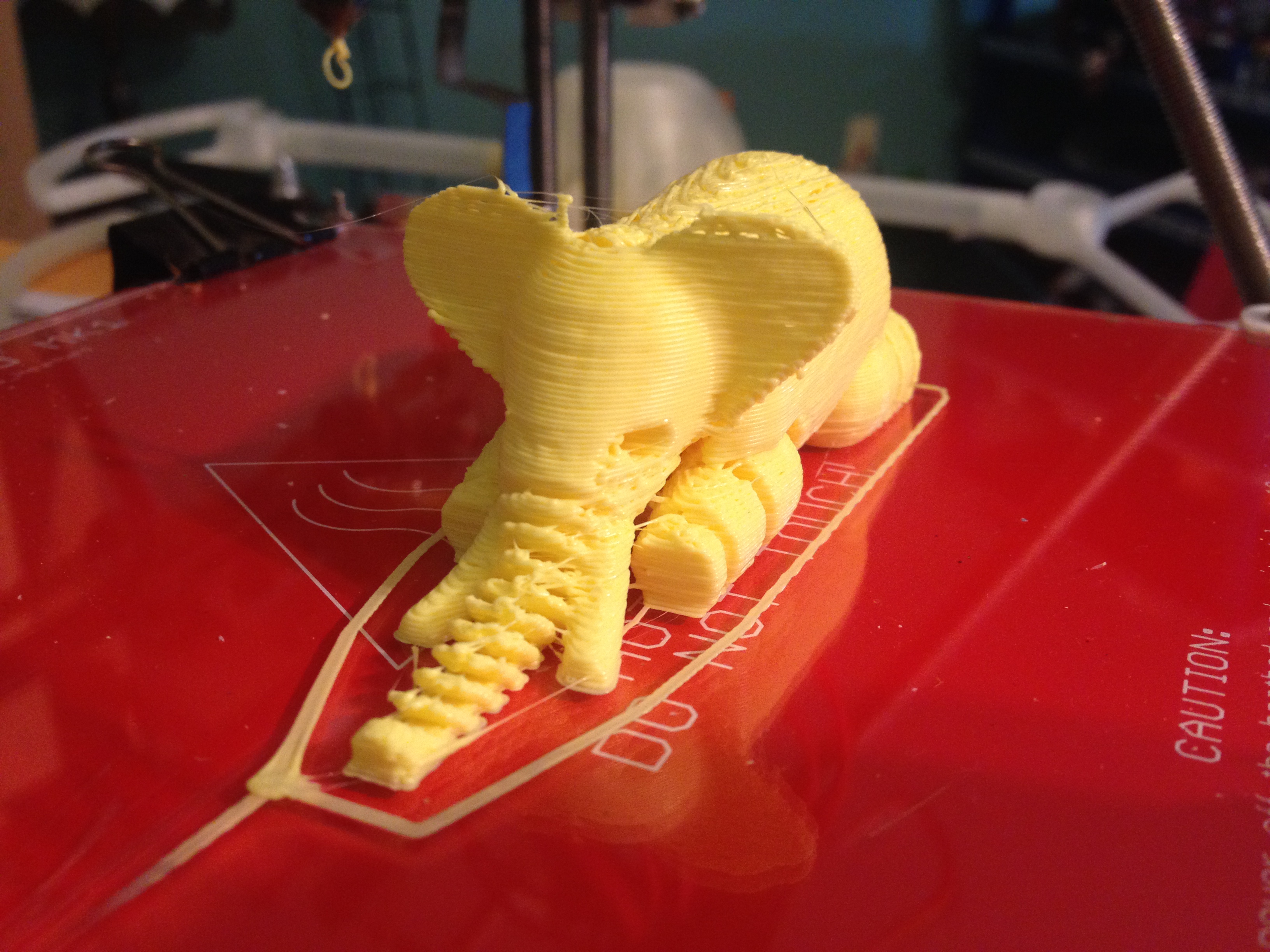

It’s an Elephant..

IMG_7581

IMG_7584

IMG_7582

IMG_7586

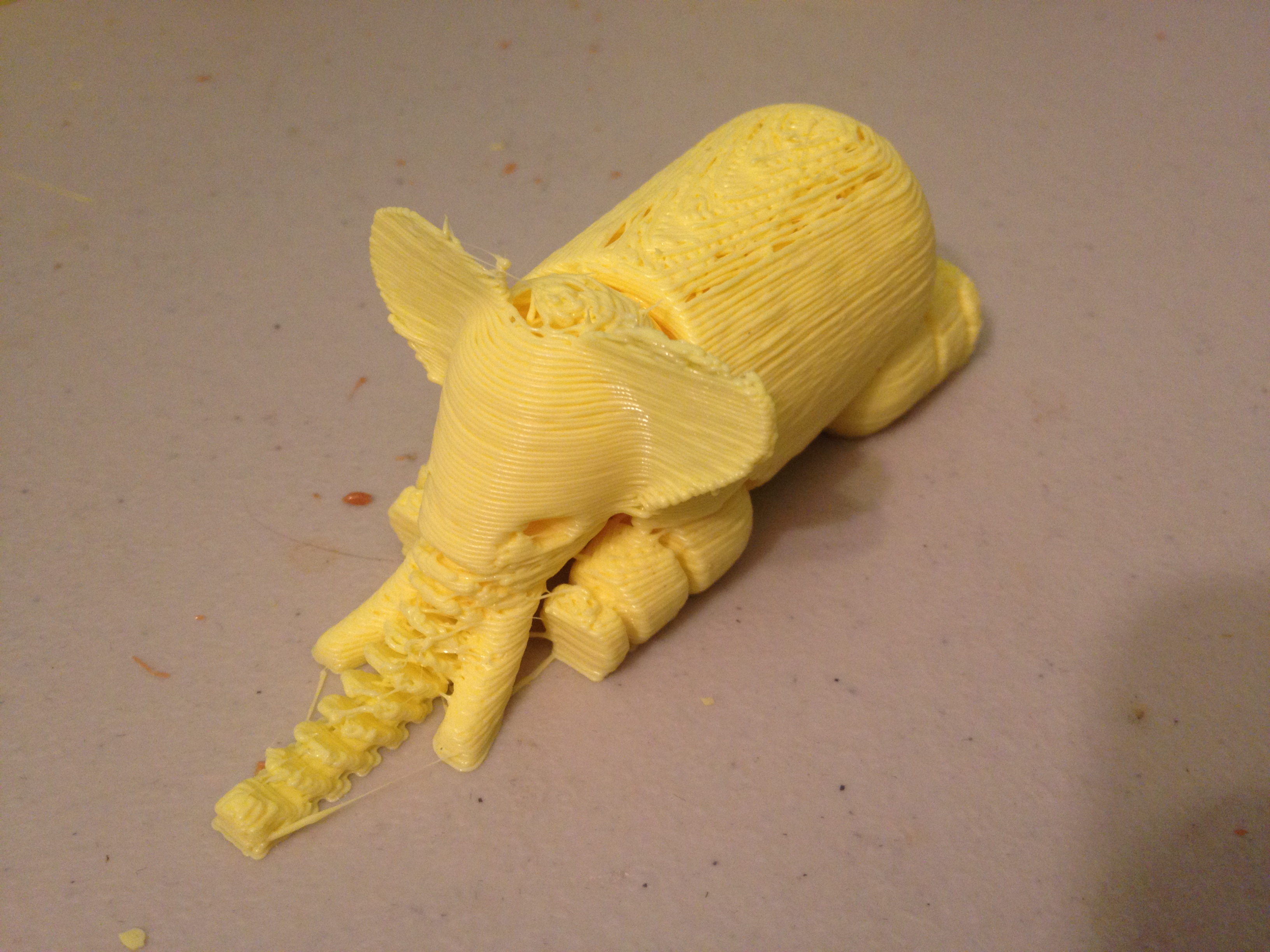

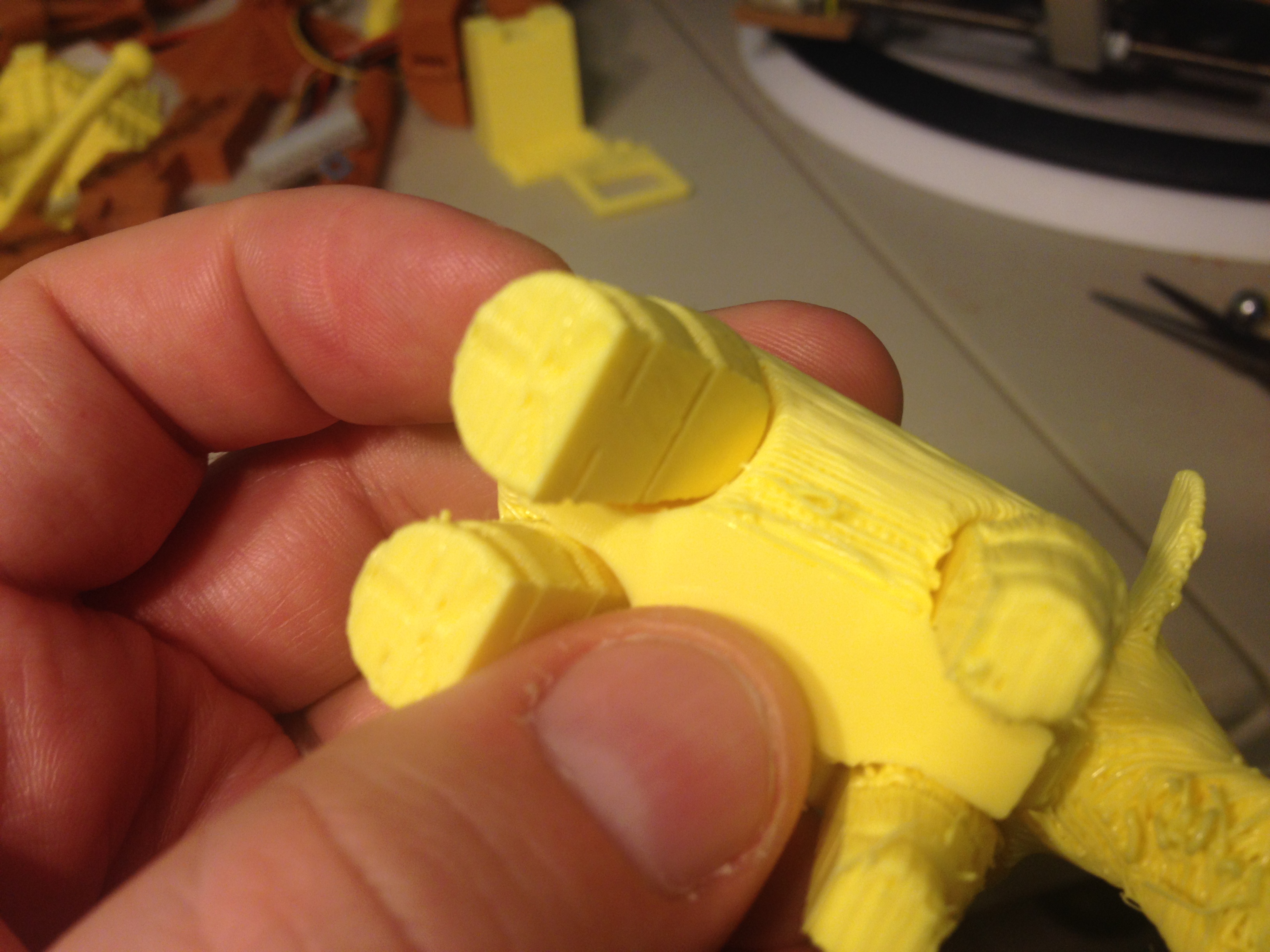

The leg joints are printed such that they can actually move. This allows the elephant to stand up, even though it was printed out lying down.

IMG_7587

IMG_7589

IMG_7592

IMG_7595

IMG_7596

IMG_7597

Bubble Pencil Grip – February 27, 2014

Really close to the end here, I saw a grip for a pencil that I thought I’d try out (even though I could never imagine using it). Here is Bubble Pencil Grip:

IMG_7611

IMG_7615

IMG_7632

IMG_7635

IMG_7636

IMG_7637

Tooth Brush Stand – February 28, 2014

And now, the thing I’ve used most in the past year since that February full of 3D prints.. I use this thing every day: a Tooth Brush Stand:

IMG_7645

IMG_7644

IMG_7646

IMG_7648

IMG_7650

IMG_7654

IMG_7656

Must-watch video to end the month:

That’s it!

It was good having a schedule. It was good motivation to bring my RepRap up from the basement. It was a lot of fun. I highly recommend trying this yourself.

Sadly, it’s February 11th 2015 as I type this, so it’s safe to say I’m not doing #FFo3DP THIS year in 2015 like I did in 2014.. Maybe I’ll do it every other year. But give it a try, post your pictures, and tag them all #FFo3DP! 🙂
